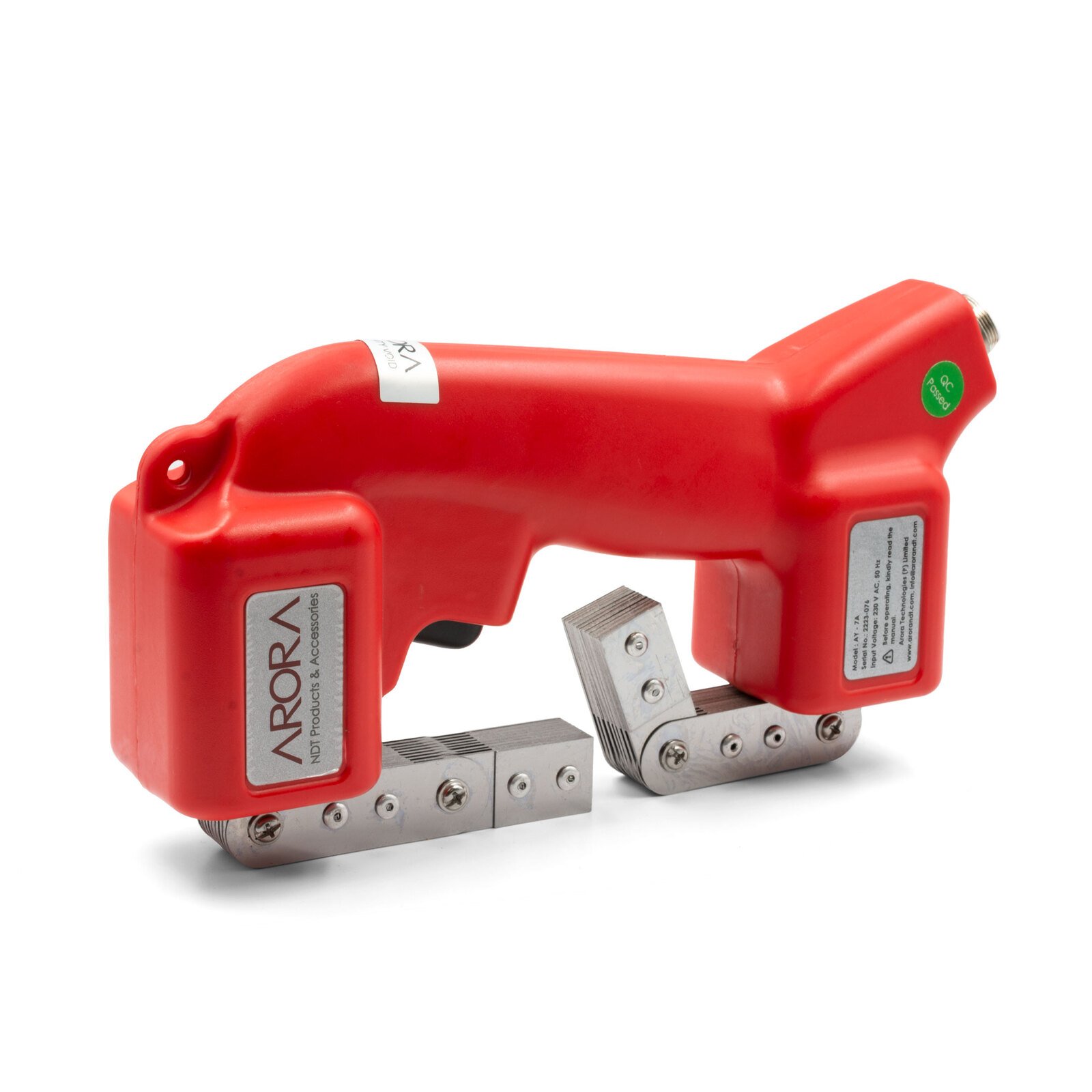

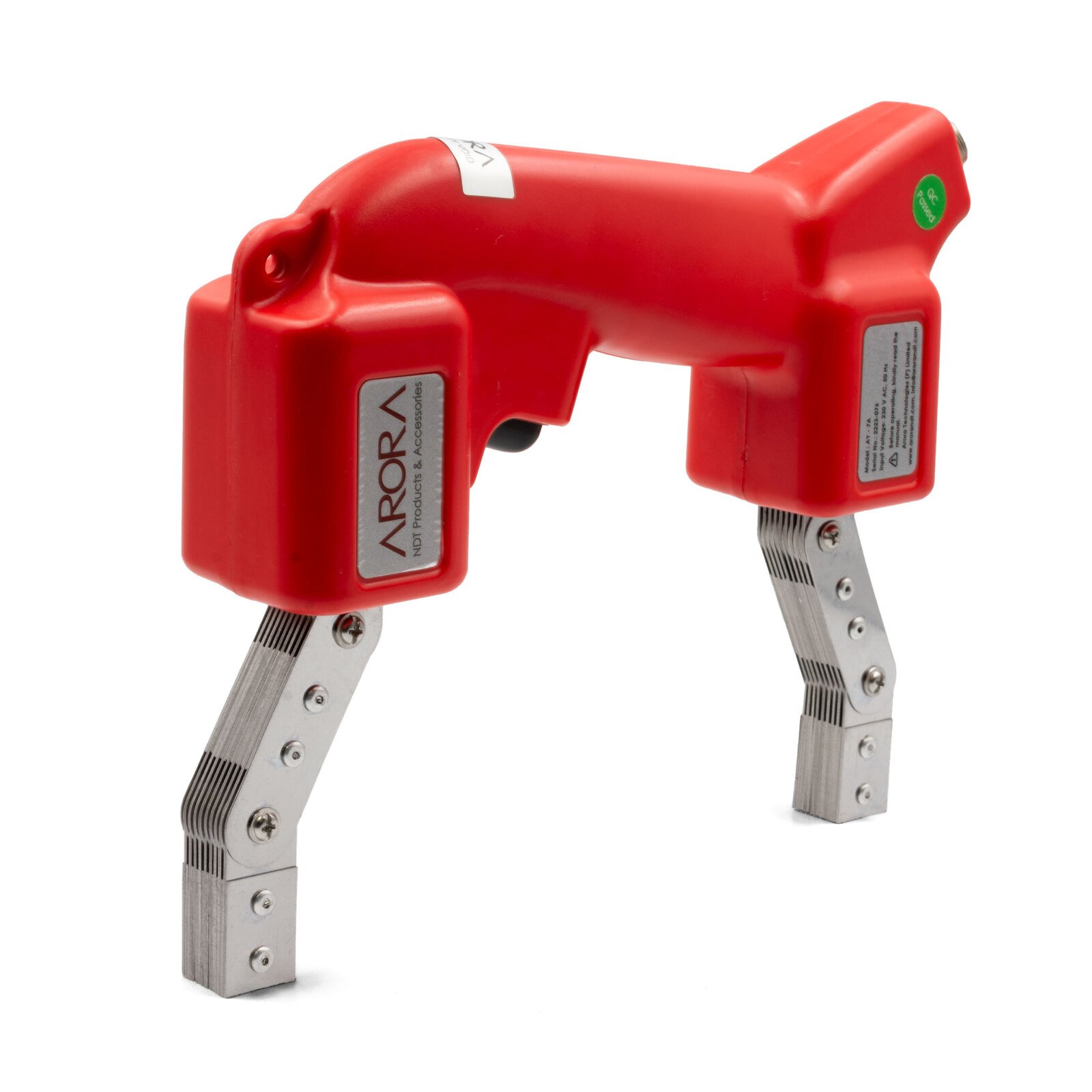

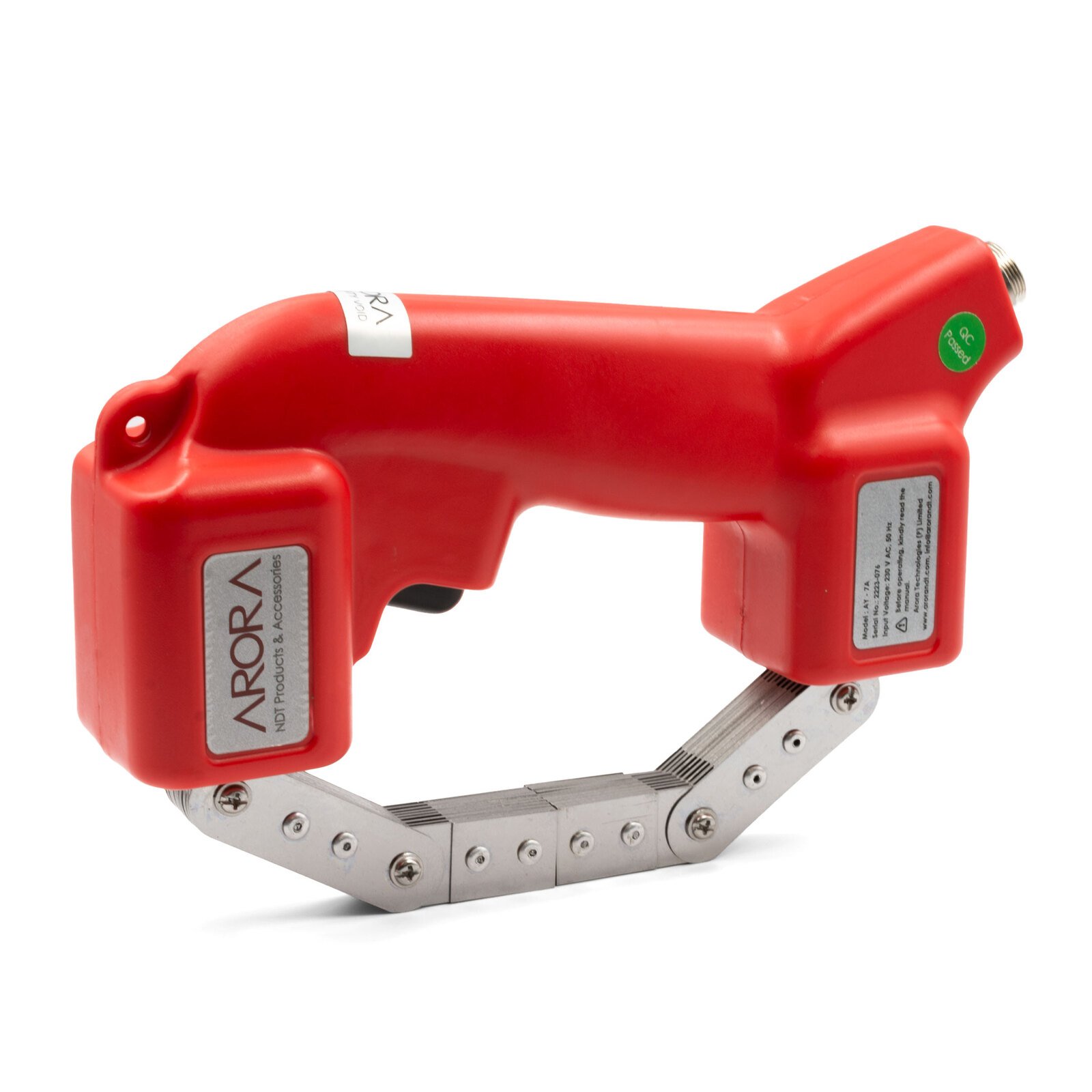

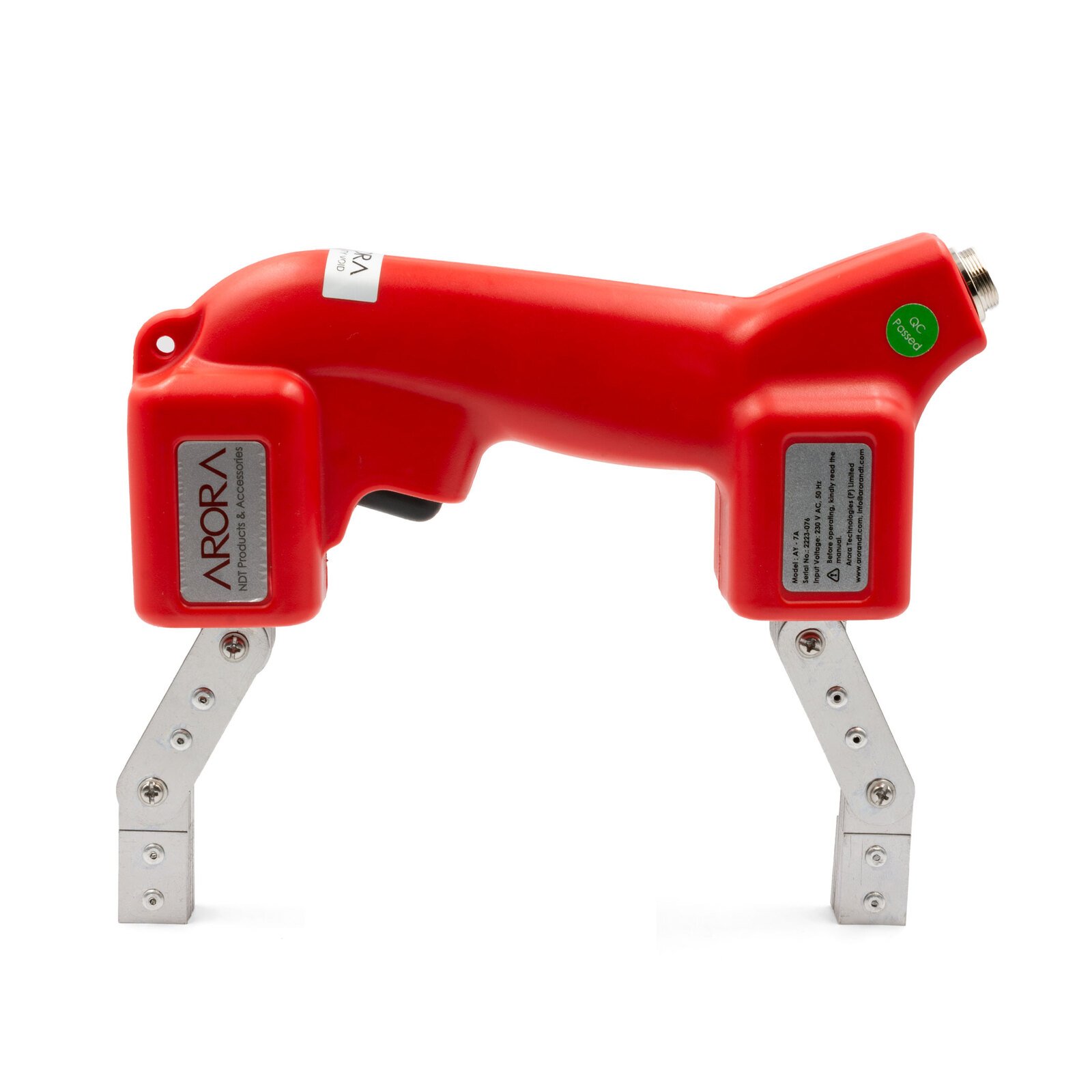

Arora AY-7A AC Magnetic Yoke NDT MPI Test Tool
$780.00
Product Introduction
Arora AC Magnetic Yoke AY-7A is a robust NDT tool for magnetic particle inspection, featuring durable construction, ergonomic grip, and compliance with ASTM E709/E1444 standards. Suitable for dry/wet, color contrast/fluorescent methods with safe, spark-free operation.
Key Specifications
| Input | Single phase 230V 50Hz |
| Lifting Force | 4.5kg / 10Lb |
| Leg Spacing | 65-260mm (adjustable) |
| Field Strength | 2Ka/m RMS at center |
| Duty Cycle | 50% (max 60s on/off) |
Arora AC Magnetic Yoke – AY-7A: Professional NDT Magnetic Particle MPI Test Solution
Product Description
The Arora AC Magnetic Yoke – AY-7A is a high-performance magnetic particle inspection (MPI) tool designed for non-destructive testing applications. This industrial-grade AC yoke generator delivers reliable magnetic field strength for detecting surface and near-surface defects in ferrous materials, ensuring precise and efficient inspections in various industrial environments.
Core Specifications
| Model | AY-7A |
| Input Voltage | Single phase 230V 50Hz |
| Lifting Force | 4.5kg / 10Lb |
| Tangential Field Strength | 2Ka/m RMS at center |
| Leg Spacing | Adjustable 65-260mm (center to center) |
| Duty Cycle | 50% (max 60 seconds on/off) |
| Waveform | AC Single Phase |
| Pole Contact | 20mm x 20mm |
| Demagnetization | AC demagnetization capability |
| Warranty | 12 months |
Key Features & Benefits
– Exceeds ASTM E709 & E1444 lifting specifications for industry compliance
– Durable rugged construction for long-term reliability in harsh work environments
– Ergonomic angled grip reduces operator fatigue during extended use
– Adjustable legs accommodate various workpiece sizes and shapes
– Detachable 3-meter power cord for flexible positioning
– Safe operation with no sparking or “hot spots” risk
– Compatible with dry/wet methods and color contrast/fluorescent inspection techniques
Applications
Ideal for non-destructive testing in:
– Welding inspection and quality control
– Manufacturing and fabrication industries
– Oil and gas pipeline testing
– Automotive and aerospace component inspection
– Structural steel and metalworking applications
– Maintenance and repair of ferrous equipment
Kit Includes
– AC Magnetic Yoke (AY-7A)
– 3-meter Power Cord
– Operation Manual
– Certificate of Conformance
Quality Assurance
Crafted with premium materials and rigorous testing, this magnetic yoke meets international standards for NDT equipment. Backed by a 12-month warranty, it ensures consistent performance and reliability for professional inspection needs.
Why Choose Arora AY-7A?
Unlike conventional magnetic yokes, the AY-7A combines industrial-grade durability with precision engineering. Its adjustable design and AC demagnetization feature provide versatility for diverse inspection tasks, while the ergonomic build ensures comfortable operation ¨C making it the preferred choice for NDT professionals.
FAQ
Q: What inspection methods is this yoke compatible with?
A: Suitable for both dry and wet magnetic particle methods, including color contrast and fluorescent techniques.
Q: What is the maximum leg span adjustment?
A: Legs adjust from 65mm to 260mm center-to-center.
Q: Does it require special training to operate?
A: The unit comes with an operation manual, but proper NDT certification is recommended for optimal results.
Ready to Enhance Your NDT Process?
Contact us today to learn how the Arora AY-7A Magnetic Yoke can improve your inspection accuracy and efficiency. Our team of experts is ready to provide technical support and tailored solutions for your specific application needs.
