Weldclass FORCE 201T 200A ACDC TIG Welder Pulse Combo
$2,349.00
Product Introduction
The Weldclass 200 Amp ACDC TIG Welder TOP SHELF COMBO includes premium components from leading brands. It offers professional TIG welding for Aluminium, Mild Steel, Stainless & more, with a compact 8kg design and 7-year warranty (after online registration).
Key Specifications
| Max Output | 200A (AC) @ 30% duty cycle |
| Functions | TIG (AC/DC), Stick/MMA, HF/Lift Arc Ignition |
| Torch | CK17 4m Super Flex TIG Torch (USA made) |
| Warranty | 7-year (with online registration) |
| Weight | 8kg, generator compatible (min 8kva) |
Weldclass 200 Amp ACDC TIG Welder – FORCE 201T AC/DC Pulse – TOP SHELF COMBO
Unleash professional-grade TIG welding precision with the Weldclass FORCE 201T AC/DC Pulse TOP SHELF COMBO. This premium kit combines industry-leading components from Weldclass, CK, and Furick¡ªhandpicked for elite welders demanding uncompromising quality and performance. Whether you¡¯re working with aluminum, stainless steel, or mild steel, this all-in-one solution delivers the power, control, and durability to elevate your craft.
Core Components & Key Features
| Component | Description & Core Sell |
|---|---|
| FORCE 201T Welder | 200A max AC output (30% duty cycle), 7-year warranty, 8kg lightweight design, IP23 protection, generator-compatible (8kVA min). Ideal for 3.2mm max tungsten. |

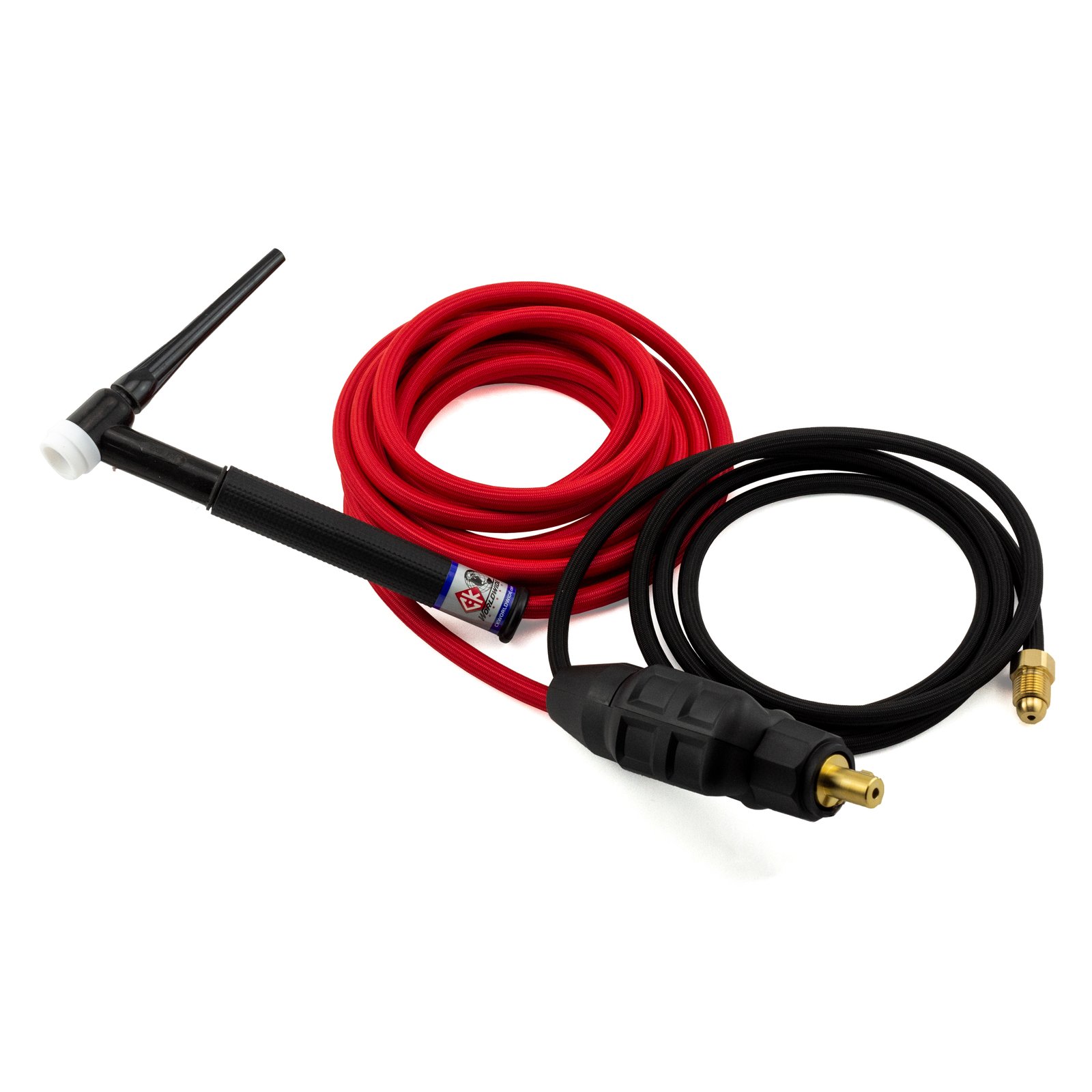

| CK17 Super Flex Torch | 4m 150A USA-made torch with flex head, super-flex cable, and brass torch head. Slim pencil handle for precision in low-amp applications. |

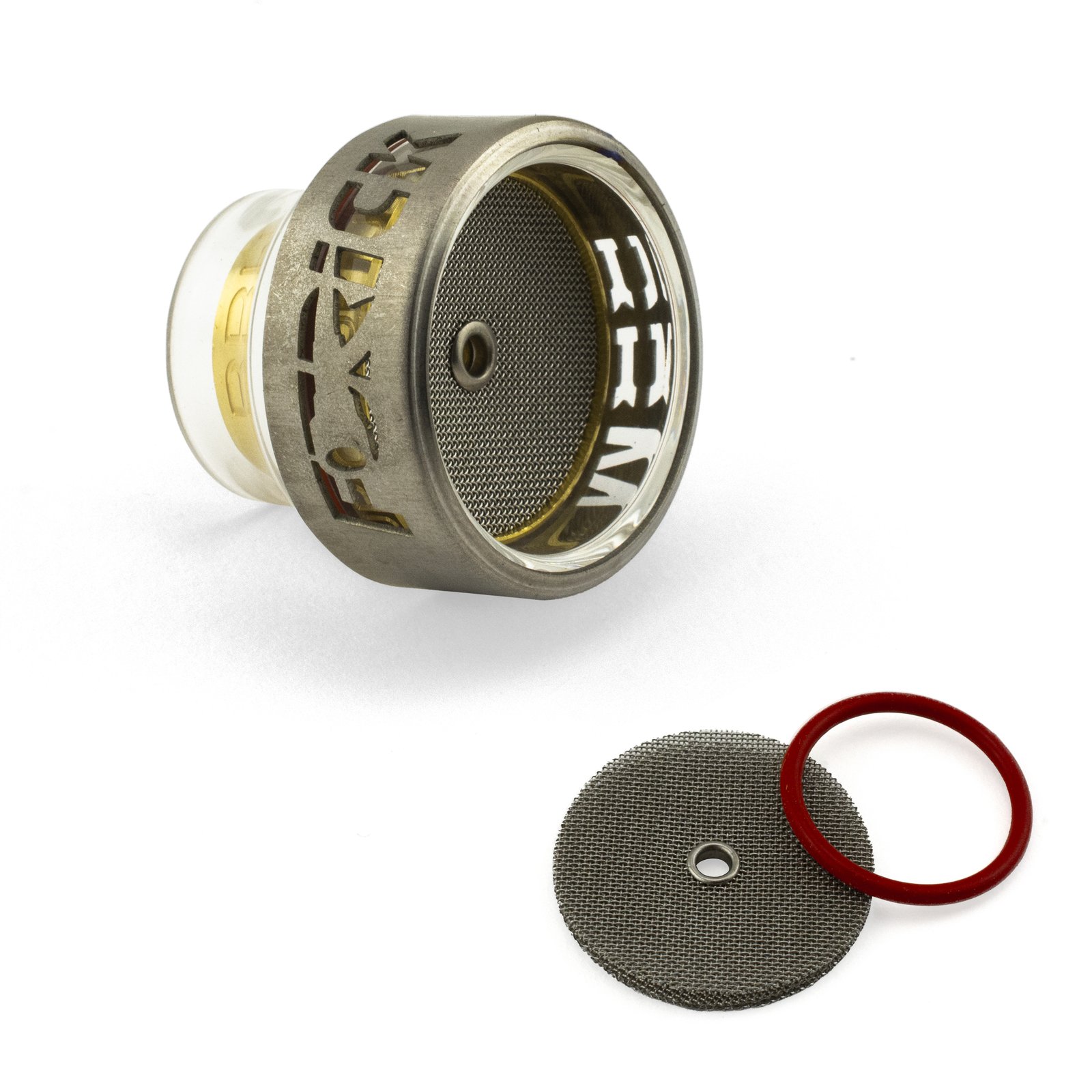

| Furick Pyrex TIG Cup Kit | Heat-resistant pyrex cup (180A max) with titanium cover, brass gas diffuser, and mesh filter for consistent gas coverage. Made in USA. |

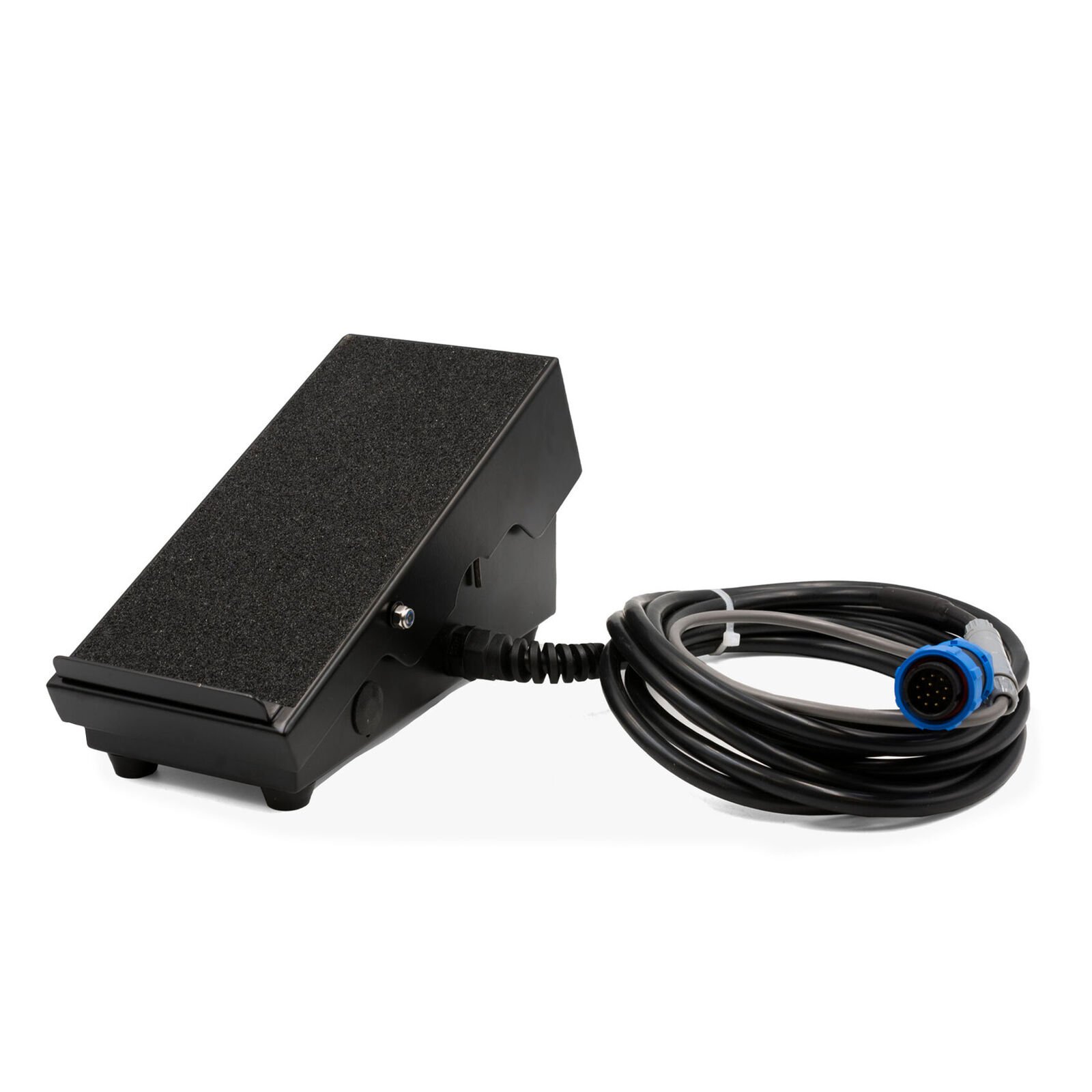

| Foot Controller | Heavy-duty FC1 model with 12-pin plug for fine current adjustment, compatible with FORCE 201T. |
| LaYZr Tungsten Electrodes (10x) | 1.6mm 1.5% Lanthanum-Yttrium-Zirconium blend for low-amperage arc starting, long life, and AC/DC versatility. |
Technical Specifications
- Output: 200A AC @ 30% duty cycle
- Processes: TIG (AC/DC), Stick/MMA
- Ignition: HF or Lift Arc
- Pulse Control: 0.2-200Hz frequency, adjustable width
- AC Balance: -5 (25% penetration) to +5 (50% cleaning)
- Input: 240V 15A plug
- Weight: 8kg (welder only)
Applications & Performance
Engineered for professional TIG welding of aluminum, mild steel, stainless steel, nickel alloys, and titanium. The pulse function ensures precise heat control for thin materials, while AC balance adjustment optimizes cleaning action on aluminum. Generator compatibility makes it ideal for on-site jobs, backed by over-specified components for reliability.
Why Choose This Combo?
Unlike generic kits, the TOP SHELF COMBO features USA-made CK and Furick components¡ªtrusted by pros for durability. The FORCE 201T¡¯s 7-year warranty (with online registration) and IP23 protection outperform competitors, while the included foot controller and premium tungsten electrodes save time and cost on upgrades.
FAQ
Q: What materials can I weld?
A: Aluminum, mild steel, stainless steel, nickel alloys, copper alloys, and titanium.
Q: Is a generator compatible?
A: Yes, minimum 8kVA (10kVA+ recommended).
Q: Does the torch fit standard gas lenses?
A: Yes, compatible with 17/26 series gas lenses (e.g., 11617GL for 1.6mm tungsten).
Ready to transform your welding results? Contact us today for pricing and availability¡ªelevate your workshop with the TOP SHELF advantage.
