Harris
Harris 3H Super Heating Tip 380mm Barrel Oxy/LPG 22903H
Product Description
Harris 3H Super Heating Tip with 380mm Barrel, designed for Oxy/LPG use. Capable of over 1 million BTU/hour, utilizing low-cost, safe alternate fuels.
Specifications
| Part No. | 22903H |
| Tube Part No. | 23933F |
| Compatibility | Harris F43 mixer |
| Fuel Type | Oxygen and LPG (Propane) |
| BTU Output | Over 1,000,000 BTU/hour |
Harris 3H Super Heating Tip 915mm Barrel Oxy/LPG 22903H
Product Introduction
Harris 3H Super Heating Tip with 915mm Barrel, designed for Oxy/LPG use. Model 22903H delivers over 1 million BTU/hour, compatible with Harris mixer F43, ideal for efficient heating applications.Product Specifications
| Part No. | 22903H |
| Fuel Type | Oxygen and LPG (Propane) |
| Heat Output | Over 1 million BTU/hour |
| Barrel | 915mm Straight Barrel (Part No. 23935F) |
| Compatibility | Harris mixer F43 |
Harris 40000Kpa Regulator Gauge 300 Bar Inlet Pressure
Product Description
Harris Wika High-Pressure Gauge designed for 300bar inlet pressure cylinders, suitable for H25?series Harris regulators. Ideal for Oxygen, Argon, Nitrogen applications, made in Europe and compliant with AS 4267 standards.Specifications
| Pressure Range | 0-40,000KPA |
| Inlet Pressure | 300 Bar |
| Compatibility | H25?series Harris regulators |
| Gas Types | Oxygen, Argon, Nitrogen |
| Compliance | AS 4267 |
Harris 40mm Burner Head for Perkeo HKAL601/801 Scorcher
Product Introduction
High-quality Harris 780/40/1 Burner Head, compatible with Perkeo Scorcher 601/801. Made in Germany with durable stainless steel tip and brass connection, featuring turbine air tube for efficient oxygen intake. Ideal for reliable heating applications.Specifications
| Heat Output | 222Mj |
| Length | 107mm |
| Diameter | 40mm |
| Connection | 3/8 BSP Brass Nut |
| Material | Stainless Steel Tip |
Harris 432 Oxy Fuel Handle w/ Flash Guards 43-2
Product Introduction
Harris 432 Professional Oxy Fuel Handle with Flash Guards, suitable for any gas. Features high flow design, durable brass handle, and emergency shut-down valve. Compatible with B435 mixer.
Specifications
| Weight | 0.7kg |
| Handle Material | Tough extruded brass |
| Connection | Harris high flow |
| Safety Features | Flash guards, O-ring sealing |
| Valves | Stainless steel ball valves |
Harris 4AC Acetylene Cutting Tip 100-175mm
Product Introduction
Harris 4AC acetylene cutting tip, ideal for cutting 100-175mm steel. Made in Europe with high-quality materials, suits 493F, 142, 624 torches. Pull-apart design for easy cleaning, reliable for industrial use.
Specifications
| Tip Type | 6290-AC |
| Size | 4AC (Size 20) |
| Cutting Thickness | 100-175mm |
| Fuel | Acetylene |
| Compatibility | 493F, 142, 624 Torches |
Harris 4AC Acetylene Cutting Tip 100-175mm 5 Pack
Product Introduction
High-quality Harris 6290-AC two-piece heavy pre-heat hand cutting tip, ideal for everyday industrial use. Designed for acetylene, it provides precise preheating flames and oxygen jet direction for efficient cutting. Original Harris manufactured in Europe with high-quality raw materials.
Product Parameters
| Tip Type | 6290-AC |
| Tip Size | 4AC |
| Cutting Thickness | 100-175mm |
| Gas Type | Acetylene |
| Quantity | 5 Each |
Harris 5H 380mm Barrel Oxy/LPG Heating Tip 22905H
Product Introduction
Harris Multi Flame Super Heating tip designed for Oxygen and LPG (Propane) applications. Capable of producing over 1 million BTU per hour with low-cost, readily available, safe alternate fuels, reaching temperatures up to 2600¡ãC. Ideal for high-heat industrial tasks.Specifications
| Model | 2290 |
| Part No. | 22905H |
| Tube Part No. | 23933F |
| Max BTU | 1+ million/hour |
| Max Temp | 2600¡ãC |
Harris 5H Oxy/LPG Heating Tip 915mm Barrel 22905H
Product Introduction
Harris 5H Super Heating Tip with 915mm Barrel, designed for Oxy/LPG applications. Model 22905H delivers over 1 million BTU/h using cost-effective, safe alternate fuels, ideal for high-heat industrial tasks.Key Specifications
| Part No. | 22905H |
| Tube Part No. | 23935F (Straight Head) |
| Fuel Type | Oxygen and LPG (Propane) |
| BTU Output | Over 1 million BTU/h |
| Compatible Mixer | Harris F43 |

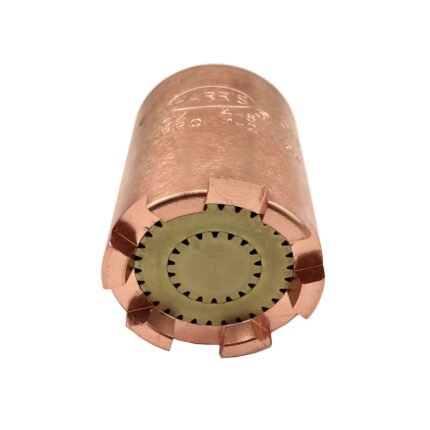

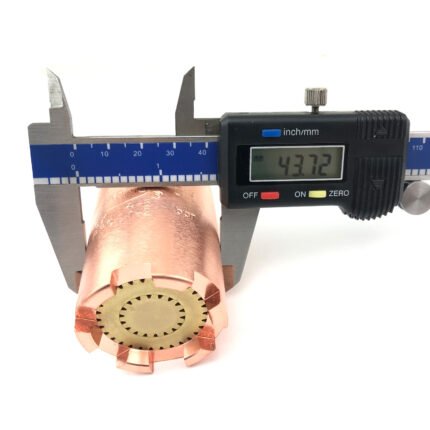

Harris 5H Oxy/LPG Super Heating Tip 22905H
Product Introduction
Harris 5H Super Heating Tip for Oxy/LPG, Model 22905H, delivers over 1 million BTU/hour with low-cost, safe alternate fuels. Ideal for efficient heating applications, compatible with Harris tip tube 2393 and mixer F43.Product Specifications
| Part No. | 22905H |
| Fuel Type | Oxygen and LPG (Propane) |
| Heat Output | Over 1 million BTU/hour |
| Compatible Tip Tube | Harris 2393 |
| Compatible Mixer | Harris F43 |
Harris 5H Super Heating Tip 710mm Barrel Oxy/LPG 22905H
Product Introduction
Harris 5H Super Heating Tip with 710mm Barrel, designed for Oxy/LPG use. Model 2290 tips deliver over 1 million BTU/hour with low-cost alternate fuels, ensuring efficient heating performance.
Specifications
| Part No. | 22905H |
| Tube Part No. | 23932F |
| Fuel | Oxygen and LPG (Propane) |
| BTU Output | Over 1 million per hour |
| Compatible Mixer | Harris F43 |
Harris 601 Acetylene Regulator 0-150 KPA
Product Introduction
Compact and economical single-stage acetylene regulator ideal for applications where weight, cost, and size matter, featuring premium attributes usually found in higher-priced models.Key Specifications
| Pressure Range | 0 - 150 KPA |
| Warranty | 7-Year |
| Construction | Solid metal body & bonnet |
| Features | Filter, built-in relief, clear colour coding, easy-to-read metal-cased gauges |
| Origin | Made in Europe |
