2.4mm Stubby TIG Torch Wedge Collet for WP17/18/26 5 Pack
$26.00
Product Introduction

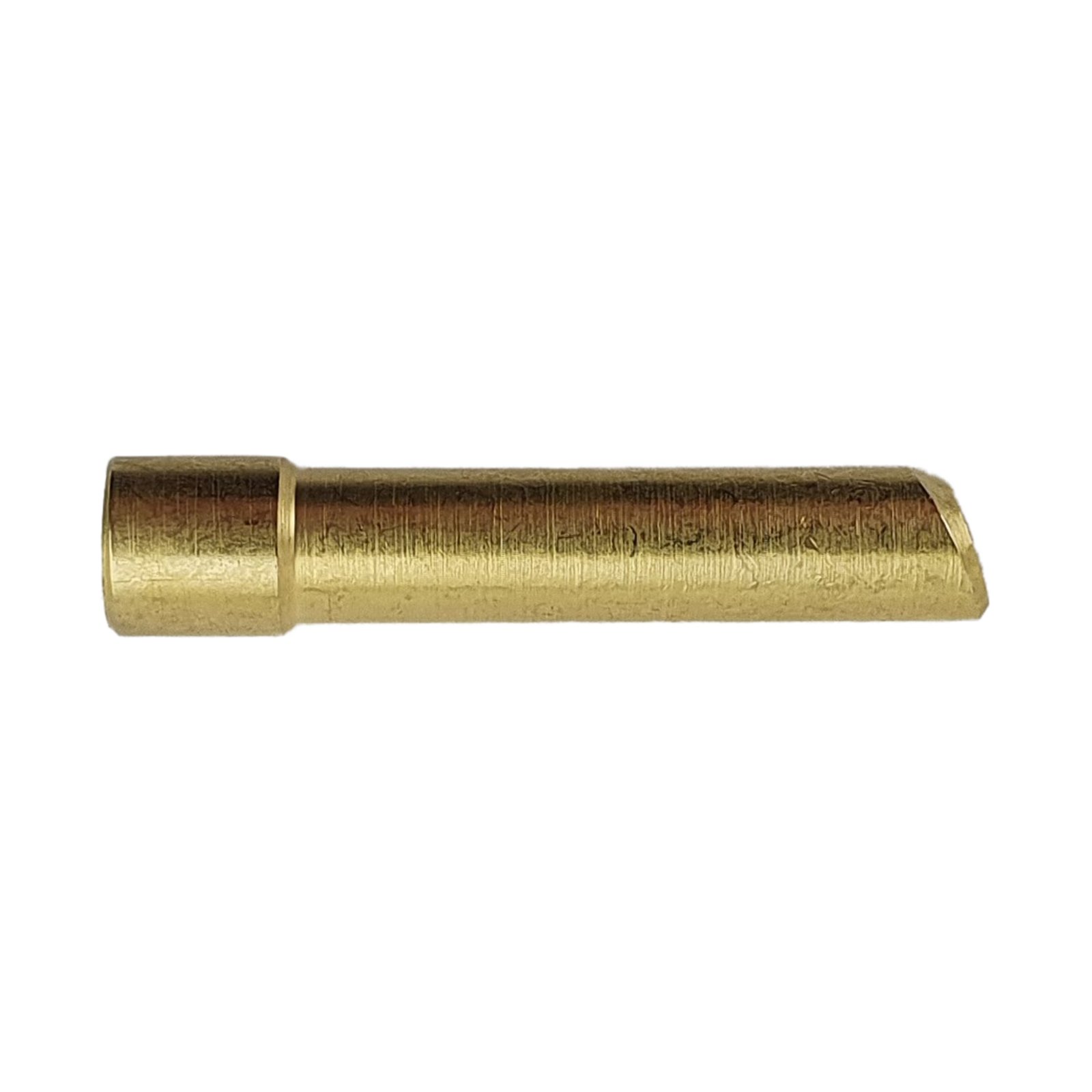

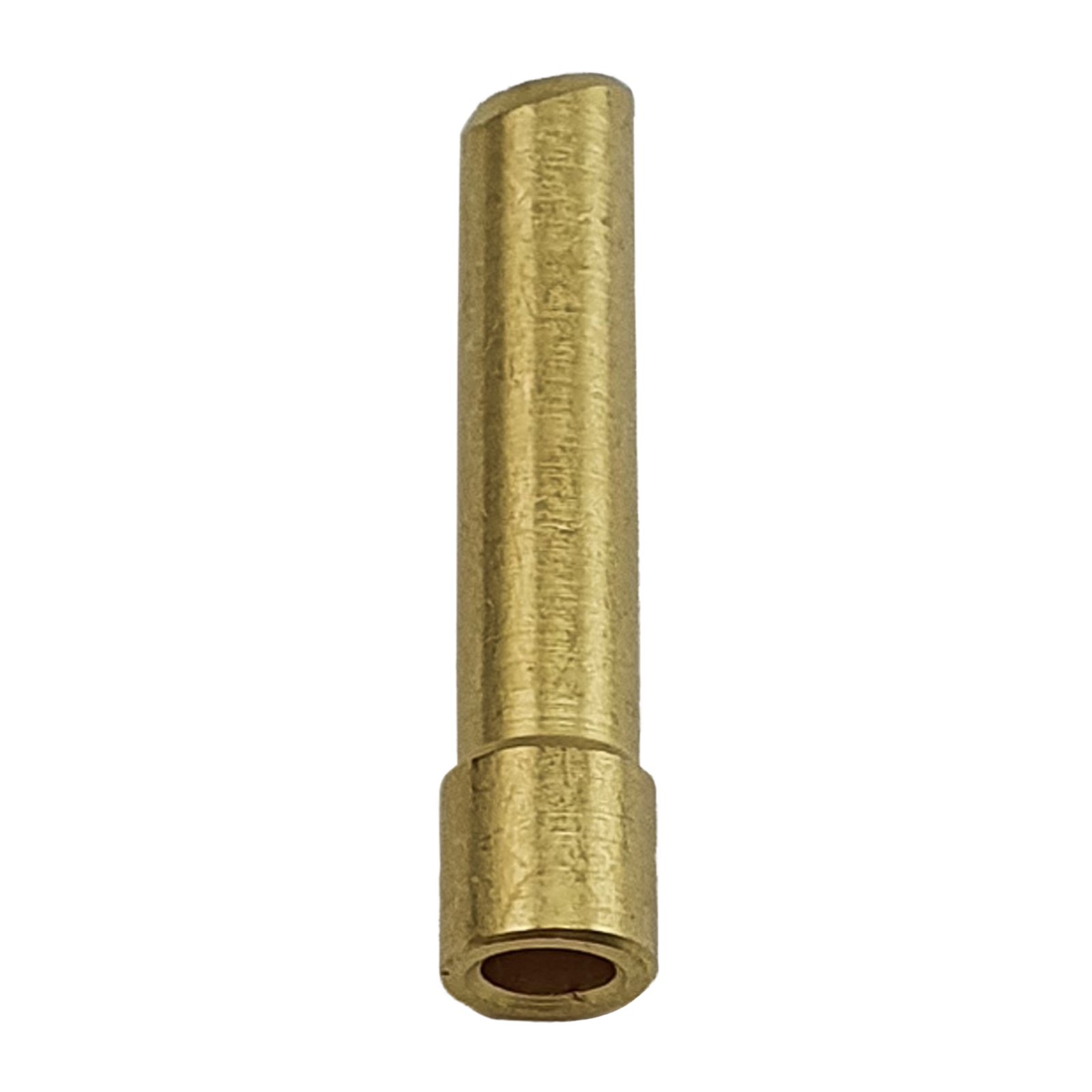

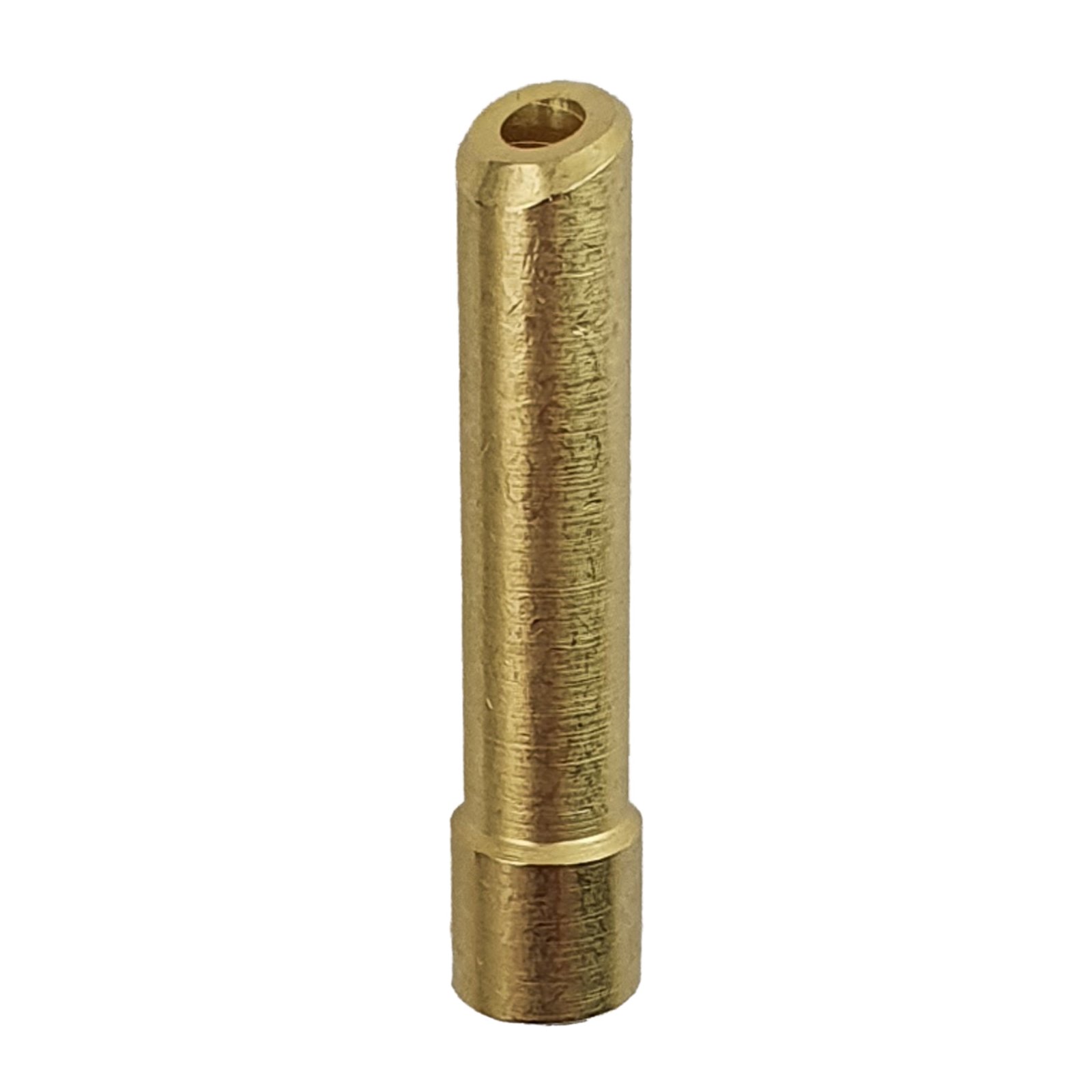

2.4mm Stubby TIG Torch Wedge Collet, suits WP17 | 18 | 26 torches. Features precision angled wedge cut design, improves arc starts/stability, runs cooler, eliminates collet twisting. Pack of 5, UNIMIG Part # P4C332GS.
Specifications
| Size | 2.4mm |
| Length | 30mm |

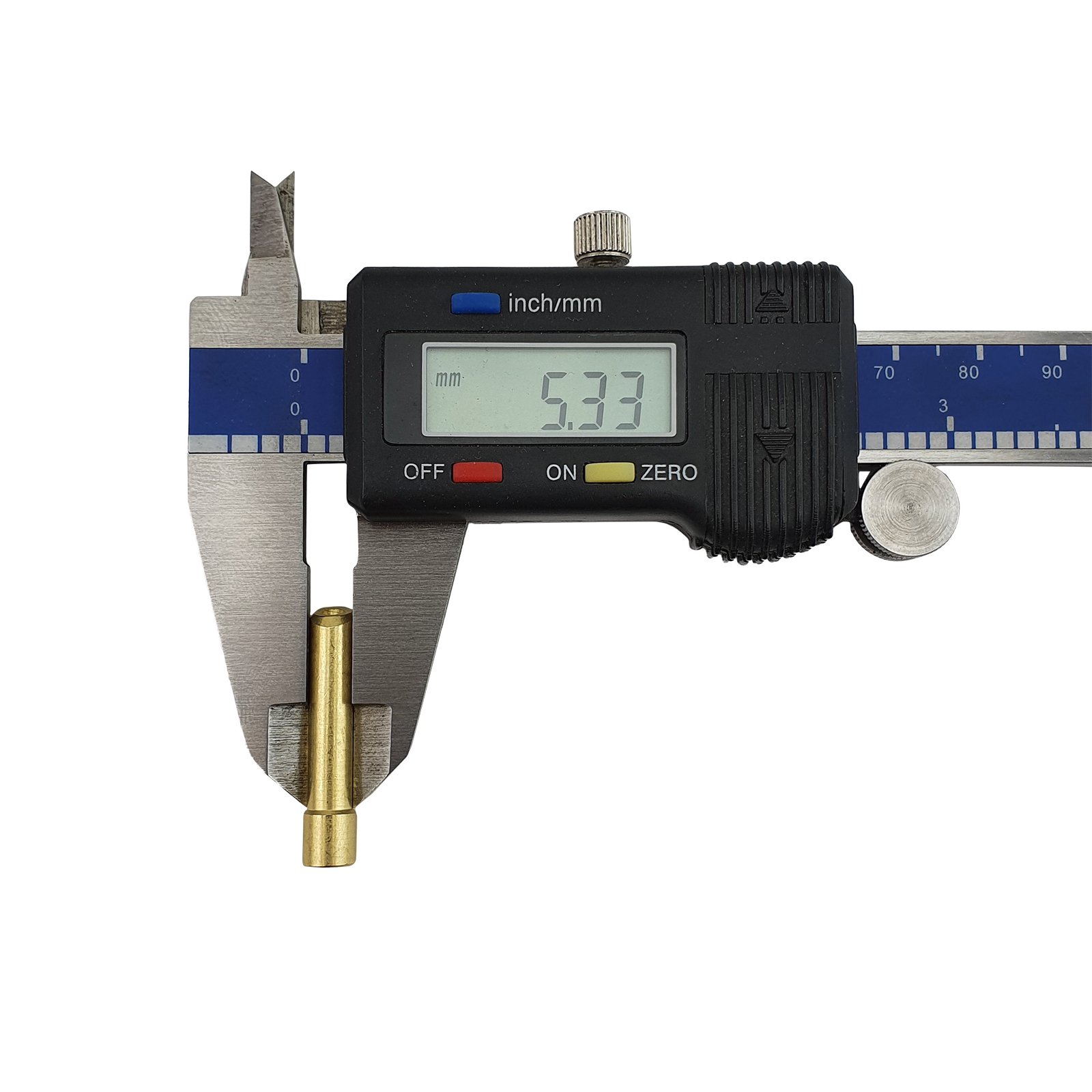

| Width | 5mm |
| Compatibility | WP17 | 18 | 26 Torches |

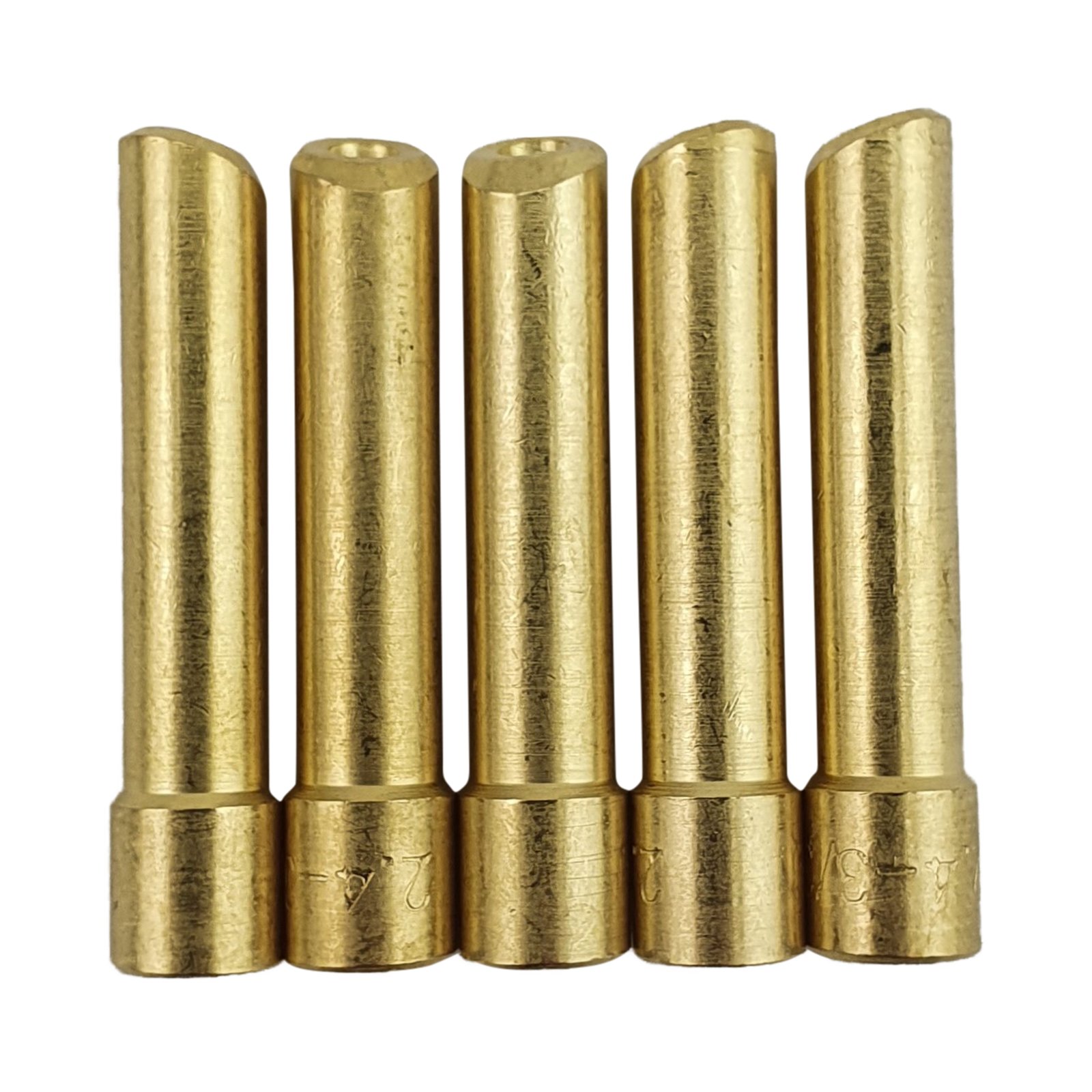

| Pack Quantity | 5 Pack |
2.4mm Stubby TIG Torch Wedge Collet – 5 Pack for WP17 | 18 | 26 Torches
| Description | Precision angled wedge cut collets designed for TIG torches, outperforming split collets by 10x with uniform grip and heat resistance. |
|---|---|
| Core Benefits | Improves arc starts/stability, reduces back cap pressure, minimizes collet deformation, extends torch component life. |
| Compatibility | Suits WP17, WP18, WP26 TIG torches; fits standard collet bodies and gas lenses. |
| Material Technology | Wedge grip design eliminates split-related warping, ensures uniform tungsten contact with collet body. |
| Performance | Runs cooler, reduces downtime, lower electrical resistance, consistent arc performance. |
| Packaging | 5 pieces per pack (UNIMIG Part # P4C332GS) |
| Dimensions | 30mm length, 5mm width |
| Application | Ideal for professional TIG welding operations requiring precision and durability. |
| Durability | 10x longer lifespan compared to traditional split collets. |
| Installation | Direct replacement for standard collets; no additional tools required. |
Why Choose Our Wedge Collets?
Tired of frequent collet replacements and unstable arcs? Our 2.4mm Stubby Wedge Collets revolutionize TIG welding with patented wedge grip technology. Unlike outdated split collets that warp under heat, our design ensures uniform pressure and heat distribution, delivering smoother arc starts, consistent performance, and 10x longer service life.
Key Features & Performance
– Enhanced Arc Stability: Tungsten stays centered, reducing spatter and improving weld quality.
– Extended Torch Life: Reduced back cap pressure protects torch head threads from wear.
– Heat Efficient: Direct collet body contact lowers resistance, keeping components cooler during extended use.
– Universal Fit: Works seamlessly with WP17/18/26 torches and standard gas lenses.
Application Scenarios
Perfect for automotive, aerospace, and industrial welding where precision and reliability are critical. Whether working with stainless steel, aluminum, or exotic alloys, these collets maintain consistent performance in high-heat environments.
FAQ
– Q: Will these fit my WP26 torch?
A: Yes, they are compatible with WP17, WP18, and WP26 models.
– Q: How many collets are included?
A: Each pack contains 5 collets.
– Q: Do they require special tools for installation?
A: No, they install like standard collets with a back cap wrench.
Quality Assurance
Manufactured by a leading Chinese welding equipment provider, our collets undergo rigorous testing to meet international standards. We stand behind product durability and performance.
Ready to upgrade your TIG welding setup? Contact us today for bulk pricing or technical support!
