2m 70mm2 00 Gauge Welding Cable Solar Car Battery AU
$82.00
Description

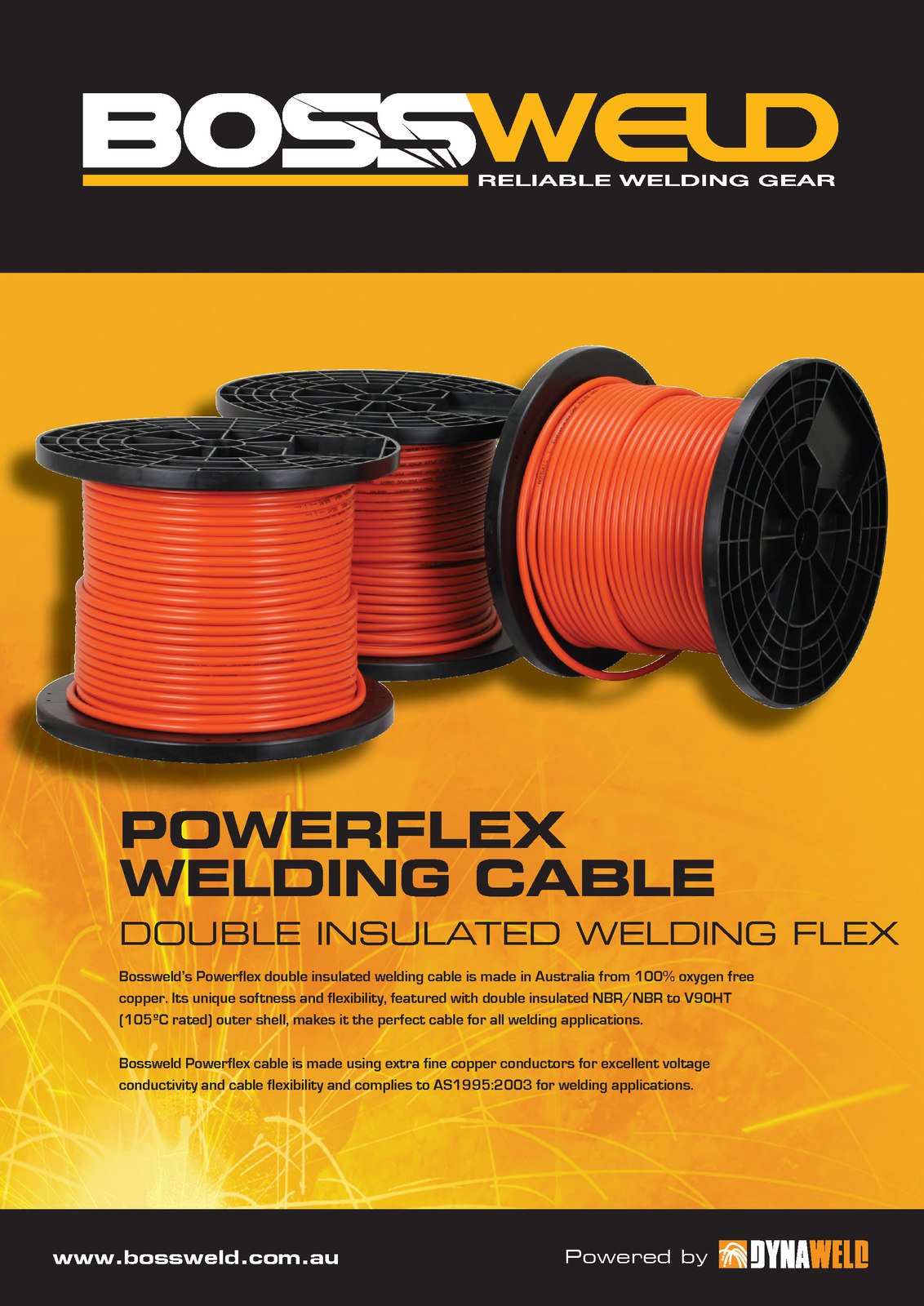

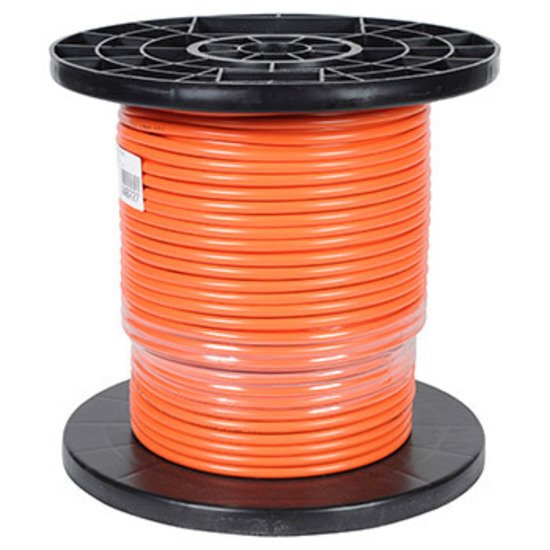

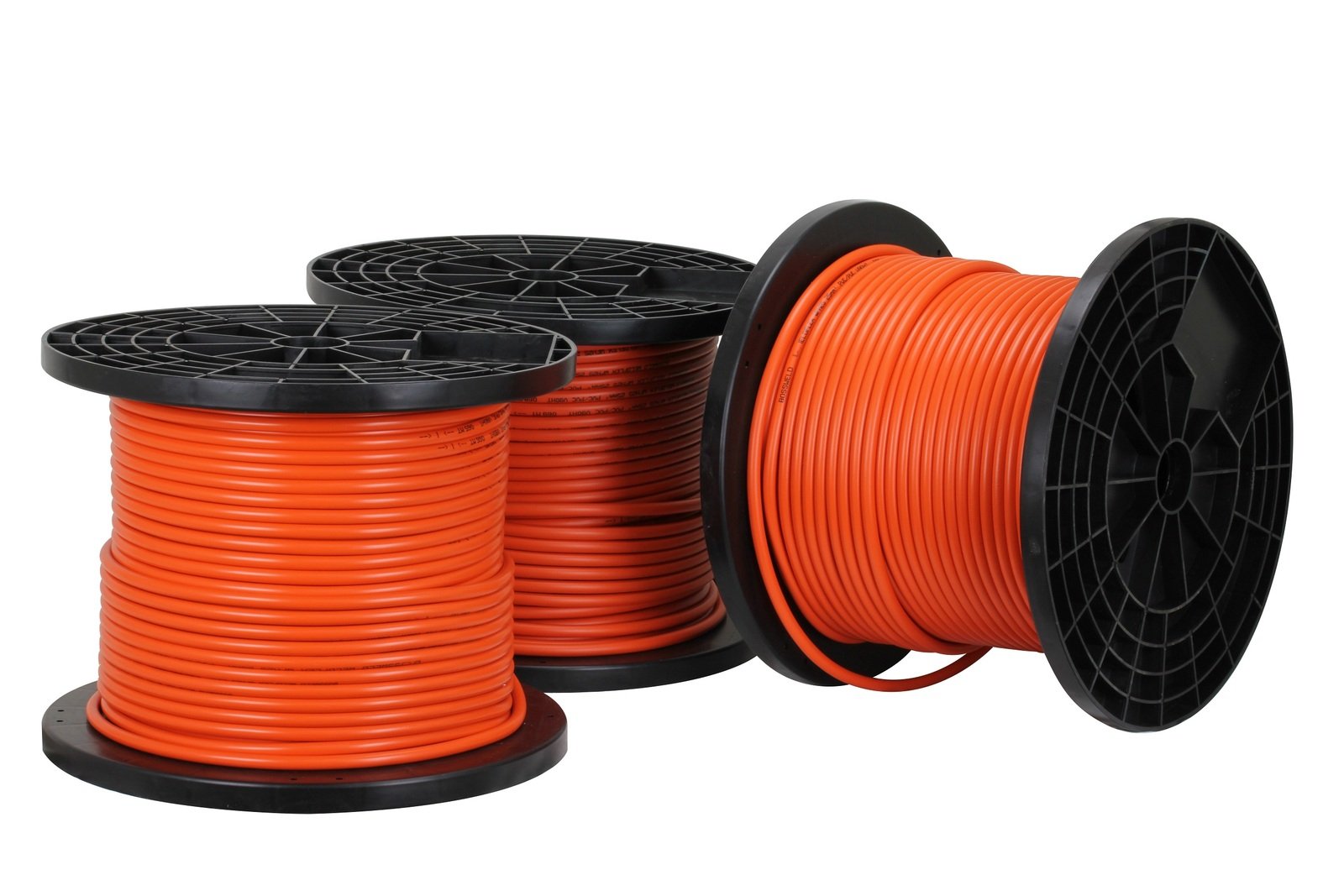

Australian made 2m welding cable with 70mm2 (00 Gauge) 100% oxygen free copper conductors. Features double insulated NBR/NBR outer shell (90¡ãC rated), extra fine copper for excellent conductivity and flexibility. Complies to AS1995:2003, ideal for welding applications.
Specifications
| Length | 2m |

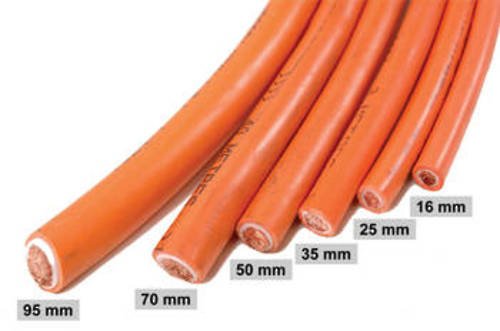

| Cross Section | 70mm2 (00 Gauge) |
| Material | 100% Oxygen Free Copper |
| Insulation | Double Insulated NBR/NBR (90¡ãC) |
| Standard | AS1995:2003 |
2m Welding Cable – 70mm2 – 00 Gauge – Solar – Car Battery AUSTRALIAN MADE
Power up your welding operations with this premium 2m Australian-made welding cable, engineered for maximum performance and durability. Whether you’re working on industrial projects, solar installations, or car battery connections, this cable delivers reliable power transmission with unmatched flexibility.

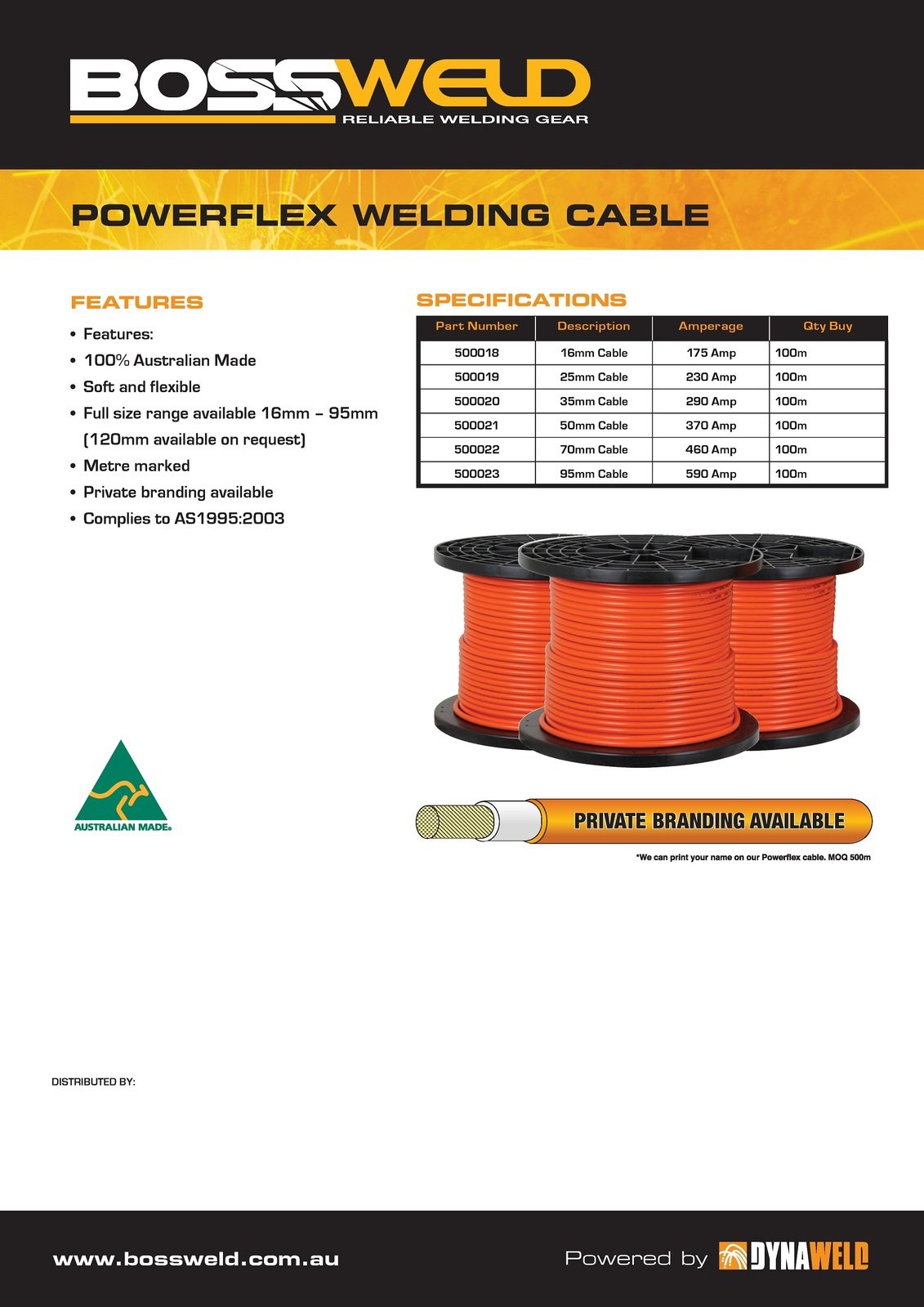

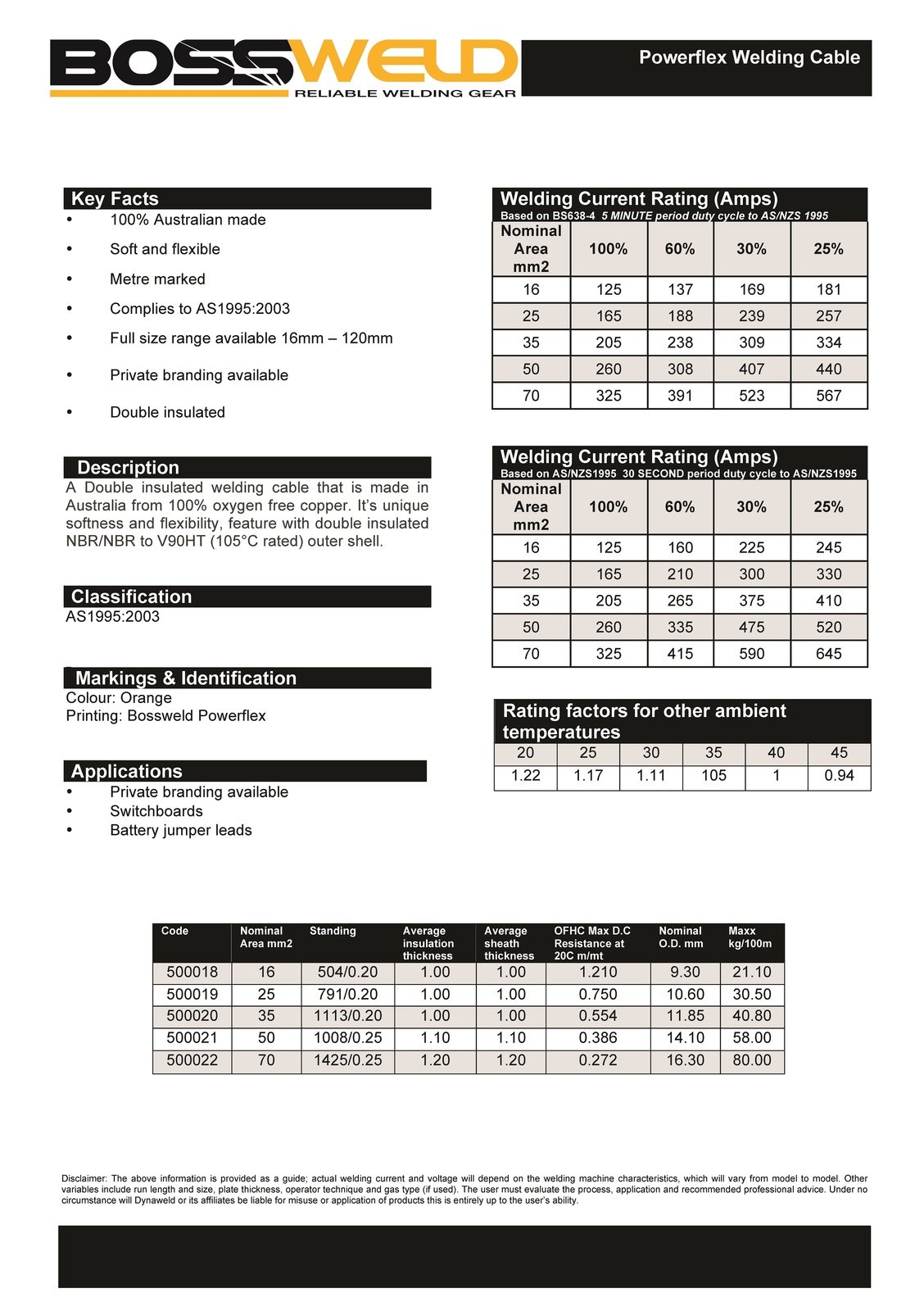

Core Specifications
| Length | 2m (single continuous length) |
| Cross-Section | 70mm2 (00 AWG/B&S Gauge) |
| Max Current (30% Duty Cycle) | 655 Amp |
| Conductor Material | 100% Oxygen-Free Copper |
| Insulation | Double NBR/NBR, V90HT (90¡ãC rated) |
| Color | Orange |
| Compliance | AS1995:2003 |
| Origin | Australian Made |
| Flexibility | Extra fine copper conductors for soft handling |
| UNIMIG Equivalent | WC70MM / U51029 |
Key Features & Benefits
Australian Quality: Manufactured locally with strict quality control for superior reliability.
High Conductivity: Oxygen-free copper ensures minimal power loss and stable current flow.
Extreme Flexibility: Extra fine stranding allows easy maneuvering in tight workspaces.
Heat Resistant: 90¡ãC rating withstands high-temperature welding environments.
Double Insulation: NBR/NBR outer shell provides enhanced protection against abrasion and chemicals.
Applications
- Industrial welding machines
- Solar panel installations
- Car battery connections
- Heavy-duty power distribution
- Marine and automotive workshops
Performance & Durability
Designed for professional use, this cable maintains optimal performance even under continuous 30% duty cycle operation. The robust insulation resists oil, water, and UV exposure, ensuring long service life in harsh conditions.
Quality Assurance
Complies with Australian Standard AS1995:2003, guaranteeing safety and performance. Each cable undergoes rigorous testing to meet industry standards for welding applications.
Why Choose This Cable?
Unlike generic cables, our Australian-made product offers superior flexibility and conductivity, reducing operator fatigue and improving workflow efficiency. The heavy-duty construction outperforms imported alternatives in both durability and temperature resistance.
FAQ
Q: Can this cable be used for DC power applications?
A: Yes, it¡¯s suitable for solar and battery systems requiring high current transmission.
Q: Is the cable available in longer lengths?
A: Contact us for custom length options to meet your specific needs.
Q: Does the color comply with safety standards?
A: The orange outer sheath meets industry visibility requirements for welding cables.
Ready to upgrade your welding setup? Contact our team today for bulk pricing, technical support, or to discuss custom solutions tailored to your application.
