Arora AC Magnetic Yoke Combo Kit – High Quality Welding Tool
$820.00
Product Introduction
The Arora AC Magnetic Yoke Combo Kit is a comprehensive solution for magnetic particle inspection, combining a high-powered AC magnetic yoke with essential MPI materials to detect surface-breaking indications with precision and reliability.
Key Specifications
| Standards | Exceeds ASTM E709 & E1444 |
| Lifting Force | 4.5kg / 10Lb |
| Leg Spacing | 65-260mm (adjustable) |
| Power | 230V 50Hz single phase |
| Kit Includes | Yoke, power cord, manual, paint, ink |
Arora AC Magnetic Yoke Combo Kit: Professional MPI Solution for Precision Defect Detection
Ensure flawless surface-breaking indication detection with the Arora AC Magnetic Yoke Combo Kit¡ªyour all-in-one solution for magnetic particle inspection (MPI). Engineered to exceed industry standards, this kit combines rugged performance with ergonomic design, making it ideal for critical inspection tasks in manufacturing, welding, and metalworking.
Core Specifications
| Feature | Specification |
| Compliance | Exceeds ASTM E709 & E1444 lifting standards |
| Lifting Force | 4.5kg / 10Lb |
| Leg Spacing | Adjustable 65-260mm (center-to-center) |
| Field Strength | 2Ka/m RMS at center (tangential) |
| Power Input | Single phase 230V 50Hz |
| Duty Cycle | Industrial-grade 50% (60s on/off max) |
| Operation Modes | Dry/wet methods; color contrast/fluorescent compatible |
| Safety | No sparking or “hot spots” |
| Warranty | 12 months |
| Kit Inclusions | Yoke, 3m cord, manual, conformance certificate, ARDROX 8901W paint & 800/3 ink |
Why Choose This Magnetic Yoke Kit?
Unmatched Reliability: Built with durable, rugged construction to withstand industrial environments. The ergonomic angled grip reduces operator fatigue during extended use.
Versatile Inspection: Compatible with both dry and wet MPI methods, plus color contrast or fluorescent techniques, ensuring adaptability to diverse inspection needs.
Safety First: Eliminates sparking and hot spots, providing secure operation in sensitive work areas. AC demagnetization capability adds further utility.
Applications
Ideal for inspecting welds, castings, forgings, and machined parts in industries such as aerospace, automotive, oil & gas, and heavy manufacturing. Perfect for detecting cracks, laps, and other surface defects with precision.
What¡¯s in the Combo Kit?

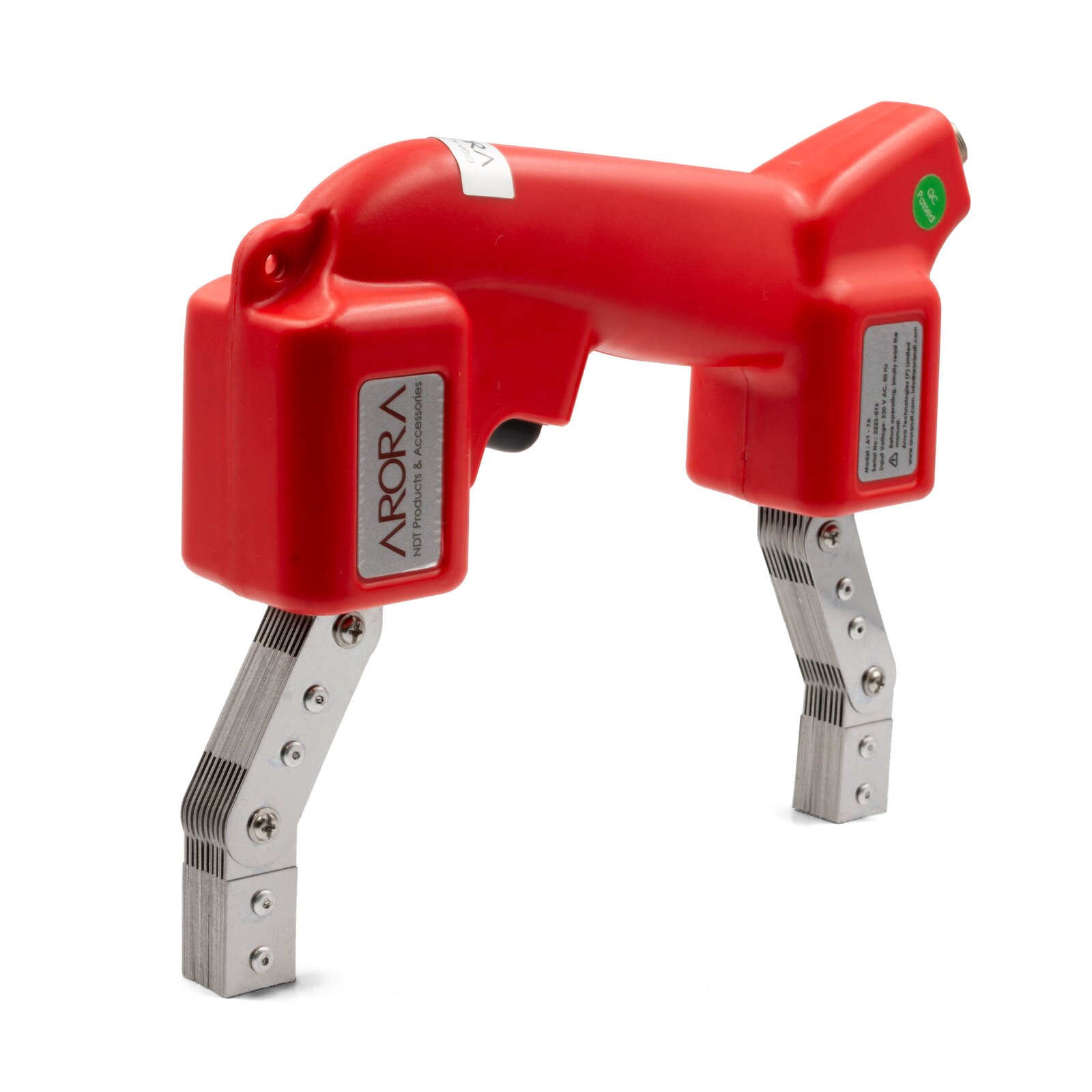

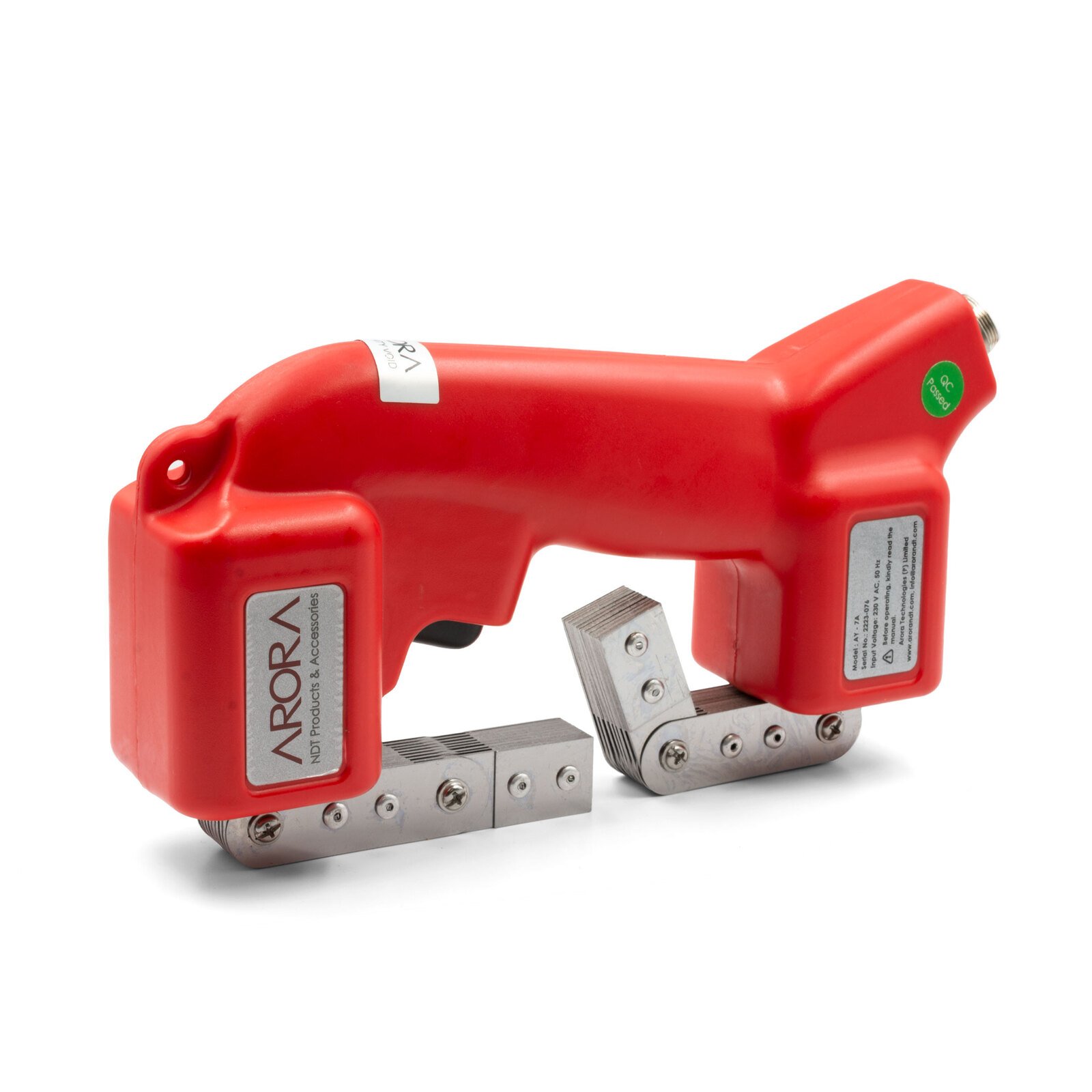

- Aurora AC Magnetic Yoke (AY-7A): High-powered field generator with adjustable legs

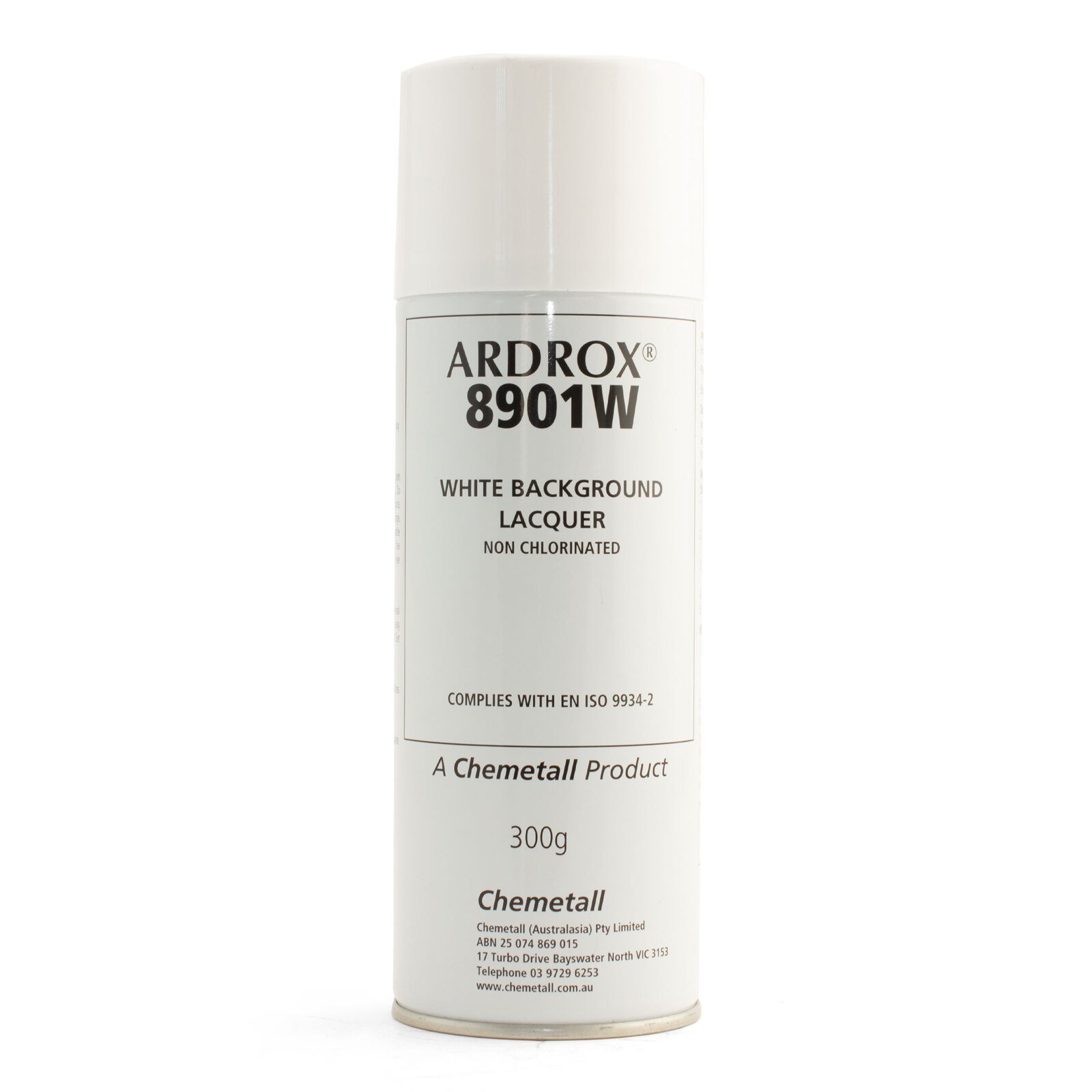

- ARDROX 8901W White Background Lacquer: Enhances contrast for clear defect visibility

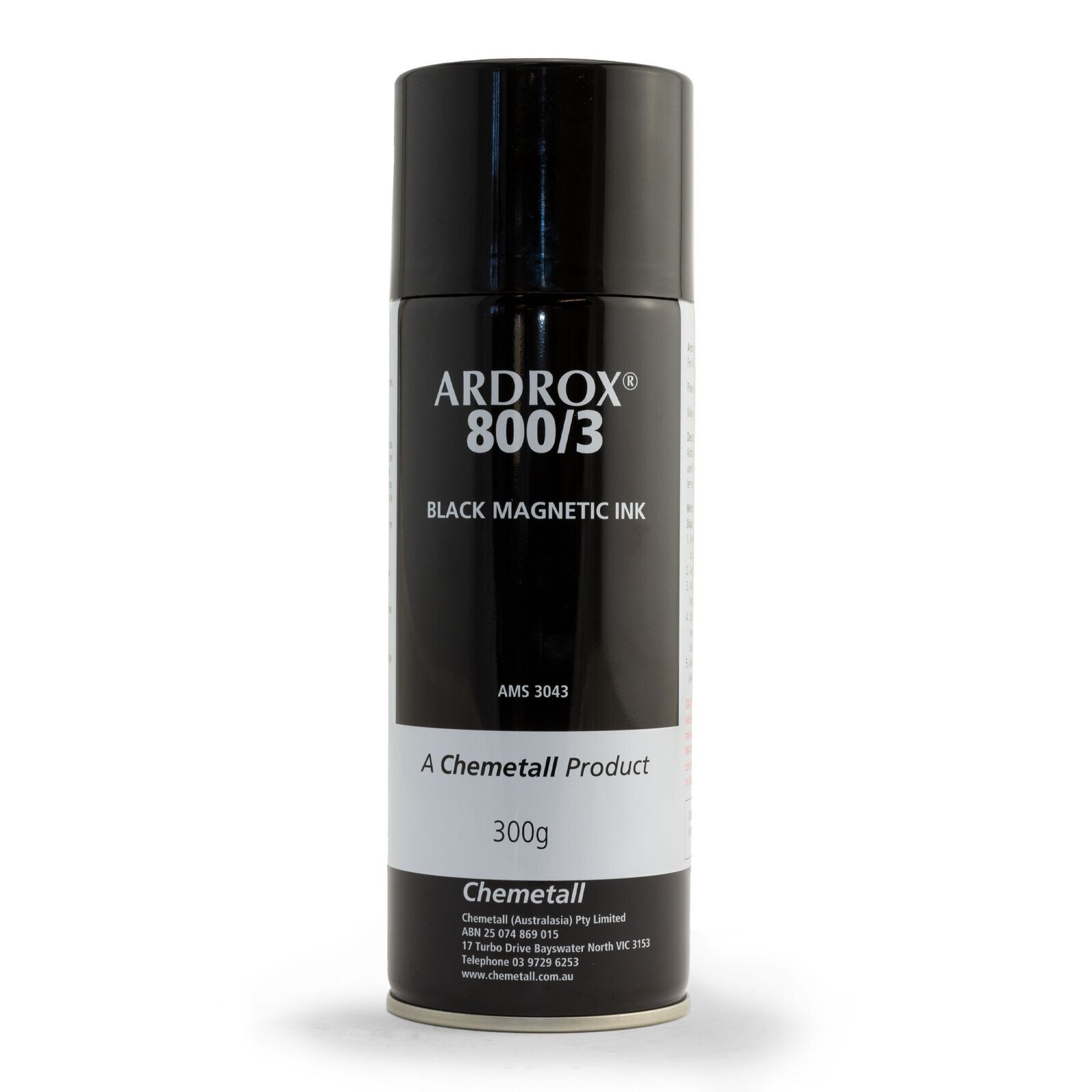

- ARDROX 800/3 Black Magnetic Ink: Reliable particle suspension for wet method inspections

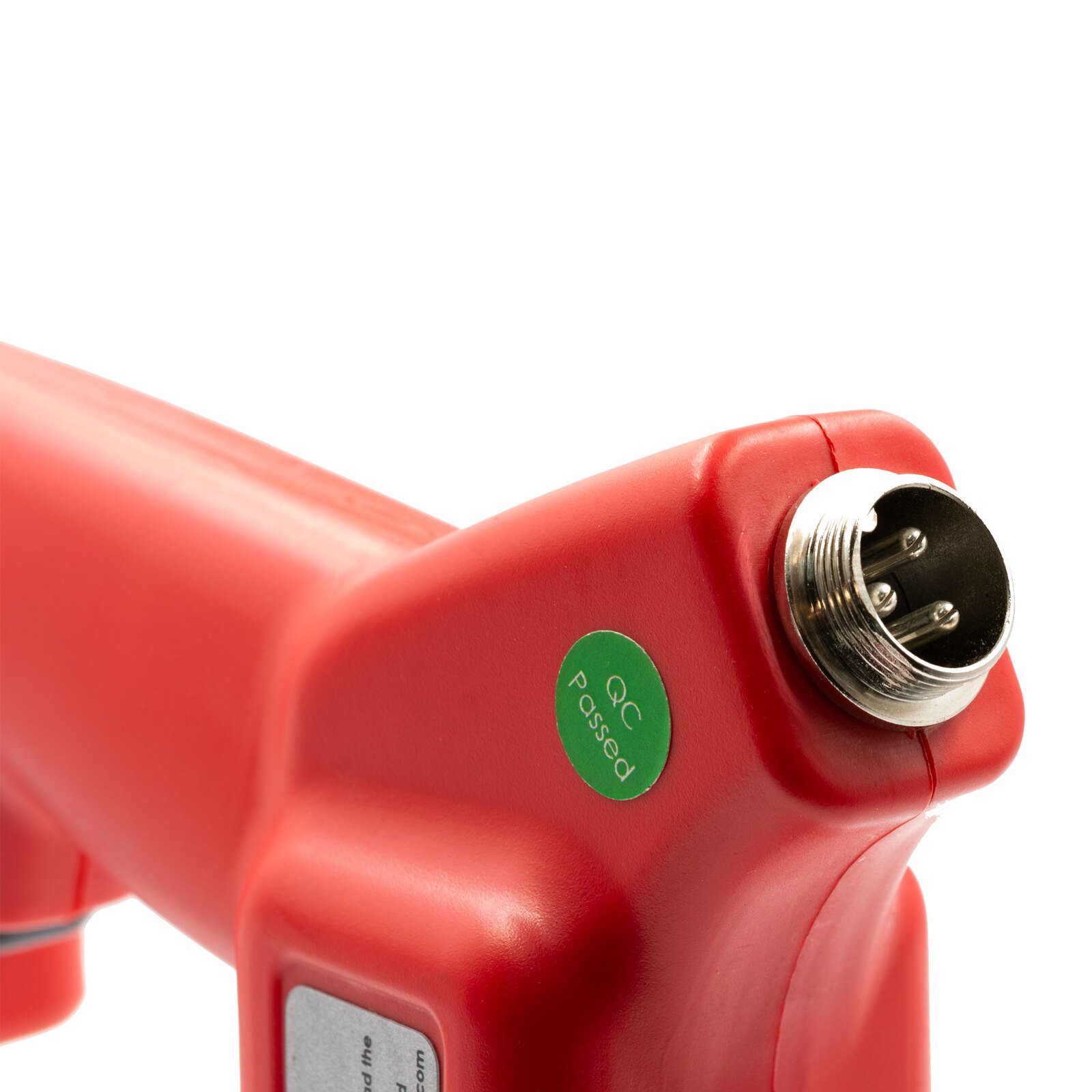

- 3m detachable power cord, operation manual, and certificate of conformance
Quality Assurance
Every unit undergoes rigorous testing to meet ASTM standards, backed by a 12-month warranty. Trust in industrial-grade performance with a 50% duty cycle for consistent, long-term use.
FAQ
Q: What power supply is required?
A: Single phase 230V 50Hz.
Q: Can it be used for demagnetization?
A: Yes, it supports AC demagnetization.
Q: What is the leg spacing range?
A: 65mm to 260mm (center-to-center).
Ready to elevate your inspection accuracy? Contact us today for pricing and technical support¡ªyour partner in precision MPI solutions.
