Description

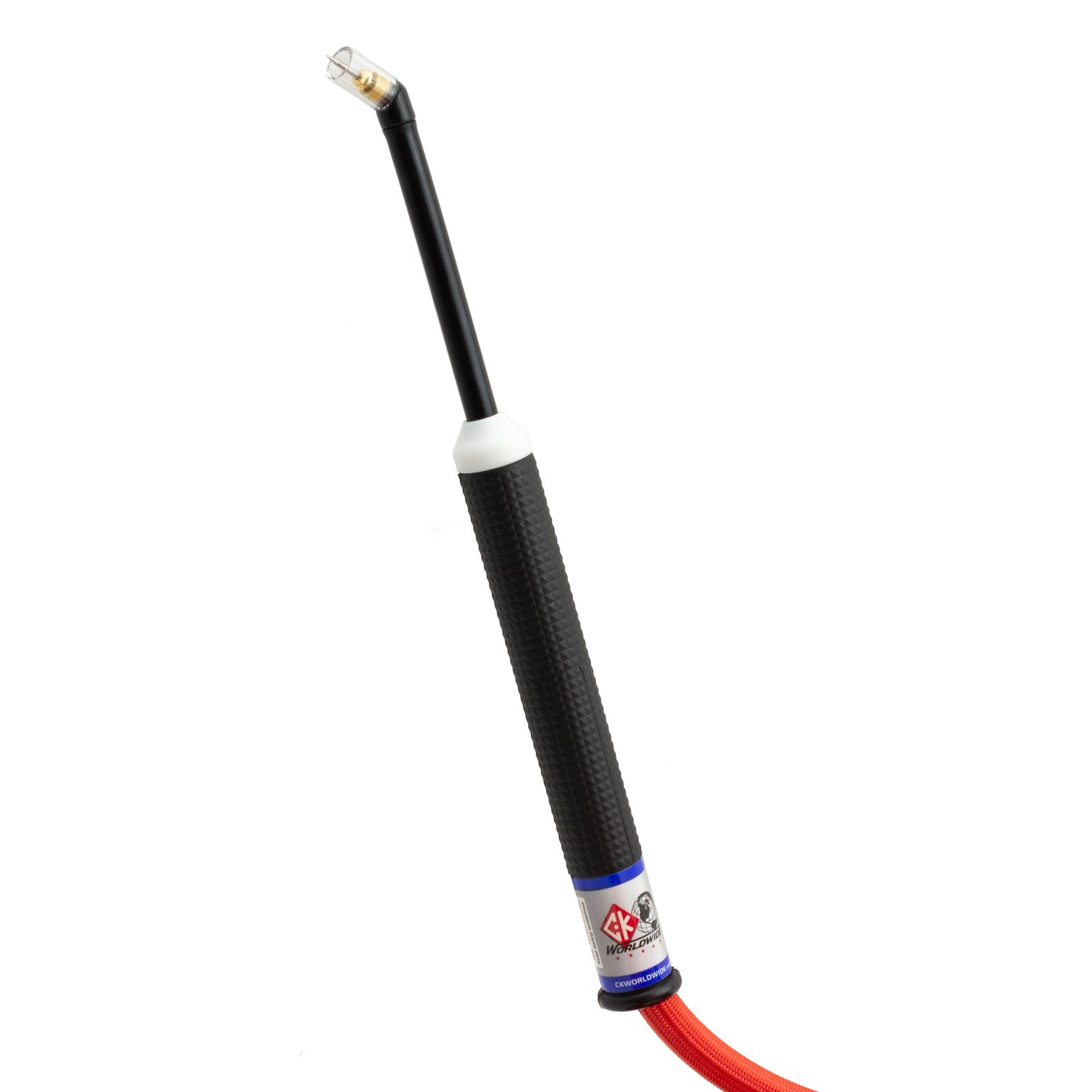

The Micro Torch is the smallest most versatile TIG torch on the market! With three angular heads, this torch allows multiple options for narrow applications where precision is needed and space is limited. This torch package comes complete with an AK-MR accessory kit and a tungsten stick-out gauge.

The CK MR70 micro-torch is great for squeezing into those tight spaces when working on roll cages and rebuilding automotive engines. The torch head is roughly the size of a 5c coin, so fitting it into a 1-inch tube is no problem. These torches come with 3 different interchangeable heads for increased versatility.

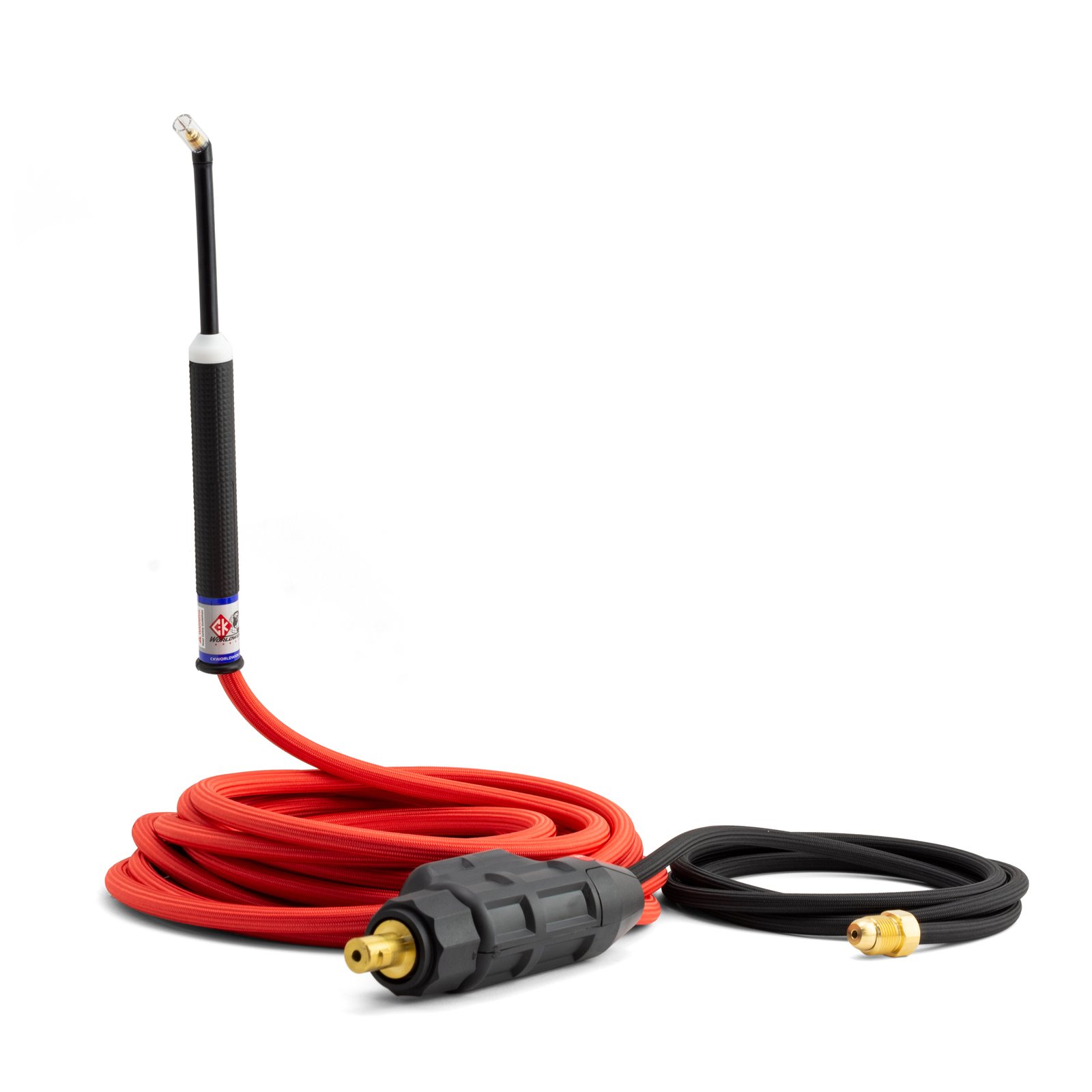

CK MR70 4m 70A Super Flex Micro TIG Torch Air-Cooled

MasterTIG MR70 12ft 70A DC, 70A AC @ 100% Duty Cycle

Features:

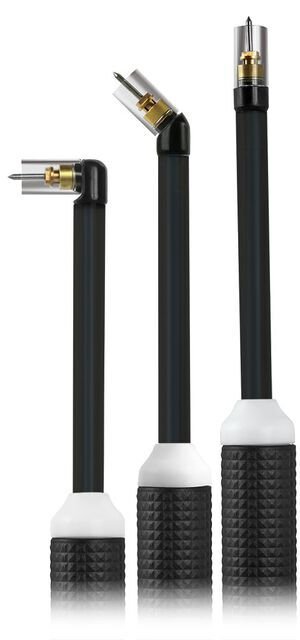

Micro Torch Head complete with 3 angular heads (180°, 90° & 45°)
Gas Fitting – 5/8 Right Hand UNF (This can be changed to a 6mm quick connect)

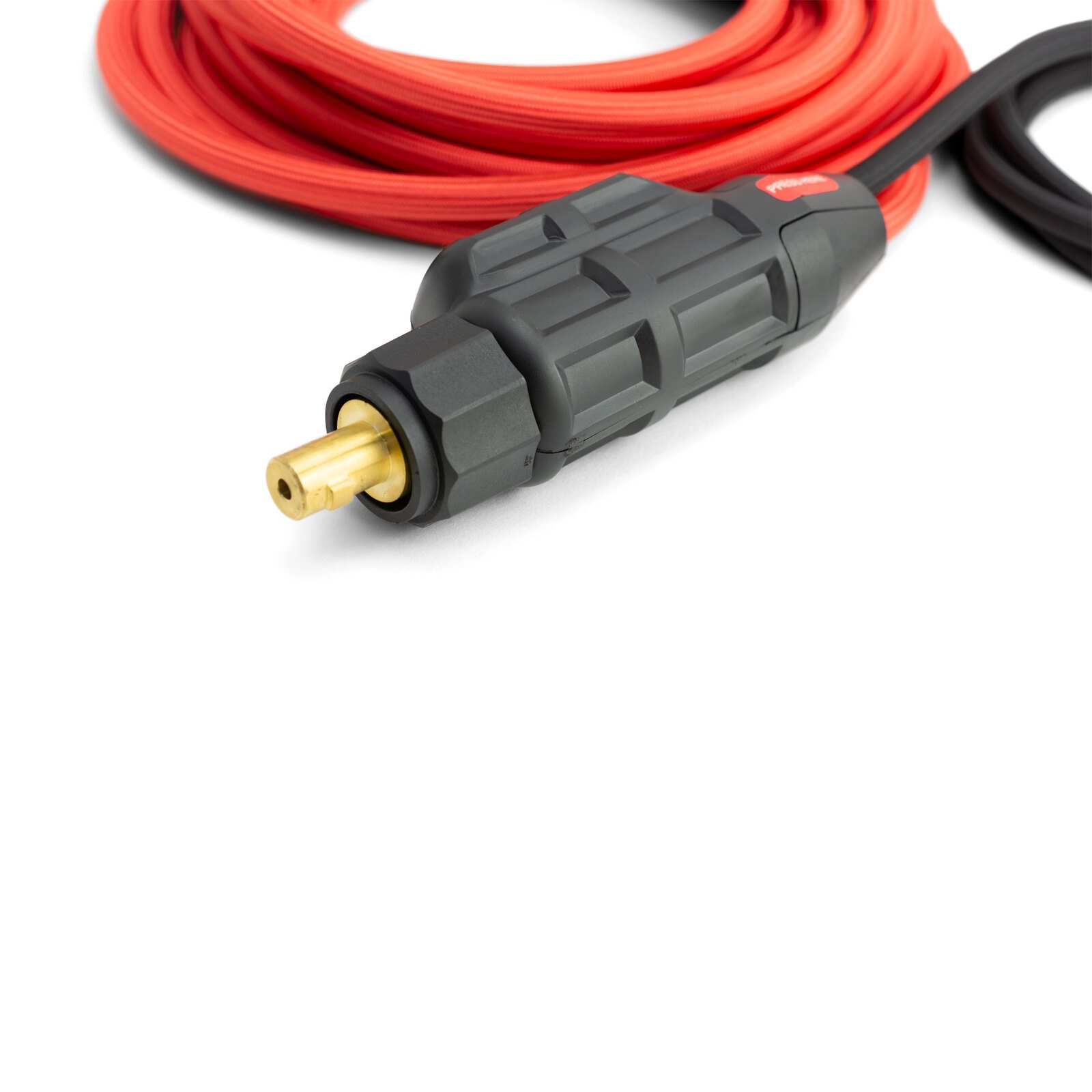

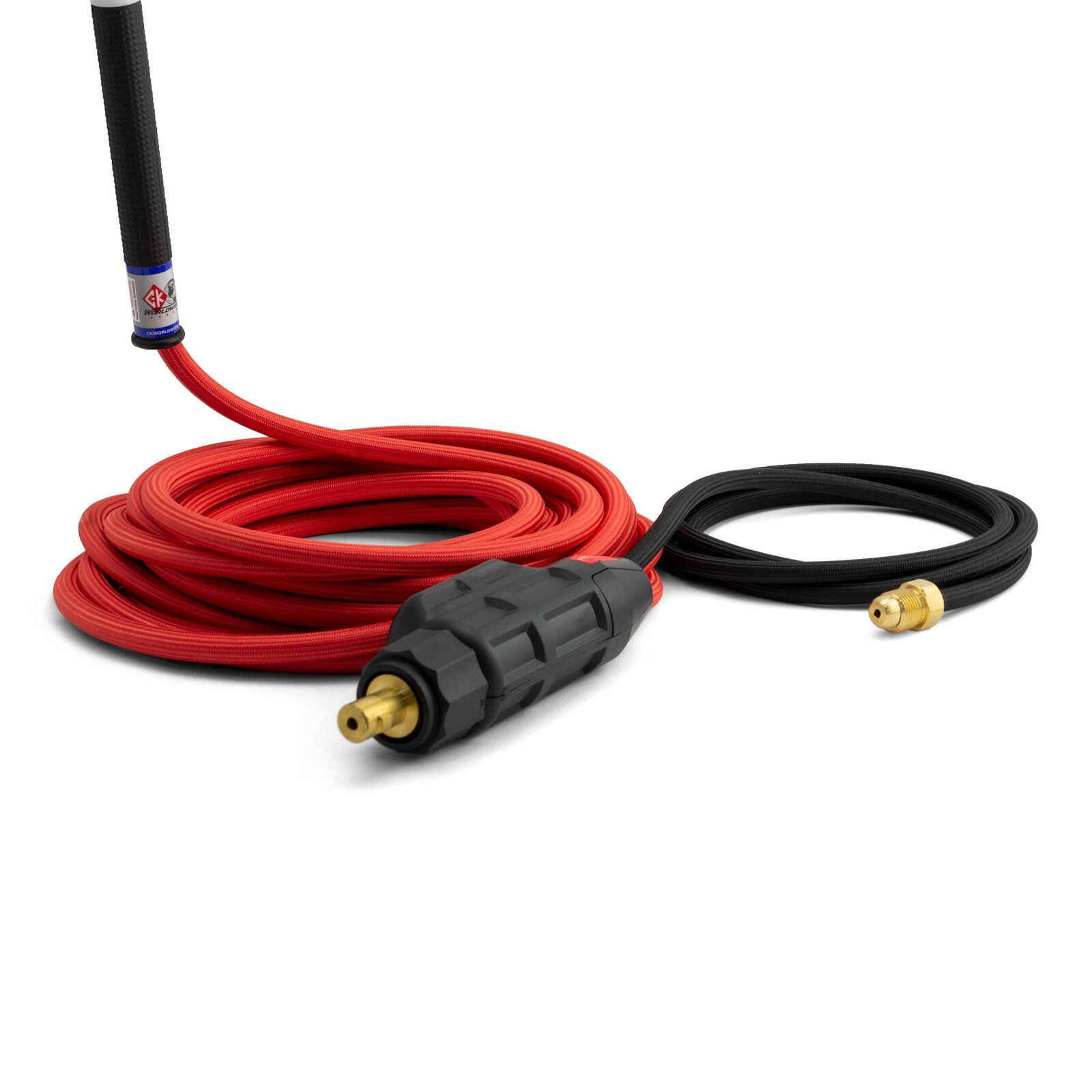

Torch comes with 4m Super Flex cable and 35-50 Dinse Power Lead connection with a 1.8m Gas Hose
Super-flex power cable
​4 meters long – 12 feet long
Air-Cooled
Clamp for gas hose Part number 16700005

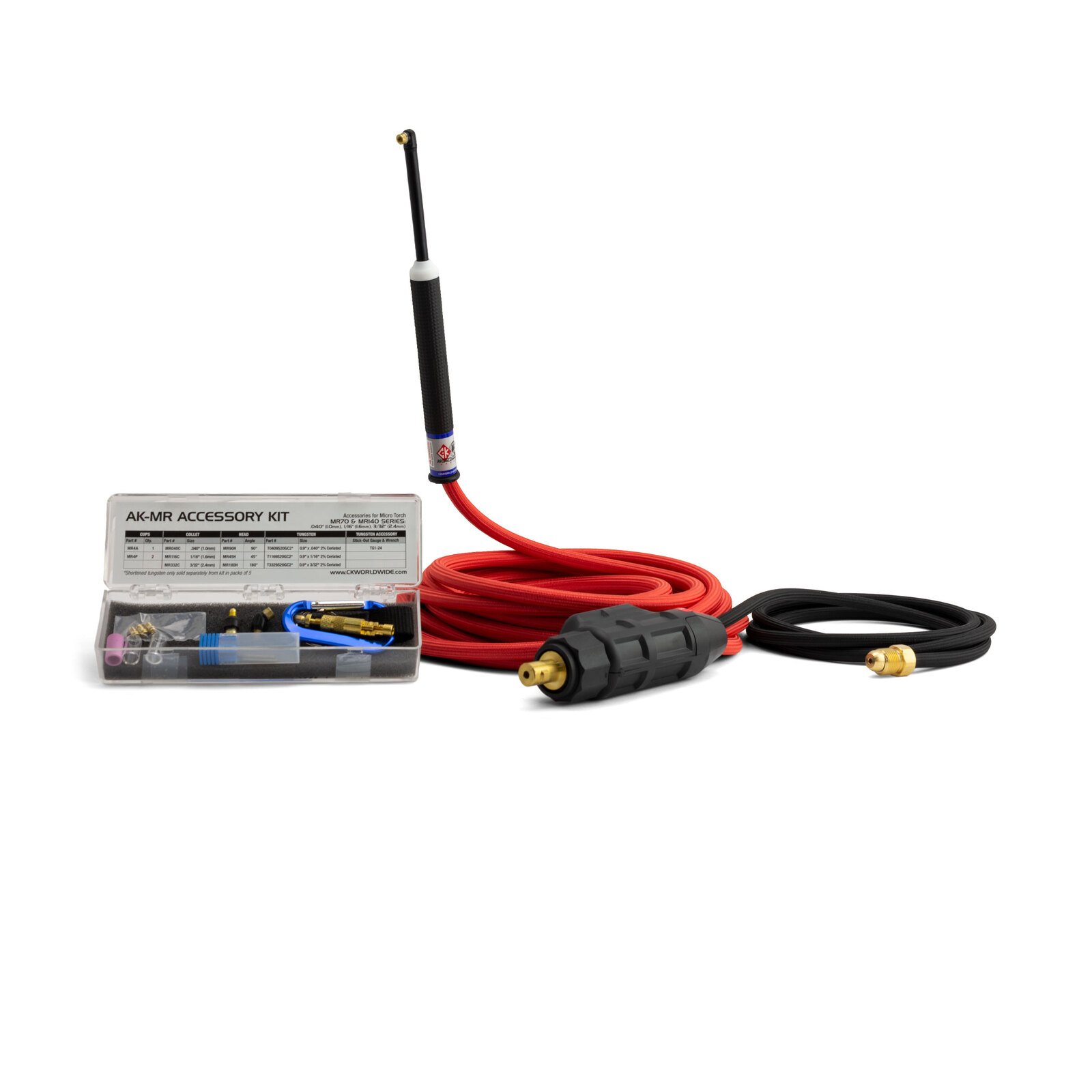

Included:

1 x MR70 Torch
AK-MR Kit
Tungsten Stick-Out Gauge
3 Heads: 45°, 90°, and 180°
2 x Clear Pyrex Cups
1 x Alumina Cup
3 Collets (1.0mm, 1.6mm, 2.4mm)
3 Tungsten (1.0mm, 1.6mm, 2.4mm) with 23mm length and a 20° grind
