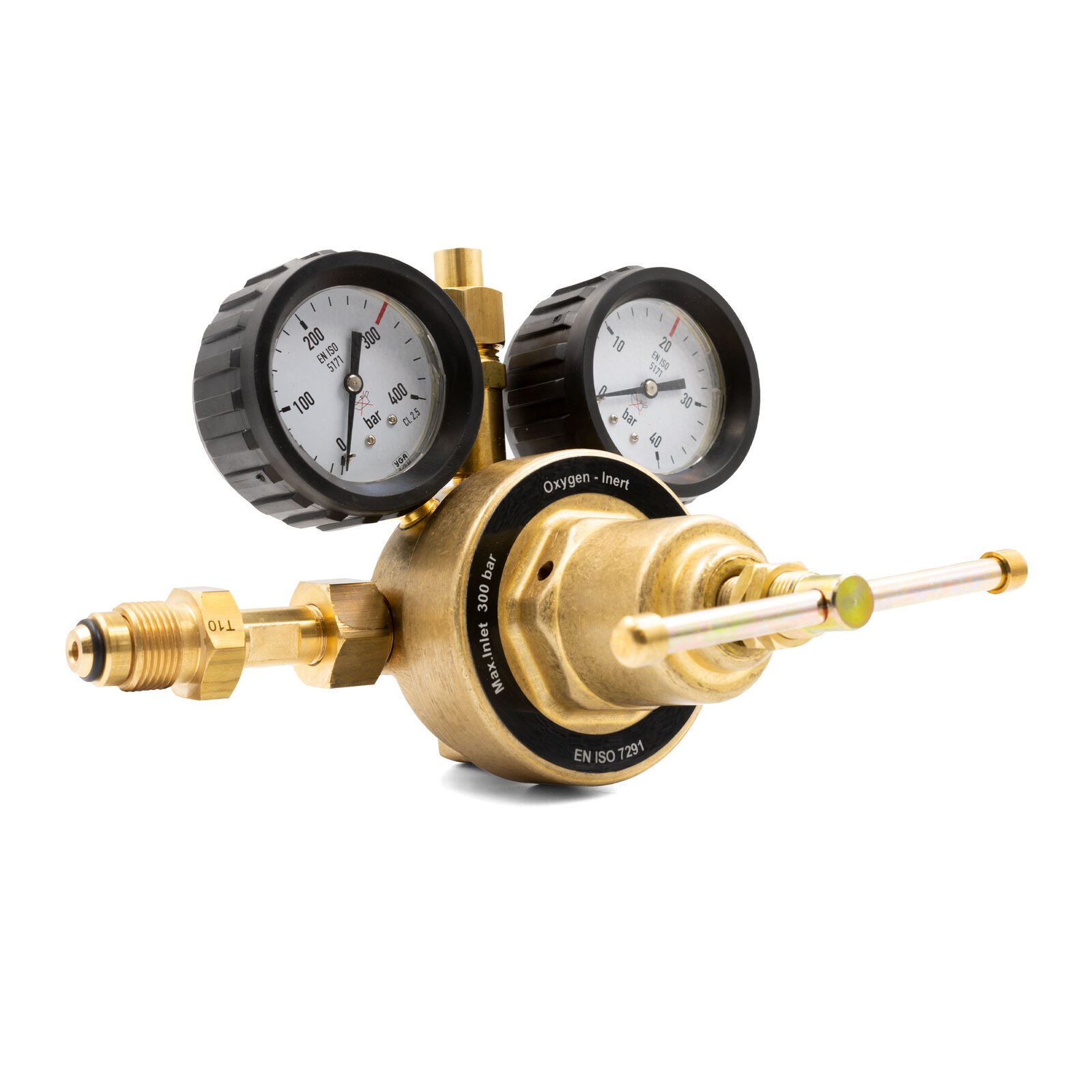

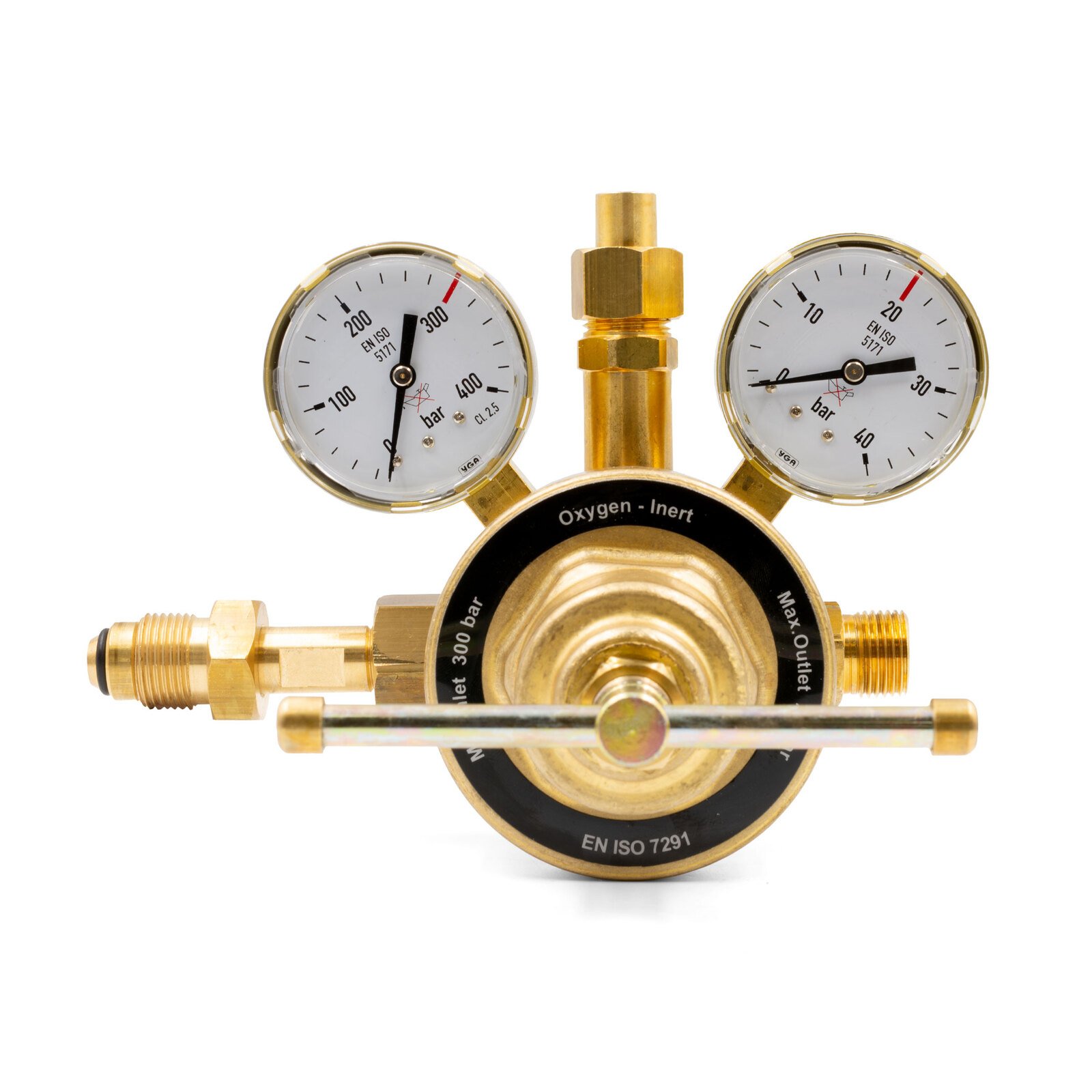

COBRA H25 High Flow Oxygen Regulator 0-2000kpa
$399.00
Product Introduction
Designed for high flow and pressure applications, ideal for industrial gas pipelines in Plasma and Laser cutting systems. Made in Europe with a 5-Year Warranty and EN ISO 2503 compliance.
Key Specifications
| Maximum Inlet | 300 bar |
| Outlet Pressure | 0 – 2000 kPa |
| Max Flow | Over 700 m3/h |
| Body Material | Heavy-duty bar stock |

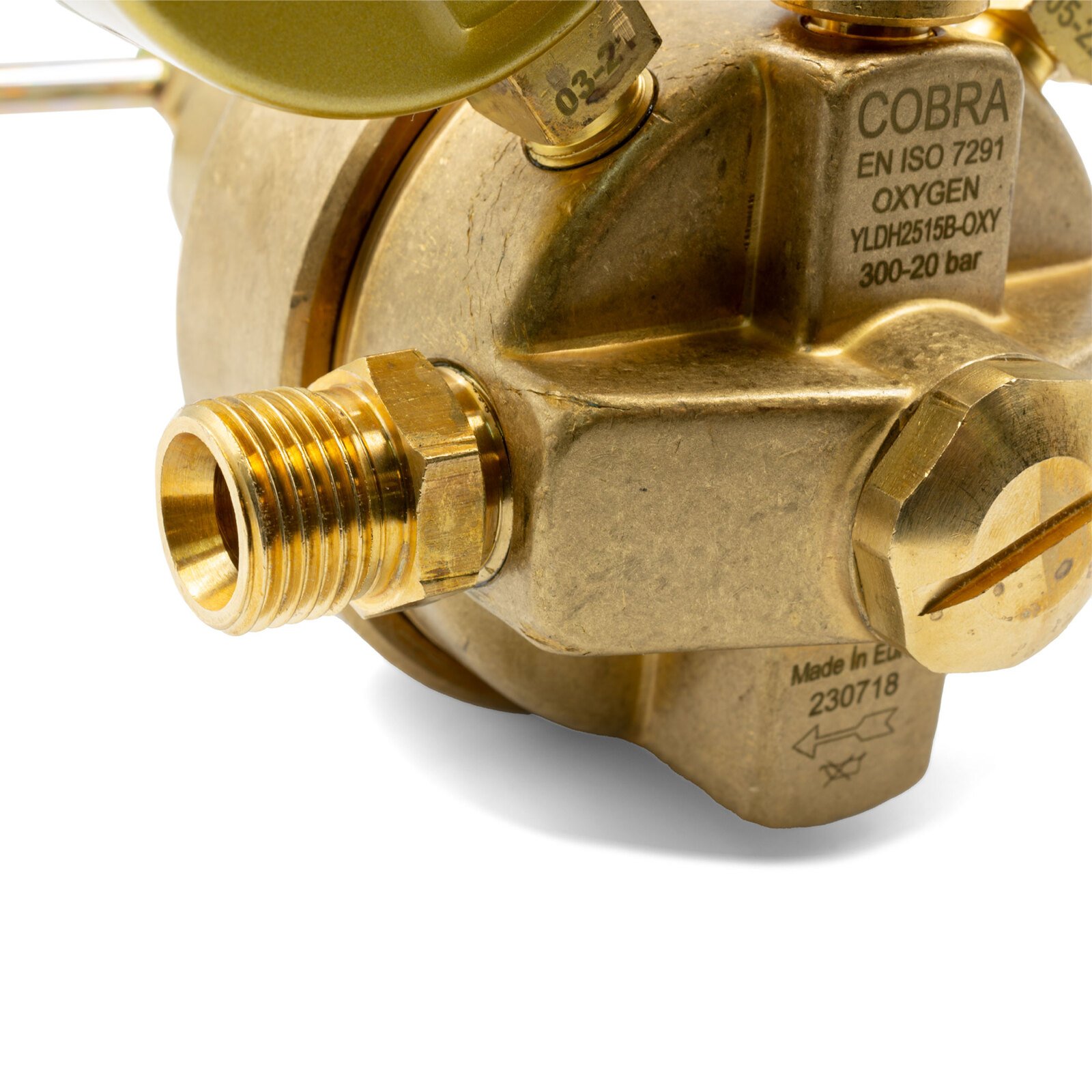

| Connections | Side Type 10 stem inlet, G1/2″ outlet |
COBRA H25 High Flow Oxygen Regulator: Powering Industrial Cutting Systems with Precision
When industrial cutting operations demand uncompromising high flow and pressure performance, the COBRA H25 High Flow Oxygen Regulator emerges as the ultimate solution. Engineered for Plasma and Laser cutting systems, this European-manufactured regulator delivers exceptional reliability and efficiency to keep your production line running at peak performance.
Core Specifications at a Glance
| Feature | Specification |
| Manufacturing Origin | Europe |
| Warranty | 5-Year |
| Compliance | EN ISO 2503 |
| Maximum Inlet Pressure | 300 bar |
| Outlet Pressure Range | 0 – 2000 kPa |
| Maximum Flow Rate | 700+ m3/h |
| Body Construction | Heavy-duty bar stock machined |
| Outlet Connection | G1/2″ |
| Inlet Connection | Side Type 10 stem |
| Safety Feature | External safety relief valve |
Unmatched Performance for Critical Applications
Designed specifically for high-flow industrial gas pipeline feeding, the COBRA H25 ensures consistent pressure delivery even under the most demanding cutting conditions. Its stainless steel diaphragm and filter guarantee long-term durability, while the capsule valve design provides precise pressure control¡ªessential for achieving clean, accurate cuts in Plasma and Laser operations.
Why Choose COBRA H25?
- European Engineering: Precision-manufactured to meet strict quality standards
- Heavy-Duty Build: Bar stock machined body withstands industrial environments
- Safety First: Integrated external relief valve prevents overpressure hazards
- 5-Year Warranty: Industry-leading protection for your investment
- High Flow Capacity: Over 700 m3/h ensures uninterrupted cutting operations
Application Excellence
Perfectly suited for:
- Plasma cutting systems
- Laser cutting machinery
- Industrial gas pipeline networks
- High-demand metal fabrication facilities
FAQ
Q: What inlet pressure does the COBRA H25 support?
A: Maximum inlet pressure is 300 bar.
Q: Is this regulator suitable for continuous operation?
A: Yes, its heavy-duty construction and high flow capacity make it ideal for continuous industrial use.
Q: What safety features does it include?
A: Equipped with an external safety relief valve for pressure protection.
Ready to elevate your cutting operations with superior flow control? Contact our technical team today to discuss how the COBRA H25 can optimize your industrial gas system performance.
Packaging & Transportation
