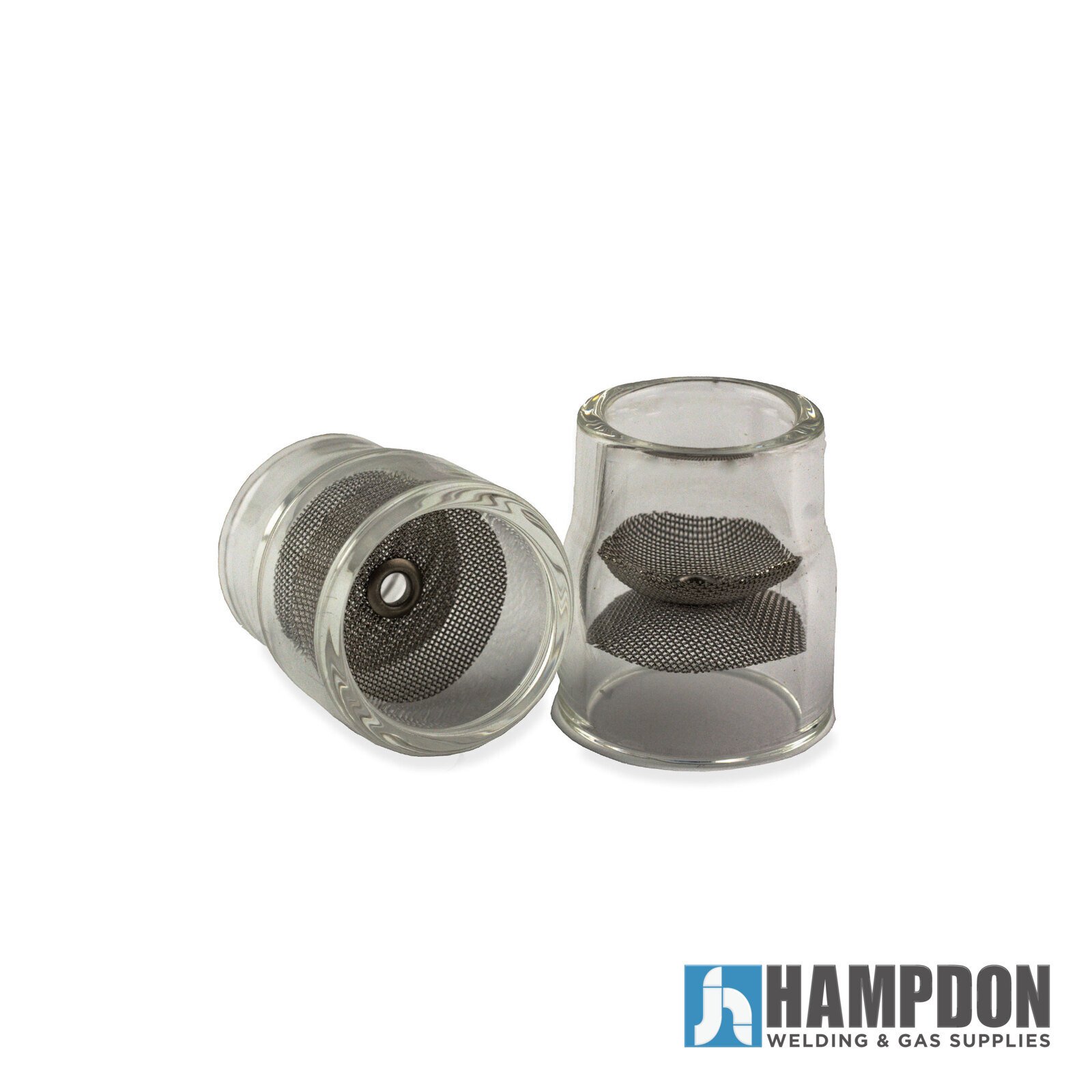

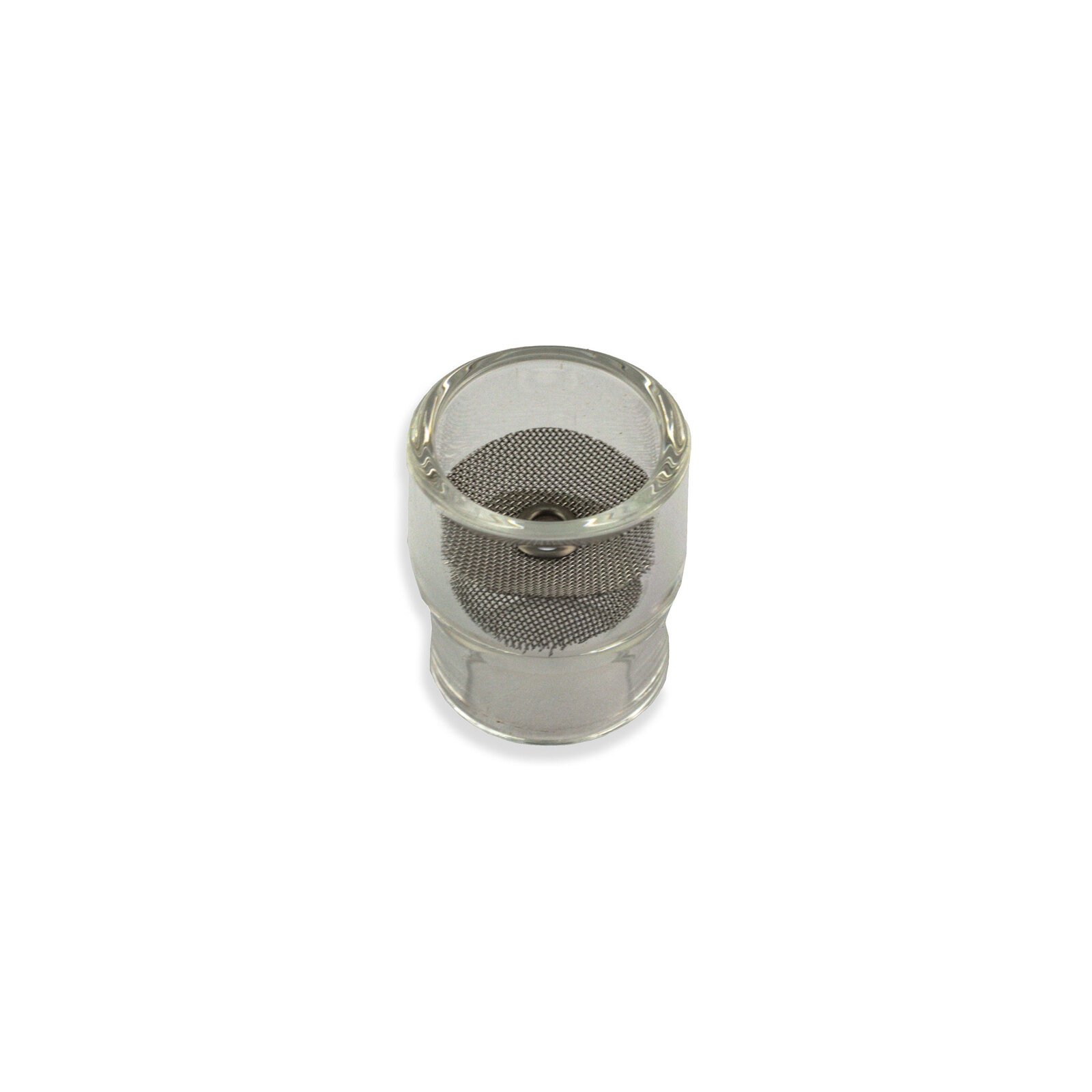

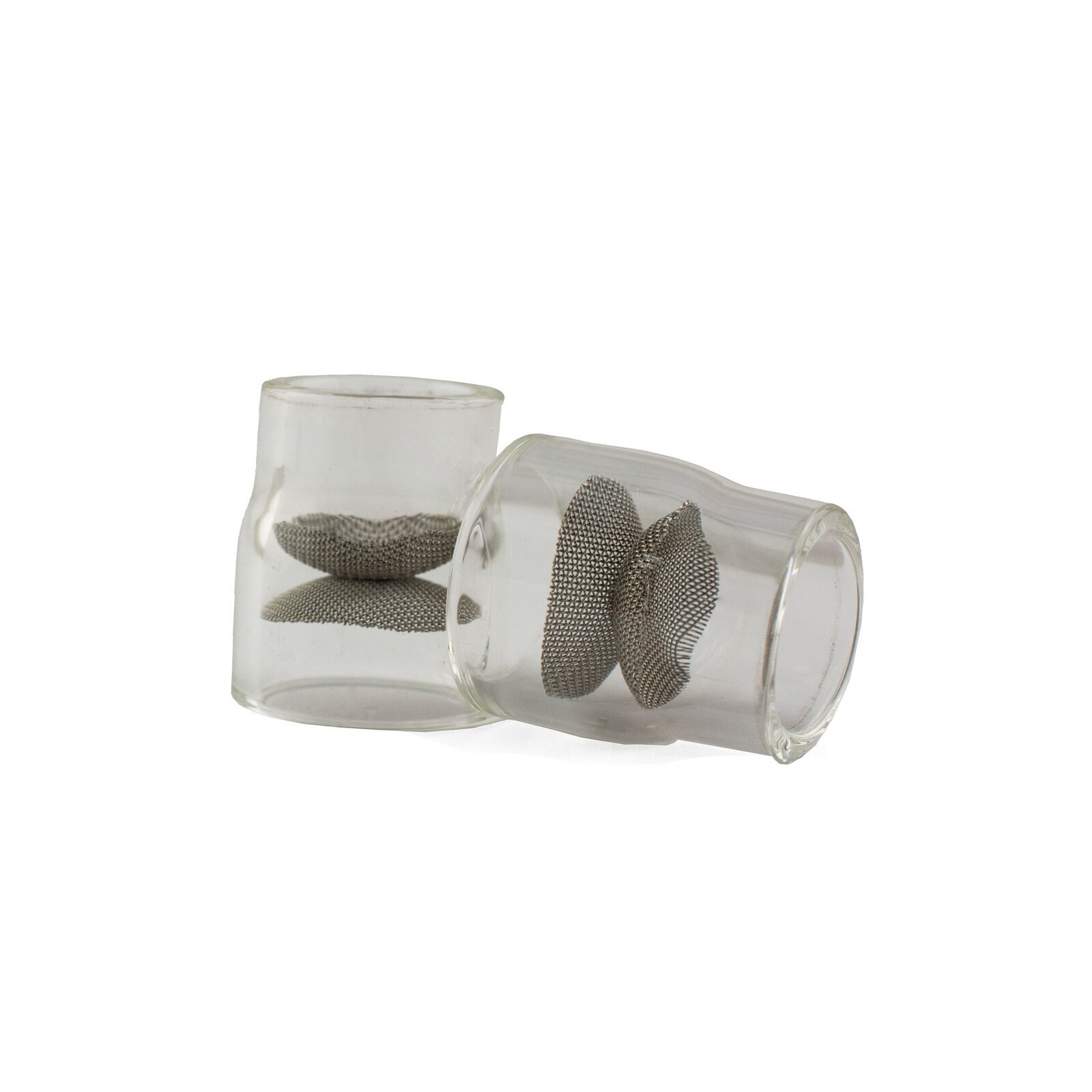

FURICK Jazzy #10 Pyrex TIG Cup – 2 Pack – Made in the USA

The Jazzy #10 Pyrex Cup includes 2 pyrex cups and a spare diffuser. It performs exceptionally well on mild steel with about 20-25CFH (8-12lpm) using the same patented diffuser design as the FUPA12. This cup will slip on a 45V44 or the Furick gas lens 33217GL / 11617GL. This kit requires Orings.

The Jazzy #10 Pyrex Cup will handle up to 175 amps non-continuance. Recommended for DC-only applications.

Features:

2.8mm Thick Pyrex
2 Each
Made in the USA

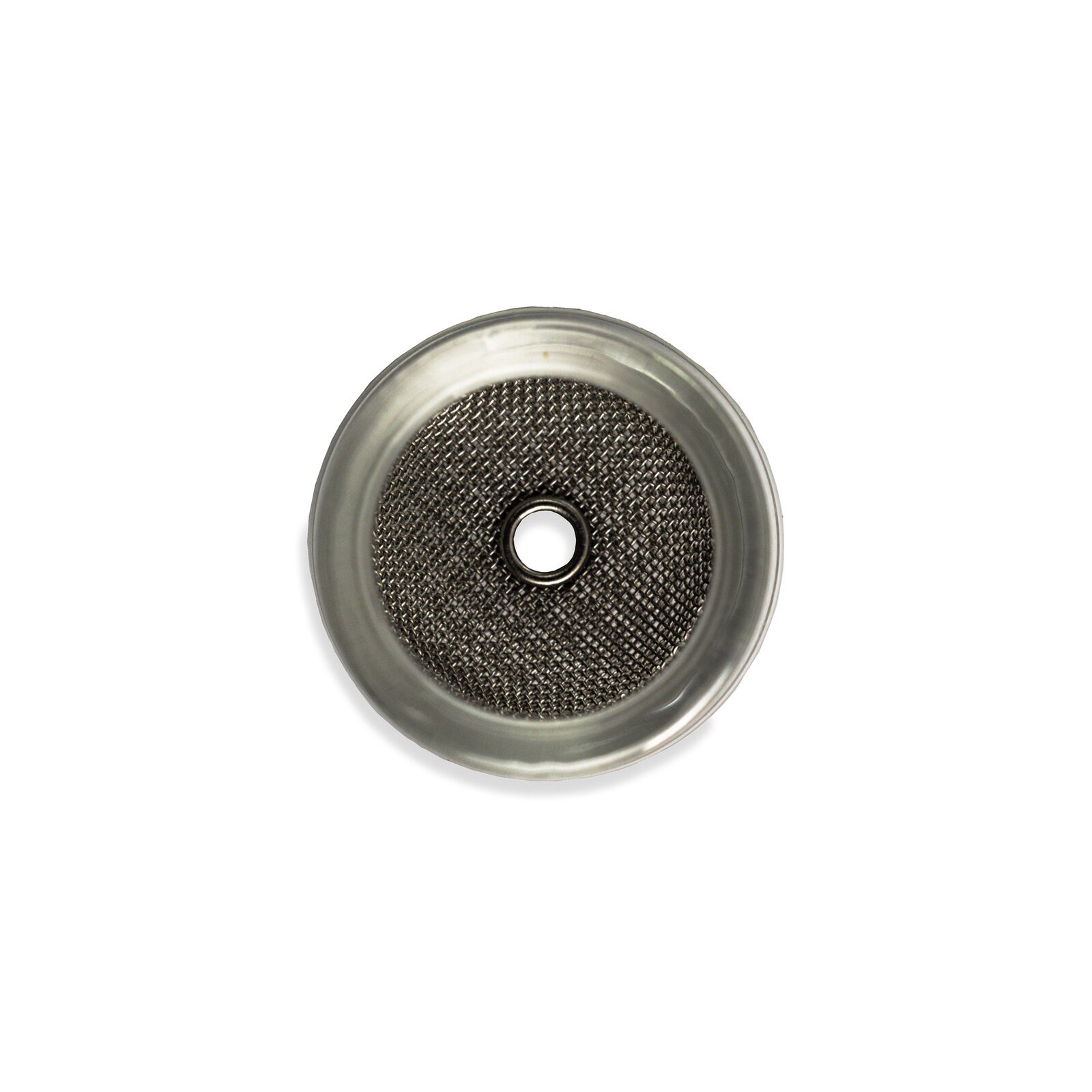

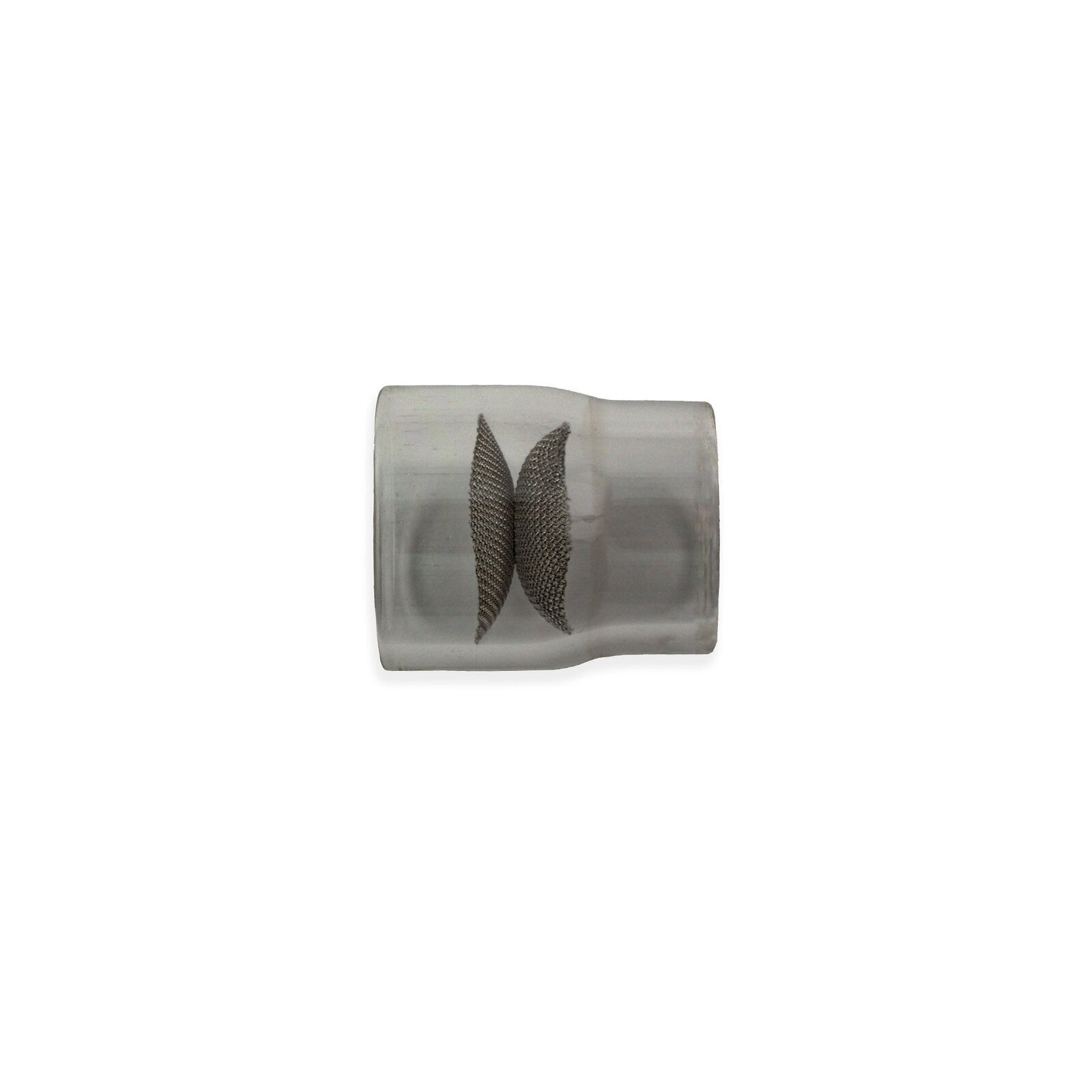

Utilizes a second mesh filter for consistent gas coverage over the welding material
For use with a standard 17 / 26 series torch the cup will require a gas lens 11617GL (for 1.6mm tungsten) or the 33217GL (for 2.4mm tungsten)
For use with a standard 9 / 20 series torch the cup is compatible with a standard gas lens’ (pn: 45V43, 45V44, 45V45)

Dimensions:

Bore ID: 17.2mm
Bore OD: 22.1mm
Length: 25.5mm
Pyrex Thickness: 2.8mm
Gas Lens Mesh Bore: 2.7mm
