Product Name:

Universal Welding Gauge HJC40

Descriptions:

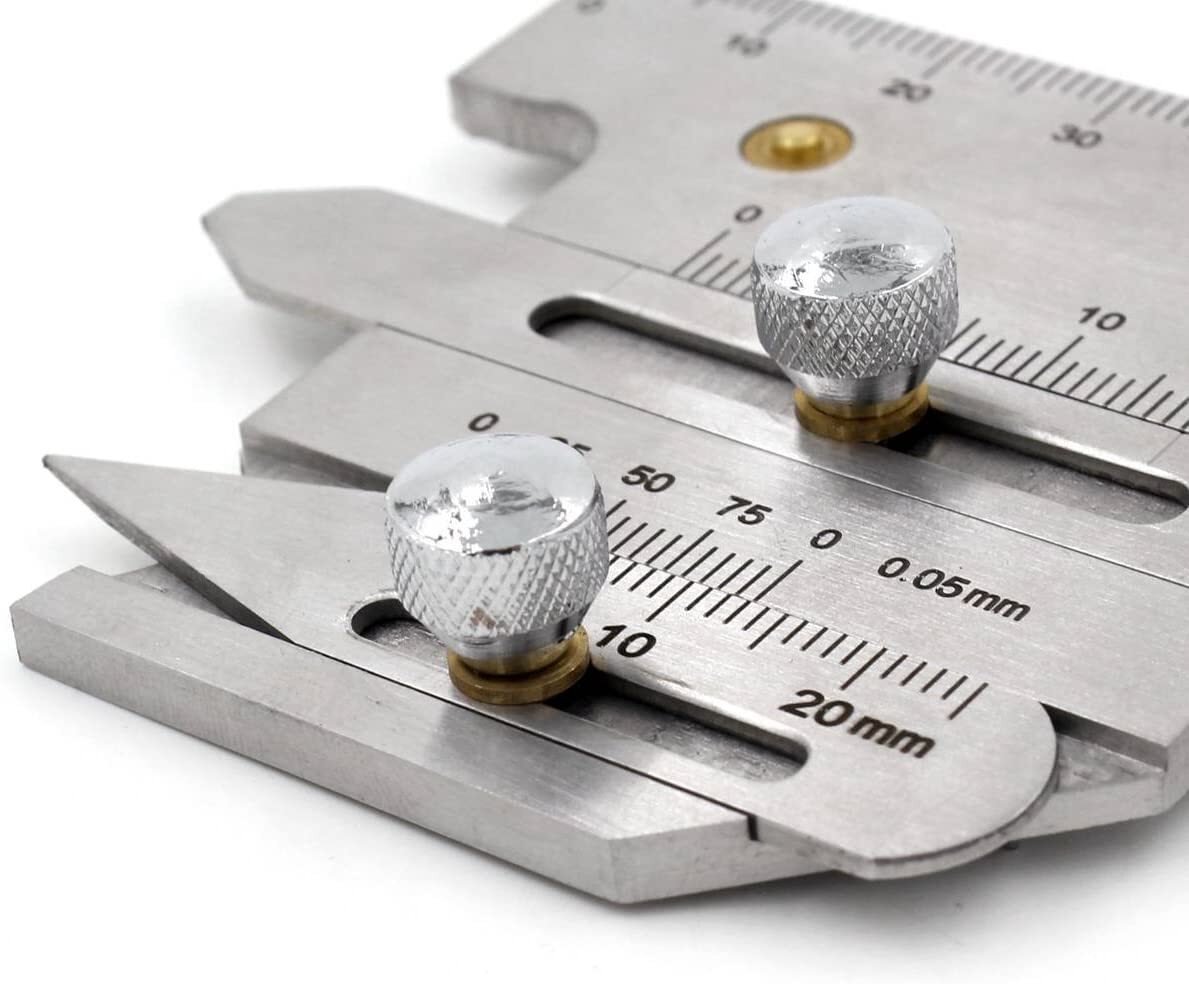

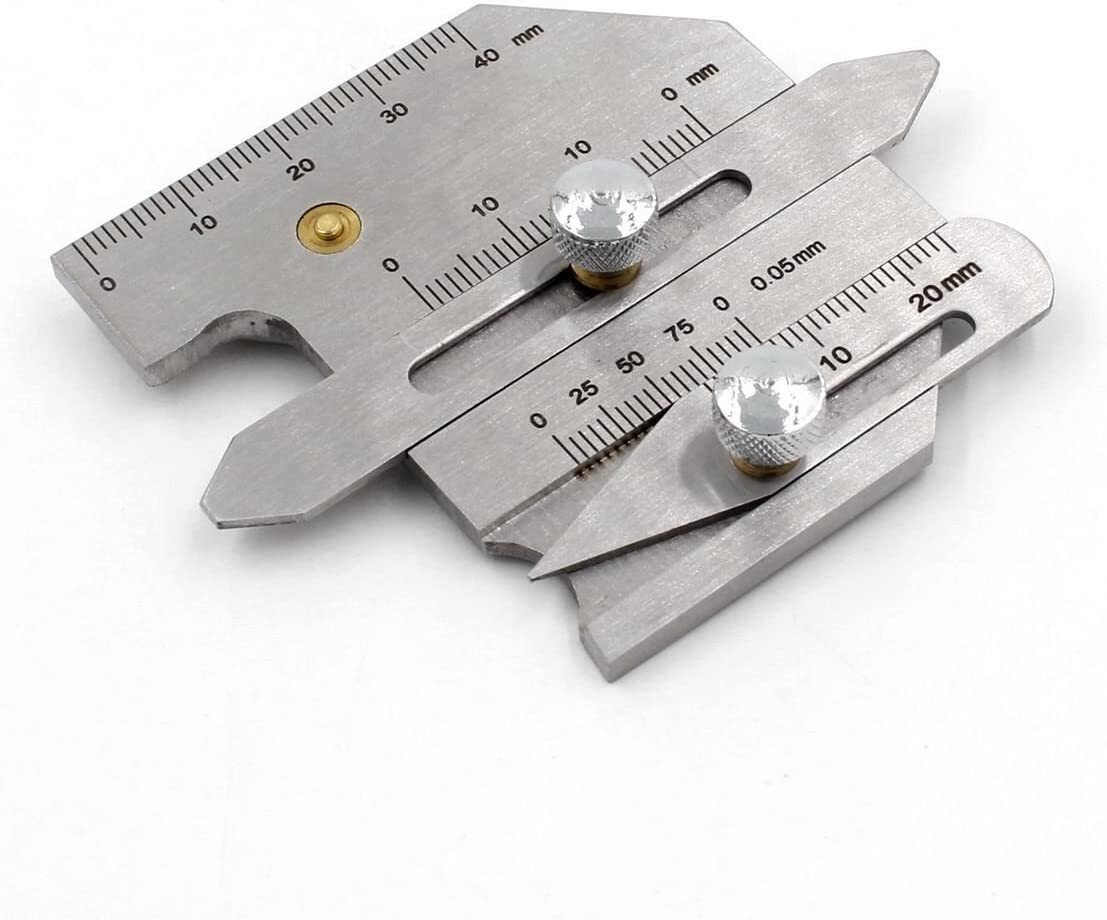

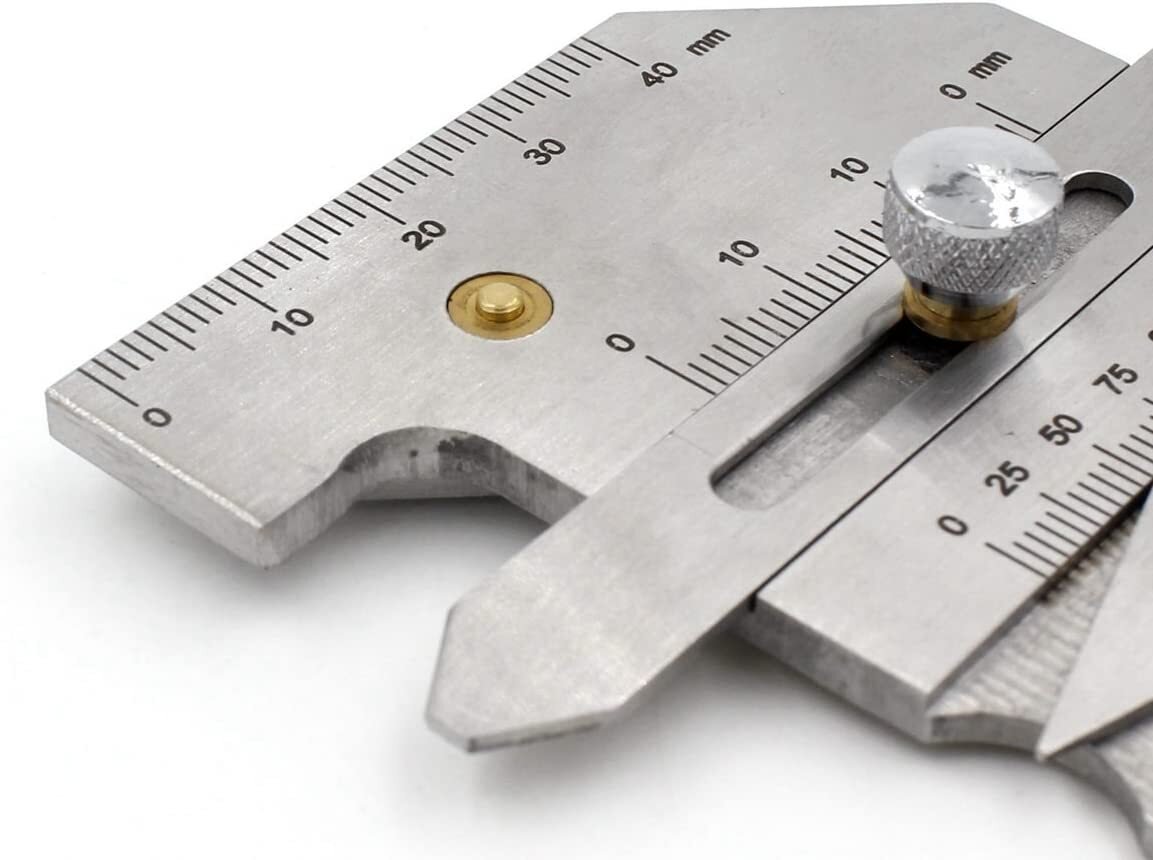

This product is made up of four parts: the main scale, the height gauge, the undercut depth gauge and the multiple-purpose gauge.

The HJC40 gauge is used to measure various groove angles, heights, widths, clearances and undercut depths of weldments.

Features:

◆ Cobra high-quality welding gauge.

◆ Made of stainless construction, sturdy and durable.

◆ Laser engraving scales,easy to read and wear-resistant.

◆ Highly polished, Deburred , with smooth operation

Specifications:

◆ Weight: 144g

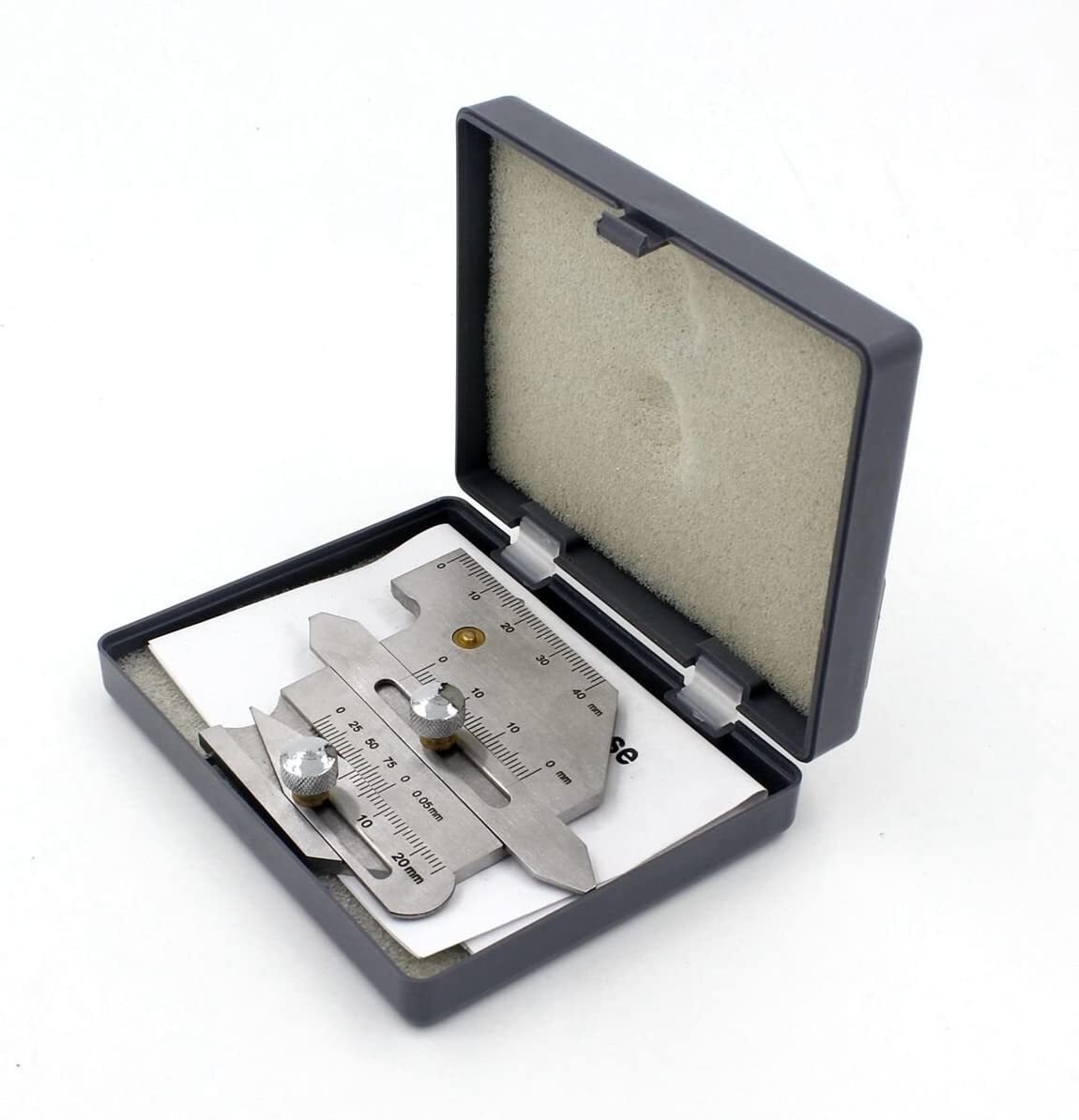

◆ Plastic box size：L x W x H: 98mm x 76mm x 23mm

◆ Measuring range:

– Crown Hegith: 0-10mm

– Width: 0-40mm

– Undercust depth: 0-5mm

– Height of fillet : 0-12mm

– Thickness of fillet : 0-15mm

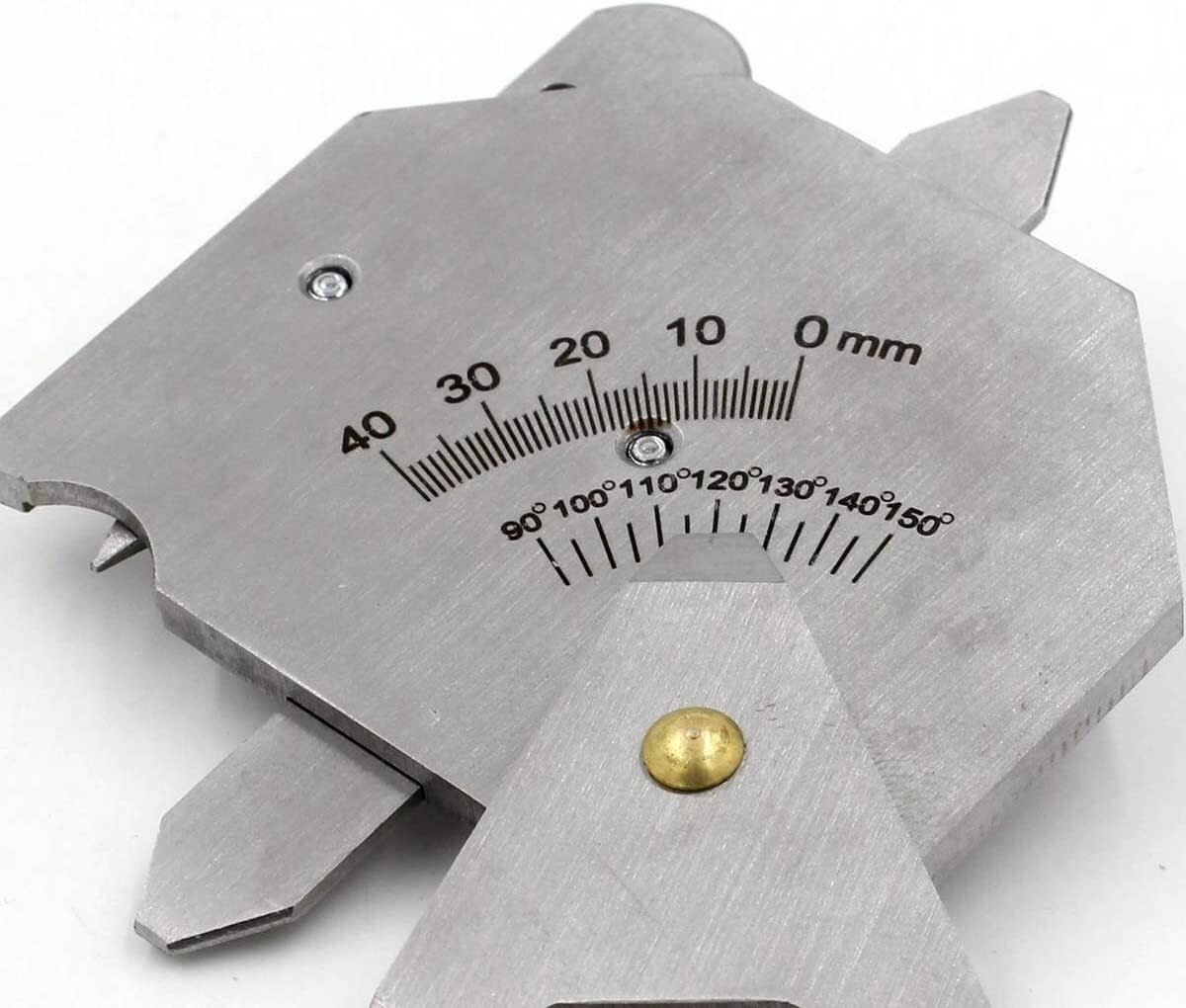

– Bevel Angle of Weldment: ≤150°

– Gap Size: 0.5-5mm

– Undercut Depth of welding seam: 0-5mm
