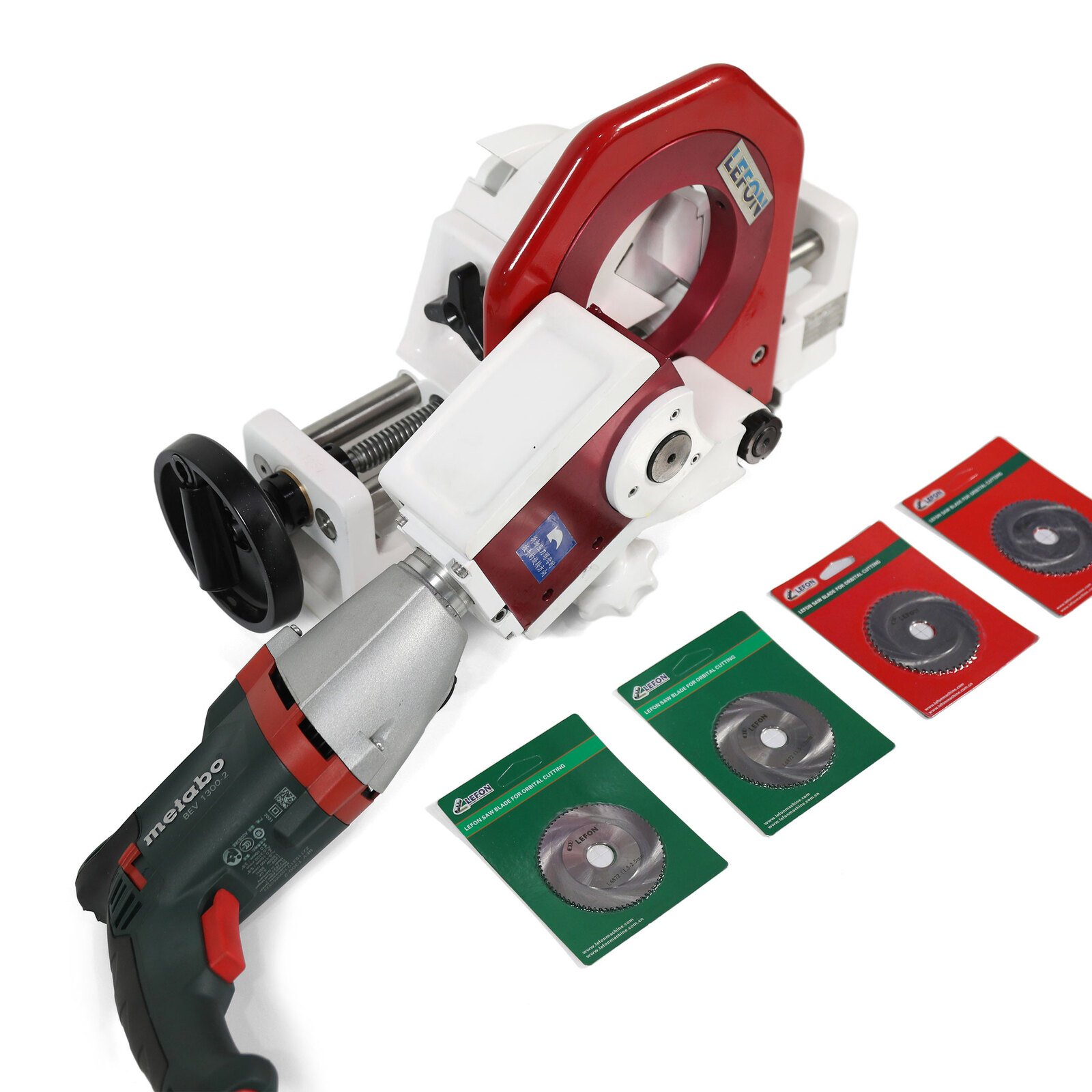

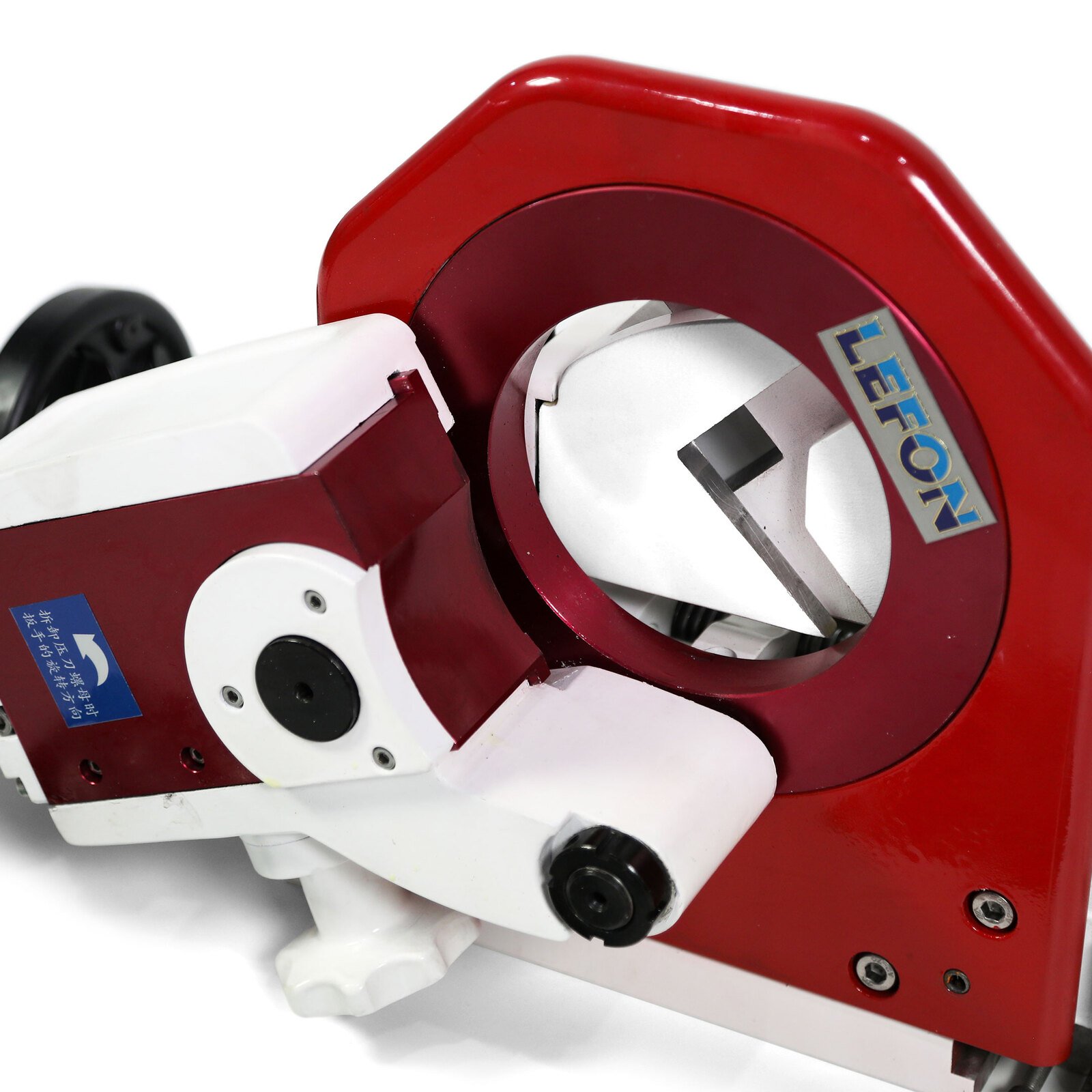

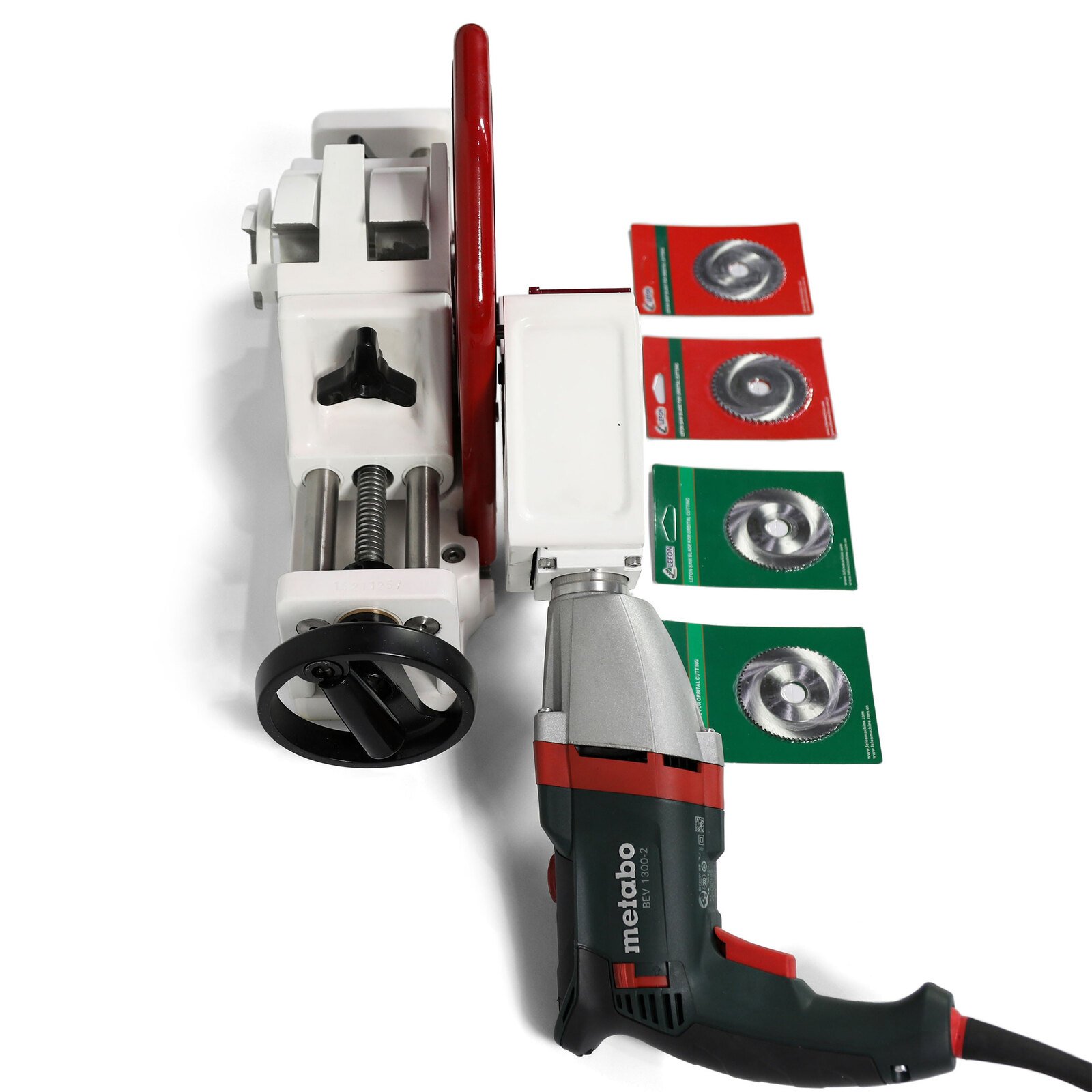

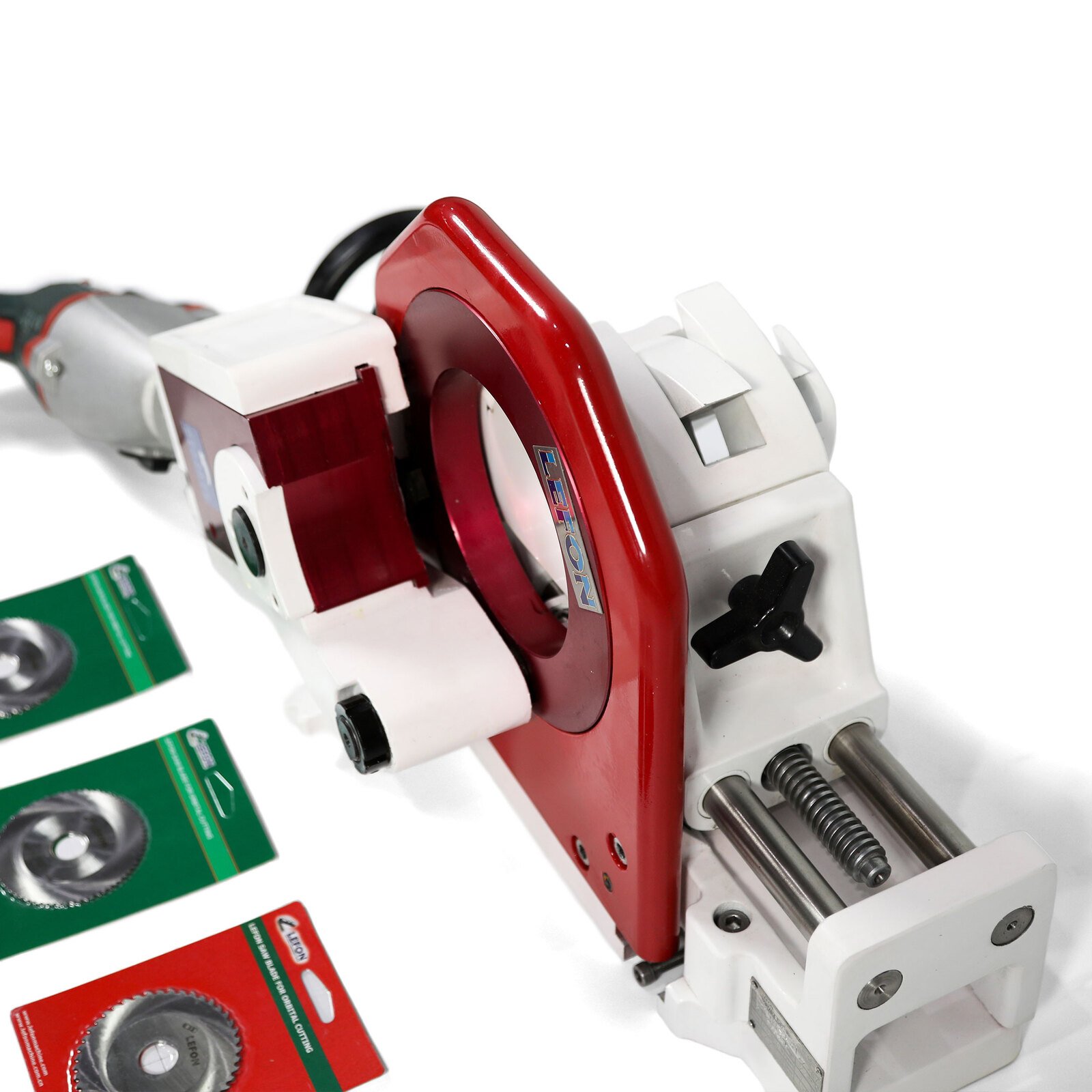

Lefon Lite 4 Portable Pipe Saw / Cutter – Orbital Bevelling Cutting Machine
$4,980.00
Cuts ¼ inch to 4 inch pipes
Hampdon Industrial stocks the industry-leading Lefon range of orbital pipe saws. LEFON Orbital Pipe Saws are a cost-effective and reliable solution to square cut and bevel almost all types of metal pipe. Lefon orbital pipe saws deliver a precise, square and clean-cut, making it unnecessary to do any additional preparation work on the cut-off face for orbital welding.
Features:
Model Number: Lite4
Cuts ¼ inch to 4 inch pipes (6mm – 120mm) 0.5mm to 3mm thickness
Only 25kg
150 blade RPM
1000W power output100-220V / 50-60Hz
Metabo Drive Motor
Application, Stainless, Low and unalloyed, Casting materials, non-ferrous metal, Copper, aluminum and plastic pipes
Precise right angle cut
Cold cut to prevent thermal distortion
Fast pipe clamping, deformation-free clamping system
Easy set up regardless of the diameter
Easy execution of the cut
Just a few seconds to finish the cut with one single rotation
Simultaneous cutting and beveling with beveling blade mounted
Cutting speed regulation suitable for each wall thickness pipe
Manufactured to CE and ISO standards
Please note: Zip financing is charged at an additional 6% on this item.
Use with XDP 2000 cutting fluid found in our store. Part number 81210
A skilled Operator using our European made HSS blades, with the correct lubrication can get at least 150 x 2″ schedule 40 stainless steel pipe cuts with 1 blade
Part number for blades are below
63mm x 1.6mm TIALN Coated 64 Teeth. Part number – HSS63x1.6x64T
63mm x 1.6mm – TIALN Coated 64 Teeth Part number – HSS68x1.6x44T
68mm x 2.0mm – TIALN Coated 72 Teeth Cut and Bevel Blade 30 Degree – Part number 30DEGCB
