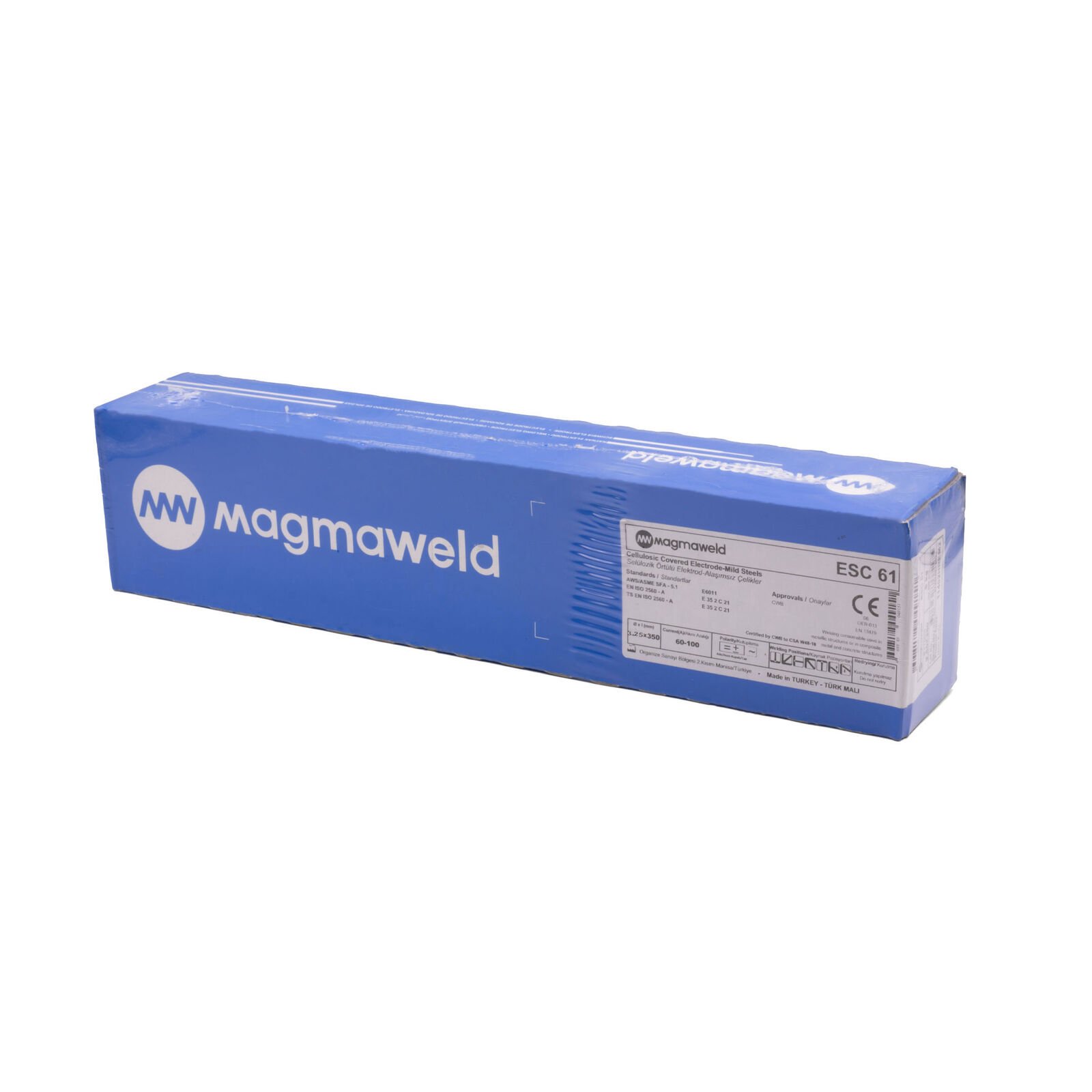

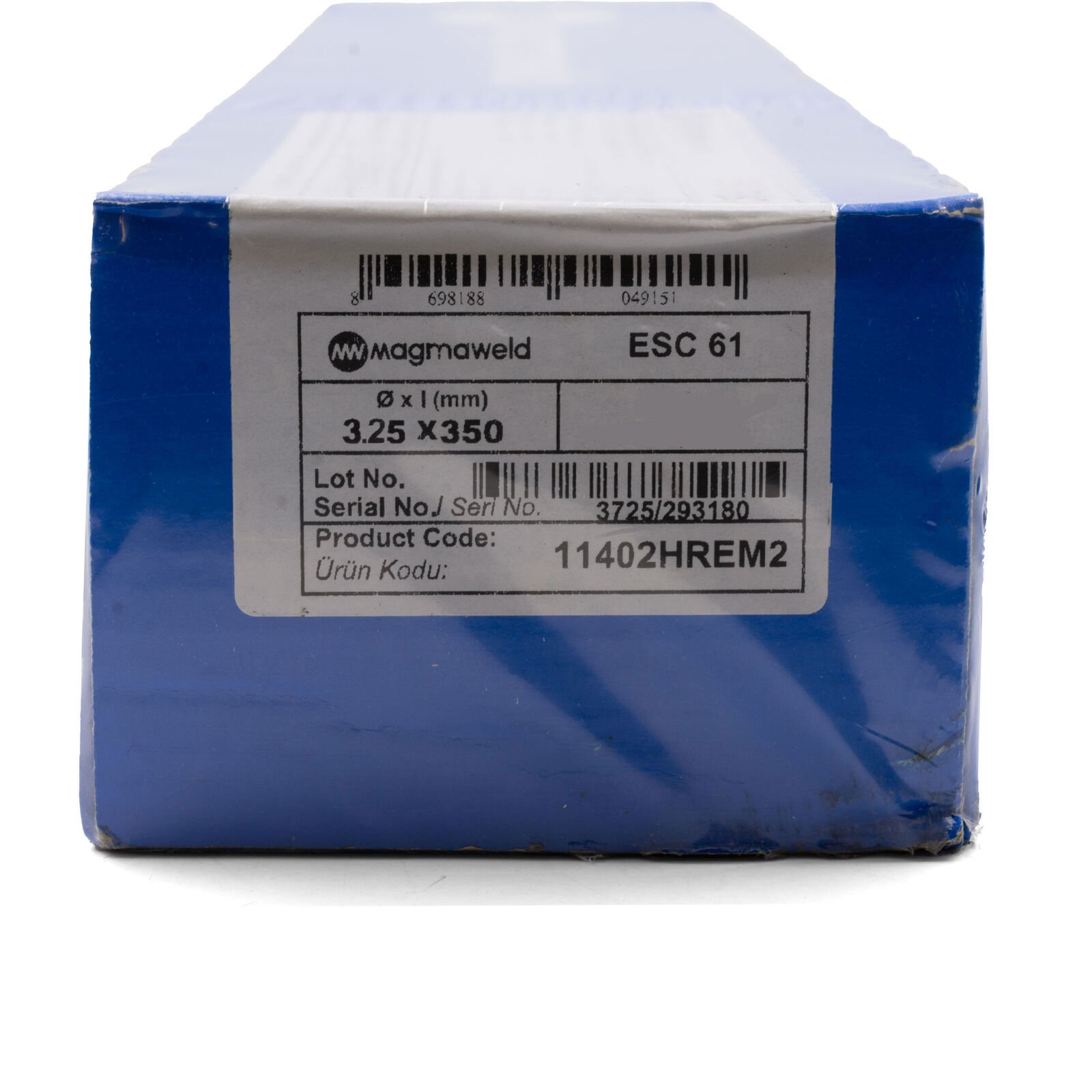

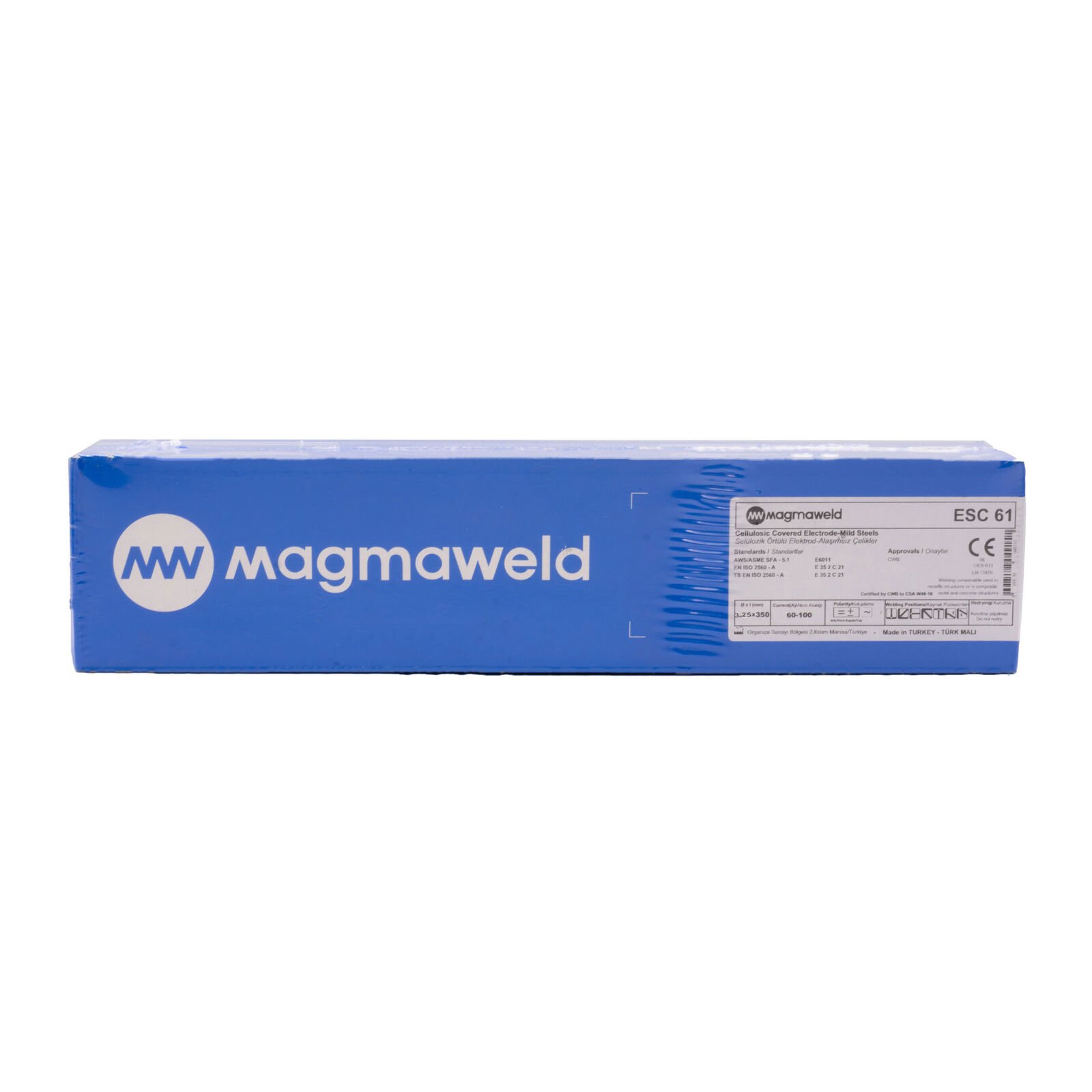

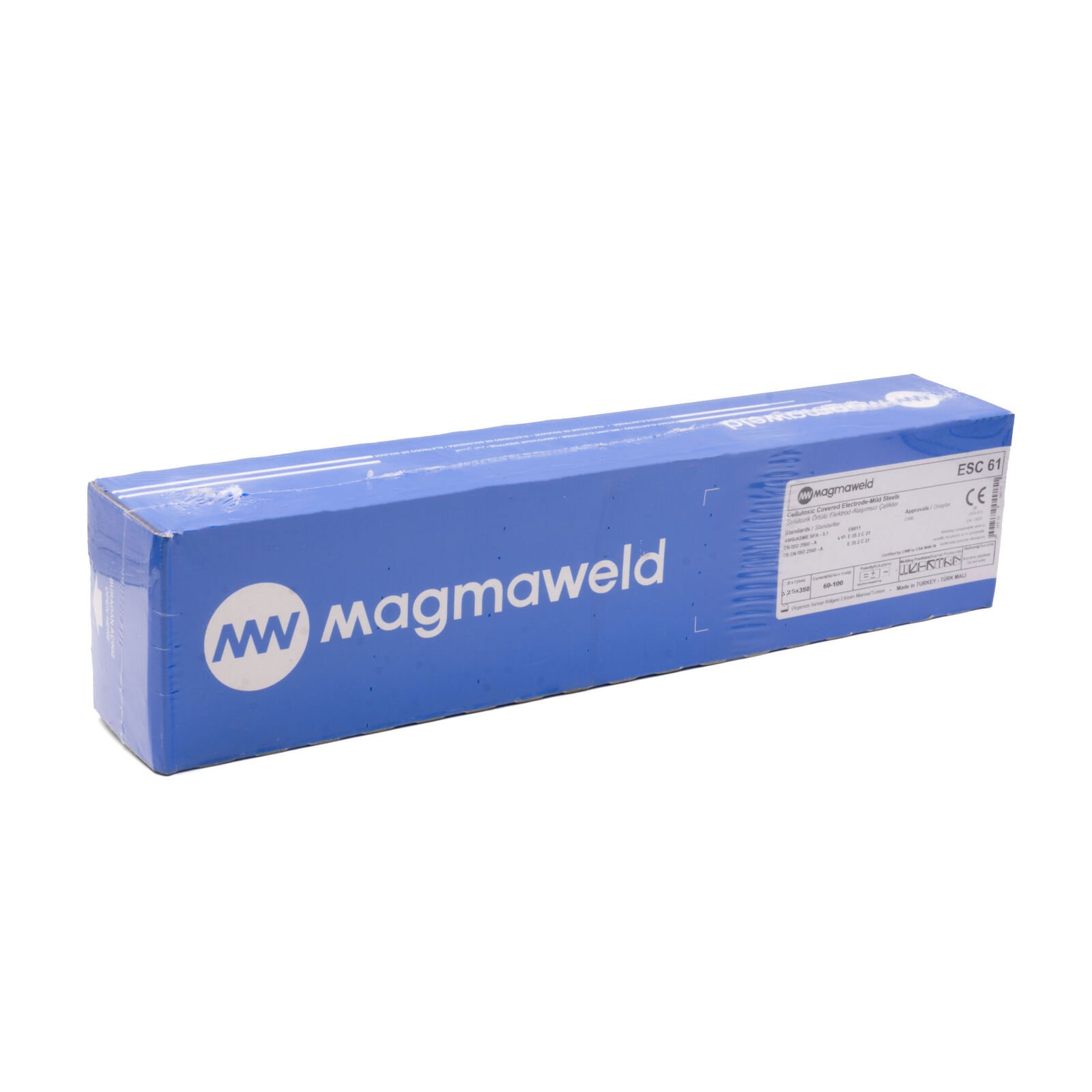

MAGMAWELD 6011 3.2mm Stick Electrodes 5KG General Purpose
$79.00
Product Description
Magmaweld 6011 is a general-purpose cellulosic stick electrode with outstanding joining characteristics, ideal for wide gaps and deep penetration. Suitable for root/fill passes in vertical down direction, used in shipbuilding, pipelines, and machinery repair on mild steels and galvanized sheets, compatible with AC/DC.
Specifications
| Diameter | 3.2mm |
| Length | 350mm |
| Weight | 5kg (181 sticks approx.) |
| Standards | AWS E6011, EN ISO 2560-A |
| Approvals | CWB, CE |
MAGMAWELD 6011 – General Purpose GP Cellulous 3.2mm Stick Electrodes – 5KG Pack
Unlock professional-grade welding performance with Magmaweld 6011 Cellulosic Stick Electrodes. Engineered for versatility and reliability, these 3.2mm electrodes deliver exceptional penetration and gap-bridging capabilities, making them ideal for challenging industrial applications. Whether you’re working on pipelines, shipbuilding, or heavy machinery repair, this 5kg pack ensures consistent results with every weld.
Core Specifications
| Description | Details |
|---|---|
| Diameter | 3.2mm |
| Length | 350mm |
| Weight | 5kg (181 sticks approx.) |
| Flux Type | Cellulosic |
| Polarity | AC/DCEN (-)/DCEP (+) |
| Standards | AWS/ASME SFA-5.1 E6011, EN ISO 2560-A E35 2 C 21 |
| Approvals | CWB, CE |
| Tensile Strength | 530 N/mm2 |
| Yield Strength | 470 N/mm2 |
| Manufacturer | Magmaweld (Turkey) |
Key Performance Advantages
? Deep Penetration: Cellulose flux coating ensures superior weld penetration, perfect for root passes and vertical-down welding.
? Versatile Application: Ideal for mild steel, cast steel, galvanized sheets, and machinery parts across shipbuilding, pipelines, and storage vessels.
? All-Position Welding: Suitable for PA (flat), PB (horizontal), PC (vertical), PD (overhead), and pipe welding positions (3G/4G).
? Industrial Durability: Meets rigorous AWS and EN standards, backed by CWB and CE certifications for quality assurance.
Applications & Uses
Designed for professionals in construction, oil & gas, and manufacturing. Perfect for:? Pipeline construction and repair? Pressure vessel fabrication? Shipbuilding and marine engineering? Heavy machinery assembly? Galvanized steel projects? Root and fill passes in vertical-down joints
Why Choose Magmaweld 6011?
? Market-leading brand renowned for industrial-grade quality
? No re-drying required¡ªready to use straight from storage
? Superior gap-bridging for poor fit-up scenarios
? Consistent arc stability on both AC and DC power sources
? Low spatter and smooth bead appearance
FAQ
Q: What materials can this electrode weld?
A: Mild steel, steel castings, galvanized sheets, and machinery parts.
Q: Is re-drying necessary?
A: No¡ªstore in dry conditions; re-drying is not required.
Q: What polarity should I use for root passes?
A: AC or DCEN (-) is recommended for optimal root penetration.
Ready to elevate your welding projects? Contact us today for bulk pricing, technical support, or to place your order. Experience the Magmaweld difference in every weld!
