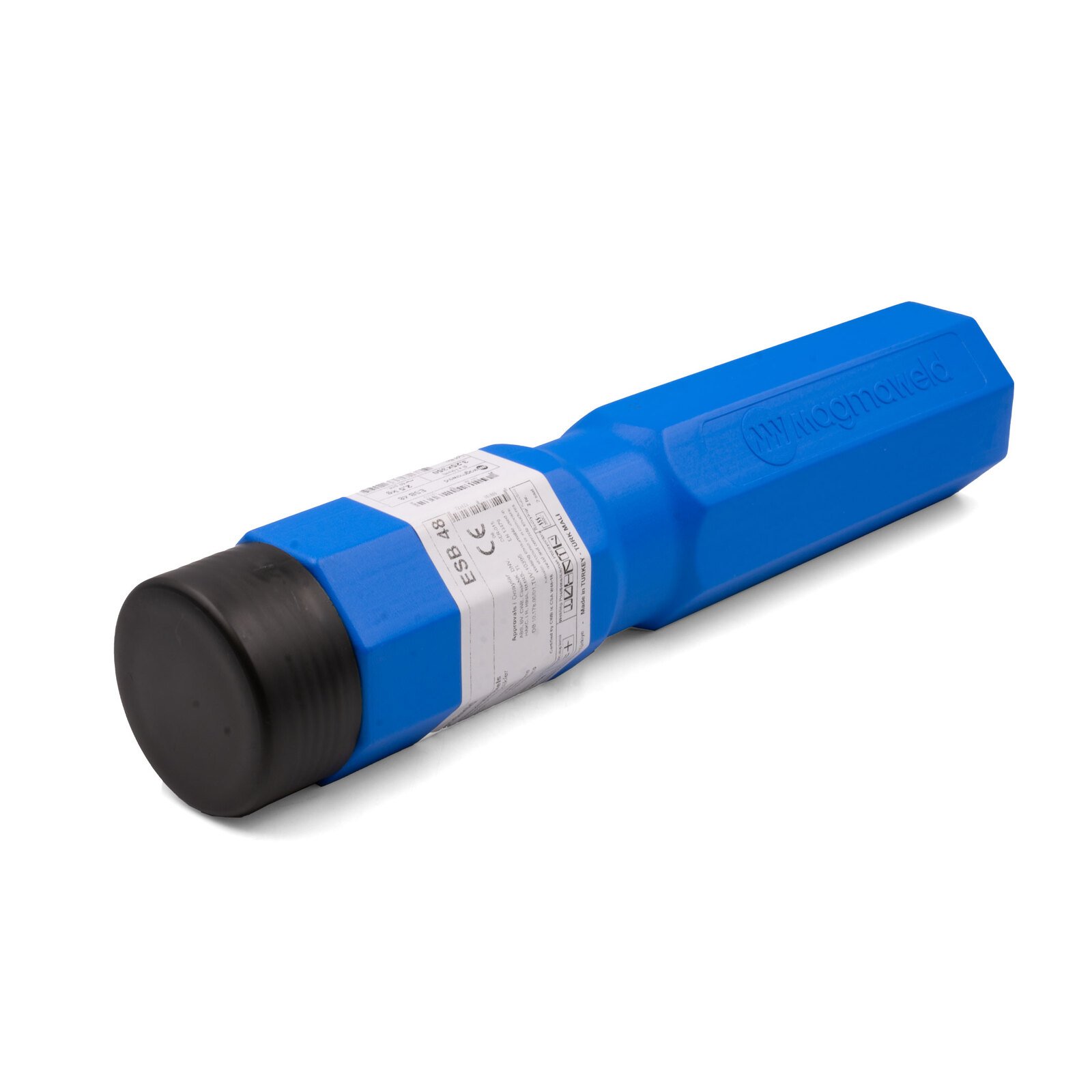

Hampdon Industrial stocks the premium range of Magmaweld Basic Coated Electrode – Non Alloyed Steels. Similar to the E7016 , the E7018 Low hydrogen electrode has less and an addition of iron powder to the flux. E7018 is an efficient, general purpose, low hydrogen electrode used for welding carbon steels. 7018 has a very good deposition rate, providing a quiet steady arc with low spatter and medium penetration. Often used for fill passes on butt welds, the deposits are of X-ray quality with easy slag removal, exceptional mechanical properties and a smooth uniform bead appearance.

Features:

Made in Turkey
4.0mm thickness diameter
350mm length
2.5kg weight
34 Sticks Approximate
Product code – 11204QJEM2
Stick code – ESB 48
Market-leading Magmaweld brand
Industrial Quality
For Storage & Re-Drying Information: It can be dried maximum 5 times. It has to be dried at 350°C for 2 hours.
Equivalent to UNIMIG PART #: U63013
Hampdon Part # 7018-4.0-2.5

Properties and Applications:

Suitable for welding fabrication of dynamically loaded steel contructions, bridge, shipbuilding, pipe­line, pressure vessels, tanks, boiler and machines where high tougness is required. Weld metal recovery is appx. 115 %. Smooth and clean welds merging into base metal without undercuts. Good gap bridging properties. Welds are of X­ray quality. It is suited for depositing buffer layers on higher carbon steels

Manufactured to international standards:

AWS/ASME SFA ­ 5.1
E7018 H8
EN ISO 2560 ­ A
E 42 3 B 42 H10
E 42 3 B 42 H10
TS EN ISO 2560 ­ A

Approvals & Certificates:

DNV
RINA
CWB
BV
TSE
LR

Typical Chemical Values of Weld Metal

Type of Analysis

C

Si

Mn

P

S

Cr

Ni

Mo

Cu

V

Weld Deposit

0.08

0.40

1.10

0.01

0.007

0.06

0.07

0.01

0.15

0.02

Typical Mechanical Values of Weld Metal(%)

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

560

460

28

-30-°C → 140
­-40°C → 90

Welding Position Applications:

PA – Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
PB – Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
PC – Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
PD – Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
PE – Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
PF – 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical position.
