Features the Quick Acting Screws and “Swing Away” Arm.

Hold parts in position during cool down to minimize distortion due to contraction.

Features:

Two Quick Acting Screws.

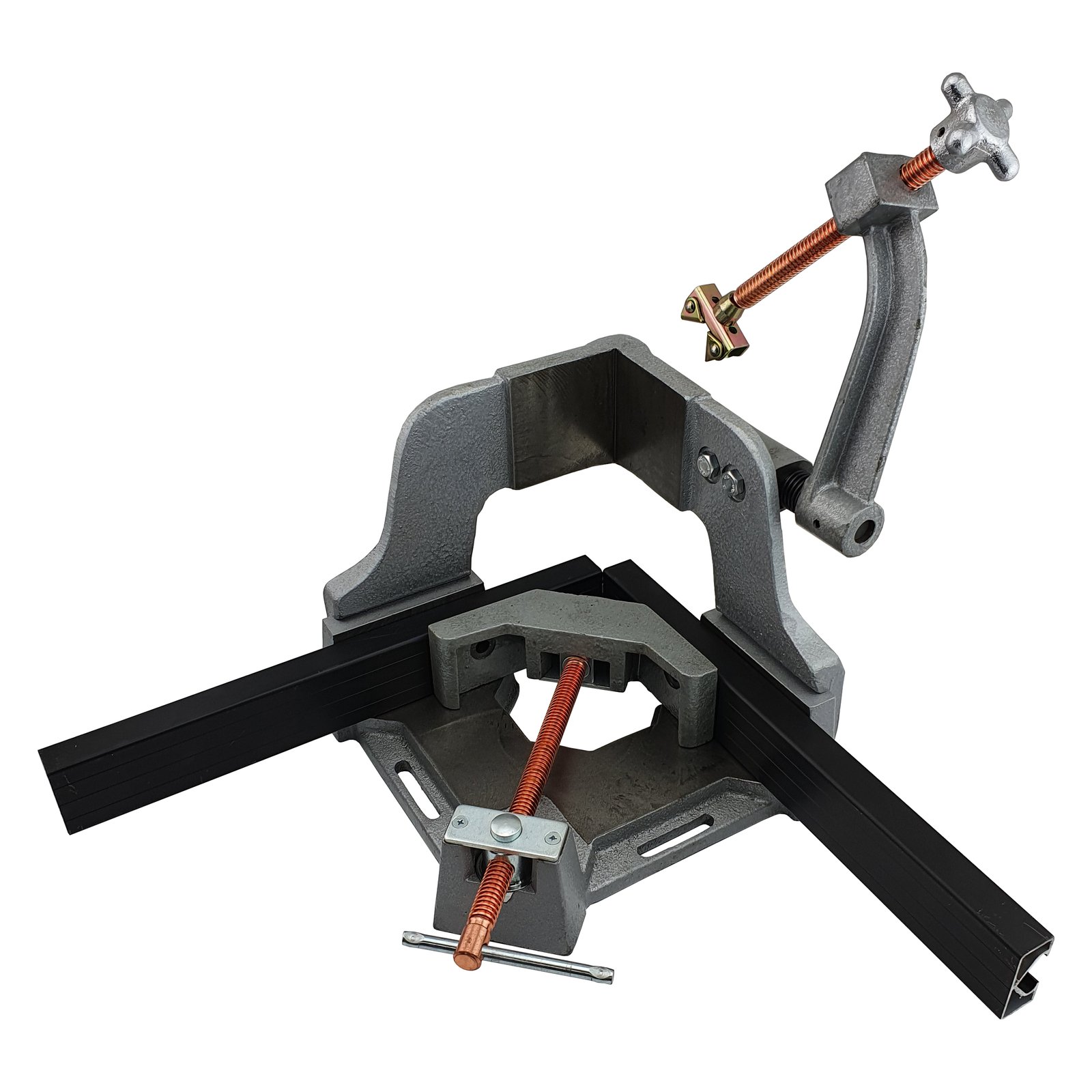

“swing away” the 3rd Axis arm for quick and easy part removal.
Available in 3.75″ (95 mm) and 4.75″ (120 mm) capacities. Model WAC45-SW comes with a curved arm for greater workpiece clearance.

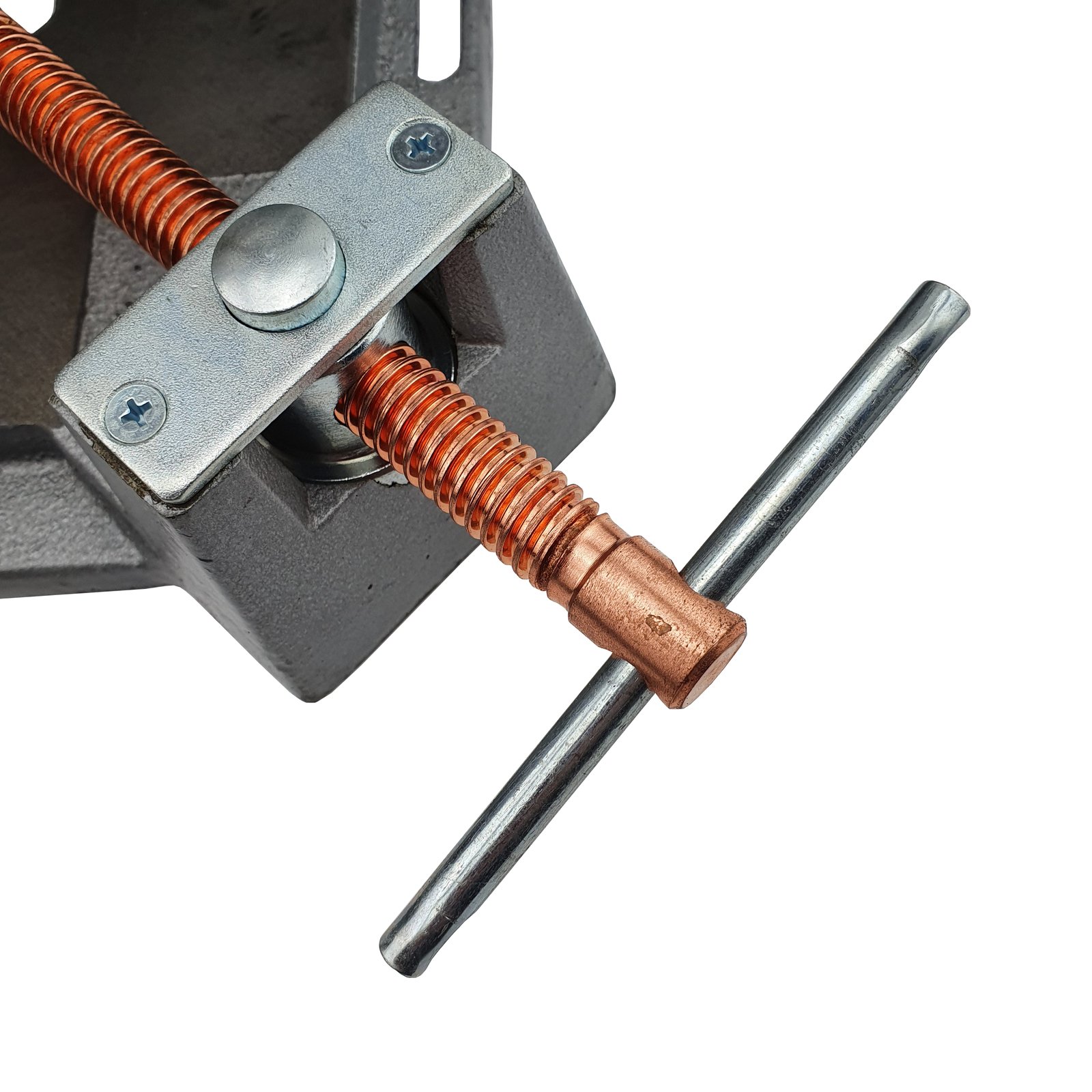

Press the Quick Acting Button to allow the threaded screws to slide in and out for fast setup.

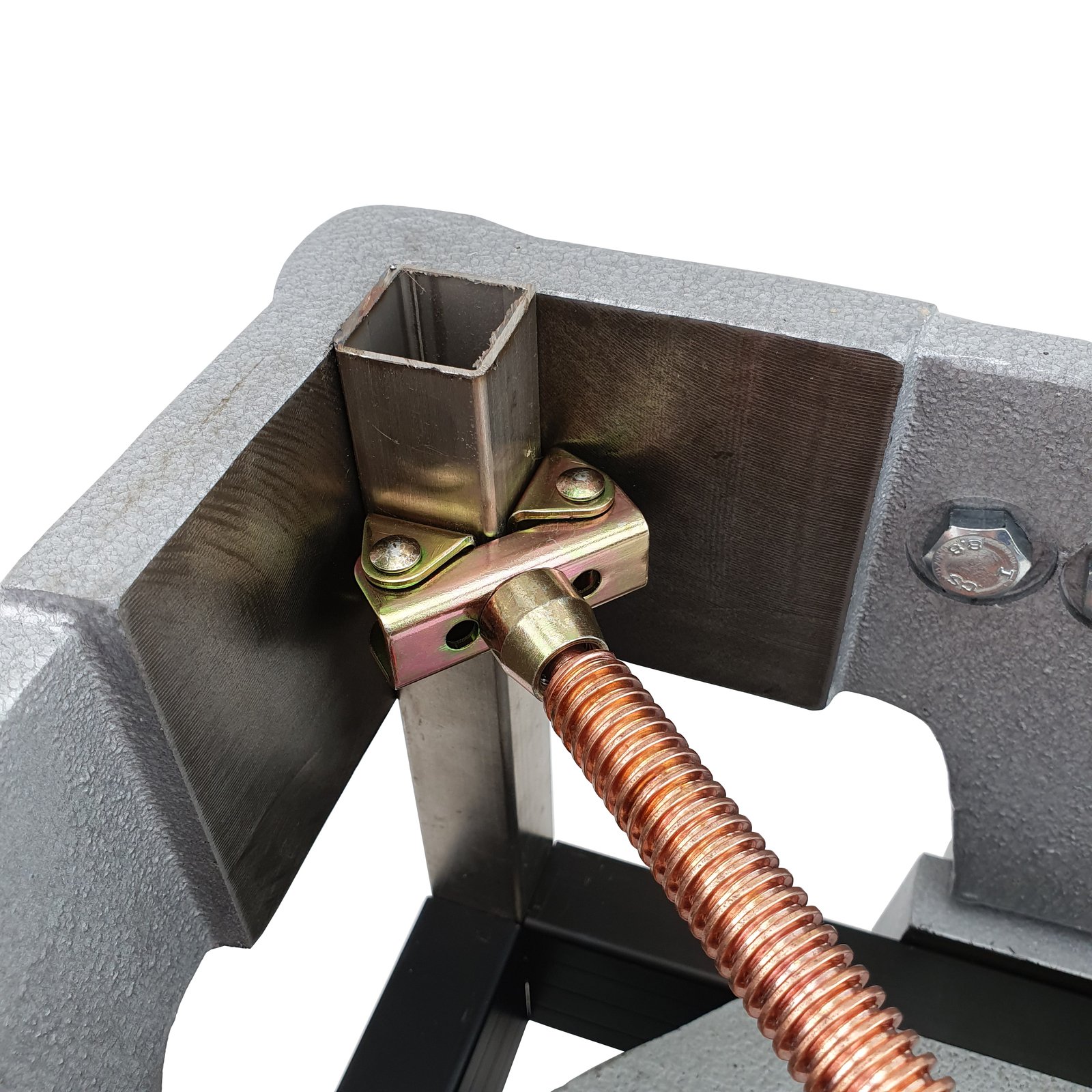

V-Pad and Quick Acting Button on the “swing-away” arm.
Use FREE Magnetic Rest Blocks 1″, 1-1/4″ and 2″ heights to support and stabilize long stock!

Dimensions:

Part No.
Features
Slot Size (A)
Slot Width (B)
Miter Joints (C)
Jaw Length (D)
T-Clearance (E)
Jaw Height (F)
Height
Weight

WAC35-SW
3-Axis Fixture, Quick Acting Screw, two stand-offs, “Swing Away” Arm, two Magnetic Rest Blocks
1.6″
(42 mm)
0.42″
(11 mm)
3.75″
(95 mm)
4.8″
(120 mm)
2.5″
(64 mm)
1.38″
(36 mm)
8.25″
(210 mm)
24 LBS
(11 kg)

WAC45-SW
3-Axis Fixture, Quick Acting Screw, Two stand-offs, “Swing Away” Arm, two Magnetic Rest Blocks
2.0″
(51 mm)
0.42″
(11 mm)
5.00″
(125 mm)
5.2″
(135 mm)
4.0″
(103 mm)
2.45″
(64 mm)
9.5″
(245 mm)
35 LBS
(16 kg)
