Cables
10x70mm2 Crimp Welding Cable Lug 12mm Hole
Product Introduction
10 x 70mm2 Crimp Welding Cable Lugs, suitable for soldering or crimping. Made from zinc-coated copper, ideal for welding cable to attach earth lead to earth clamp. Equivalent to BOSSWELD 500040E and UNIMIG WCL70.
Specifications
| Wire Size | 70mm2 |
| Hole Diameter | 12mm |
| Length | 47mm |
| Thickness | 2mm |
| Quantity | 10 Each |
10x95mm2 Crimp Welding Cable Lug 12mm Hole
Product Introduction
Hampdon Industrial crimp welding cable lugs, suitable for solid/stranded wires, can be crimped or soldered for permanent joints. Zinc-coated copper construction, ideal for welding cable earth lead connections, with heat shrink for tight sealing.
Specifications
| Wire Size | 95mm2 |
| Ring Diameter | 12mm |
| Length | 50mm |
| Quantity | 10 Each |
| Material | Zinc-Coated Copper |
15m 2 Gauge 35mm2 Welding Cable Australian Made
Product Introduction
Australian made welding cable with 100% oxygen free copper, double insulated NBR/NBR outer shell (90oC rated). Extra fine copper conductors ensure excellent conductivity and flexibility, ideal for all welding applications.
Specifications
| Length | 15m |
| Cross Section | 35mm2 (2 AWG/B&S) |
| Max Current | 416 Amp (30% Duty Cycle) |
| Insulation | Double insulated NBR/NBR (V90HT) |
| Origin | Australian Made |
15m 25mm2 3 Gauge Welding Cable AUSTRALIAN MADE
Product Introduction
Australian-made 15m welding cable with 25mm2 (3 Gauge) 100% oxygen-free copper conductors. Double insulated NBR/NBR to V90HT, soft, flexible, ideal for welding applications. Complies with AS1995:2003.
Specifications
| Length | 15m |
| Cross Section | 25mm2 (3 Gauge) |
| Max Current | 333 Amp (30% Duty Cycle) |
| Material | 100% Oxygen Free Copper |
| Insulation | Double NBR/NBR (90¡ãC Rated) |
15m 50mm2 0 Gauge Welding Cable Australian Made
Product Introduction
Australian made 15m welding cable with 50mm2 (0 Gauge) 100% oxygen free copper conductors. Double insulated NBR/NBR outer shell (90¡ãC max), soft and flexible for all welding applications, compliant to AS1995:2003.
Specifications
| Length | 15m |
| Cross Section | 50mm2 (0 Gauge AWG/B&S) |
| Max Current | 527 Amp (30% Duty Cycle) |
| Insulation | Double Insulated NBR/NBR (90¡ãC) |
| Origin | Australian Made |
15m 6 Gauge 16mm2 Welding Cable Solar Car Stereo
Product Introduction
Australian made 15m welding cable with 16mm2 (6 Gauge) 100% oxygen free copper conductors. Double insulated NBR/NBR to V90HT for flexibility, ideal for welding applications, complying with AS1995:2003.
Specifications
| Length | 15m |
| Cross Section | 16mm2 (6 Gauge AWG/B&S) |
| Max Current | 250 Amp (30% Duty Cycle) |
| Conductor | High Purity Oxygen Free Copper |
| Insulation | Double Insulated NBR/NBR (90¡ãC Rated) |
15m 70mm2 00 Gauge Welding Cable AUSTRALIAN MADE
Product Introduction
Australian-made 15m welding cable with 70mm2 (00 Gauge) oxygen-free copper conductors. Double insulated NBR/NBR outer shell (90¡ãC rated), soft and flexible for welding applications, compliant with AS1995:2003.
Key Specifications
| Length | 15m |
| Cross-Section | 70mm2 (00 Gauge AWG/B&S) |
| Conductor | 100% Oxygen Free Copper |
| Insulation | Double Insulated NBR/NBR (90¡ãC) |
| Compliance | AS1995:2003 |
15m 95mm2 000 Gauge Welding Cable AUSTRALIAN MADE
Product Introduction
Australian-made 15m welding cable with 95mm2 (000 Gauge) high-purity copper conductors, double insulated NBR/NBR outer shell rated to 90oC. Soft, flexible design complies with AS1995:2003, ideal for welding applications.
Specifications
| Length | 15m |
| Cross Section | 95mm2 |
| Gauge | 000 AWG/B&S |
| Material | 100% Oxygen Free Copper |
| Insulation | Double NBR/NBR (90oC Rated) |
1m 120mm2 Flexible Welding Cable Solar Car Battery AU
Product Introduction
Australian made 1m welding cable with 120mm2 100% oxygen free copper conductors, double insulated NBR/NBR V90HT outer shell. Soft, flexible design ideal for welding applications, complying with AS1995:2003 standard.Specifications
| Conductor | 100% Oxygen Free Copper |
| Size | 120mm2 |
| Insulation | Double Insulated NBR/NBR (90¡ãC Rated) |
| Compliance | AS1995:2003 |
| Origin | Australian Made |
1m 150mm2 Flexible Welding Cable Solar Car Battery AU
Product Introduction
Australian made 1m welding cable with 150mm2 cross-section, featuring 100% oxygen free copper conductors for excellent conductivity. Double insulated NBR/NBR outer shell rated to 105¡ãC, ensuring flexibility and durability for welding applications. Complies with AS1995:2003 standards.Product Specifications
| Cross-Section | 150mm2 |
| Length | 1m |
| Conductor | 100% Oxygen Free Copper |
| Insulation | Double NBR/NBR (105¡ãC Rated) |
| Standard | AS1995:2003 |
1m 16mm2 6 Gauge Welding Cable Solar Car Stereo
Product Introduction
Australian made 1m welding cable with 100% oxygen free copper, double insulated NBR/NBR outer shell (90oC rated). Soft, flexible, ideal for welding, solar, car stereo applications. Complies to AS1995:2003.
Specifications
| Length | 1m |
| Cross Section | 16mm2 (6 Gauge AWG/B&S) |
| Max Current | 250 Amp (30% Duty Cycle) |
| Conductor | High purity oxygen free copper |
| Insulation | Double insulated NBR/NBR (V90HT) |
1m 25mm2 3 Gauge Welding Cable AU MADE
Product Introduction

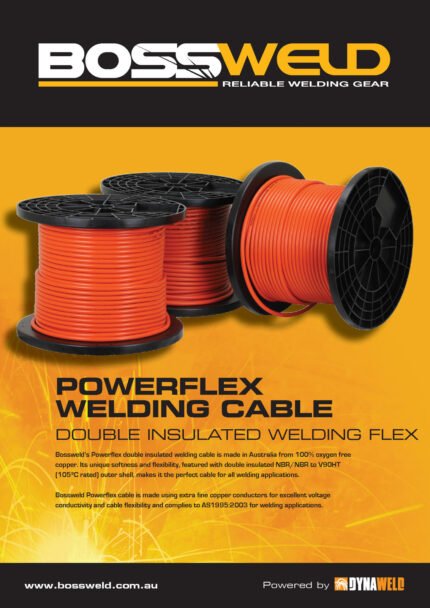

Bossweld's Powerflex double insulated welding cable, made in Australia with 100% oxygen free copper, offers exceptional softness and flexibility. Featuring double insulated NBR/NBR to V90HT outer shell, it's ideal for all welding applications, complying with AS1995:2003 standards.
Specifications
| Length | 15m |
| Cross Section | 25mm2 (3 AWG/B&S) |
| Max Current | 333 Amp (30% Duty Cycle) |
| Conductor | High purity oxygen free copper |
| Origin | Australian Made |
