Cables
2m 16mm2 6 Gauge Welding Cable Australian Made
Product Introduction
Bossweld Powerflex double insulated welding cable, made from 100% oxygen free copper with extra fine conductors, offers excellent softness, flexibility and voltage conductivity. Complies to AS1995:2003, ideal for all welding applications.
Specifications
| Length | 2m |
| Cross Section | 16mm2 (6 AWG/B&S) |
| Max Current | 250 Amp (30% Duty Cycle) |
| Insulation | Double Insulated NBR/NBR (90oC rated) |
| Origin | AUSTRALIAN MADE |
2m 25mm2 3 Gauge Welding Cable Australian Made
Product Introduction
Australian made 2m welding cable with 25mm2 (3 Gauge) oxygen-free copper conductors, double insulated NBR/NBR to V90HT (90¡ãC rated) for welding applications, soft and flexible with excellent conductivity.
Specifications
| Length | 2m |
| Cross Section | 25mm2 (3 Gauge AWG/B&S) |
| Max Current | 333 Amp (30% Duty Cycle) |
| Insulation | Double NBR/NBR, 90¡ãC Rated |
| Origin | Australian Made |
2m 35mm2 2 Gauge Welding Cable AUSTRALIAN MADE
2m 50mm2 0 Gauge Welding Cable Australian Made
Product Introduction
Australian made 2m welding cable with 50mm2 (0 Gauge) oxygen-free copper conductors. Double insulated NBR/NBR shell (90¡ãC max), soft flexibility, compliant to AS1995:2003, ideal for welding applications.
Specifications
| Length | 2m |
| Cross Section | 50mm2 (0 Gauge) |
| Conductor | 100% Oxygen Free Copper |
| Insulation | Double NBR/NBR (90¡ãC Max) |
| Standard | AS1995:2003 |
2m 70mm2 00 Gauge Welding Cable Solar Car Battery AU
Description
Australian made 2m welding cable with 70mm2 (00 Gauge) 100% oxygen free copper conductors. Features double insulated NBR/NBR outer shell (90¡ãC rated), extra fine copper for excellent conductivity and flexibility. Complies to AS1995:2003, ideal for welding applications.Specifications
| Length | 2m |
| Cross Section | 70mm2 (00 Gauge) |
| Material | 100% Oxygen Free Copper |
| Insulation | Double Insulated NBR/NBR (90¡ãC) |
| Standard | AS1995:2003 |
2m 95mm2 000 Gauge Welding Cable AUSTRALIAN MADE
Product Introduction
Australian-made 2m welding cable with 95mm2 (000 Gauge) 100% oxygen-free copper conductors. Double insulated NBR/NBR V90HT (90¡ãC) outer shell for flexibility and durability, compliant with AS1995:2003.
Specifications
| Length | 2m |
| Cross-Section | 95mm2 |
| Gauge | 000 AWG/B&S |
| Max Current | 794A (30% Duty Cycle) |
| Insulation | Double NBR/NBR (90¡ãC rated) |
2PK 500A Female Welding Cable Plug Welder Generator Connector
Product Introduction
Heavy duty 500 Amp female welding cable plugs, ideal for generator and welder connections. Features rubber insulation and tapered pin twist lock for reliable performance when extending welding cables.
Specifications
| Amperage | 500 Amp |
| Quantity | 2 x Female Plugs |
| Cable Size | 50 - 70mm |
| Insulation | Rubber |
| Connection Type | Tapered Pin Twist Lock |
2x DINSE 35-50 Male Welding Connector 200-300Amp
Product Introduction
Hampdon Industrial Cable Plugs are Dinse style welding connectors designed for quick, reliable connection to welding power sources or extending weld cables. Featuring neoprene rubber insulation and tapered twist lock action, they ensure industrial quality performance and universal compatibility with most welder brands.Product Parameters
| Style | Dinse 35-50 |
| Current Rating | 200-230 Amp |
| Cable Size | 35mm2-50mm2 |
| Insulation | Heavy Neoprene Rubber |
| Compatibility | Universal (Most Welder Brands) |

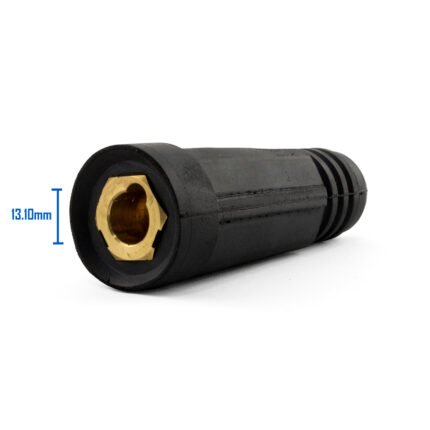

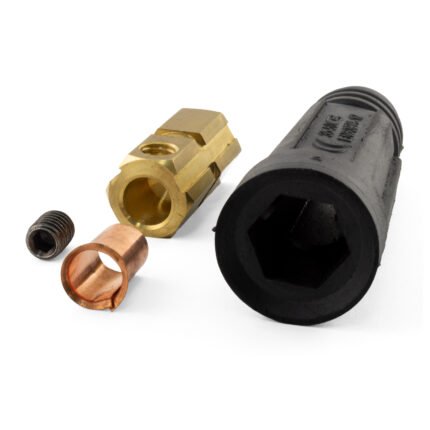

2x Dinse Female Welding Socket 35-50mm 200-300A
Product Introduction
2 x Dinse Female Welding Cable Sockets, suitable for 35-50mm square cable, 200-300 Amp capacity. Equivalent to BOSSWELD 500073 and UNIMIG CX0041.
Product Parameters
| Type | Female Welding Cable Socket |
| Quantity | 2 pcs |
| Cable Size | 35-50mm Square |
| Current Rating | 200-300 Amp |
| Equivalent Parts | BOSSWELD 500073, UNIMIG CX0041 |

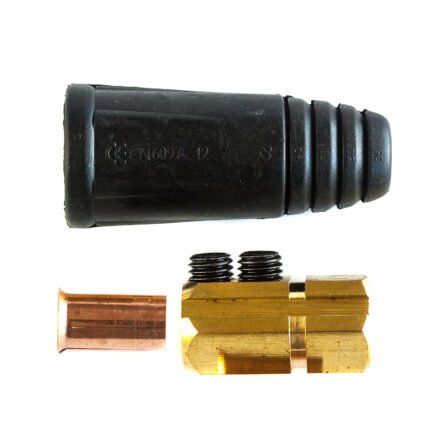

2x Dinse Female Welding Socket 70-95mm2 400-500Amp
Product Introduction
A twin pack of Dinse female welding cable sockets, ideal for 70-95mm2 cables, supporting 400-500 Amp current. Reliable connectors for industrial welding applications.
Product Parameters
| Type | Dinse Female Welding Cable Socket |
| Quantity | Twin Pack |
| Cable Size | 70-95mm2 |
| Current Rating | 400-500 Amp |

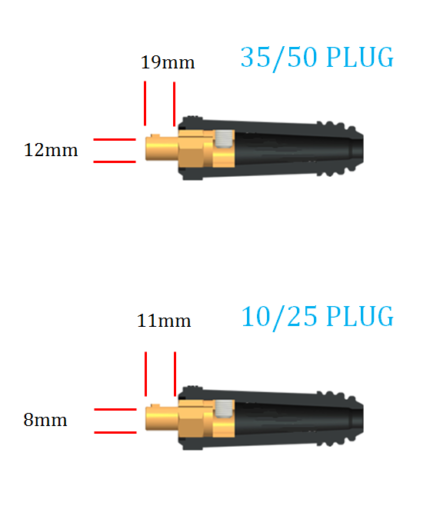

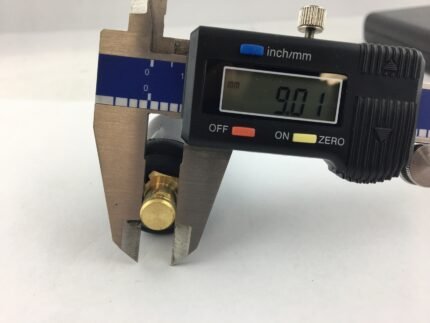

2x Dinse Welding Plug 10-25mm 100-200A Value Pack
Product Introduction
2 x Value Pack Dinse Welding Cable Male Plug, suitable for 10-25mm square cable, rated 100-200 Amp. Equivalent to BOSSWELD 500069 and UNIMIG CX0020, ideal for welding cable connections.Product Parameters
| Quantity | 2 x Male Plugs |
| Cable Size | 10-25mm Square |
| Current Rating | 100-200 Amp |
| Equivalent Parts | BOSSWELD 500069, UNIMIG CX0020 |

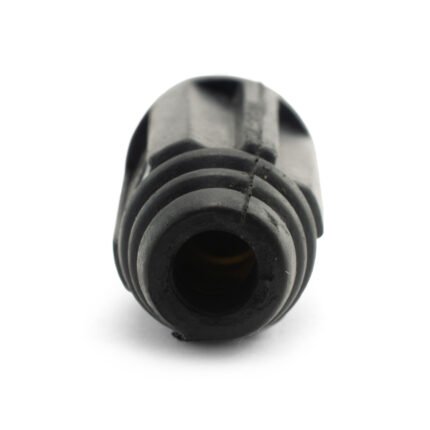

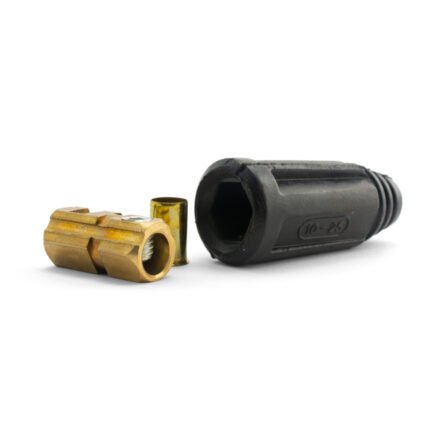

2x Dinse Welding Socket 10-25mm 100-200A Value Pack
Product Introduction
Value pack of 2 Dinse welding cable female sockets, ideal for connecting 10-25mm square cables in welding applications, supporting 100-200 Amp current. UNIMIG part #CX0040 ensures reliable performance.Product Specifications
| Type | Dinse Welding Cable Female Socket |
| Cable Size | 10-25mm Square |
| Current Rating | 100-200 Amp |
| Quantity | 2 Pack |
| Part Number | CX0040 |
