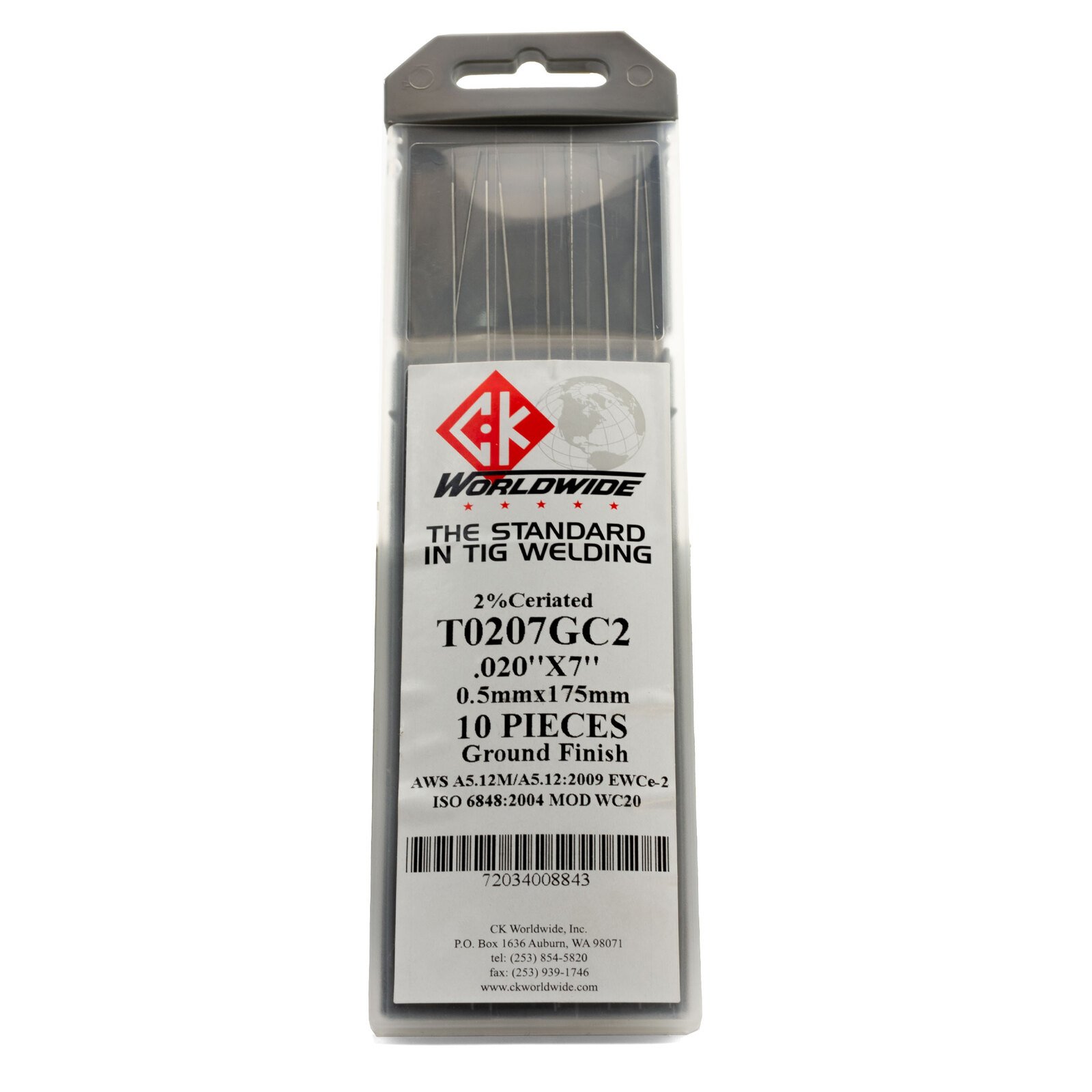

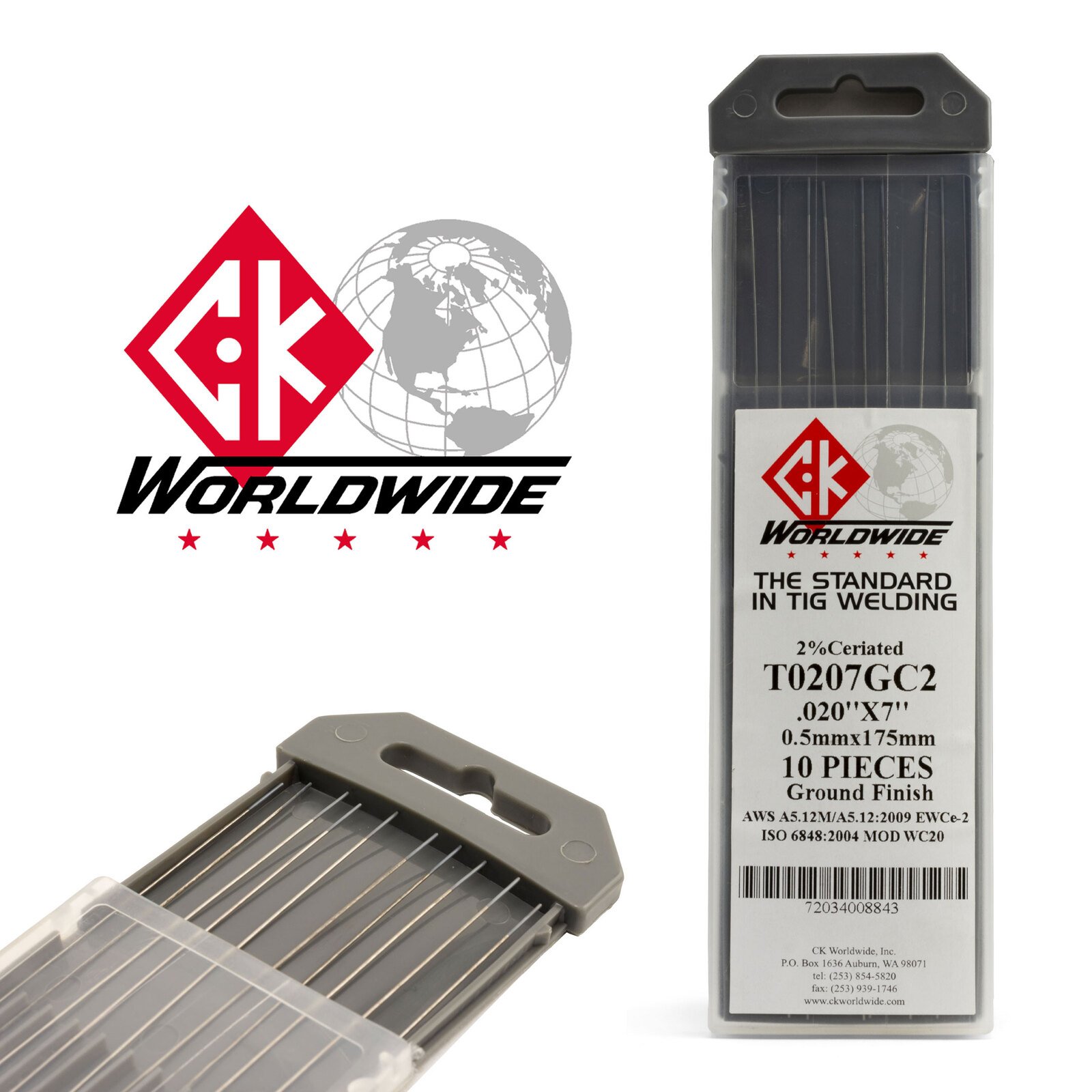

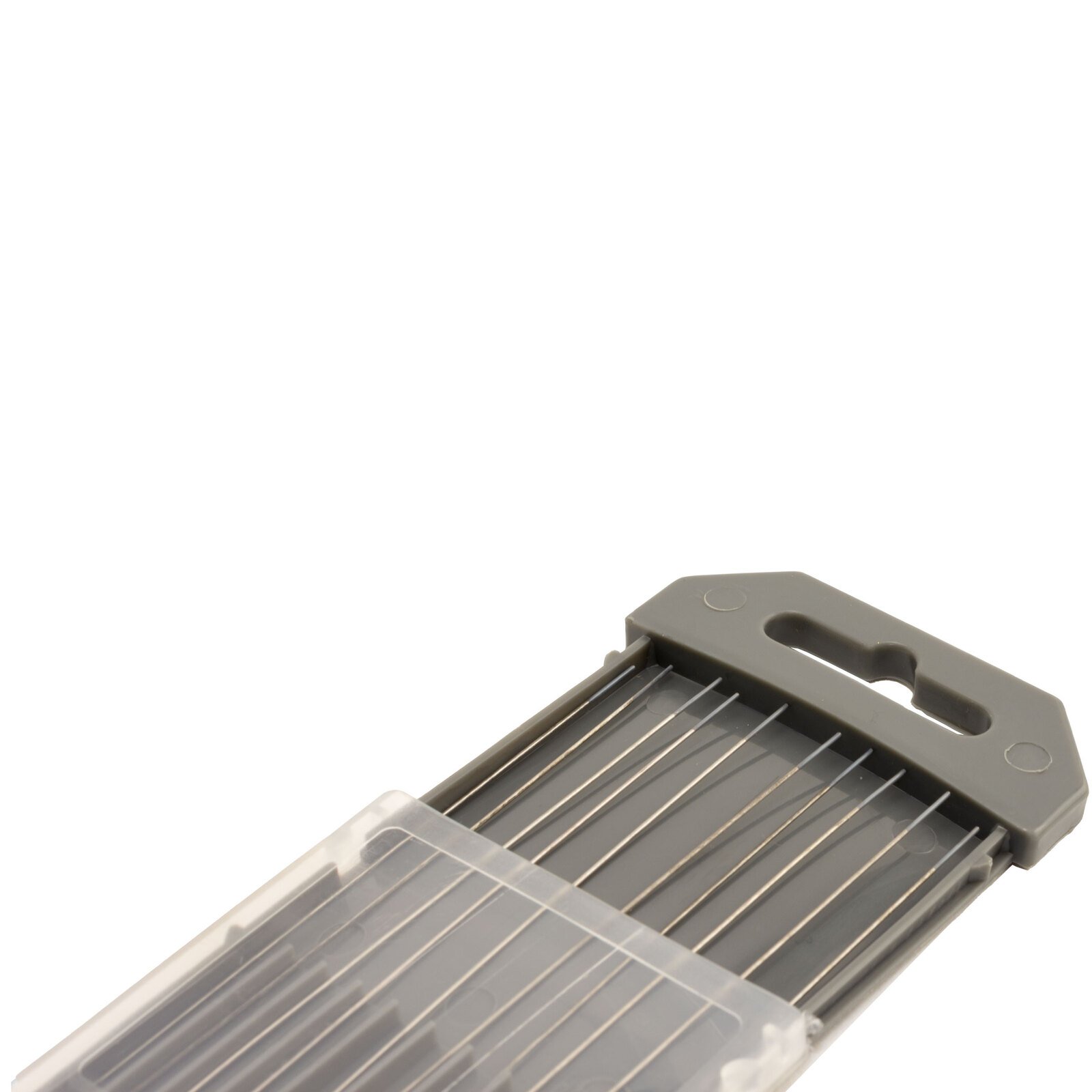

0.5mm 2% Ceriated TIG Tungsten Electrodes 10pk Grey Tip
$24.90
Product Description
Specialized 2% Ceriated TIG tungsten electrodes ideal for precise welding of thin materials like sheet metal and pipes. Features enhanced arc performance, reduced contamination, and versatile use with stainless steel, mild steel, aluminum, and alloys.
Specifications
| Composition | 2% Ceriated |
| Dimensions | 0.5mm x 175mm |
| Quantity | Pack of 10 |
| Applications | TIG/GTAW welding |
| Best For | Thin materials, low amperage starts |
0.5mm 2% Ceriated TIG Tungsten Electrodes – 10 Each – Grey Tip
Unlock precision welding with our premium 2% Ceriated TIG Tungsten Electrodes. Engineered for thin material welding and delicate workpieces, these electrodes deliver exceptional arc control and minimal contamination¡ªideal for professionals seeking consistent, high-quality results.
Core Specifications
| Parameter | Details |
| Diameter | 0.5mm (0.020 inches) |
| Length | 175mm (7 inches) |
| Composition | 2% Ceriated Tungsten |
| Pack Quantity | 10 electrodes |
| Tip Color | Grey |
| Amperage Performance | 10% lower starting amps vs. Thoriated |
| Best For | DC welding |
| Migration Rate | Highest oxide delivery to tip |
| Heat Resistance | Durable under high temperatures |
| Applications | TIG/GTAW on thin materials |
Key Benefits
- Precision Welding: 0.5mm diameter enables controlled beads on thin sheet metal and thin-walled pipes.
- Reduced Contamination: Minimizes sticking and impurity transfer for cleaner welds.
- Enhanced Arc Stability: Consistent performance for detailed, delicate projects.
- 7-Inch Reach: Flexible access in tight welding positions and configurations.
Applications
Perfect for TIG/GTAW welding of stainless steel, mild steel, aluminum, nickel alloys, and titanium. Ideal for tube/pipe fabrication, thin sheet metal work, and intricate part welding.
Why Choose Our Ceriated Electrodes?

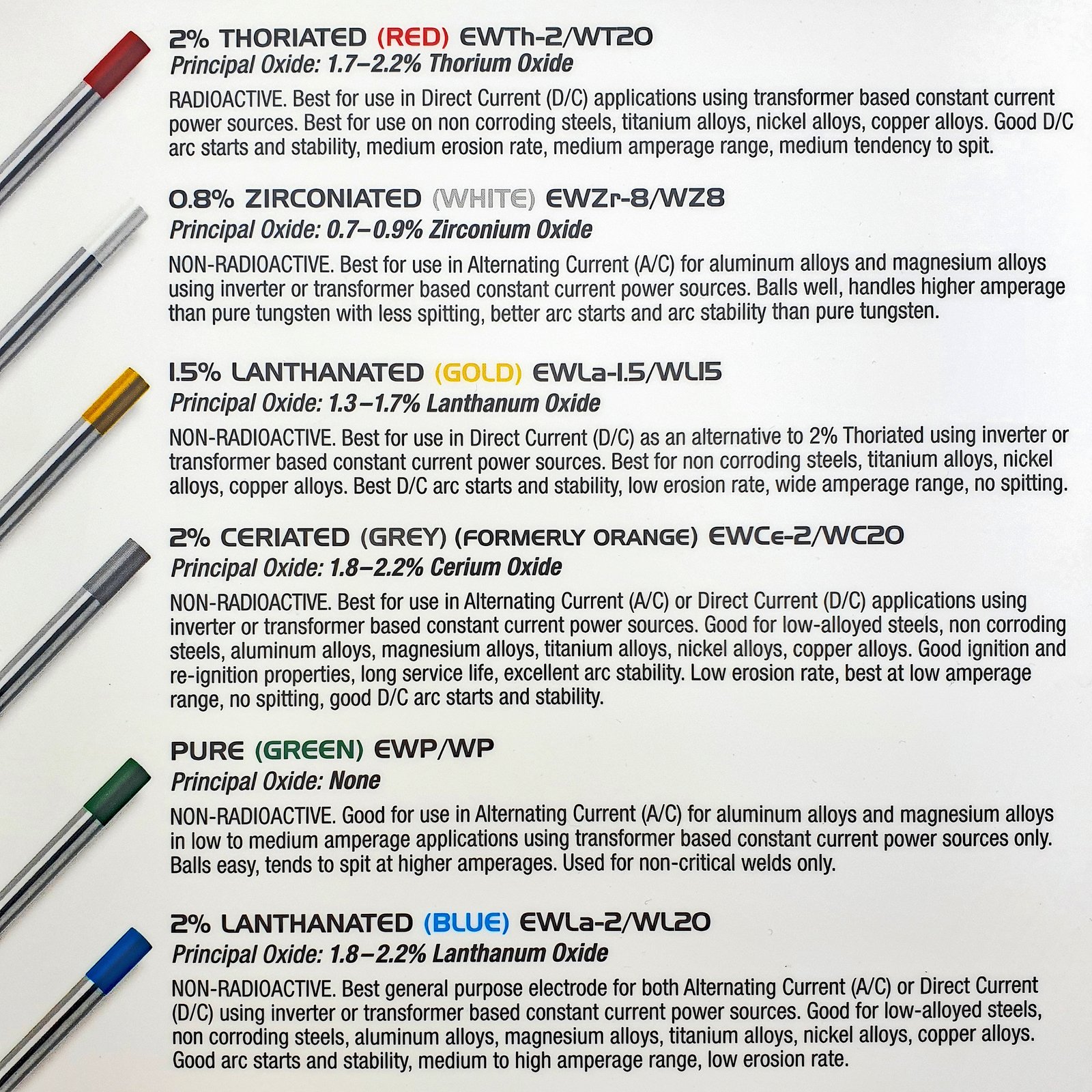

Unlike Thoriated alternatives, our 2% Ceriated electrodes offer safer operation with superior low-amperage starts. They outperform Lanthanated options in oxide delivery, ensuring reliable arc ignition from the first use.
Quality Assurance
Manufactured to strict industry standards, each electrode undergoes rigorous testing for diameter accuracy, composition consistency, and heat resistance. Trusted by professional welders worldwide.
FAQ
Q: Can these be used with AC welding?
A: Best performance with DC welding; higher amperage AC applications are recommended for Thoriated/Lanthanated electrodes.
Q: What materials work best?
A: Optimal for carbon steel, stainless steel, nickel alloys, and titanium.
Q: How many electrodes are in a pack?
A: Each pack contains 10 electrodes.
Ready to elevate your welding precision? Contact us today for bulk pricing, technical support, or custom order inquiries!
