1.6mm TIG Gas Lens Collet Body STUBBY KIT for CK WP17|18|26
$44.00
Product Introduction
Premium TIG Gas Lens Stubby Collet Body Kit for 1.6mm Tungstens. Ideal for hard-to-reach positions, fits CK17/18/26 & WP17/18/26 torches. Saves cost vs individual parts with high-quality mesh for even gas flow.
Specifications
| Compatibility | CK17, CK18, CK26, WP17, WP18, WP26 |
| Tungsten Size | 1.6mm |
| Style | Stubby |
| Threads | 3/8 UNF (Lower), 3/4 UNF (Upper) |
| Kit Includes | Insulators, collet body, collets, #6-10 cups |
1.6mm TIG Gas Lens Collet Body STUBBY KIT SUIT CK WP17|18|26
Struggling with hard-to-reach welding positions? Our premium TIG Gas Lens Stubby Collet Body Kit transforms your torch into a precision tool for tight spaces. Save over $95 compared to buying individual parts¡ªget all essential components in one hassle-free kit designed for professionals.
Kit Components & Key Benefits
| Component | Description | Core Benefit |
|---|---|---|

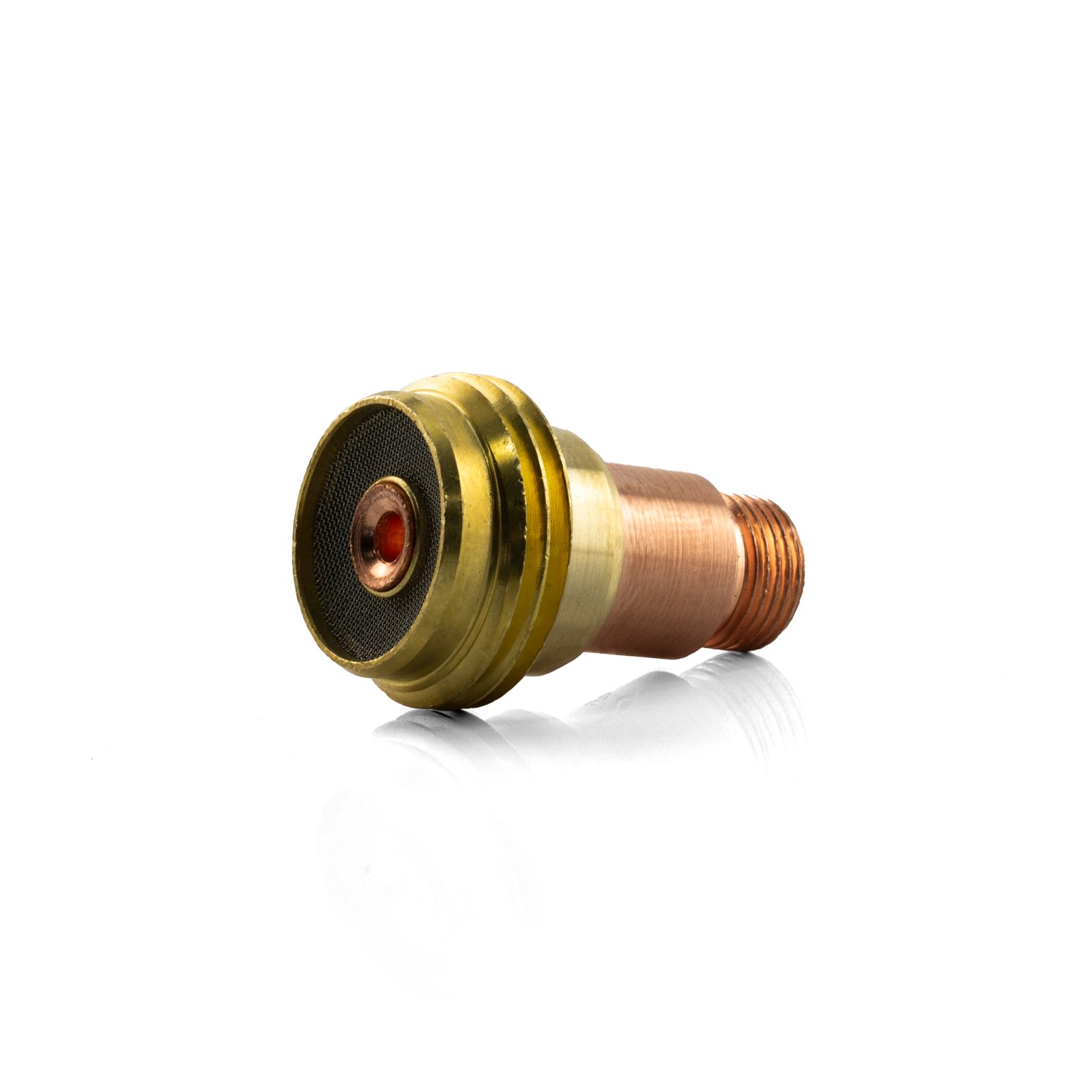

| 45V25S Gas Lens Collet Body | Stubby design, 1.6mm tungsten compatibility | Reduced torch size for confined areas |

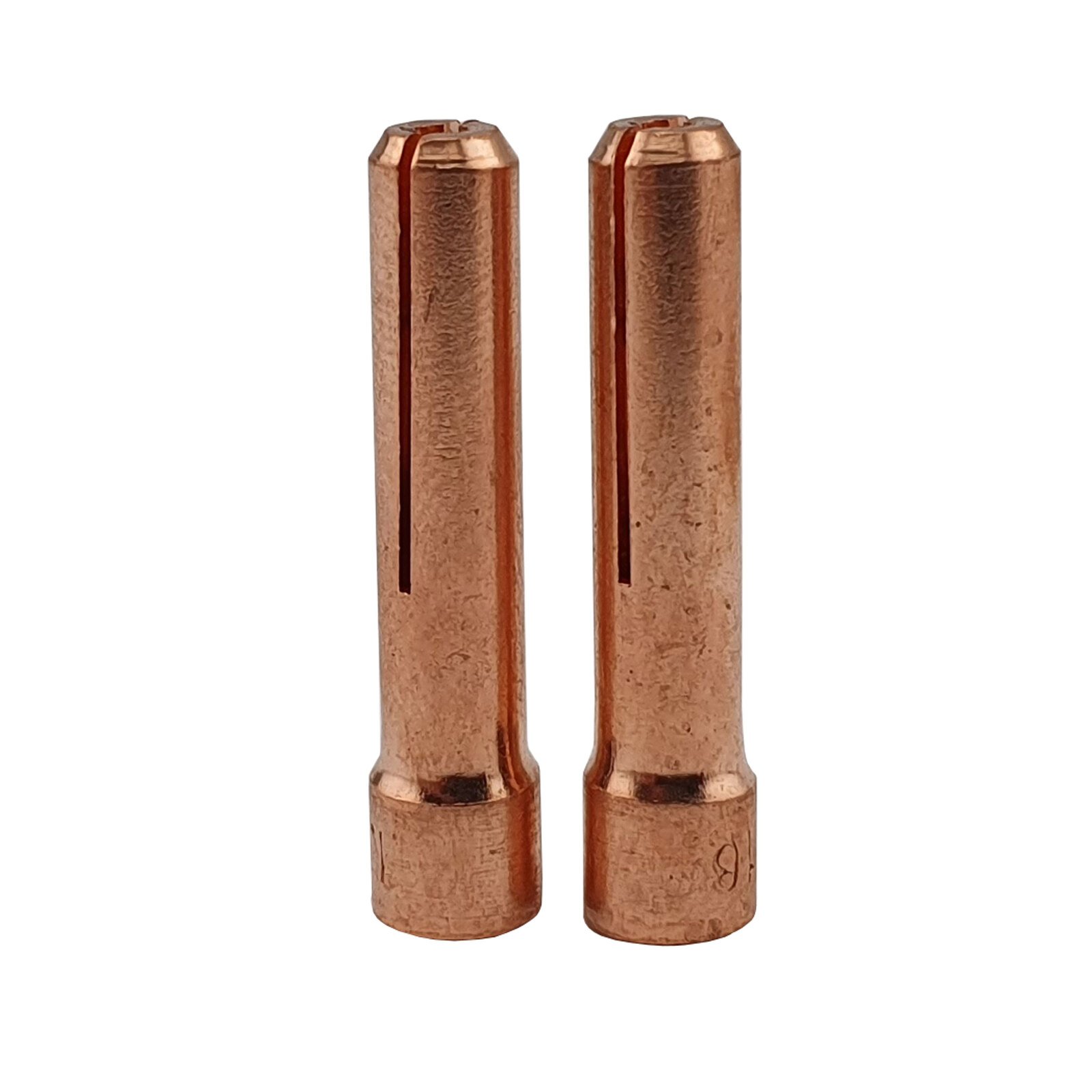

| 10N23S Collets (2x) | 1.6mm diameter, high-grip precision | Secure tungsten hold, minimal vibration |
| 4GHS Insulators (2x) | Heat-resistant ceramic construction | Enhanced operator safety, prolonged torch life |
| 54N12SW #10 Cups (2x) | Large-diameter gas coverage | Ideal for high-amperage applications |

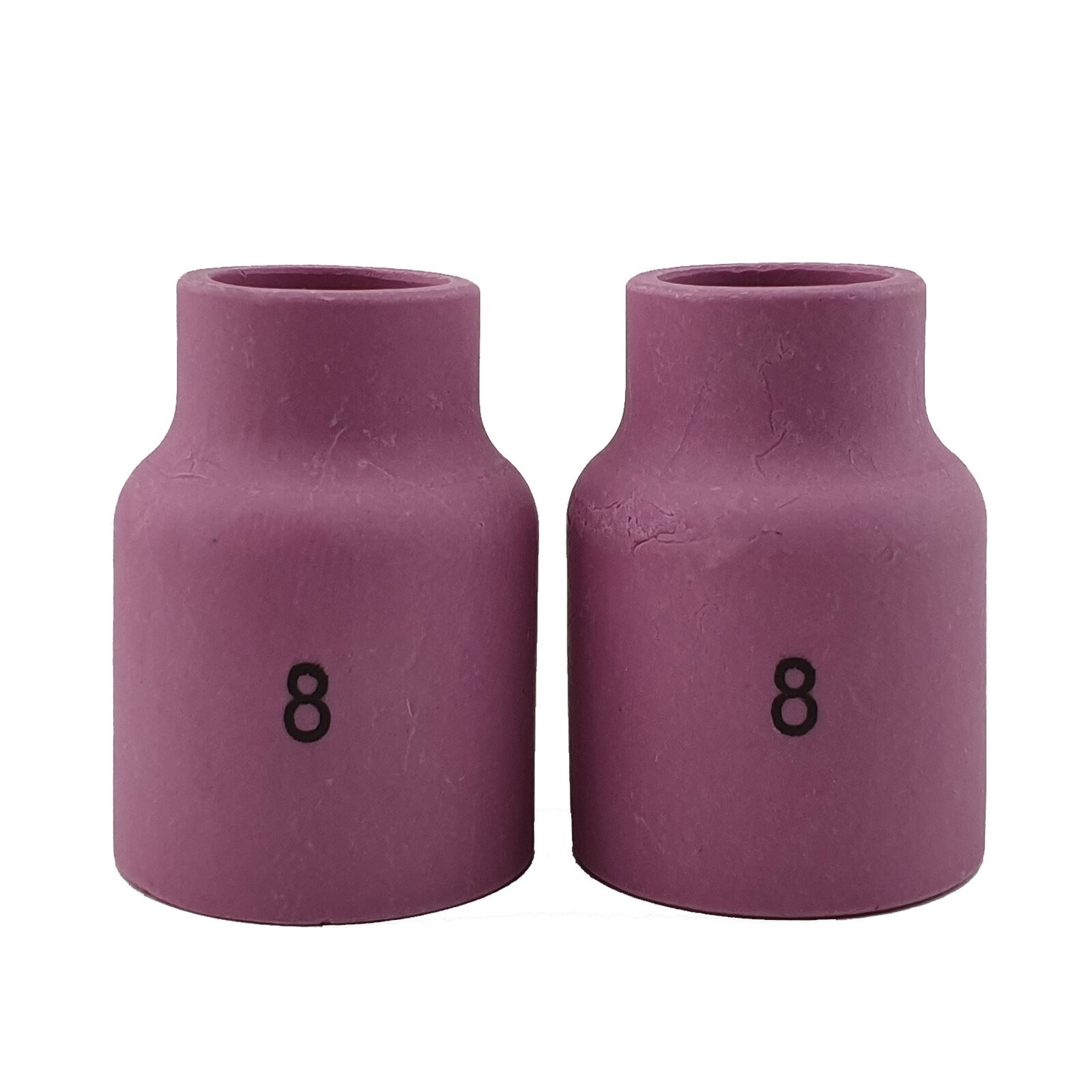

| 54N14SW #8 Cups (2x) | Balanced gas flow design | Versatile for general welding tasks |

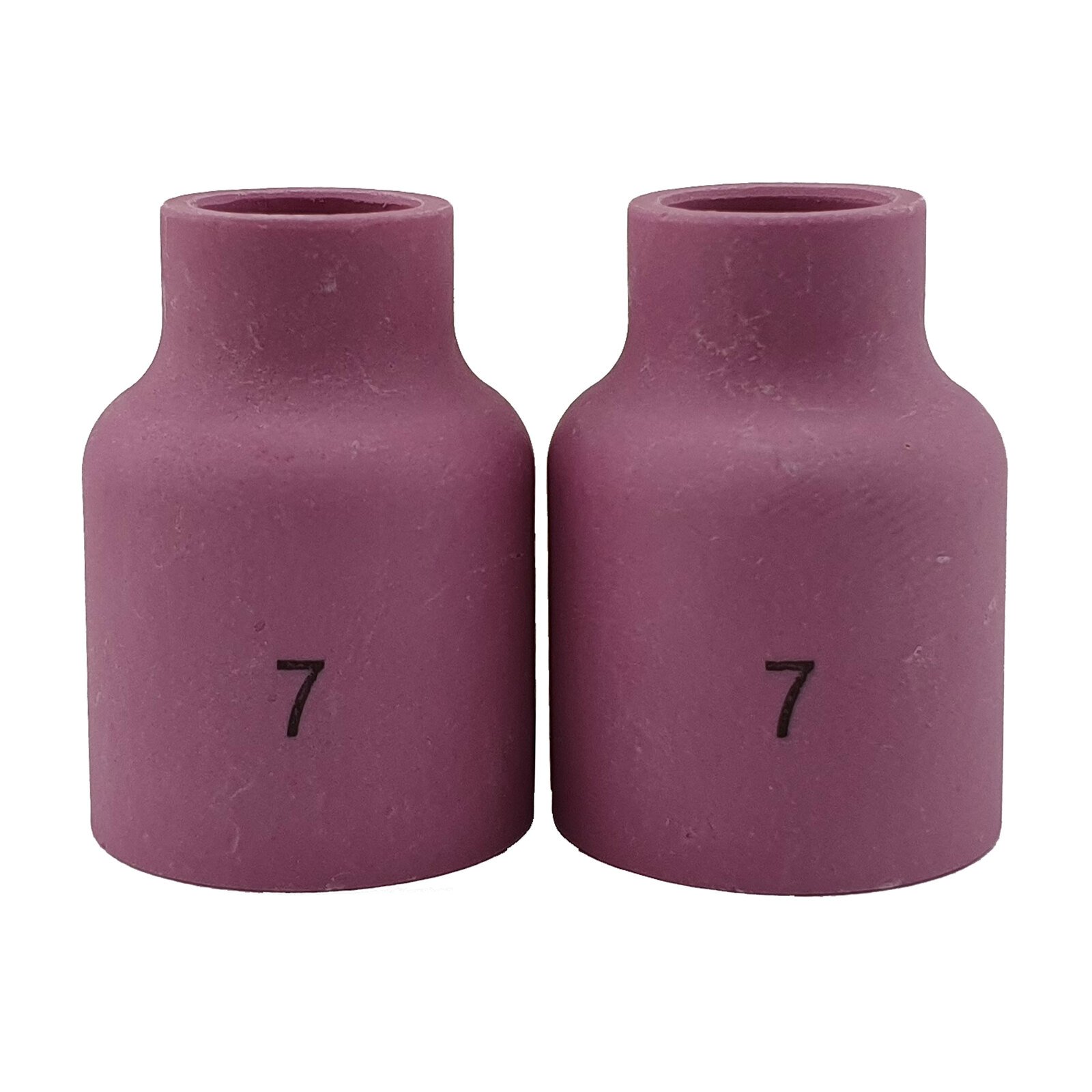

| 54N15SW #7 Cups (2x) | Medium-sized protection | Precise control for intricate welds |

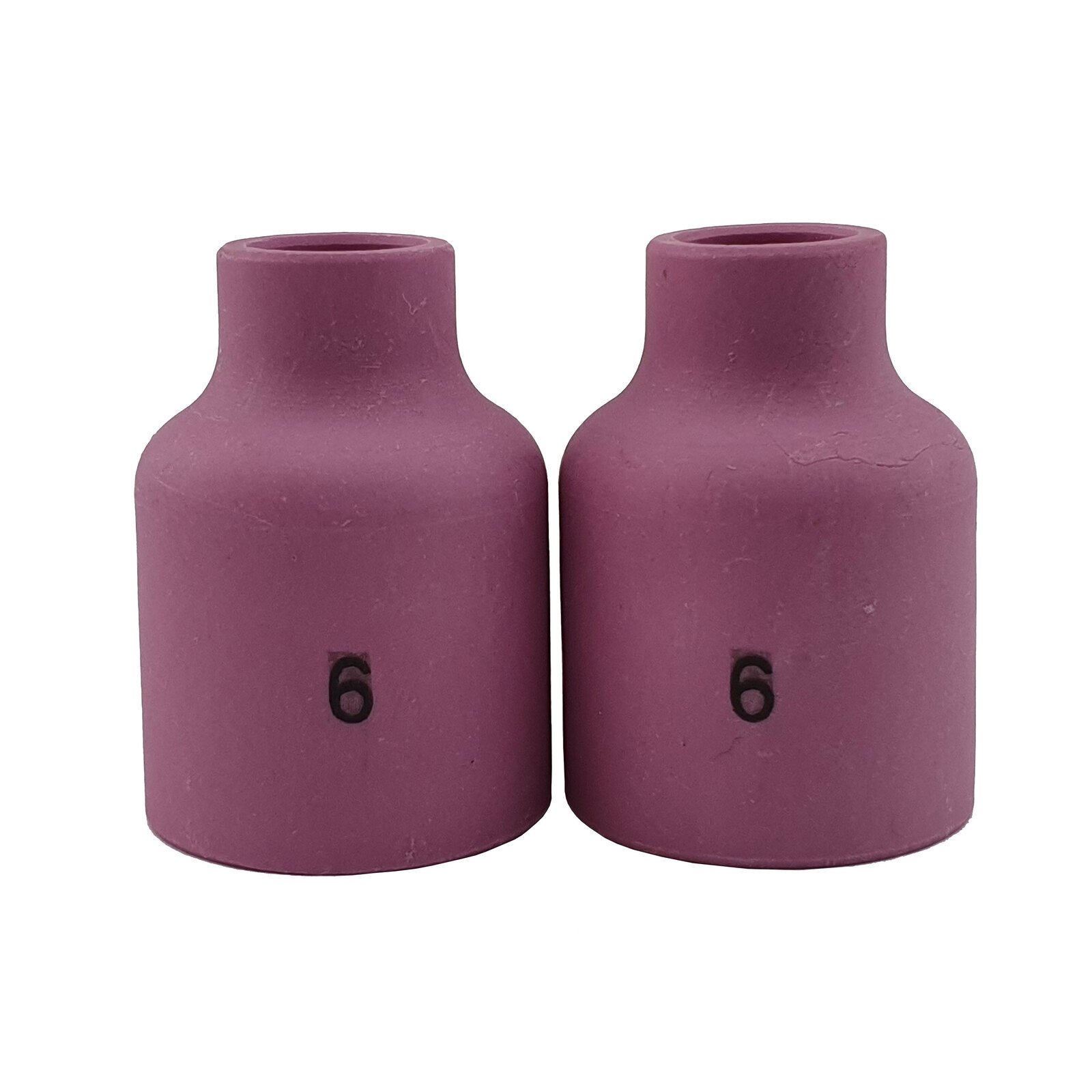

| 54N16SW #6 Cups (2x) | Compact profile | Access tight corners with minimal obstruction |
Technical Specifications
- Tungsten Size: 1.6mm
- Torch Compatibility: CK17, CK18, CK26, WP17, WP18, WP26
- Thread Sizes: 3/8 UNF (lower), 3/4 UNF (upper)
- Gas Flow Technology: Multi-layer mesh for uniform distribution
- Material: High-grade heat-resistant alloys
Applications & Performance
Perfect for automotive repair, aerospace components, and industrial manufacturing where precision in tight spaces is critical. The advanced gas lens design reduces spatter buildup and ensures consistent arc stability, delivering cleaner welds with less post-processing.
Why Choose Our Stubby Kit?
- Cost-Effective: Save 30% vs. individual component purchases
- Durability: Reinforced mesh prevents clogging and extends service life
- Versatility: 4 cup sizes for diverse welding scenarios
- Time-Saving: All-in-one kit eliminates part sourcing delays
FAQ
Q: Will this fit my WP-18 torch?
A: Yes, compatible with WP17/18/26 and CK equivalent models.
Q: Can I use 2.4mm tungstens with this kit?
A: No, this kit is specifically designed for 1.6mm tungstens.
Q: How many cups are included?
A: 8 cups total (2 each of #6, #7, #8, #10 sizes).
Ready to enhance your TIG welding precision? Contact our technical team for bulk pricing or compatibility×Éѯ today!
