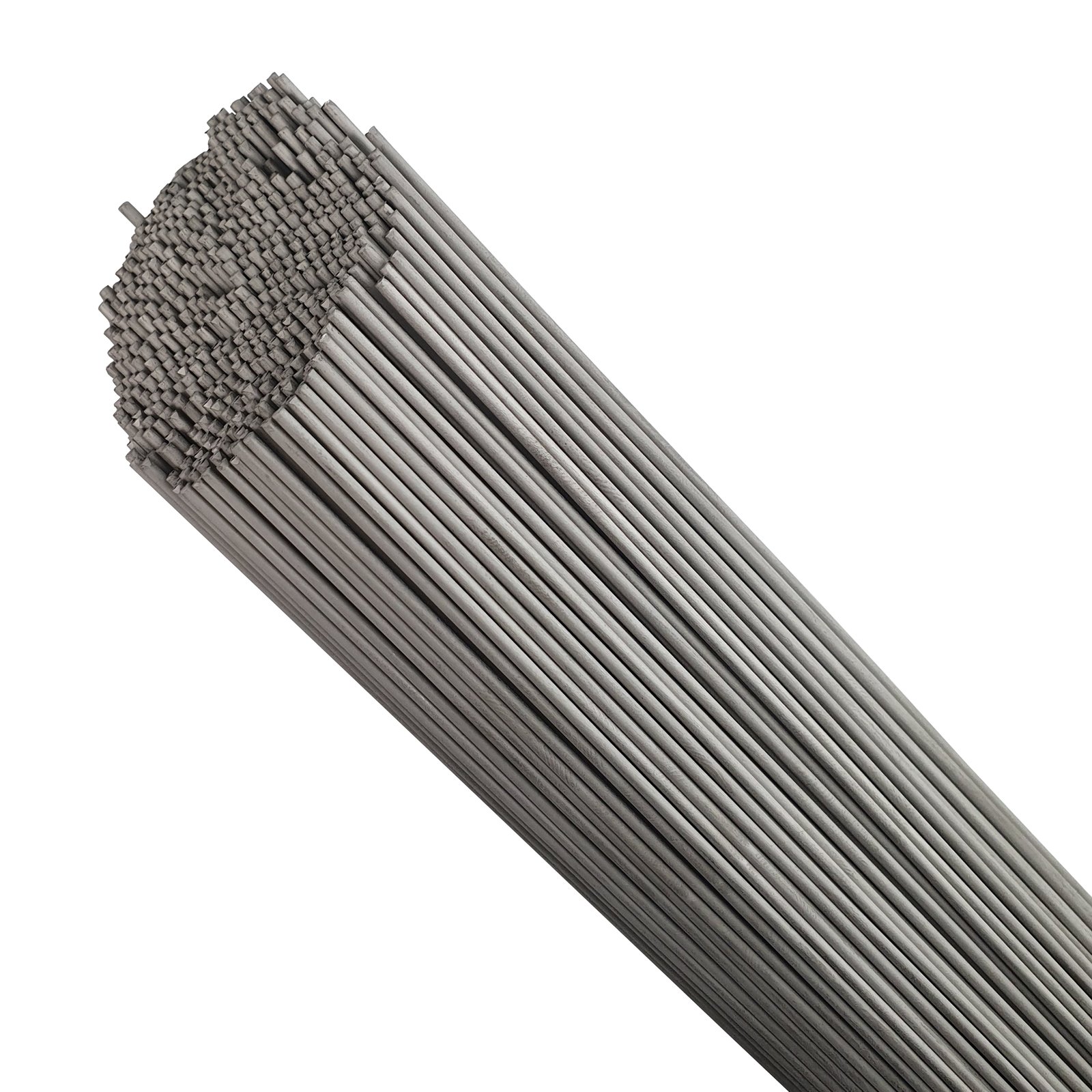

20 Sticks – 200g – 1.6mm Grade 5 Titanium TIG Filler Rods

Why Choose Grade 5 Titanium Filler Rods?

Titanium Grade 5 (Ti-6Al-4V) is the “workhorse” of titanium alloys, accounting for 50% of global titanium usage. This premium filler rod delivers exceptional corrosion resistance to acids, chlorides, and salt environments, making it ideal for marine, chemical processing, and medical applications. Its high strength-to-weight ratio ensures durability without sacrificing performance, while heat-treatable properties allow customization for specific strength requirements.

Technical Performance

– Weldable construction for service temperatures up to 600¡ãF (316¡ãC)
– Excellent formability for complex welding projects
– Superior mechanical properties: Ultimate tensile strength 120 ksi (827 MPa)
– Low modulus of elasticity reduces stress concentration in welded joints
– Optimal cleanliness ensures minimal porosity in weld deposits

Applications

Perfect for aerospace components, medical implants, marine hardware, chemical processing equipment, and high-performance automotive parts. Recommended for joining titanium alloys, dissimilar metal welding, and repair of corrosion-resistant structures.

Quality Assurance

Each pack undergoes strict quality control procedures. Rods are manufactured to ASTM B863 standards with precise chemical composition. Length may vary slightly but total weight is guaranteed at 200g. Batch certificates of conformance are available upon request, ensuring full traceability.

Competitive Edge

Unlike standard stainless steel fillers, our Grade 5 titanium rods offer 45% weight reduction while maintaining higher strength. Compared to pure titanium, Grade 5 provides 30% higher tensile strength and improved creep resistance at elevated temperatures, delivering longer service life in demanding applications.

FAQ

Q: What surface preparation is required?
A: Clean weld surfaces thoroughly to remove oxides, oils, and contaminants for optimal results.

Q: Can these rods be used with DC TIG welding?
A: Yes, recommended for DCEN (Direct Current Electrode Negative) polarity.

Q: Are these suitable for cryogenic applications?
A: Yes, Grade 5 maintains toughness down to -322¡ãF (-196¡ãC).

Q: What is the shelf life of unused rods?
A: Store in dry conditions; indefinite shelf life when properly protected from contamination.
