200A Earth Clamp Lead 5m 10-25 Small Plug
$89.99
Product Description

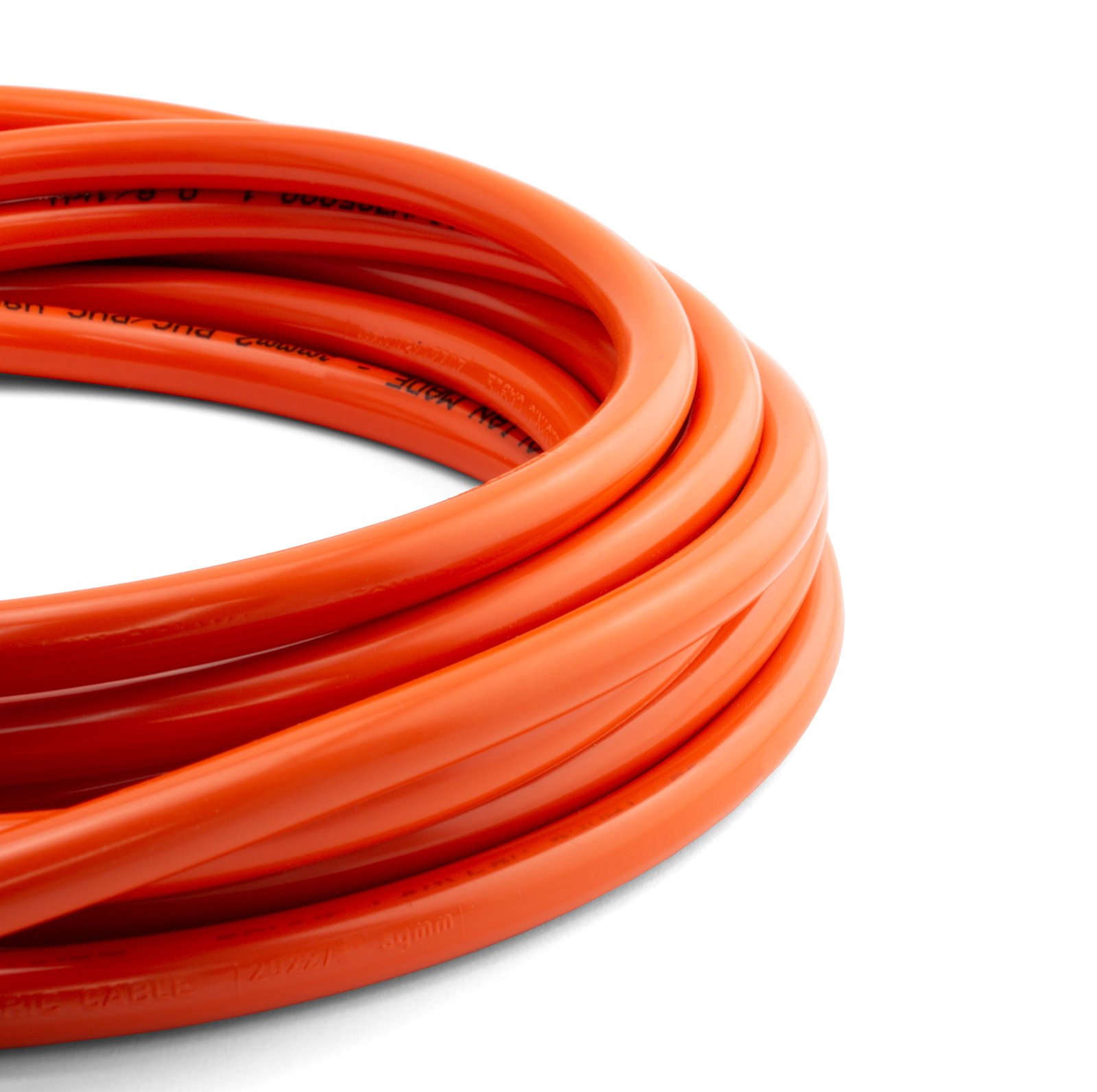

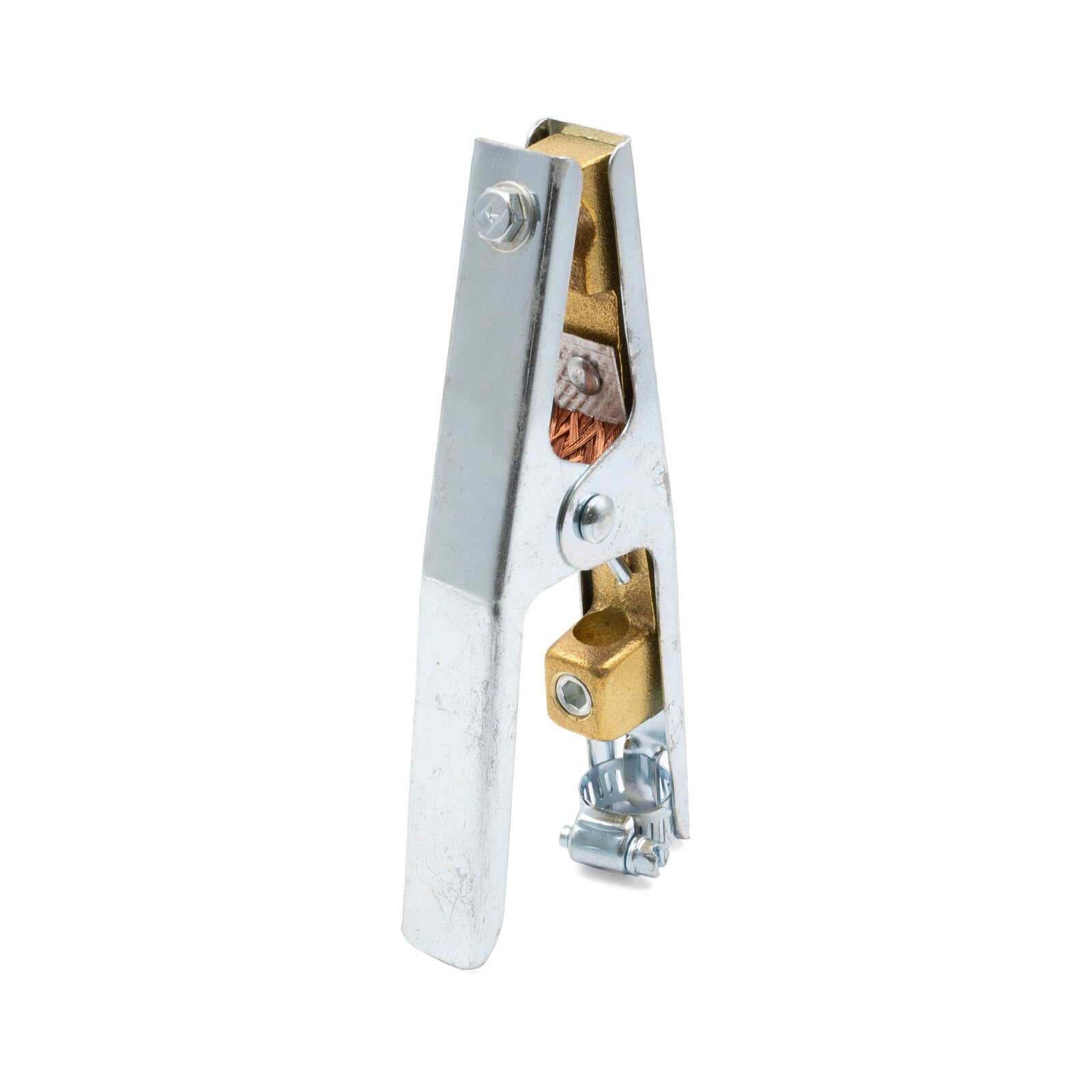

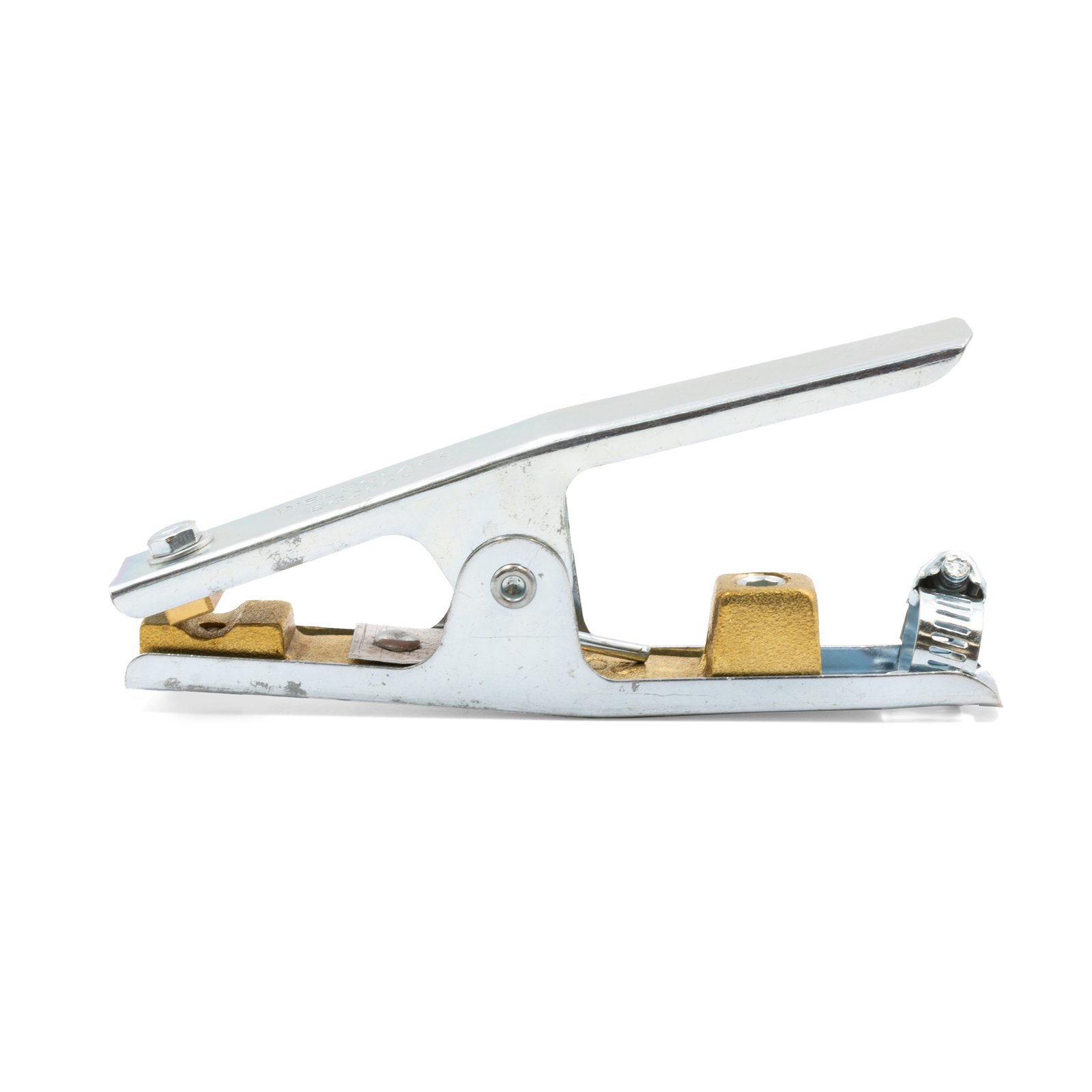

Hampdon Industrial earth clamp and lead set, featuring heavy-duty high-purity copper cable, industrial quality for daily use. Longer than standard copper braid prevents contact issues, with strong clamping force and easy connection.
Specifications
| Amperage | 200 amp |
| Cable Size | 16mm |
| Cable Length | 5 Meter |

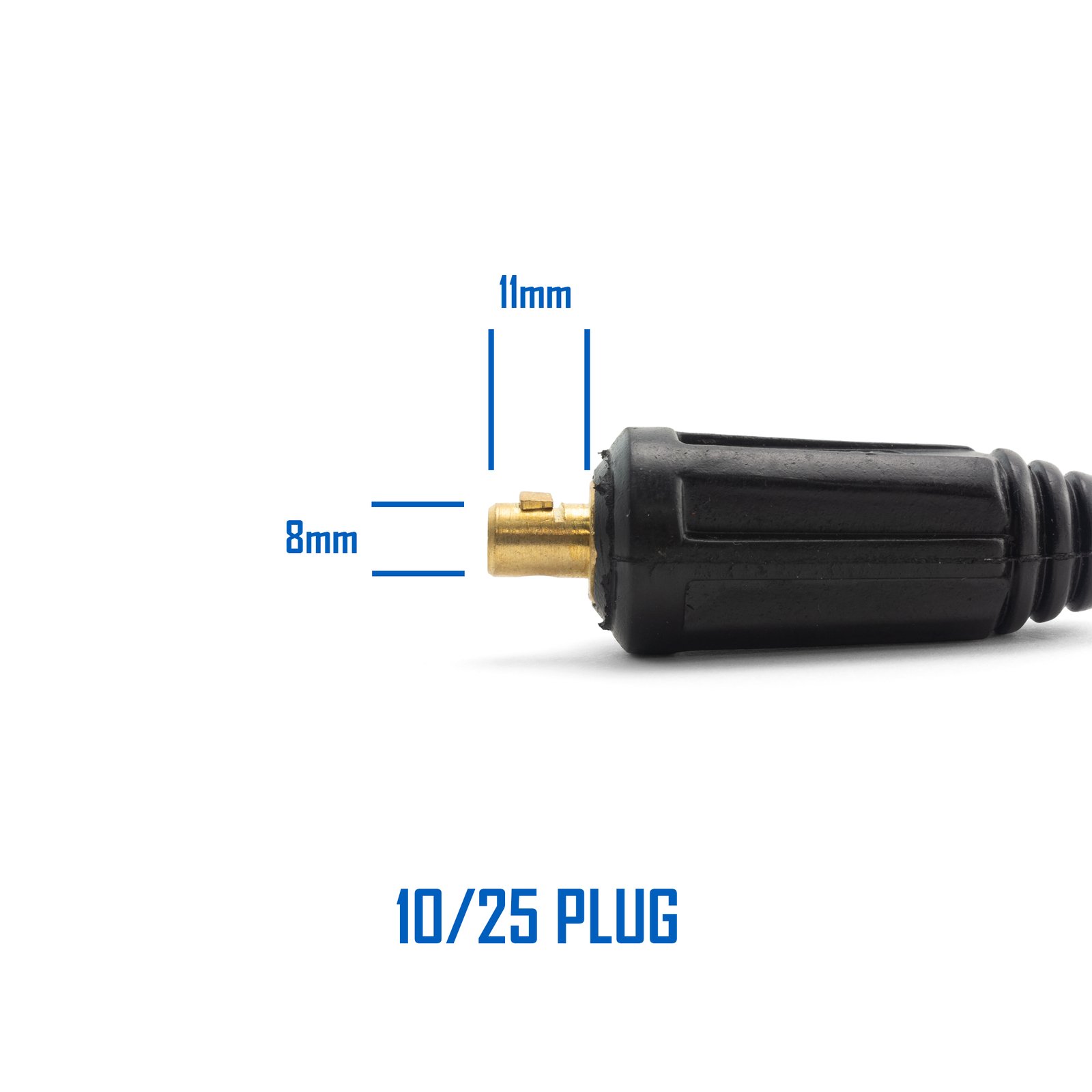

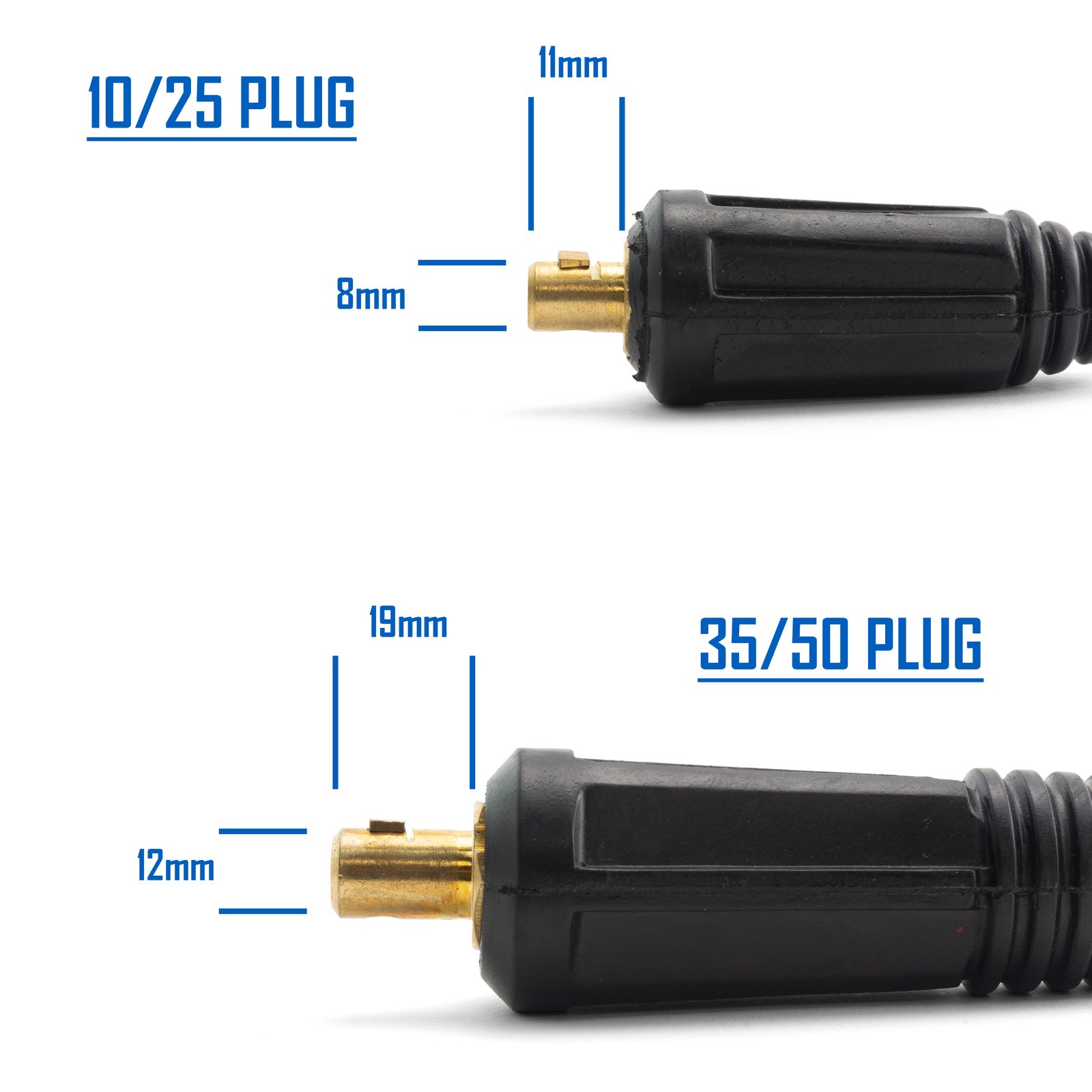

| Plug Type | 10-25 (small) |
| Part No. | WC-06230 |
Hampdon Industrial Earth Clamp and Lead Set – Premium 200 Amp Welding Accessory
Upgrade your welding setup with the Hampdon Industrial Earth Clamp and Lead Set, engineered for professionals who demand reliability and performance. Crafted from high-purity copper and built to withstand daily industrial use, this set eliminates common frustrations like weak connections and cable burnout. Perfect for welders seeking a durable, Australian-made solution that streamlines workflow and enhances safety.
Core Specifications
| Amperage Rating | 200 Amp |
| Cable Diameter | 16mm |
| Cable Length | 5 Meters |
| Plug Type | 10-25 (Small) |
| Material | Heavy-Duty High-Purity Copper |
| Clamping Force | Strong, Secure Grip |
| Assembly | Australian Made Cable |
| Design Feature | Extended Cable to Prevent Contact Burns |
| Ease of Use | Quick Connect/Disconnect |
| Part Number | WC-06230 |
Key Benefits
- Industrial Durability: Built for daily heavy use with high-purity copper to resist corrosion and ensure long-term conductivity.
- Enhanced Safety: Longer cable design avoids contact with workpieces, preventing burnout common in cheaper models.
- Secure Connection: Strong clamping force maintains stable earth contact in any position, critical for consistent weld quality.
- Time-Saving Design: Easy to attach and remove, reducing downtime between tasks.
- Australian Quality: Assembled with locally sourced cable for superior performance and reliability.
Applications
Ideal for MIG, TIG, and arc welding in industrial workshops, construction sites, and fabrication shops. Compatible with most welding machines requiring a 10-25 plug, this set excels in heavy-duty metalworking, automotive repair, and structural steel projects.
Why Choose This Earth Clamp Set?
Unlike generic earth clamps that fail under stress, our set combines premium materials with thoughtful engineering. The extended cable prevents accidental contact, while the ergonomic grip ensures comfortable use during long shifts. Australian assembly guarantees compliance with strict quality standards, making it a smarter investment than budget alternatives prone to overheating or loosening.
Frequently Asked Questions
Q: What welding machines is this compatible with?
A: Works with all machines accepting a 10-25 (small) plug, including most 200-amp welders.
Q: How does the cable length benefit my workflow?
A: The 5-meter cable provides flexibility to reach workpieces without repositioning equipment, improving efficiency.
Q: Is the clamp suitable for vertical or overhead use?
A: Yes, the strong clamping force holds securely in all positions, ensuring safety and stability.
Ready to Upgrade Your Welding Setup?
Don¡¯t compromise on safety or performance. Contact us today for bulk pricing, technical specifications, or to discuss how this earth clamp set can enhance your operations. Our team of welding experts is ready to assist!
Packaging & Transportation
