240V 9L Water Cooler 4m Kemppi TIG Torch 250A MasterTIG
$1,399.00
Product Description

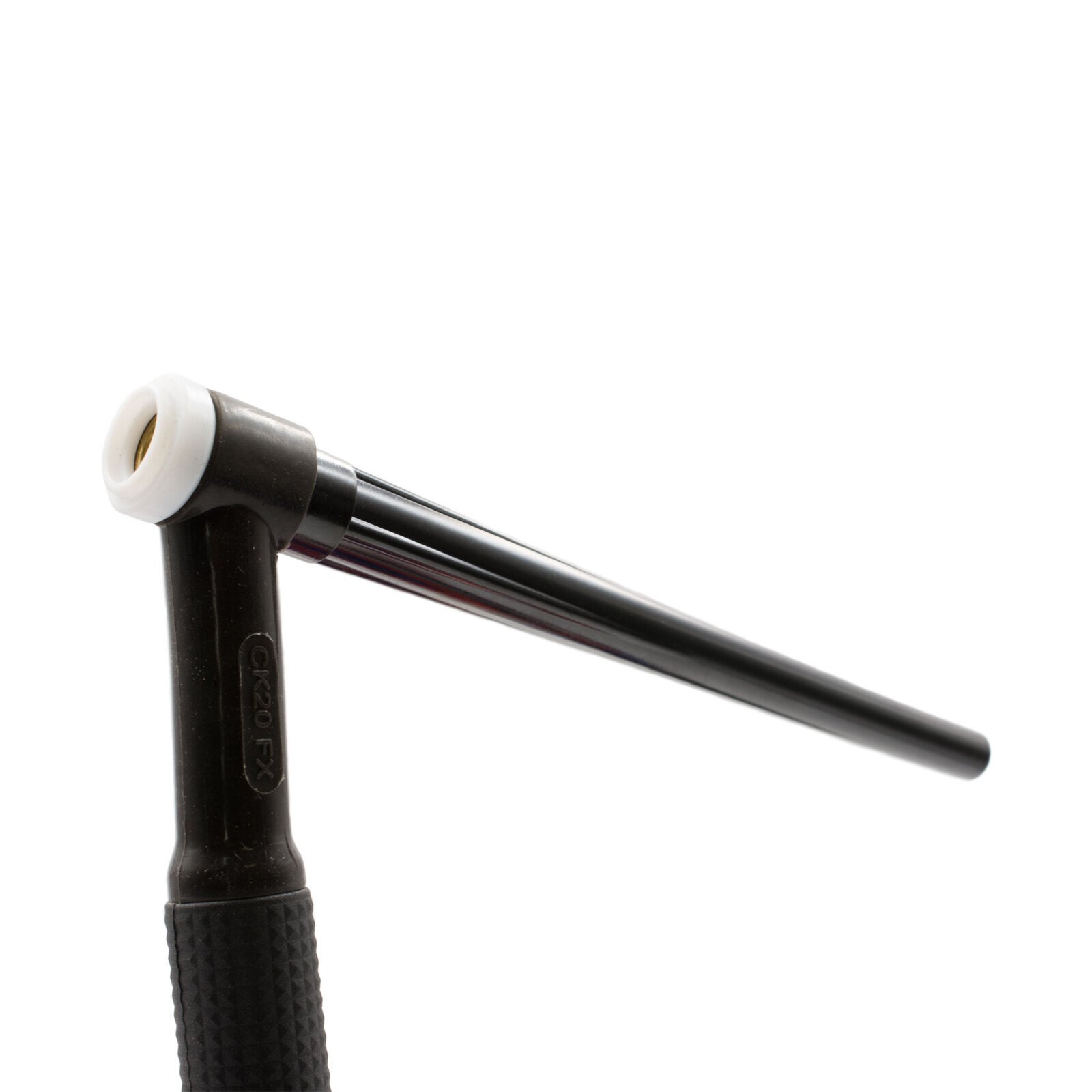

A versatile water-cooled TIG torch combining 9/20 series consumables with 26 series power, offering 250A DC/190A AC @100% duty cycle. Features a slim knurled grip, 4m lead, and compatibility with Kemppi TIG machines.
Technical Specifications
| Current Rating | 250A DC, 190A AC @100% Duty Cycle |
| Tungsten Size | 0.5mm – 3.2mm |
| Torch Length | 4m |
| Weight | 1.6kg |
| Consumables | 9/20 Series |
240V 9 Litre Water Cooler with 4m Kemppi TIG Torch 250A MasterTIG Package Deal
Core Specifications
| Torch Current Rating | 250A DC, 190A AC @ 100% Duty Cycle |
| Torch Cable Length | 4 meters |
| Tungsten Compatibility | 0.5mm to 3.2mm electrodes |
| Consumable Series | 9/20 series |
| Torch Weight | 1.6kg |
| Cooler Reservoir | 9 litres |
| Cooler Flow Rate | 5.3 l/min |
| Cooler Power | 150W |
| Max Pressure | 500 kpa (70 psi) |
| Compatibility | All Kemppi TIG Machines |
Product Description
This professional-grade TIG welding package combines a high-performance 250A water-cooled Kemppi torch with a robust 9-litre water cooler, engineered for precision welding applications. The torch features a slimline knurled grip design that ensures comfortable handling during extended use, while the integrated water cooling system allows sustained operation at maximum amperage without overheating.
Key Features
– Versatile Performance: Handles 0.5mm to 3.2mm tungsten electrodes for diverse welding tasks
– Extended Reach: 4m torch lead provides excellent maneuverability in tight spaces
– Optimized Cooling: 9-litre cooler with 5.3 l/min flow rate maintains stable operating temperatures

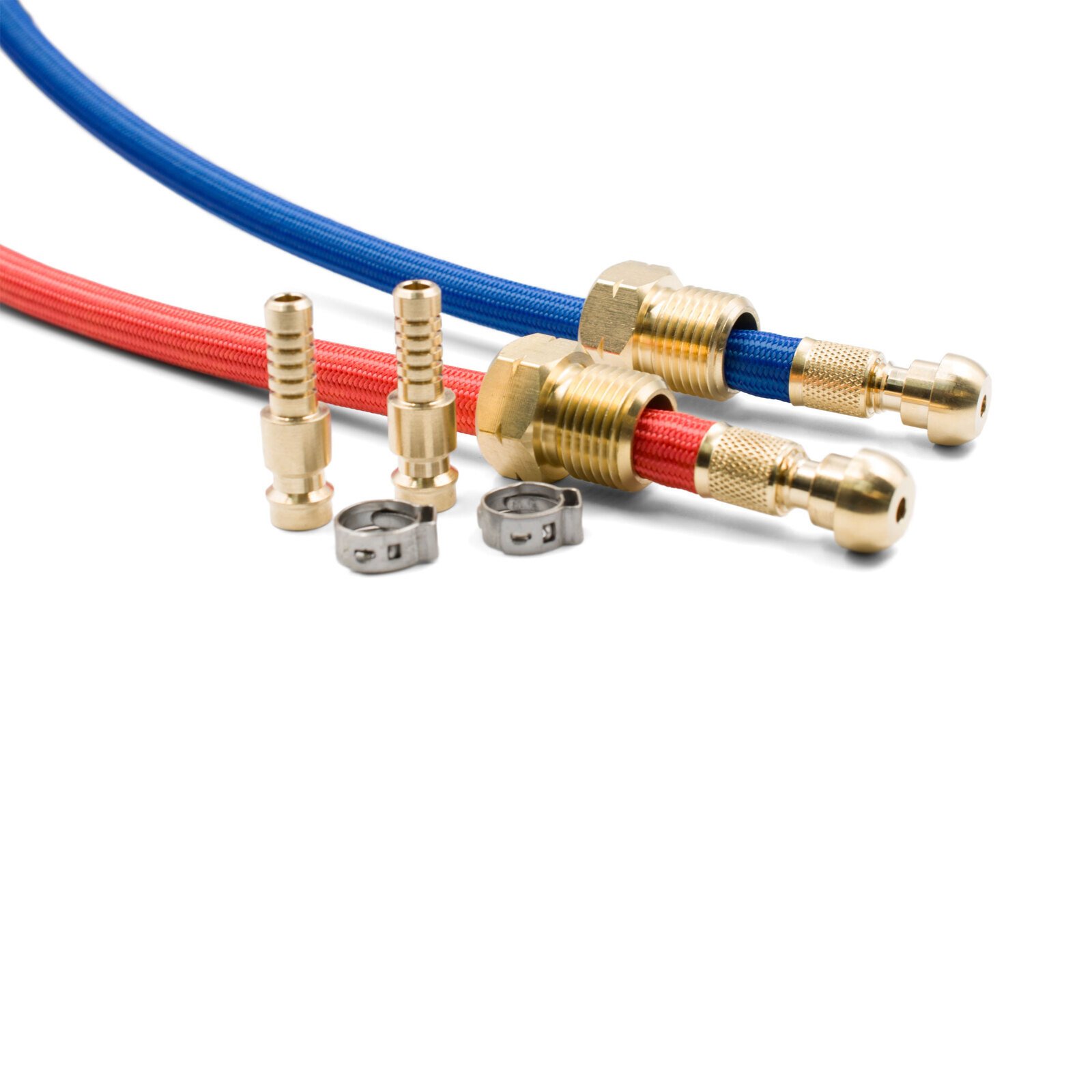

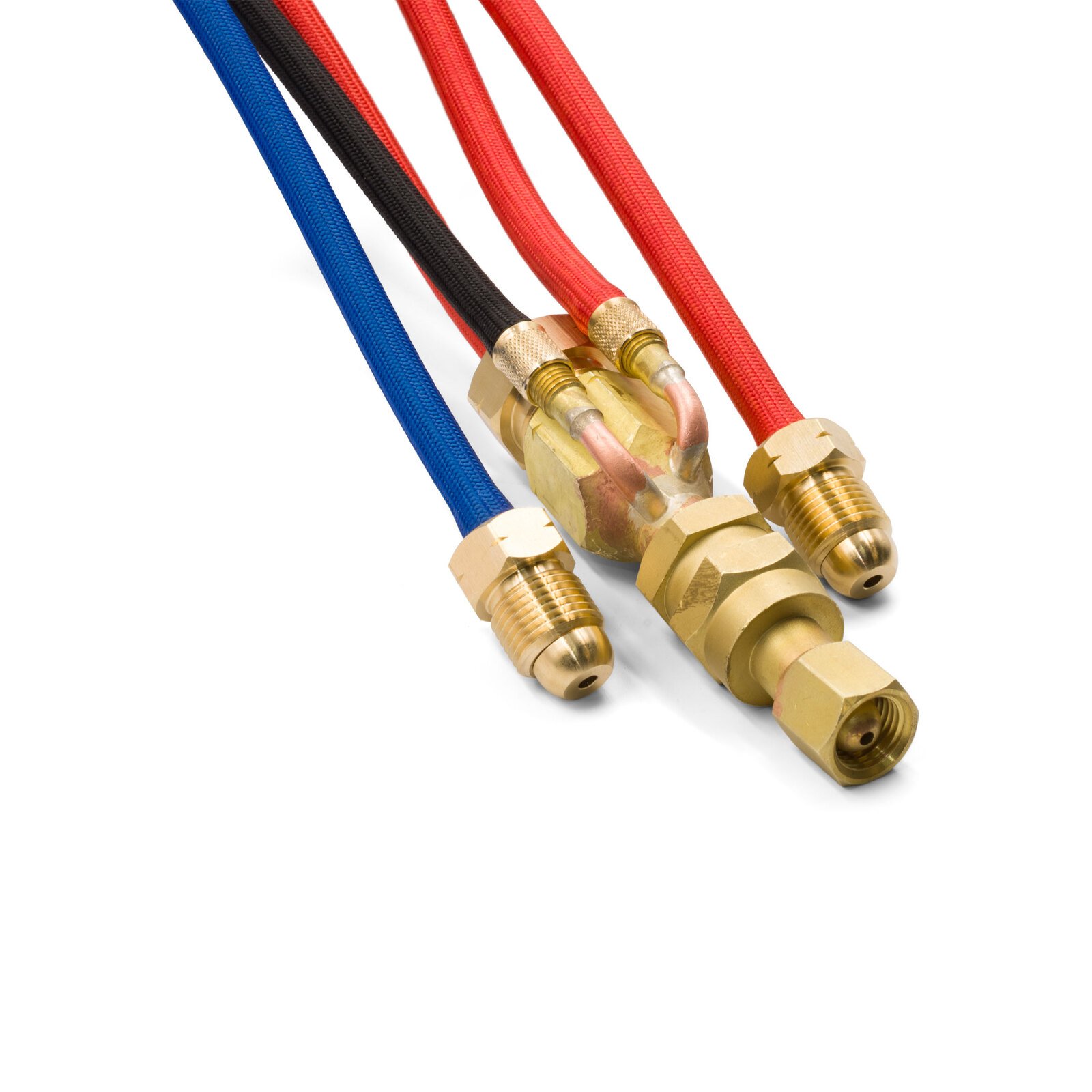

– Durable Construction: Custom-made torch with industrial-grade components and quick-connect fittings
– Universal Compatibility: Works seamlessly with all Kemppi TIG machines including MasterTIG and Miniarc series
Applications
Ideal for professional metal fabrication, automotive repair, industrial manufacturing, and stainless steel welding. Perfect for both AC and DC welding applications requiring precise heat control and consistent arc performance.
Quality Assurance
Crafted with premium materials and rigorous quality control, this package meets international welding equipment standards. The torch assembly uses genuine Kemppi-style connections, ensuring reliable performance and easy maintenance.
FAQ
Q: What consumables does this torch use?
A: Compatible with 9/20 series TIG consumables for easy replacement and wide availability.
Q: Is the cooler suitable for continuous operation?
A: Yes, the 150W fan-cooled radiator system supports 100% duty cycle operation at rated amperage.
Q: Will this work with my Kemppi MasterTIG 325?
A: Yes, this package is fully compatible with all MasterTIG models including MT325DC series.
Contact Us
Interested in this welding package? Our technical team can provide personalized recommendations and competitive pricing. Send us an inquiry today to discuss your specific welding requirements.
