46pc Pyrex TIG Cup Kit 1.0-2.4mm for WP17/18/26
$149.99
Product Introduction
46-piece Pyrex glass TIG cup combo kit compatible with WP17/18/26 torches. Offers superior visibility for welding, suitable for 1.0mm, 1.6mm & 2.4mm tungstens. Australian-made, fits standard gas lens collet bodies (45V24-29). Ready-to-use with all necessary components.
Product Specifications
| Compatibility | WP/SR 17/18/26 TIG heads |
| Kit Contents | 20 Pyrex cups, 3 collet bodies, 6 collets, insulators, O-rings, back caps |
| Tungsten Sizes | 1.0mm, 1.6mm, 2.4mm |
| Max Amperage | 130 amps |
| Material | Pyrex/Borosilicate glass |
46 Piece Pyrex Glass TIG Cup Combo: 20-Cup Mega Value Kit for WP17/18/26 Torches
Upgrade your TIG welding setup with this premium 46-piece Pyrex glass cup kit, engineered for precision, visibility, and unbeatable value. Designed to fit standard WP17/18/26 TIG torch heads, this all-in-one kit delivers professional-grade performance at a fraction of the cost of individual purchases.
Core Kit Components
| Description | Quantity | Core Benefit |
|---|---|---|
| 13mm Bore Pyrex Glass Cups (Pyrex-54N14) | 20 | Superior visibility for precise weld control |
| 1.0mm Collet Body (45V24) | 1 | Secure fit for 1.0mm tungsten electrodes |
| 1.6mm Collet Body (45V25) | 1 | Stable grip for 1.6mm tungsten electrodes |
| 2.4mm Collet Body (45V26) | 1 | Reliable support for 2.4mm tungsten electrodes |
| 1.0mm Collets (10N22) | 2 | Replacement parts for consistent performance |
| 1.6mm Collets (10N23) | 2 | Durable components for long-term use |
| 2.4mm Collets (10N24) | 2 | Precision-engineered for optimal current transfer |

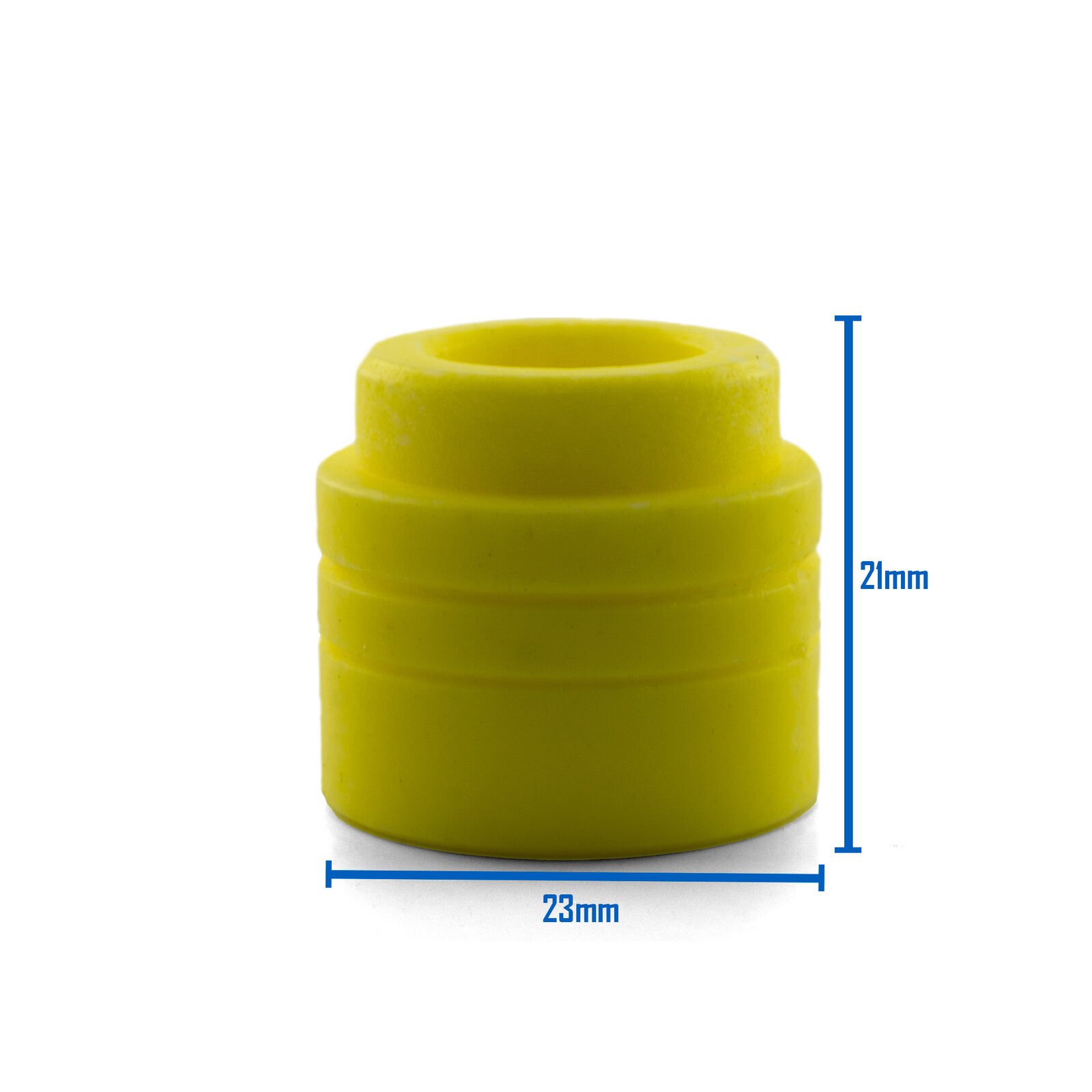

| Insulators (18CG01) | 2 | Heat resistance for safe operation |

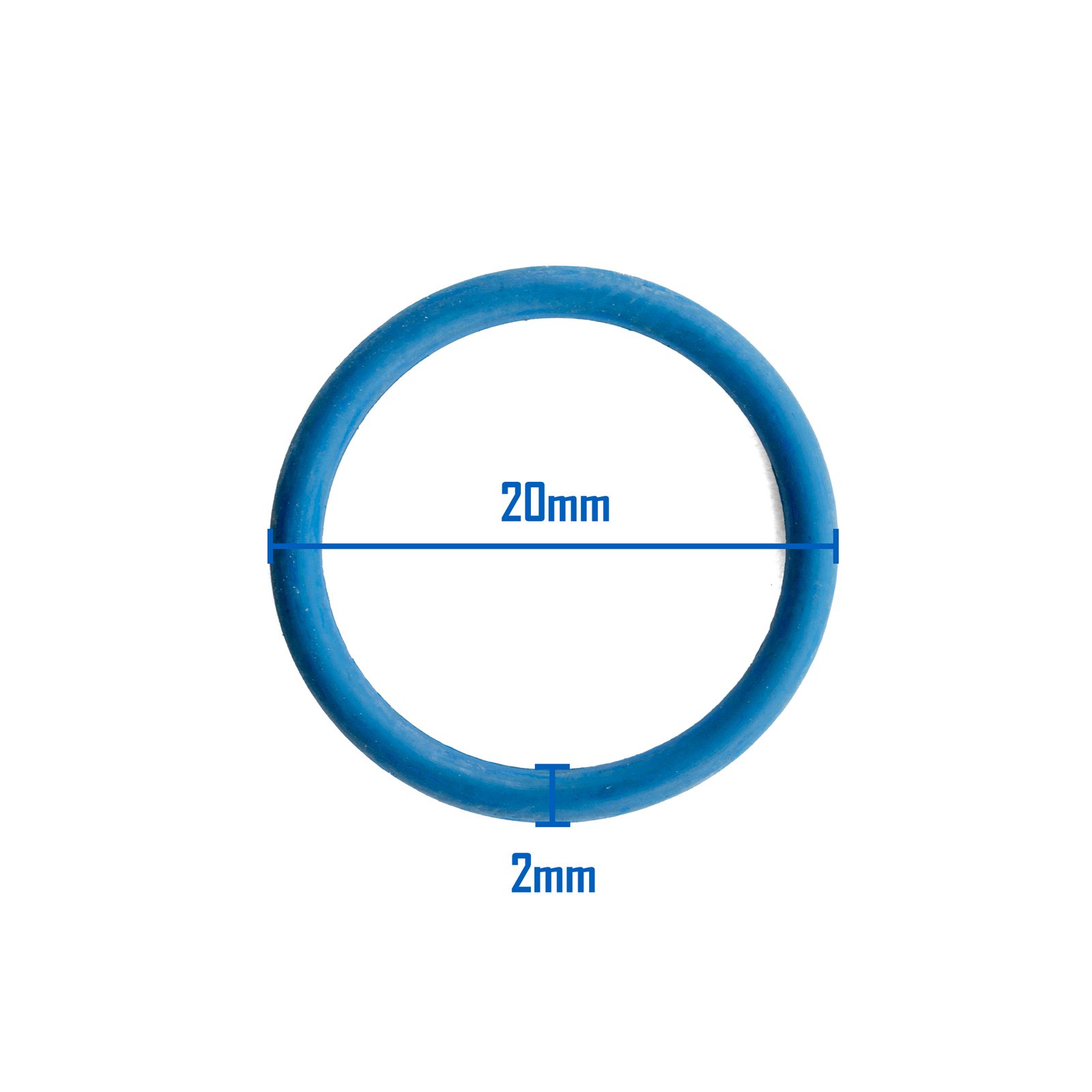

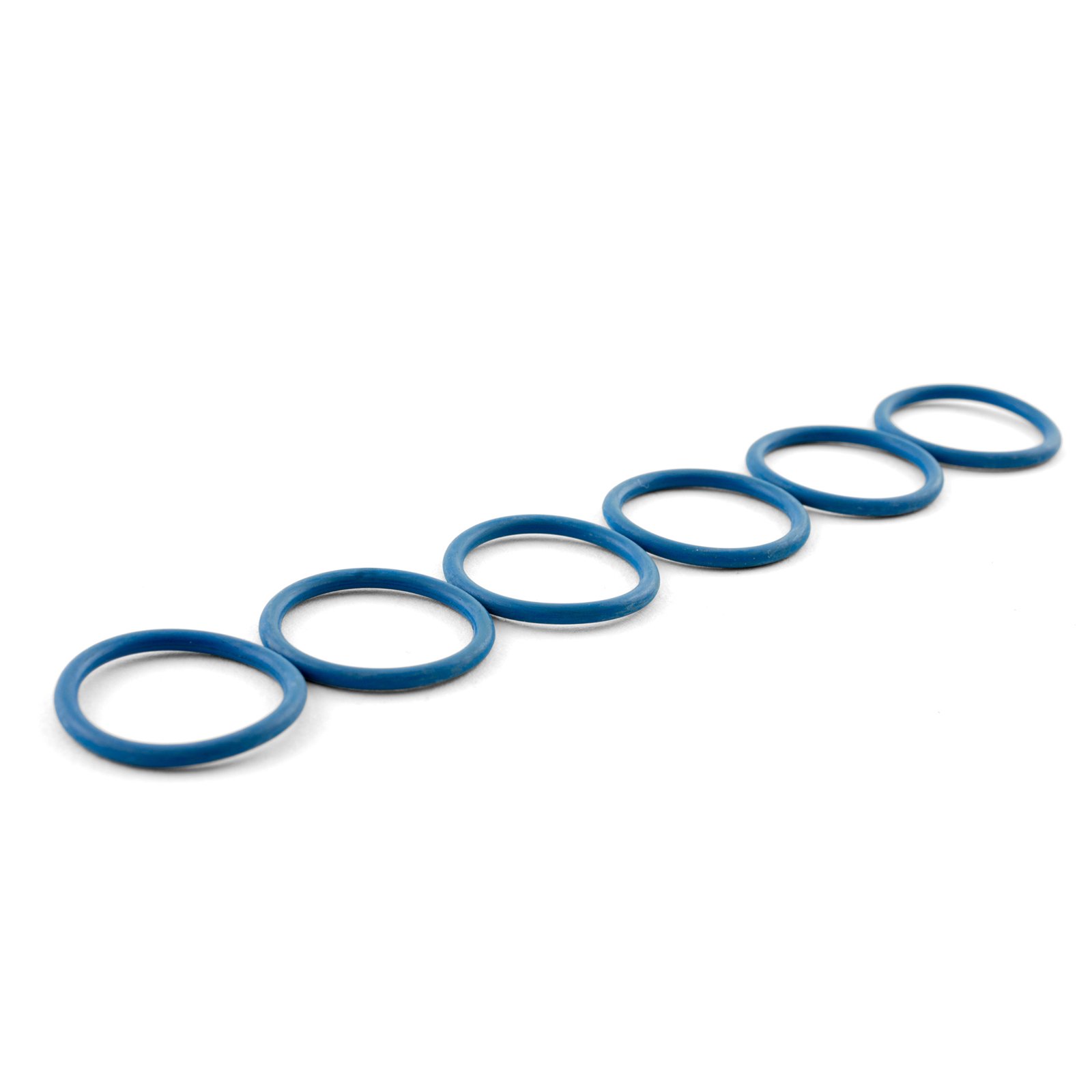

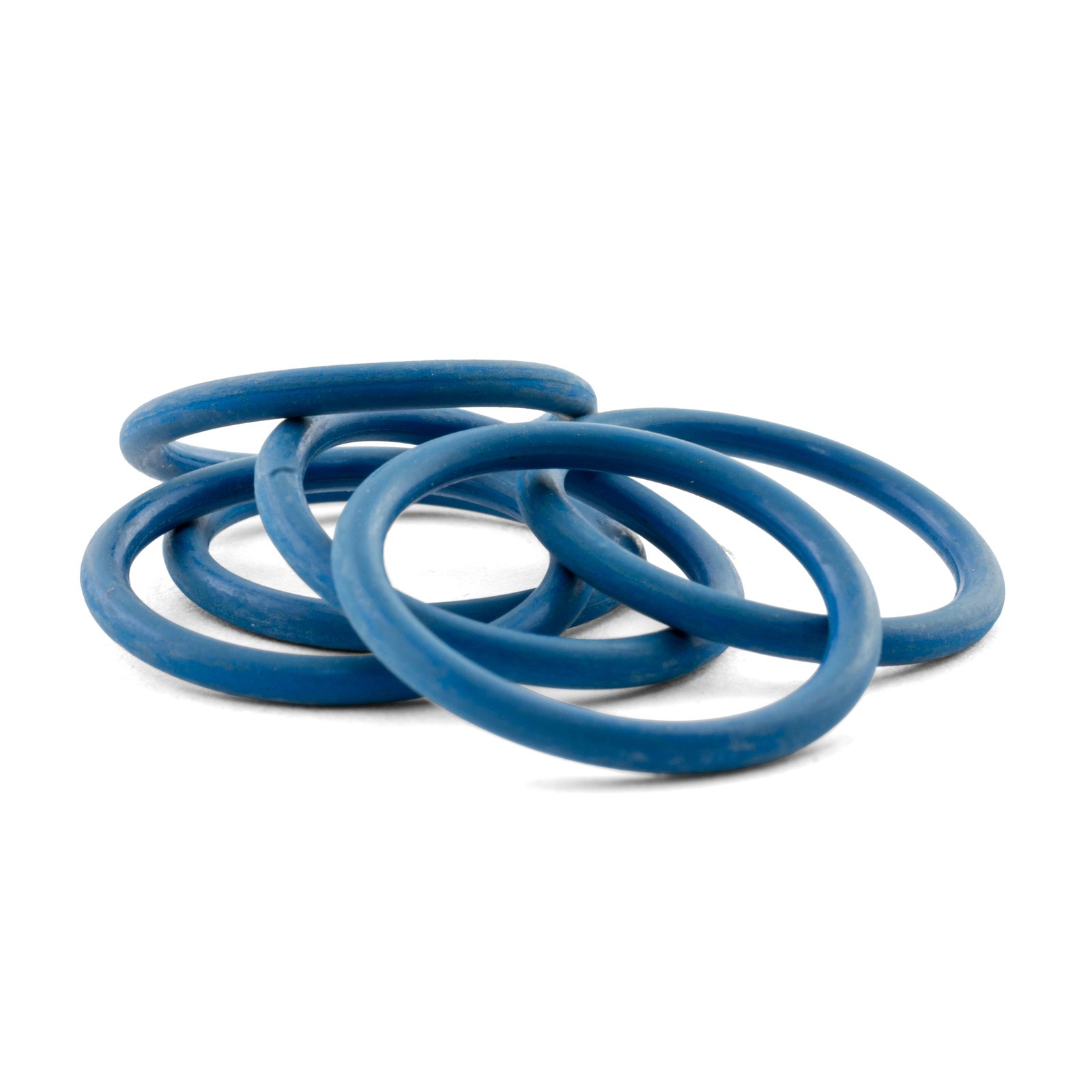

| O Rings (7127R) | 12 | Leak-proof gas seal maintenance |

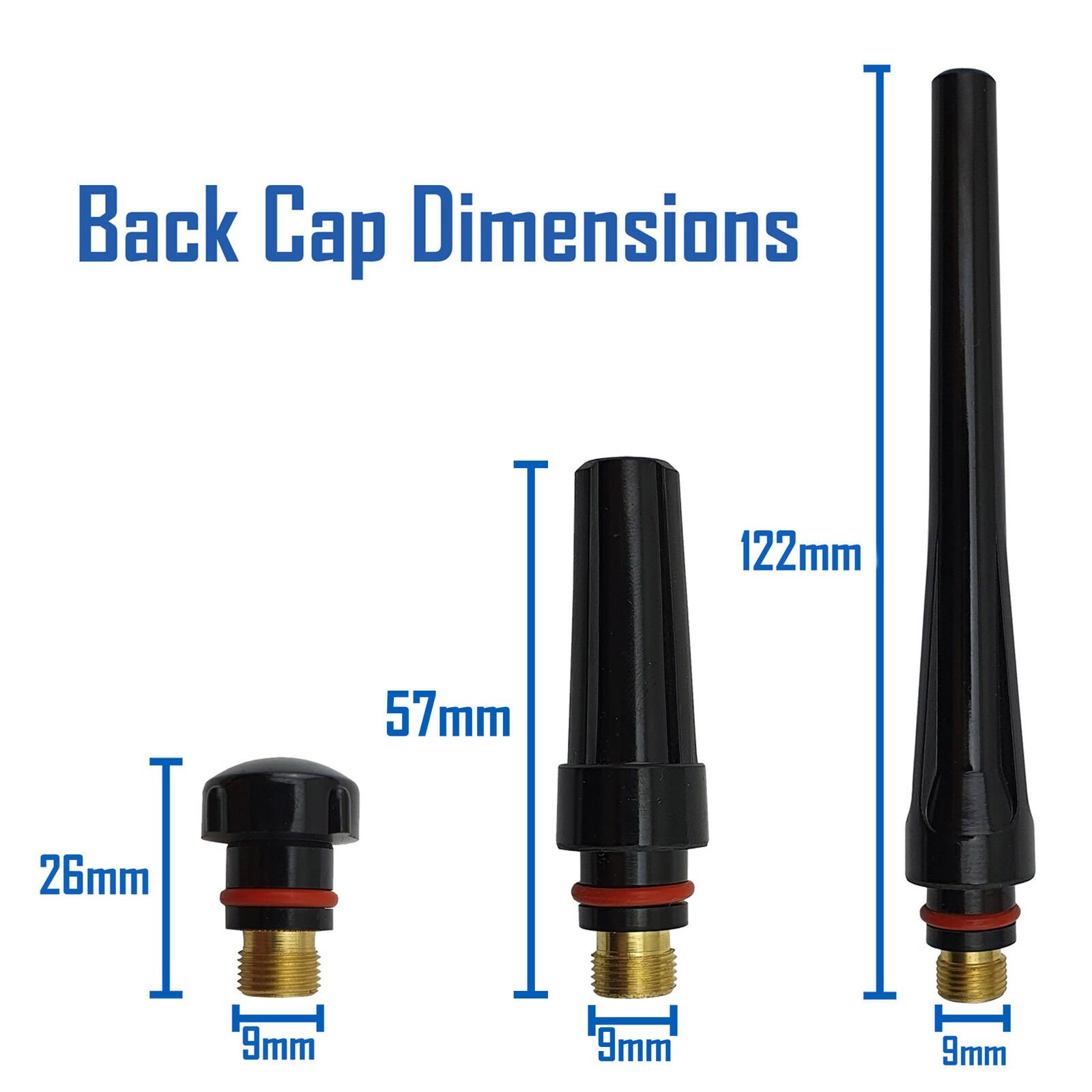

| Back Caps (Long/Medium/Short: 57Y02/05/04) | 3 | Versatile torch length adjustment |
Product Specifications
- Material: Pyrex/Borosilicate glass cups
- Compatible Torches: WP17, WP18, WP26, SR17/18/26
- Tungsten Sizes: 1.0mm, 1.6mm, 2.4mm
- Max Current: 130 amps
- Gas Lens Compatibility: 45V24-29 collet bodies
- Origin: Designed & manufactured in Australia
Applications & Performance
Ideal for both beginners and seasoned professionals, these Pyrex cups offer crystal-clear visibility compared to traditional ceramic cups¡ªcritical for intricate welds on stainless steel, aluminum, and exotic metals. The kit supports 1.0-2.4mm tungstens, making it perfect for automotive, aerospace, and industrial welding projects.
Why Choose This Kit?
- Cost-Effective: $3.20 per piece (retail value $225+)
- Standard Compatibility: Fits most TIG machines without custom collet bodies
- Durable Construction: Heat-resistant Pyrex glass for long service life
- Complete Solution: All parts ready for immediate use
FAQ
Q: Will this kit fit my Lincoln/Miller TIG torch?
A: Yes, it works with any standard WP17/18/26 torch head.
Q: Can I use these cups with DC or AC welding?
A: Recommended for DC applications up to 130 amps.
Q: Are replacement parts available?
A: Yes, all components are sold individually in our store.
Ready to elevate your welding precision? Contact us today for bulk pricing or technical support!
