50pc BIG TIG Gas Lens Combo WP9 20 Variety Pack
$129.50
Product Description

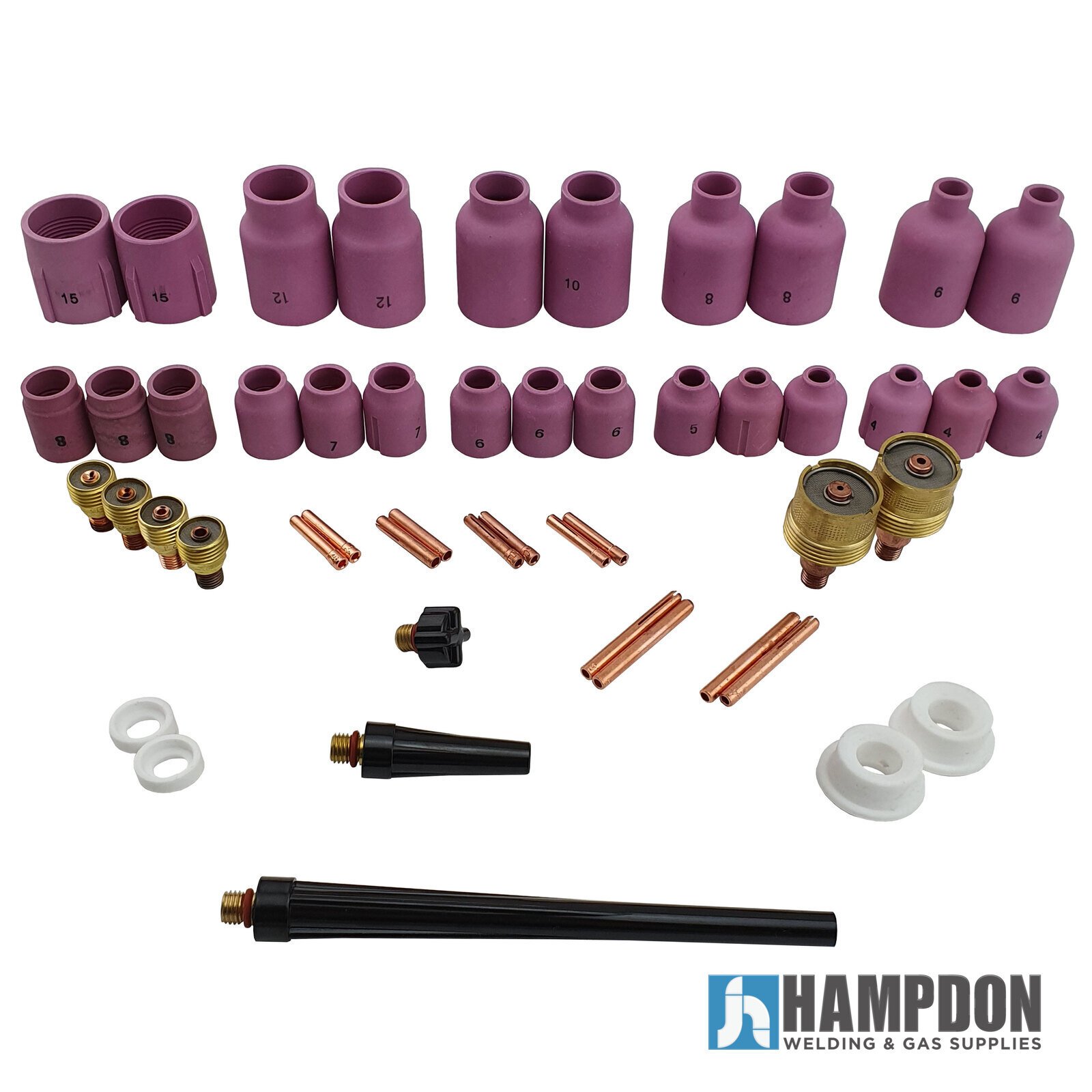

A 50-piece BIG TIG Gas Lens Combo for WP9/20 series torches, covering 1.0mm-3.2mm tungsten sizes. Features gas-saving lens, various collet bodies, ceramic cups, and back caps for versatile TIG welding tasks.
Key Specifications
| Kit Size | 50 Pieces |
| Compatible Torches | WP/20 Series |
| Tungsten Sizes | 1.0mm, 1.6mm, 2.4mm, 3.2mm |
| Gas Lens | Standard & Large Diameter Collet Bodies |
| Ceramic Cups | Standard, Long & Large Diameter (#4-#15) |
50 Piece BIG TIG Gas Lens Combo – WP9 | 20 – Variety Pack
Upgrade your TIG welding setup with the ultimate 50-piece BIG TIG Gas Lens Combo, designed to tackle every welding job with precision and efficiency. This all-in-one kit from Hampdon Industrial delivers professional-grade performance while saving on gas costs¡ªindividually valued at over $250, now available as a cost-effective solution for welders of all skill levels.
Core Kit Components (10 Key Parameters)
| Description | Core Features |
|---|---|

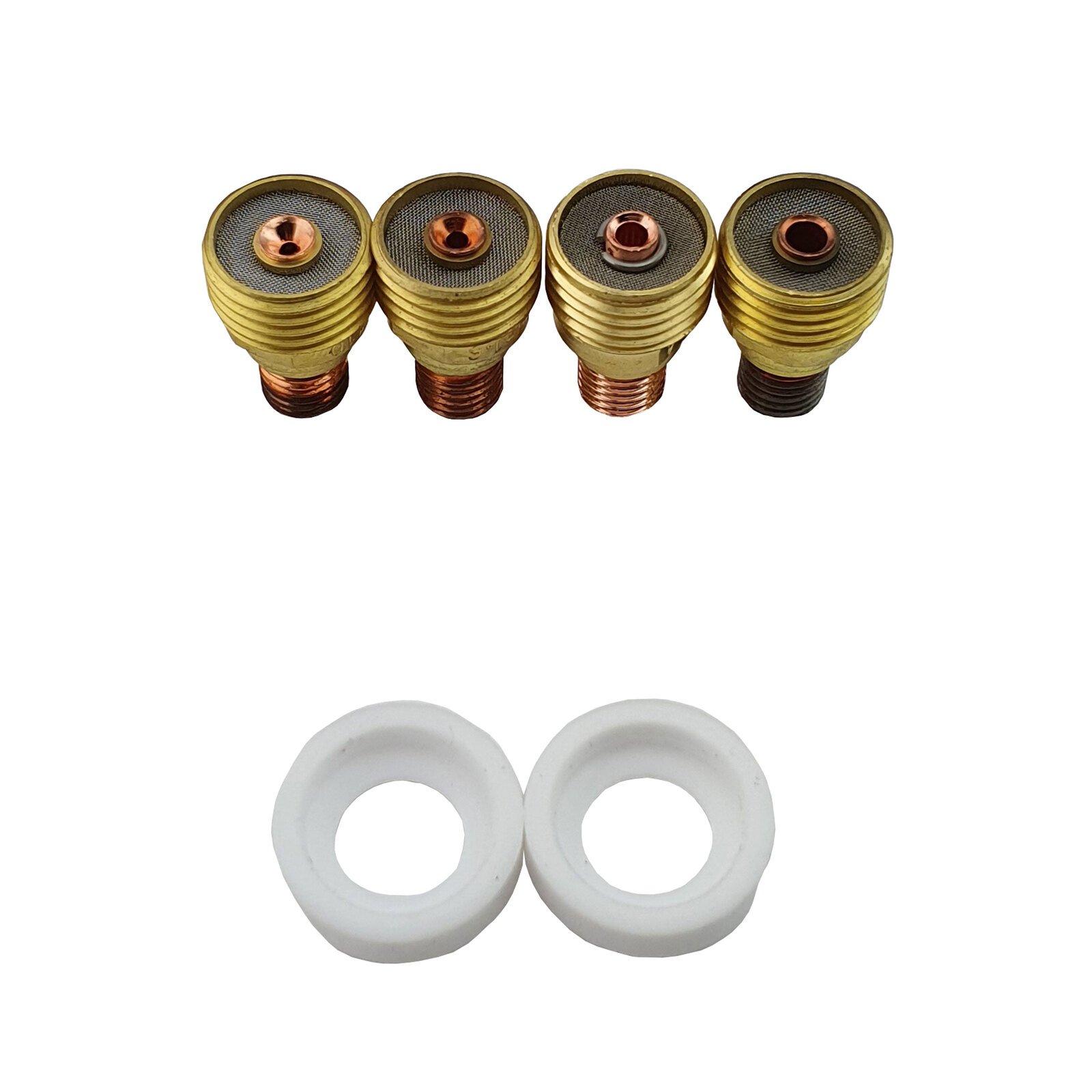

| Gas Lens Collet Bodies | 1.0mm, 1.6mm, 2.4mm, 3.2mm sizes + large diameter options for optimal gas flow |
| Tungsten Compatibility | Covers 1.0mm, 1.6mm, 2.4mm, 3.2mm tungsten sizes for versatile welding tasks |

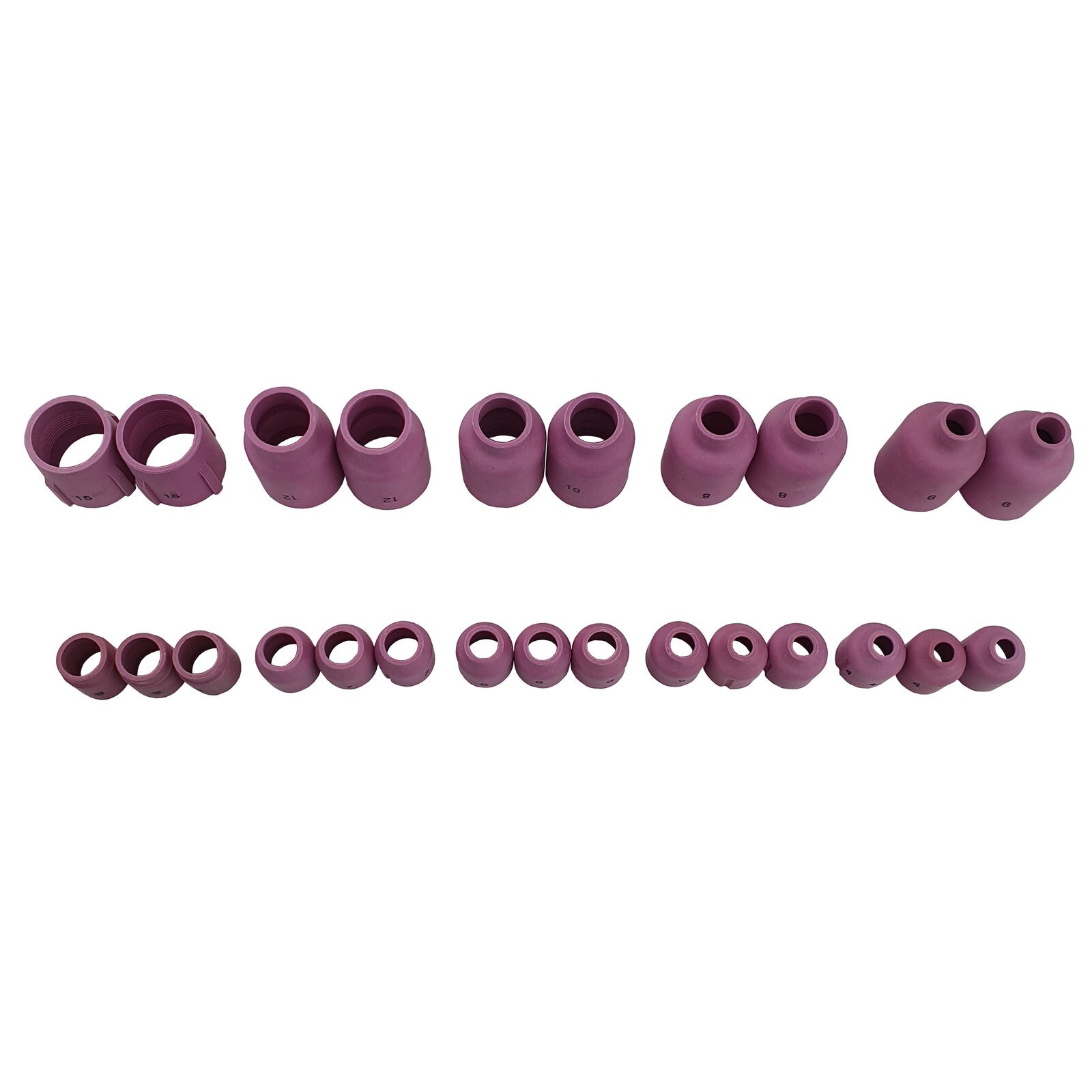

| Ceramic Cups | Standard/long/large diameter cups (#4 to #15) for varied arc visibility and gas coverage |
| Back Caps | Long, medium, and short caps for precise torch adjustment |

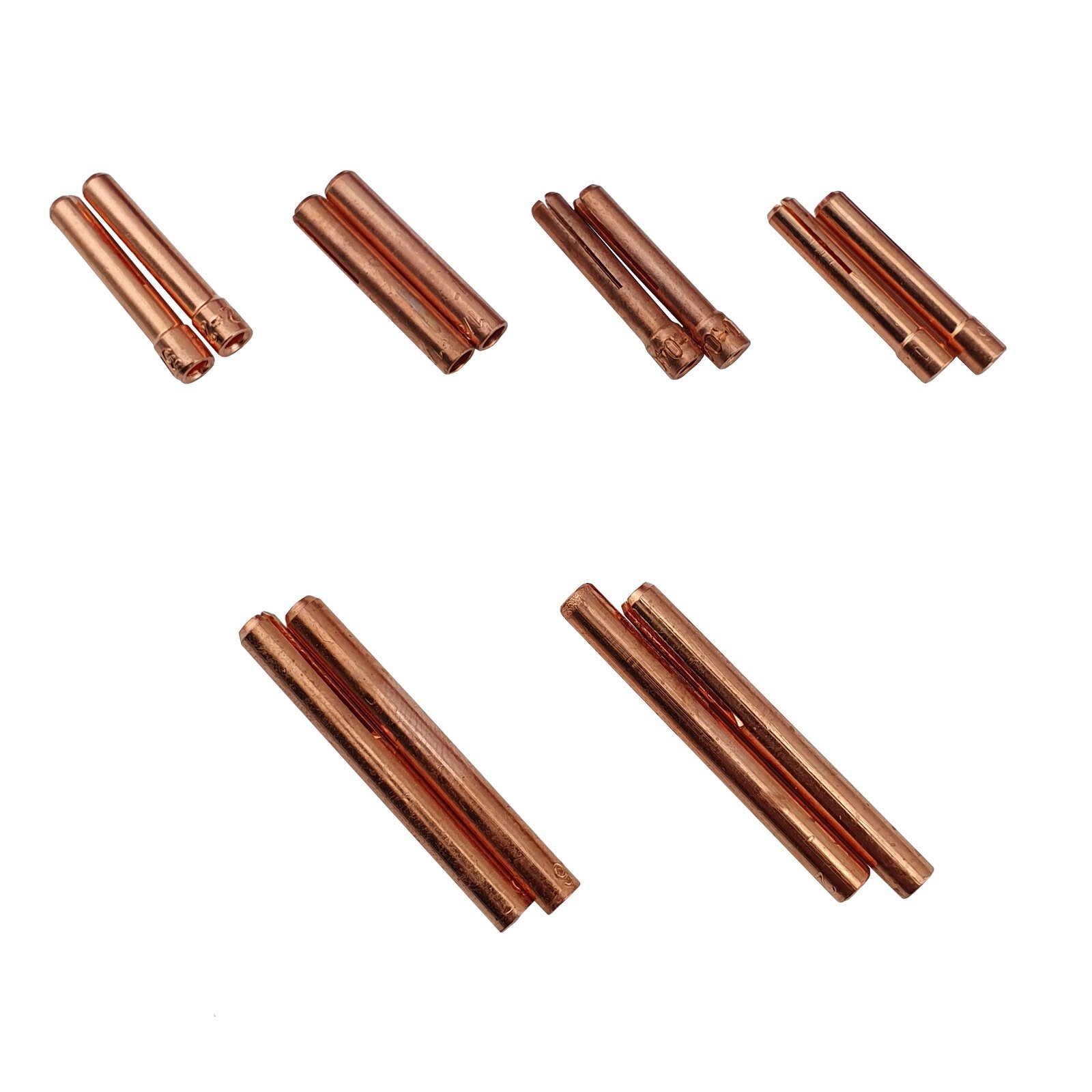

| Collets | 2 each of 1.0mm, 1.6mm, 2.4mm, 3.2mm sizes + large diameter variants |
| Gas-Saving Design | Mesh lenses enhance gas distribution, reducing argon consumption |
| Torch Compatibility | Fits 9 and 20 series WP/SR torches for broad equipment compatibility |
| Insulators | 2 large diameter insulators for heat resistance and stability |
| Gaskets | 2 gas lens TIG cup gaskets for secure, leak-free connections |
| Kit Value | 50 premium pieces at a fraction of individual component costs |
Product Highlights
This combo eliminates the need for multiple purchases by including every accessory needed for TIG welding. The gas lens technology ensures consistent gas coverage, reducing spatter and improving weld quality. Whether working on thin sheets or heavy metals, the variety of collet bodies and cups adapts to material thicknesses and joint designs.
Applications
Ideal for automotive repair, aerospace fabrication, metal art, and industrial maintenance. Perfect for both professional welders and DIY enthusiasts seeking reliable, high-performance tools.
Why Choose This Kit?
- Cost-Effective: Saves over $100 compared to buying components separately
- Gas Efficiency: Mesh lenses reduce gas waste by up to 30%
- Versatility: Handles all common tungsten sizes and torch series
- Durability: High-quality materials withstand repeated use in harsh environments
FAQ
Q: Will this kit fit my WP-9 torch?
A: Yes, it¡¯s compatible with 9 and 20 series WP/SR torches.
Q: What tungsten sizes does it support?
A: 1.0mm, 1.6mm, 2.4mm, and 3.2mm.
Q: How does the gas lens save money?
A: By optimizing gas flow, it reduces argon usage without compromising weld quality.
Request a Quote Today
Ready to elevate your welding projects? Contact us now for bulk pricing, technical support, or custom kit options. Our team of experts is here to help you find the perfect solution for your needs.
