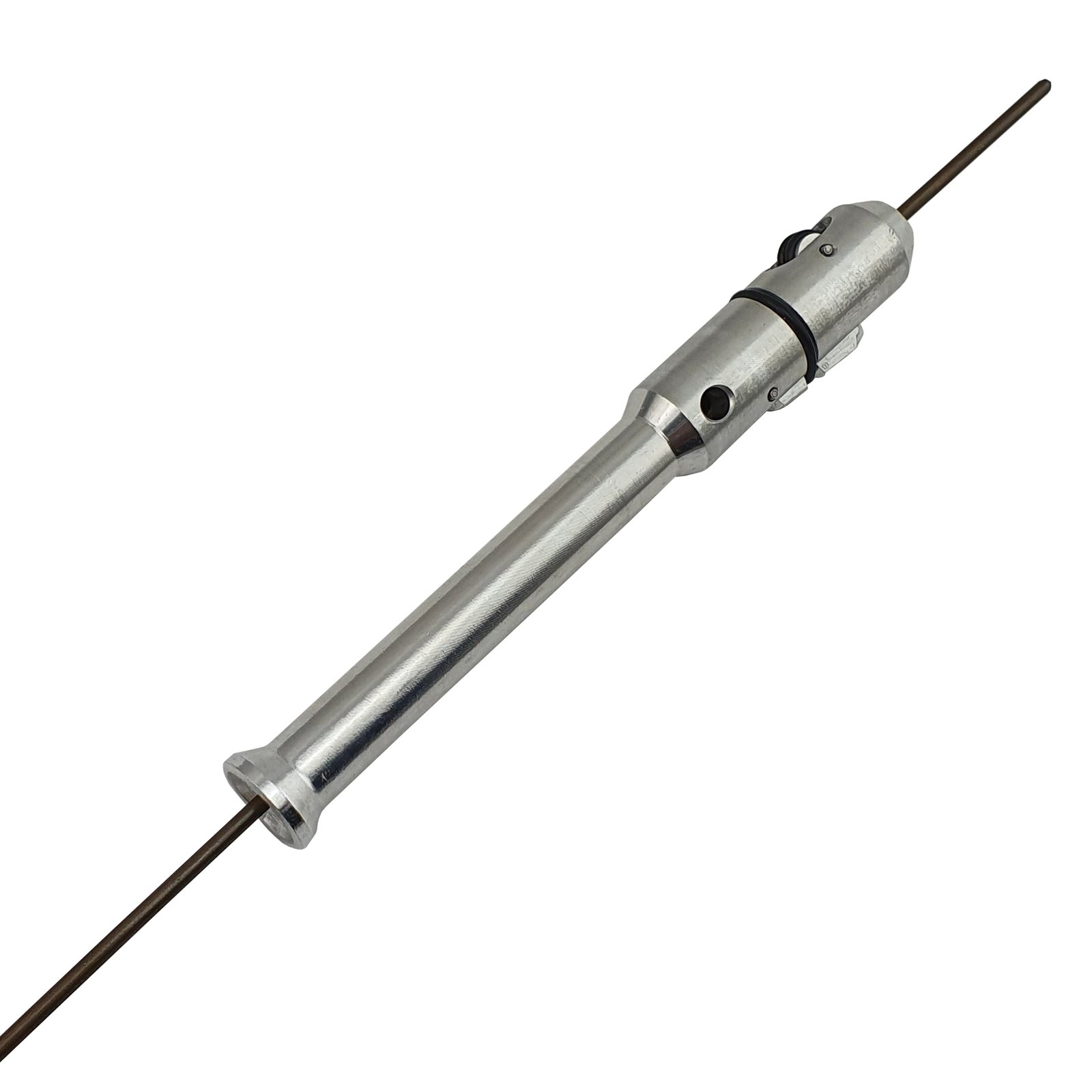

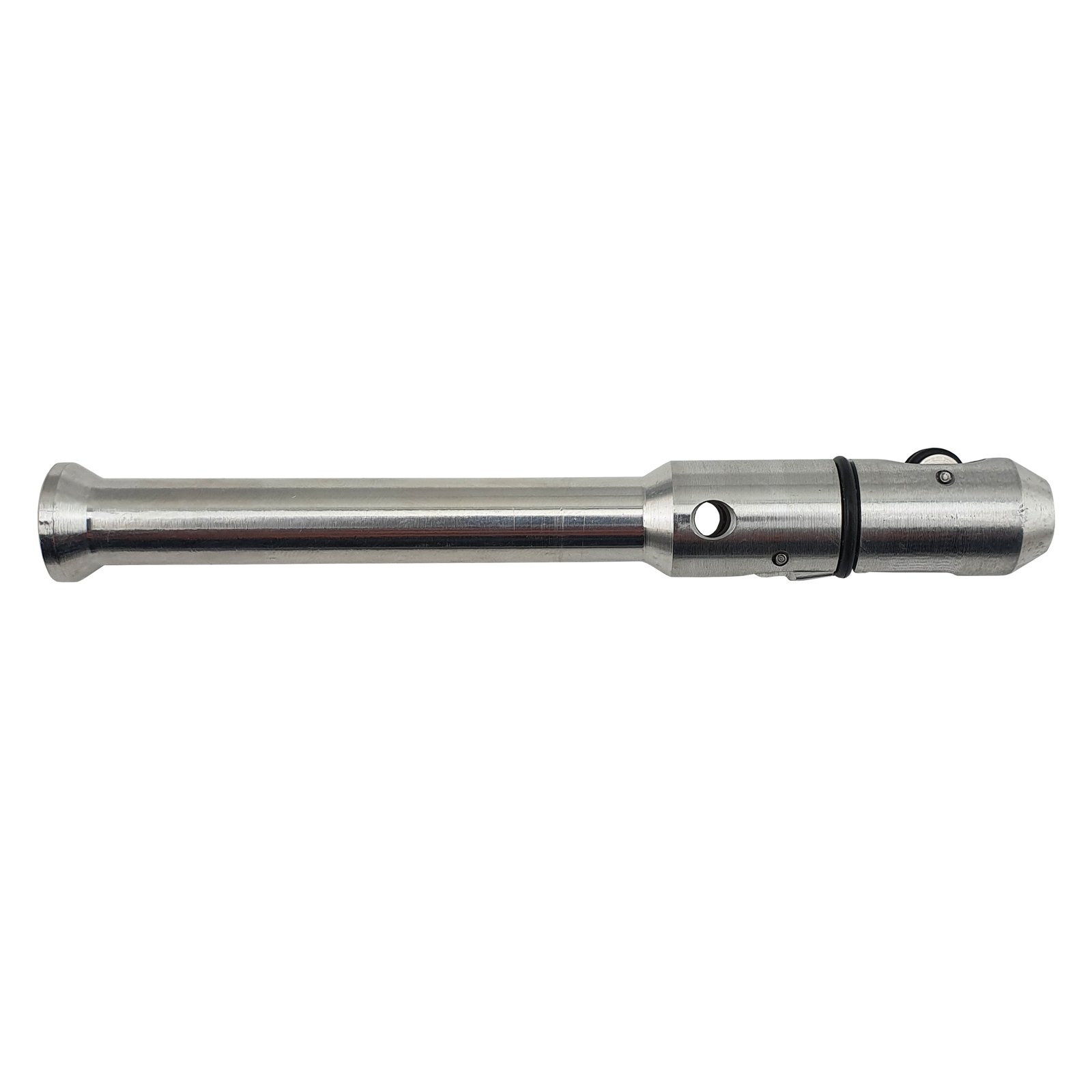

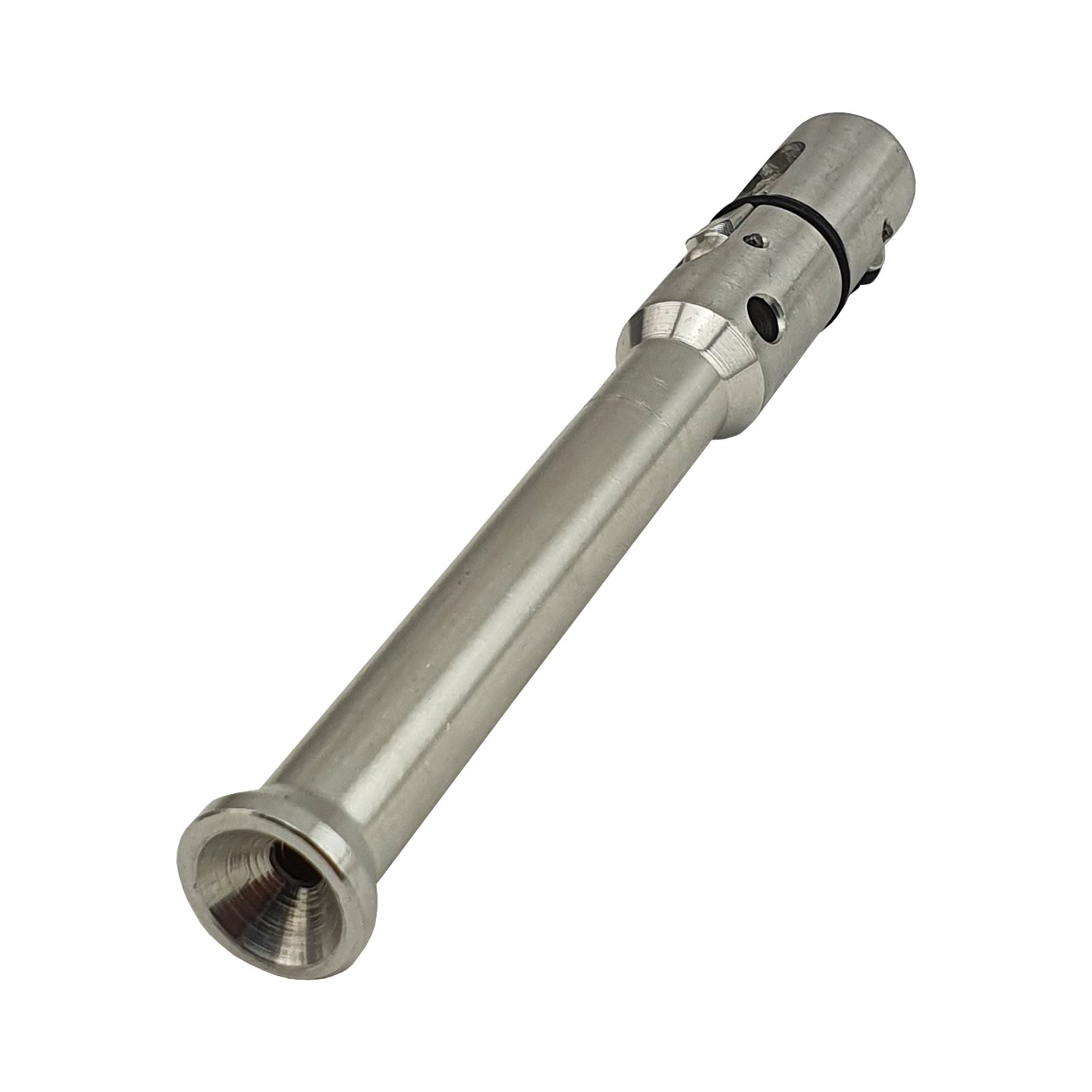

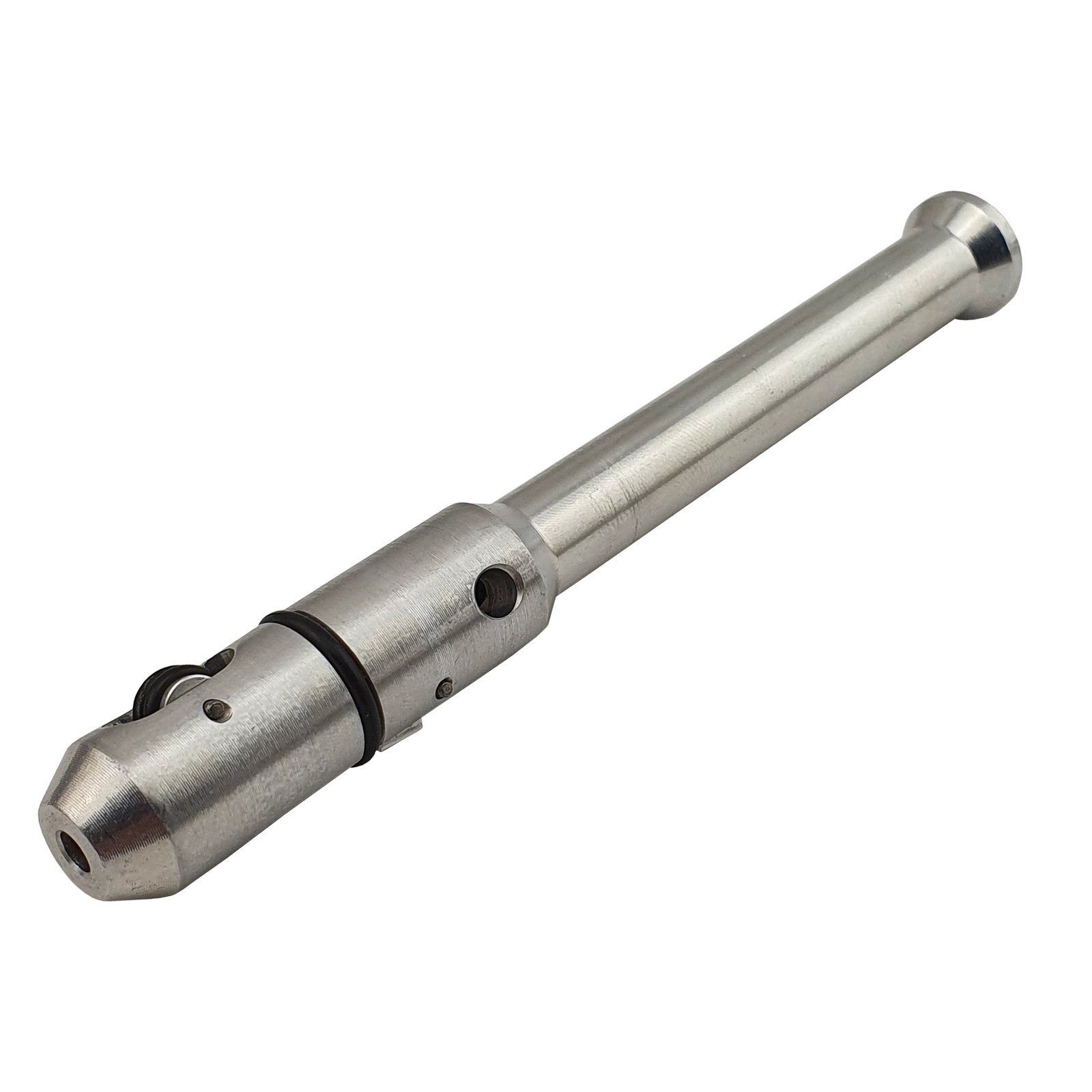

Blue Demon Dab TIG Wire Pen TIG Rod Finger Feeder
$89.99
Product Introduction

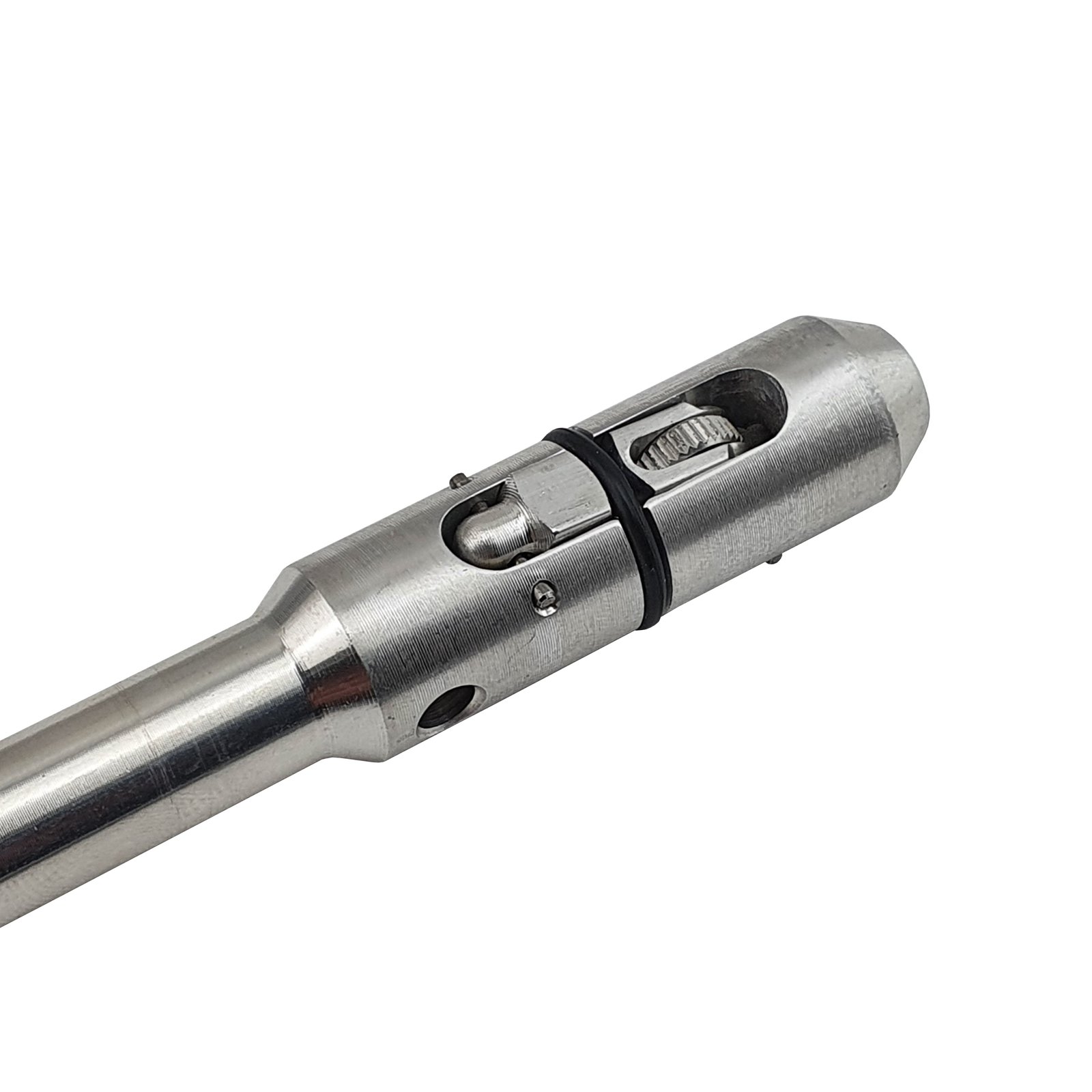

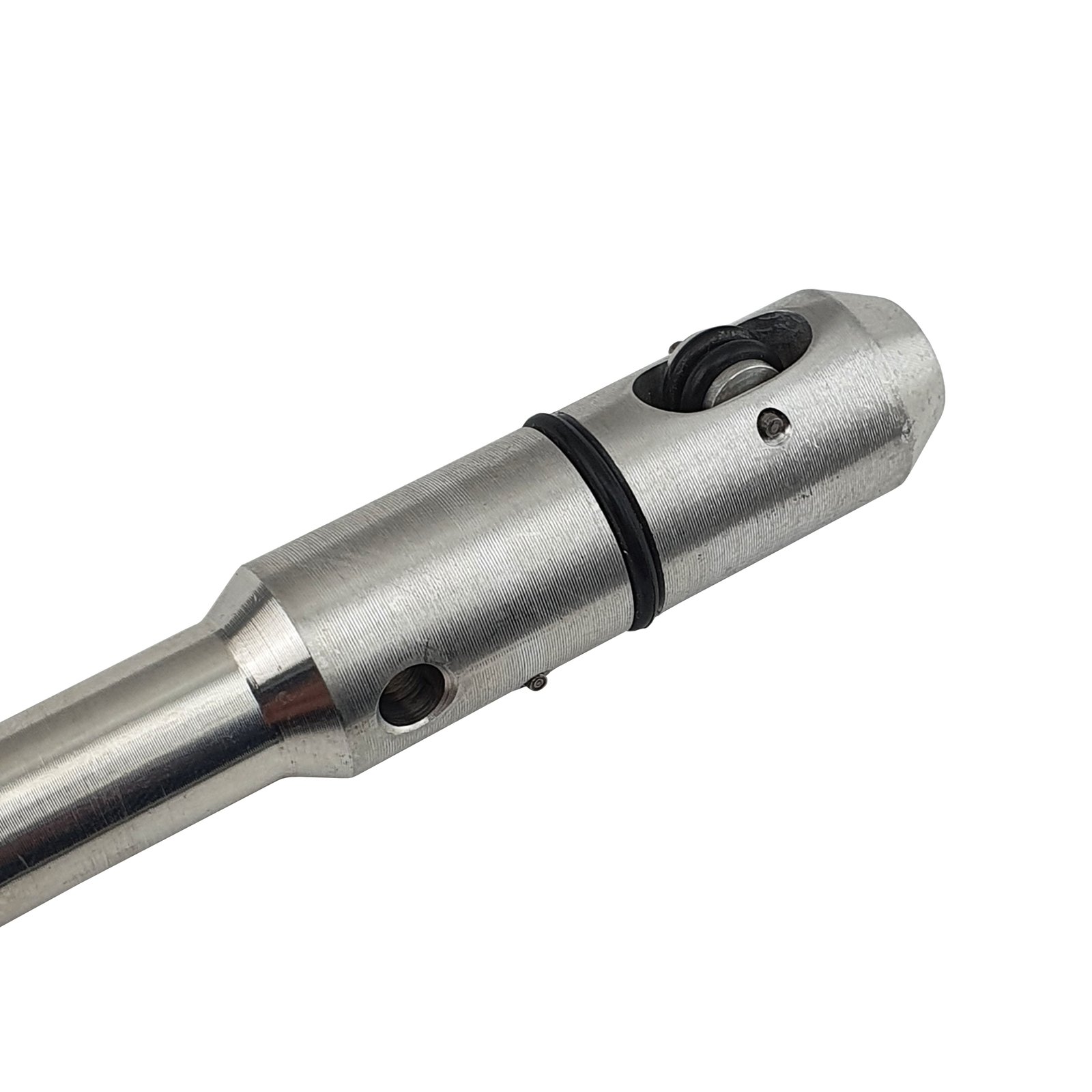

The Blue Demon Dab TIG Wire Pen is a precision tool for TIG welding filler metal control. Made from cast aluminum with durable high-temperature O-rings, it features a toothed wheel for pinpoint filler rod movement, ensuring smooth and accurate feeding during welding.
Product Parameters
| Material | Cast Aluminum |
| Dimensions | 5-1/4¡± L x 5/8¡± W |
| Wire Diameter Range | .030¡±-.125¡± (.8mm-3.2mm) |
| Feed Mechanism | Smooth Toothed Wheel |
| Sealing | High-Temperature O-rings |
Blue Demon Dab TIG Wire Pen TIG Rod Finger Feeder: Precision Welding Control at Your Fingertips
Tired of inconsistent filler metal control during TIG welding? The Blue Demon Dab TIG Wire Pen transforms your workflow with pinpoint accuracy, letting you focus on creating flawless welds. Whether you¡¯re a professional welder or a DIY enthusiast, this tool delivers the precision you need for clean, high-quality results.
Core Specifications
| Material | Cast Aluminum |
| Length | 5-1/4¡± |
| Width | 5/8¡± |
| Wire Diameter Range | .030¡±-.125¡± (.8mm-3.2mm) |
| Feed Mechanism | Toothed Wheel with Thumb/Index Control |
| Sealing | Durable High-Temperature O-Rings |
| Operation | Pencil-Grip Design with Rubber Feed Wheel |
| Wire Insertion | Back-Feed Only (Never Front) |
| Compatibility | All Wire Materials (0.8mm-3.2mm) |
| Postage | FREE EXPRESS POST UPGRADE |
Key Features & Benefits
Precision Control: The toothed wheel and ergonomic design let you feed filler rod with micro-adjustments, eliminating uneven bead formation and waste.
Durable Construction: Cast aluminum body and high-temperature O-rings withstand harsh welding environments, ensuring long-term reliability.
Universal Compatibility: Auto-adjusts to wire diameters from .030¡± to .125¡±, working with steel, aluminum, and other common welding materials.
Ergonomic Grip: Pencil-style hold with a comfortable V-shaped resting point for thumb/index fingers reduces hand fatigue during extended use.
Applications
Ideal for TIG welding tasks requiring precision, such as automotive repairs, aerospace components, metal art, and industrial fabrication. Perfect for both professional workshops and home garages.
Why Choose the Blue Demon Dab Pen?
Unlike bulkier feeders, this compact tool offers unmatched portability and control. Its smooth rubber feed wheel ensures consistent wire advancement, while the cast aluminum build outperforms plastic alternatives in durability.
FAQ
Q: Can I use this with flux-core wire?
A: Yes, it works with all wire types within the specified diameter range.
Q: How do I clean the feed wheel?
A: Wipe with a dry cloth; avoid lubricants that may interfere with grip.
Q: Is it suitable for left-handed users?
A: Yes, the symmetric design works for both left and right hands.
Request a Quote Today
Ready to elevate your TIG welding precision? Contact us now for bulk pricing, technical support, or to learn more about how the Blue Demon Dab Pen can enhance your workflow. Send an inquiry and our team will respond within 24 hours.
Packaging & Transportation
