CBR50 Cut 40 Plasma Circle Cutting Guide Kit for LT50 CB50
$340.00
Product Description

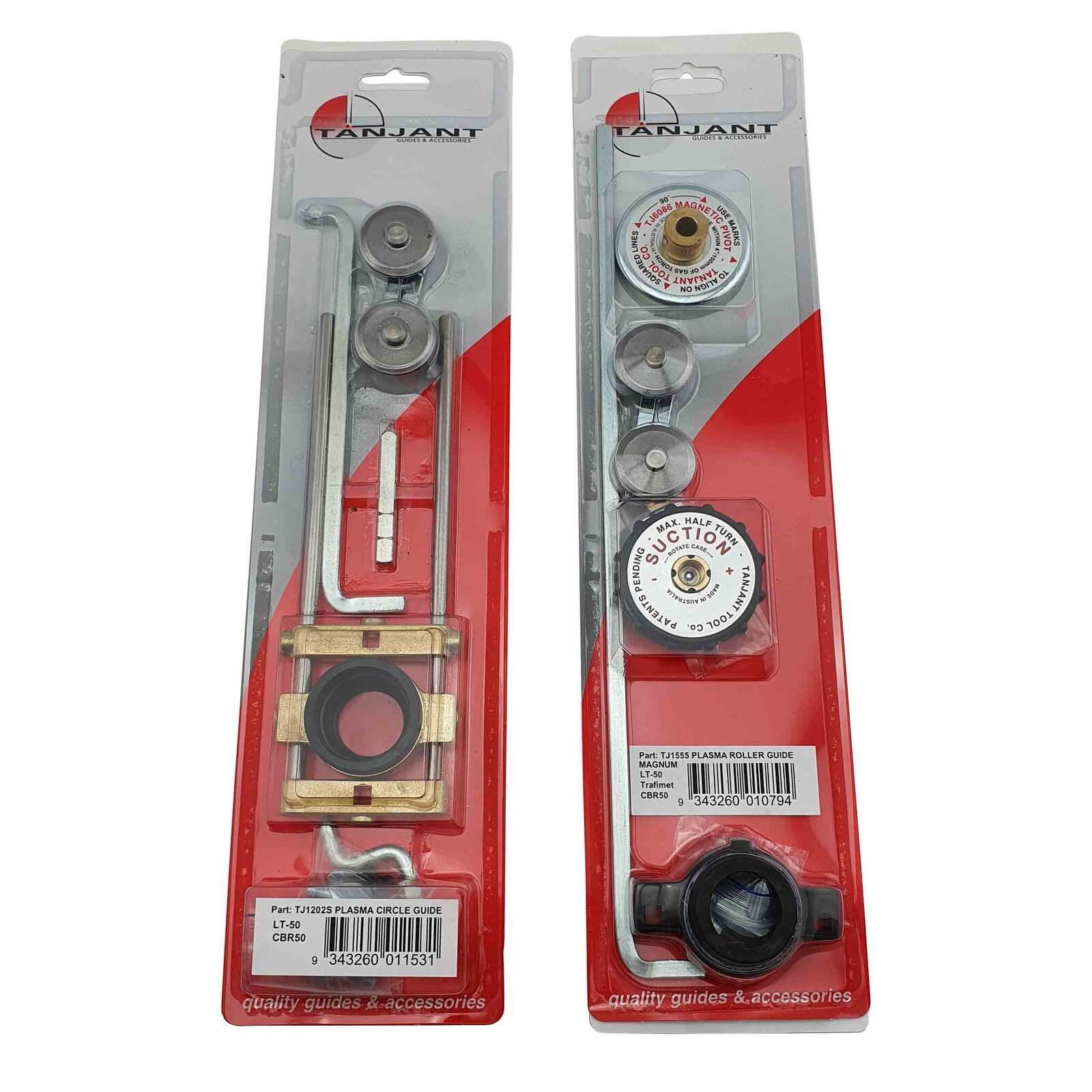

Complete plasma cutting guide kit for workshop professionals, enabling easy and controlled cutting of circles and straight lines with optimal tip height and stability.
Specifications
| Compatibility | Magnum LT-50, Trafimet CBR50/CB50, S45 torches; Steel vision SVTP40C cutter |
| Circle Diameter Range | 45mm (1-3/4″) to 1050mm (41″) |
| Features | Roller Guide, Magnet & Suction Pivot, rotating bush |
| Construction | CNC machined parts, brass forgings, stainless axles/rails |
CBR50 Cut 40 Plasma Circle Cutting Guide Kit to Suit LT50 CB50

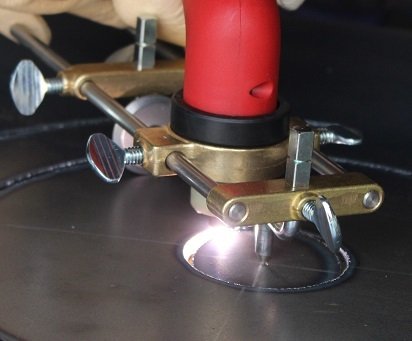

Take your workshop precision to the next level with the CBR50 Cut 40 Plasma Circle Cutting Guide Kit. Designed for professionals, this complete kit simplifies circle and straight line cutting with unrivaled control and efficiency. Whether you’re working on ferrous or non-ferrous metals, this CNC-machined tool ensures accurate, repeatable results every time.
Core Specifications
| Part Number | CP2002S |
| Compatible Torches | Magnum LT-50, Trafimet CBR50/CB50, S45, Steel vision SVTP40C |
| Circle Cutting Range | 45mm (1-3/4″) to 1050mm (41″) diameter |
| Pivot Options | Magnet (ferrous metals), Suction (non-ferrous metals) |
| Key Feature | Unique rotating bush for 360¡ã circle cutting from fixed position |
| Tip Height | Optimum height maintained automatically |
| Construction | Brass forgings, stainless axles, precision-machined rails |

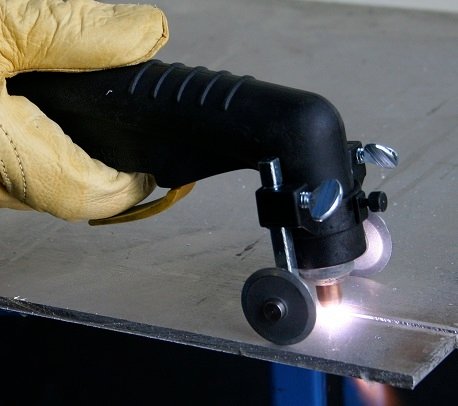

| Roller Guide | Industry-leading design with minimal sideways movement |
| Wheel Tolerance | Tight precision for stable cutting |
| Application | Workshop professional use for metal fabrication |
Why Choose This Guide Kit?

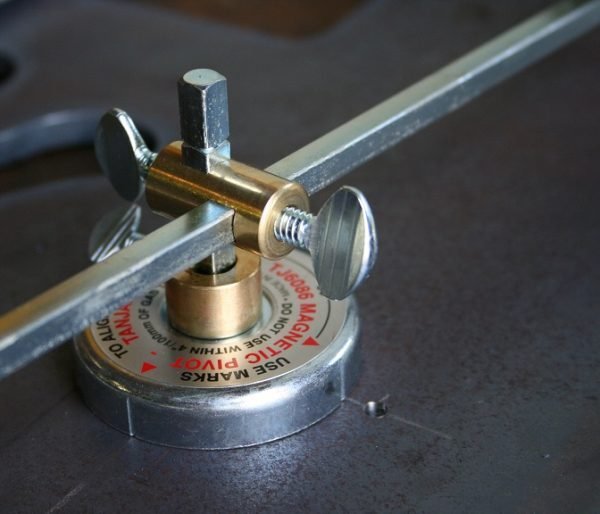

Engineered for durability and accuracy, this kit eliminates guesswork in plasma cutting. The magnet pivot ensures rock-solid stability on steel, while the suction pivot works seamlessly on aluminum and copper. Its CNC-machined components and brass forgings outperform generic guides, delivering consistent results even in high-volume production environments.
Applications
Ideal for metal fabricators, automotive workshops, and industrial manufacturing. Perfect for cutting precise circles in sheet metal, pipes, and structural components. The adjustable range makes it suitable for both small-scale projects and large-diameter cuts up to 41 inches.
Quality Assurance
Crafted with premium materials including stainless steel axles and precision rails, this guide kit meets professional standards for longevity and performance. Each component undergoes rigorous testing to ensure minimal tolerance and maximum reliability.
FAQ
Q: Will this fit my plasma cutter?
A: Compatible with Trafimet CBR50/CB50/LT50, S45, and Steel vision SVTP40C torches.
Q: Can I cut non-ferrous metals?

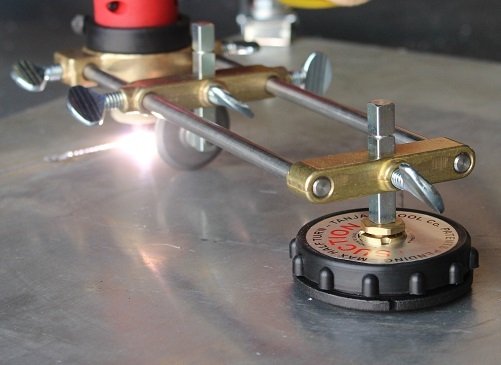

A: Yes, use the suction pivot for aluminum, copper, and other non-magnetic materials.
Q: How do I adjust circle size?
A: Simply reposition the guide arm to set diameters from 45mm to 1050mm.
Ready to elevate your plasma cutting precision? Contact us today for bulk pricing or compatibility queries!

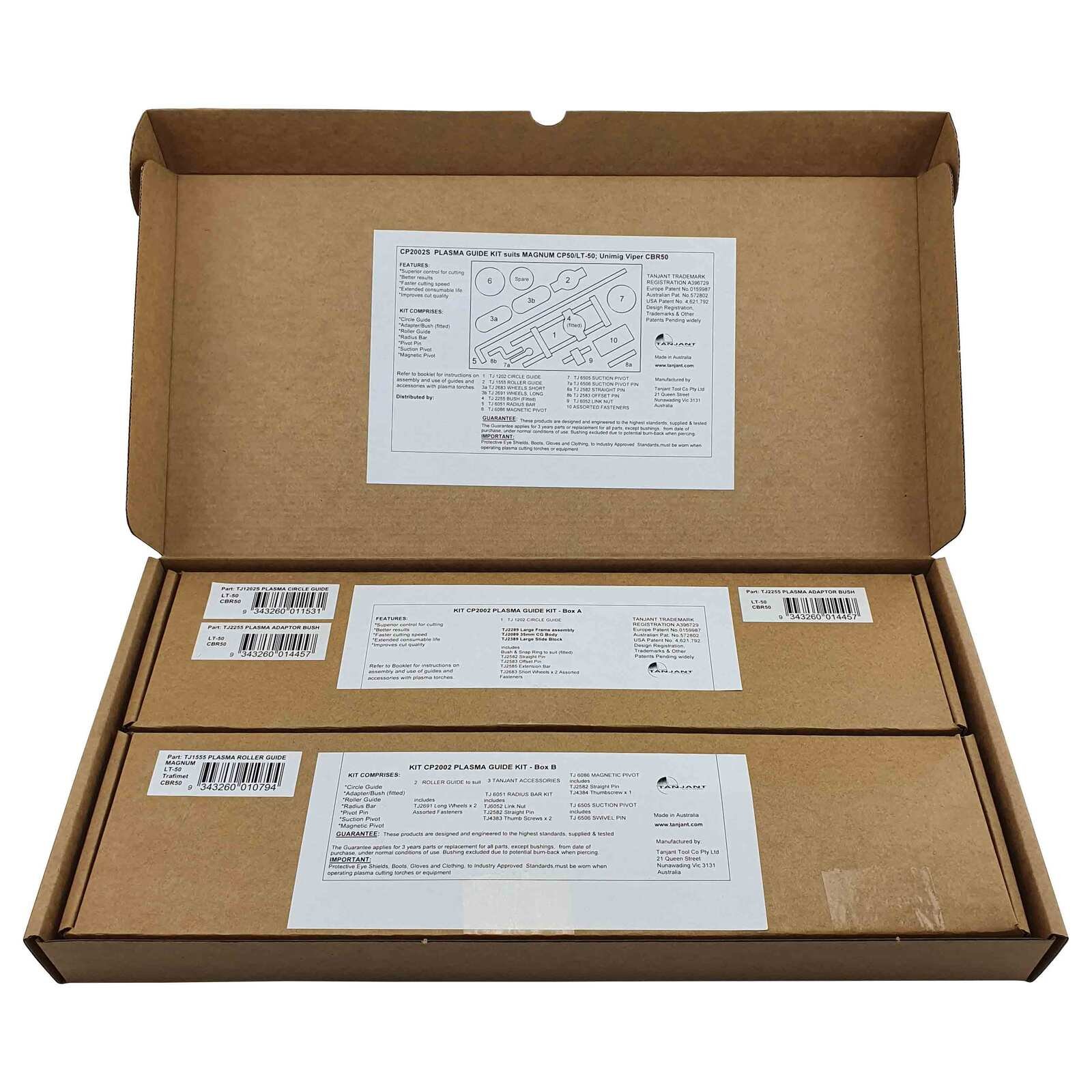

Packaging & Transportation
