CK MR70 8m 70A Super Flex Micro TIG Torch MR725SF
$649.00
Product Introduction
The CK MR70 8m 70A Super Flex Micro TIG Torch is the smallest, most versatile TIG torch, ideal for tight spaces in roll cages and automotive engine rebuilding. It features 3 interchangeable angular heads (180¡ã, 90¡ã, 45¡ã) for precision in narrow applications, complete with an AK-MR accessory kit and tungsten stick-out gauge.
Specifications
| Current | 70A DC, 70A AC @ 100% Duty Cycle |
| Cable Length | 8m (25ft) Super Flex |
| Cooling | Air-Cooled |
| Heads | 180¡ã, 90¡ã, 45¡ã Interchangeable |
| Gas Fitting | 5/8 Right Hand UNF (Convertible to 6mm Quick Connect) |
CK MR70 8m 70A Super Flex Micro TIG Torch – MR725SF: Precision Welding in Tight Spaces
Struggling to reach narrow, hard-to-access areas during TIG welding? Meet the CK MR70 Micro TIG Torch¡ªthe smallest, most versatile torch on the market, engineered to deliver unmatched precision where space is limited. With its compact design and flexible cable, this torch transforms challenging welds into effortless tasks. Ready to elevate your welding projects? Inquire now for a personalized quote!
Core Specifications
| Description | Details |
|---|---|
| Current Rating | 70A DC / 70A AC @ 100% Duty Cycle |
| Cooling Type | Air-Cooled |
| Cable Length | 8m (25ft) Super Flex Cable |
| Torch Head Size | Approx. 5c coin size (fits 1-inch tubes) |
| Interchangeable Heads | 180¡ã, 90¡ã, 45¡ã for versatile angles |

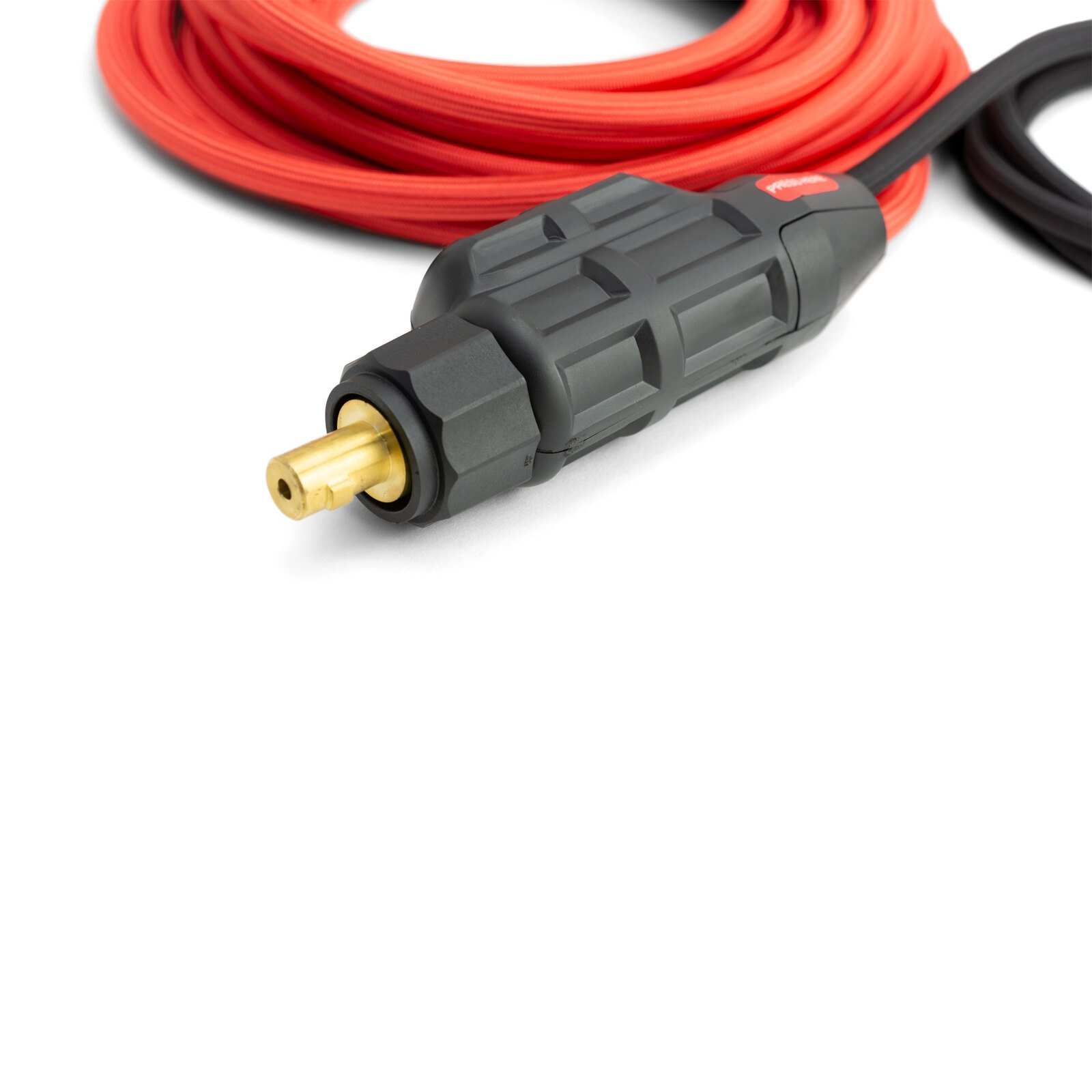

| Power Connection | 35-50 Dinse Power Lead |
| Gas Fitting | 5/8 Right Hand UNF (convertible to 6mm quick connect) |
| Gas Hose Length | 1.8m |
| Included Accessories | AK-MR Kit, Tungsten Stick-Out Gauge, 3 collets, 3 tungsten, cups |
| Application Focus | Roll cages, automotive engine rebuilds, tight-space welding |
Key Features & Benefits

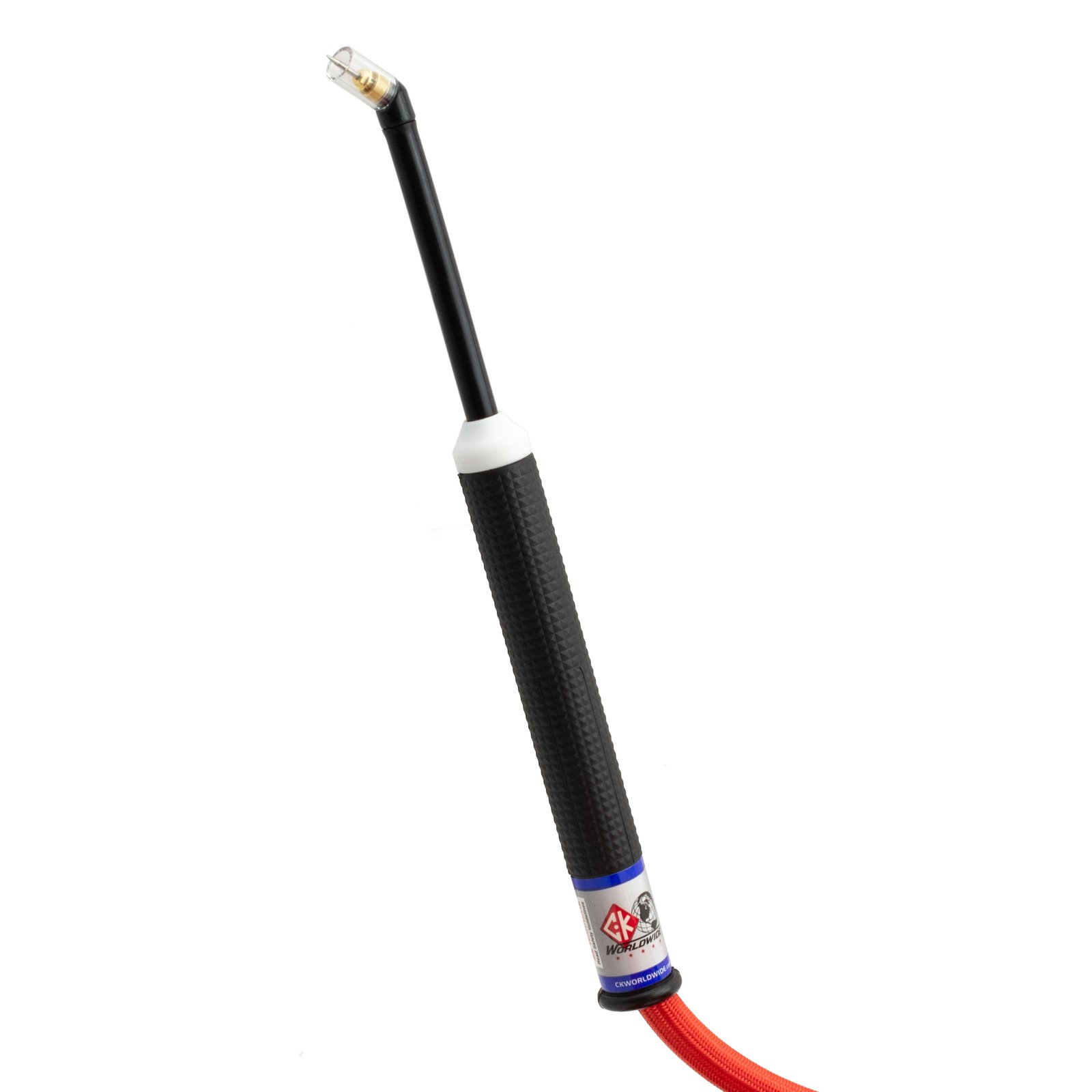

Ultra-Compact Head: At the size of a 5c coin, it effortlessly fits into 1-inch tubes and confined areas, perfect for intricate welds.

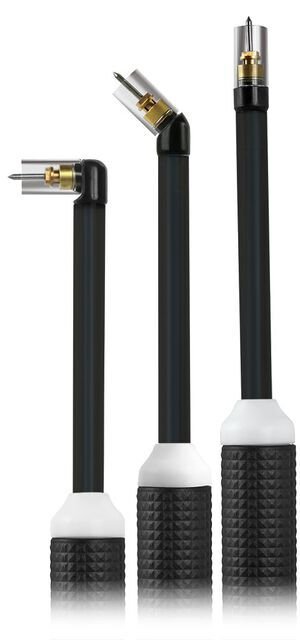

3 Interchangeable Heads: Switch between 180¡ã, 90¡ã, and 45¡ã angles to adapt to any joint configuration, reducing repositioning time.

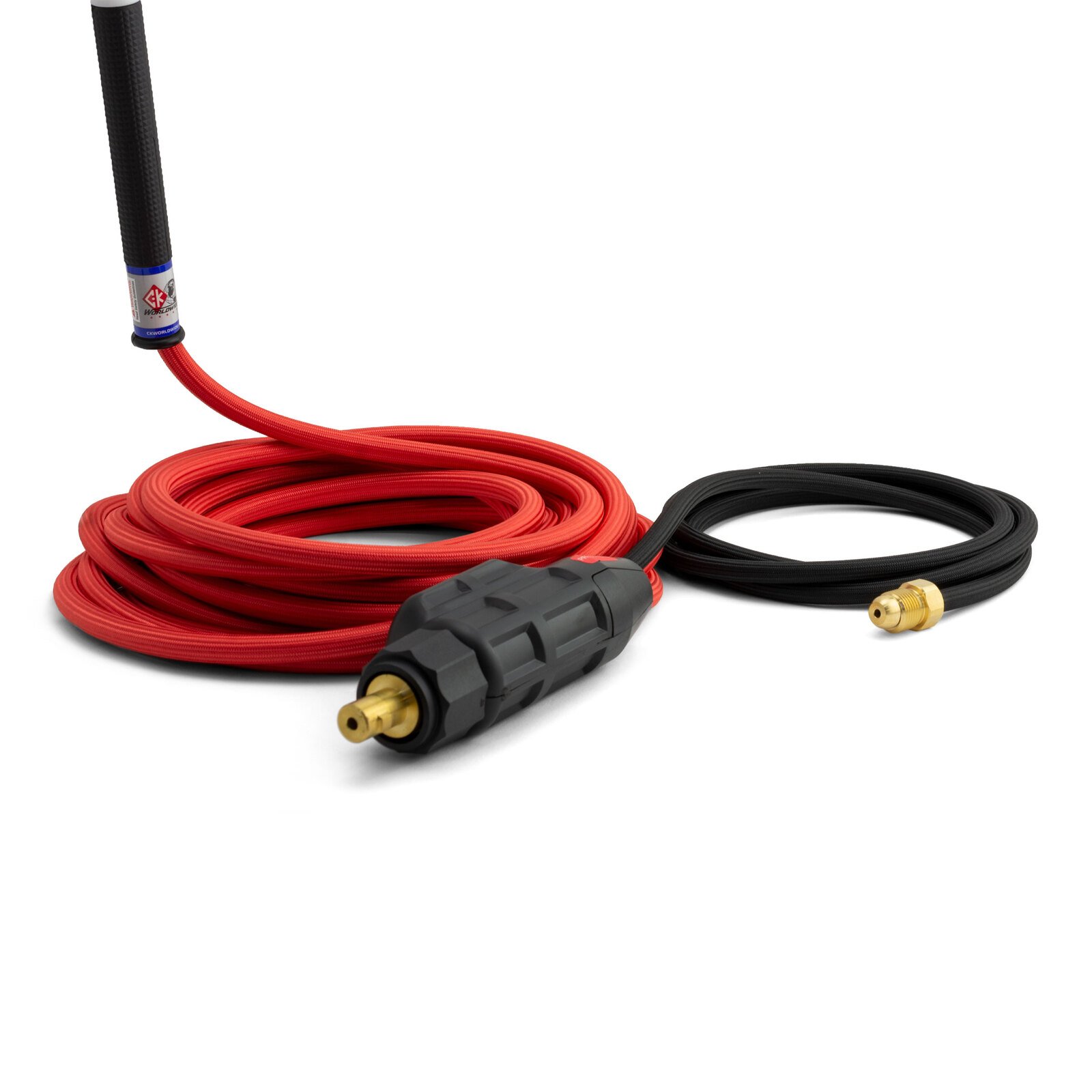

Super Flex Cable: 8m (25ft) highly flexible cable enhances maneuverability, ideal for large workpieces or awkward positions.

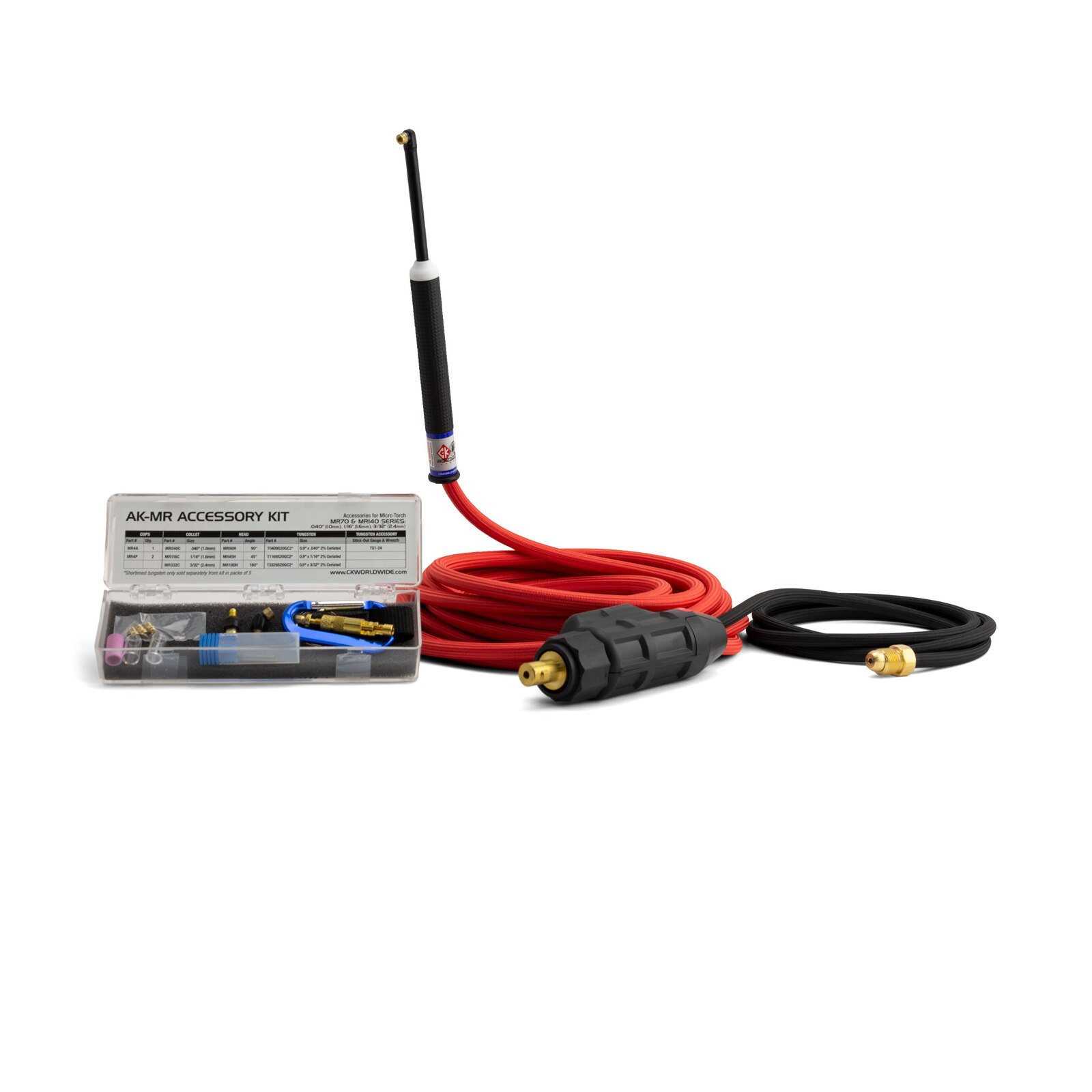

Complete Accessory Kit: Includes AK-MR accessories, tungsten gauge, collets (1.0mm, 1.6mm, 2.4mm), and cups for immediate setup.
Applications
Designed for professionals tackling tight-space welding: roll cage fabrication, automotive engine rebuilds, chassis repairs, and precision metalwork where standard torches fail to reach. Its air-cooled design ensures reliability without bulky cooling systems.
Why Choose CK MR70?
Unlike generic TIG torches, the MR70 combines micro-sized precision with industrial durability. Its super-flex cable and multi-angle heads outperform competitors in versatility, making it the top choice for workshops prioritizing accuracy and efficiency.
FAQ
Q: What materials can the MR70 weld?
A: Ideal for stainless steel, aluminum, and mild steel in precision applications.
Q: Is the gas fitting compatible with my existing setup?
A: The 5/8 UNF fitting can be converted to a 6mm quick connect for universal compatibility.
Q: How long is the warranty?
A: Backed by CK’s industry-leading quality assurance (contact for details).
Ready to experience unmatched precision in tight-space welding? Contact us today to discuss pricing and availability!
