Contour KC-J1904 Magnetic Flange Aligner Universal Level

$499.99

Product Introduction

A multi-purpose magnetic level ideal for pipe fitting tasks, featuring an adjustable 360¡ã protractor-dial level for use in any position. Equipped with cast-in magnets (50-pound pull) for secure attachment on steel surfaces, and self-centring grooves for contour pipes. Simplifies flange alignment with self-aligning spacer bolt units fitting 2-1/4″ to 8″ bolt hole centres.

Specifications

Magnetic Pull 50-pound
Protractor-Dial 360¡ã adjustable
Flange Bolt Hole Fit 2-1/4″ to 8″ centres
Applications Flange alignment, pipe pitch setting, lateral angle adjustment
SKU: e6bc261e8591 Categories: , ,
Description

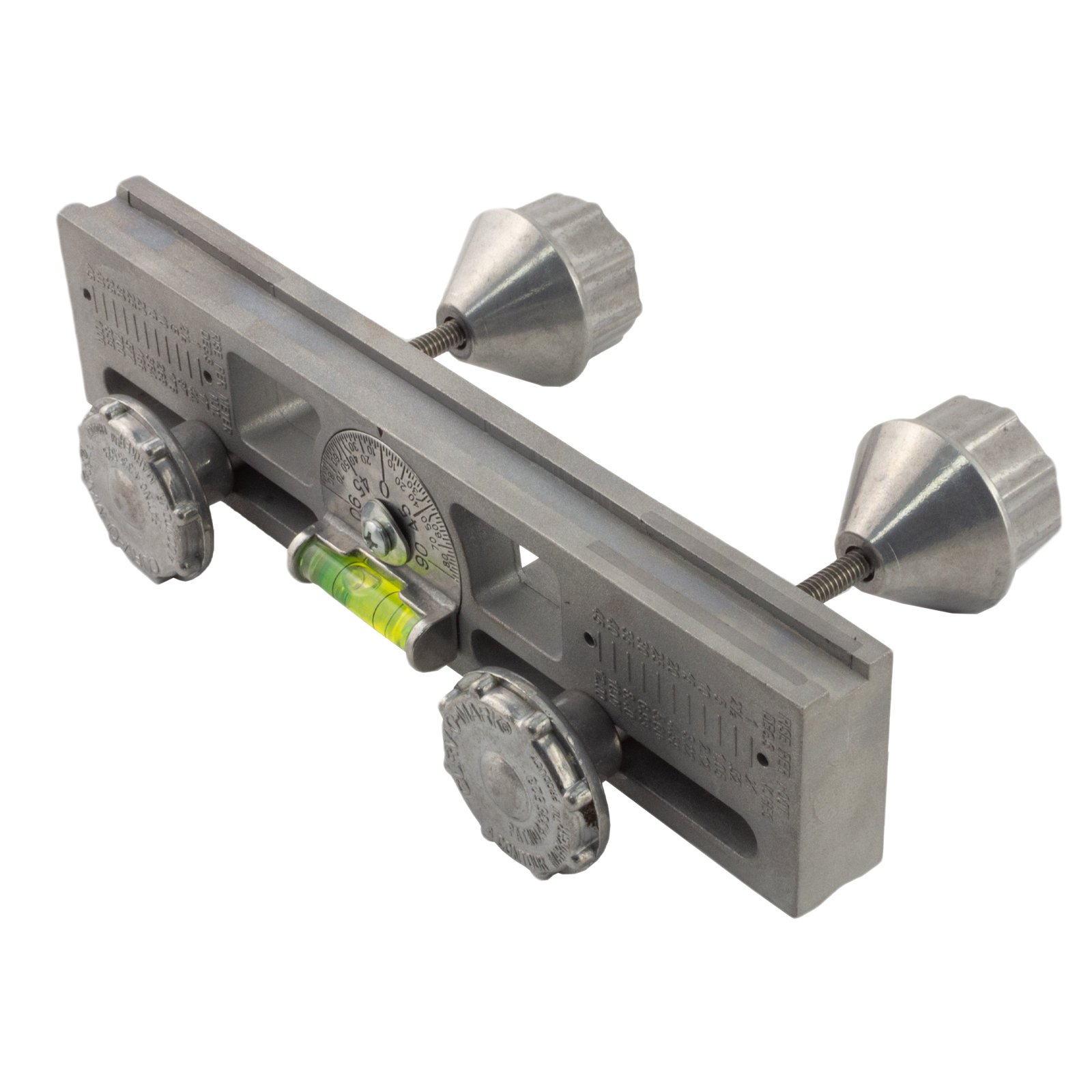

Contour Curv-O-Mark / Flange Aligner Magnetic Universal Level – KC-J1904

Streamline your pipe fitting tasks with the KC-J1904 Magnetic Universal Level¡ªa versatile tool designed to enhance precision and efficiency in flange alignment, pipe pitching, and angle setting. Whether working with steel, aluminum, or non-magnetic materials, this tool delivers reliable performance for professionals in welding, construction, and industrial maintenance.

Core Specifications

Multi-Purpose Functionality Aligns flanges, sets pipe pitch, adjusts lateral angles, and trues vertical runs
360¡ã Protractor-Dial Level Adjustable for use in any position with precise angle control
Magnetic Strength Dual 25-lb magnets (50-lb total pull) for secure attachment to steel surfaces
Self-Centering Design Deep cast-in grooves for stable positioning on pipe contours
Non-Magnetic Compatibility Safe for use on aluminum, copper, lumber, and stone

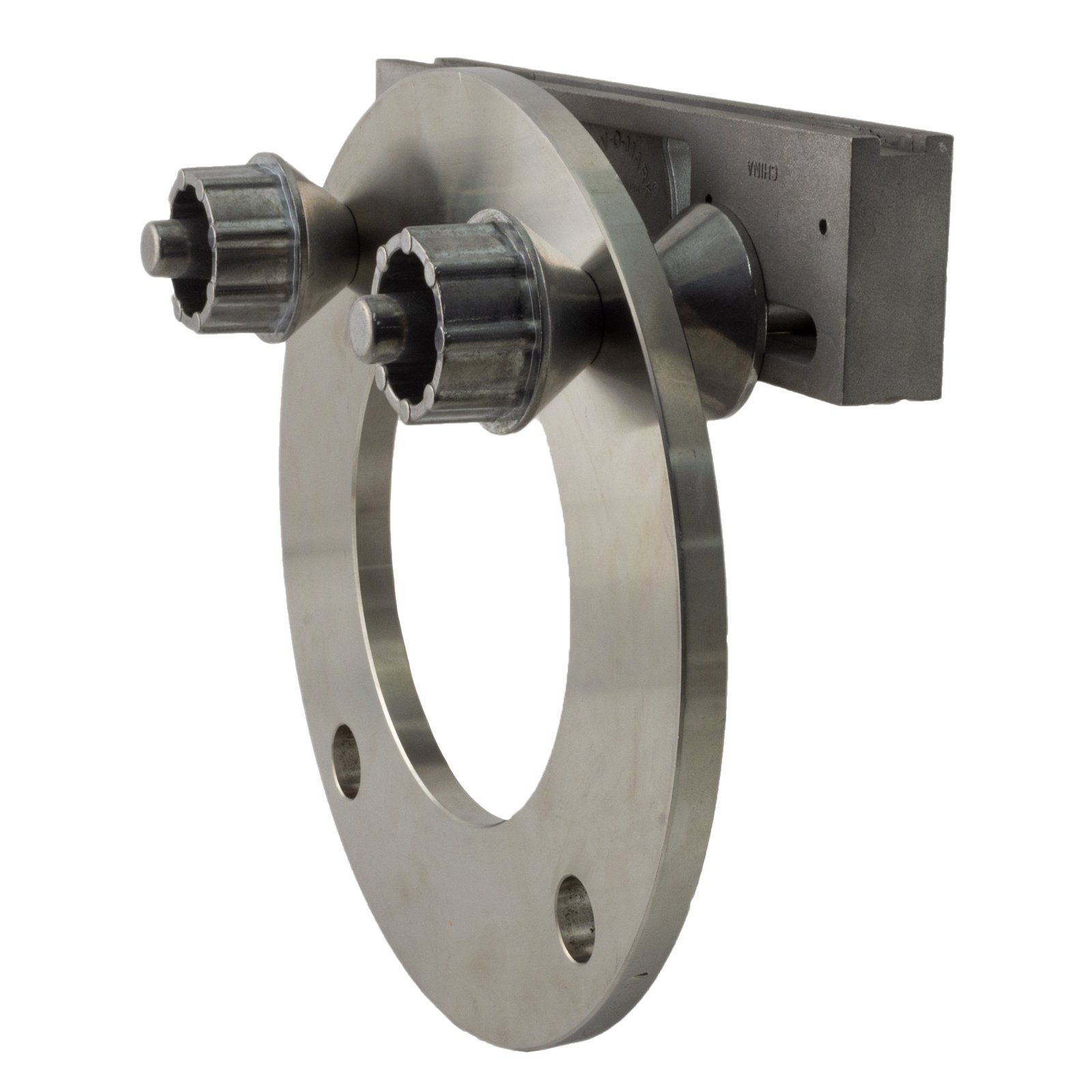

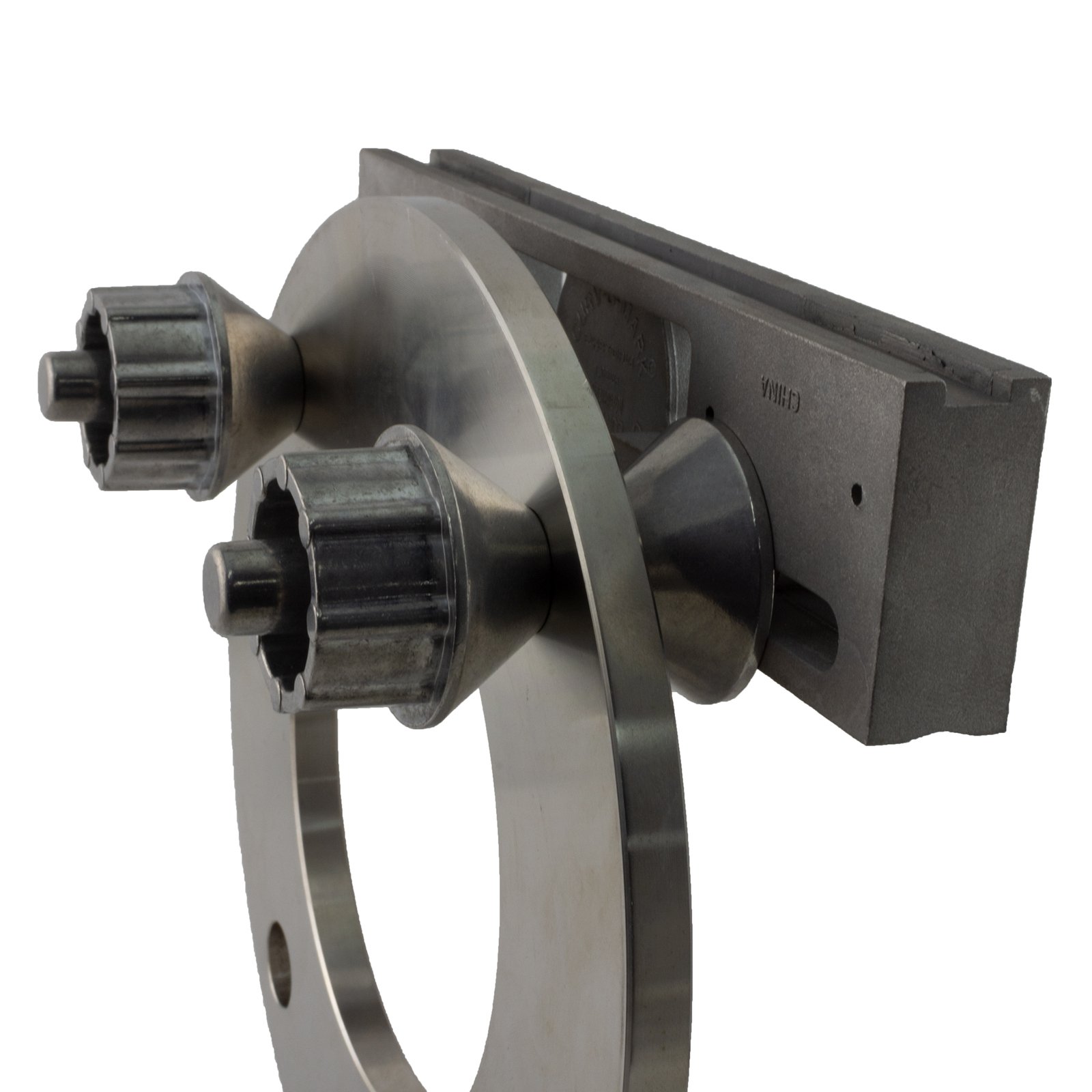

Flange Alignment Kit Self-aligning conical spacers and bolts for 2-1/4″ to 8″ bolt hole spacing
Rise Per Foot Table Cast-in measurements in inches and meters for quick reference
Two-Holing Simplification Works with top/bottom (0¡ã) or side (90¡ã) bolt holes; supports offset angles
Durable Construction Heavy-duty cast design for industrial environments
Versatile Application Suitable for pipe fitting, construction, and maintenance tasks

Key Advantages

Time-Saving Precision: Eliminates guesswork with accurate angle settings and self-centering grooves, reducing alignment time by up to 50%.

All-Material Compatibility: Use on magnetic and non-magnetic surfaces without interference from built-in magnets.

Secure Attachment: Strong magnetic hold ensures stability even on vertical or overhead steel pipes and beams.

Applications

  • Aligning and two-holing flanges in plumbing and industrial piping
  • Setting precise pitches for drainage or process piping
  • Adjusting lateral angles in HVAC and structural installations
  • Trueing vertical pipe runs in construction projects

Why Choose KC-J1904?

Unlike basic levels, this tool integrates a 360¡ã protractor, magnetic grip, and flange alignment hardware into one solution. Its cast-in rise table and self-aligning spacers eliminate the need for additional tools, making it ideal for on-site efficiency.

FAQ

Q: Can it work on non-steel pipes?
A: Yes, the magnets do not affect use on aluminum, copper, or other non-magnetic materials.

Q: What bolt hole sizes does the alignment kit fit?
A: The conical spacers and bolts accommodate 2-1/4″ to 8″ center distances.

Q: Is the protractor dial easy to read in low light?
A: The dial features clear markings for visibility in various work environments.

Get in Touch

Ready toÌáÉý your pipe fitting accuracy? Contact us today for bulk pricing, technical support, or to request a product demo. Our team of experts is here to help you optimize your workflow.

Shipping and Delivery

Packaging & Transportation

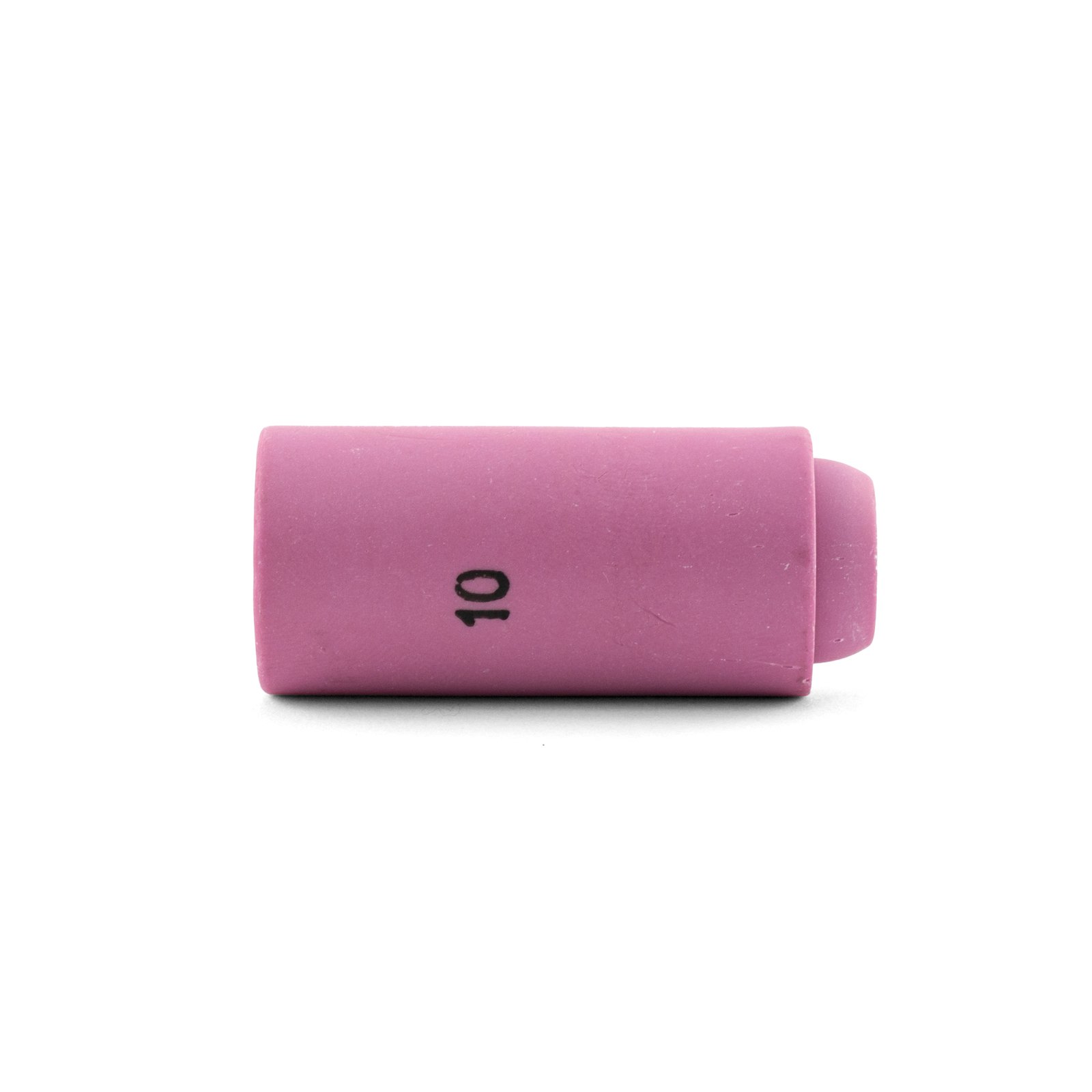

weldercutting Nozzles
