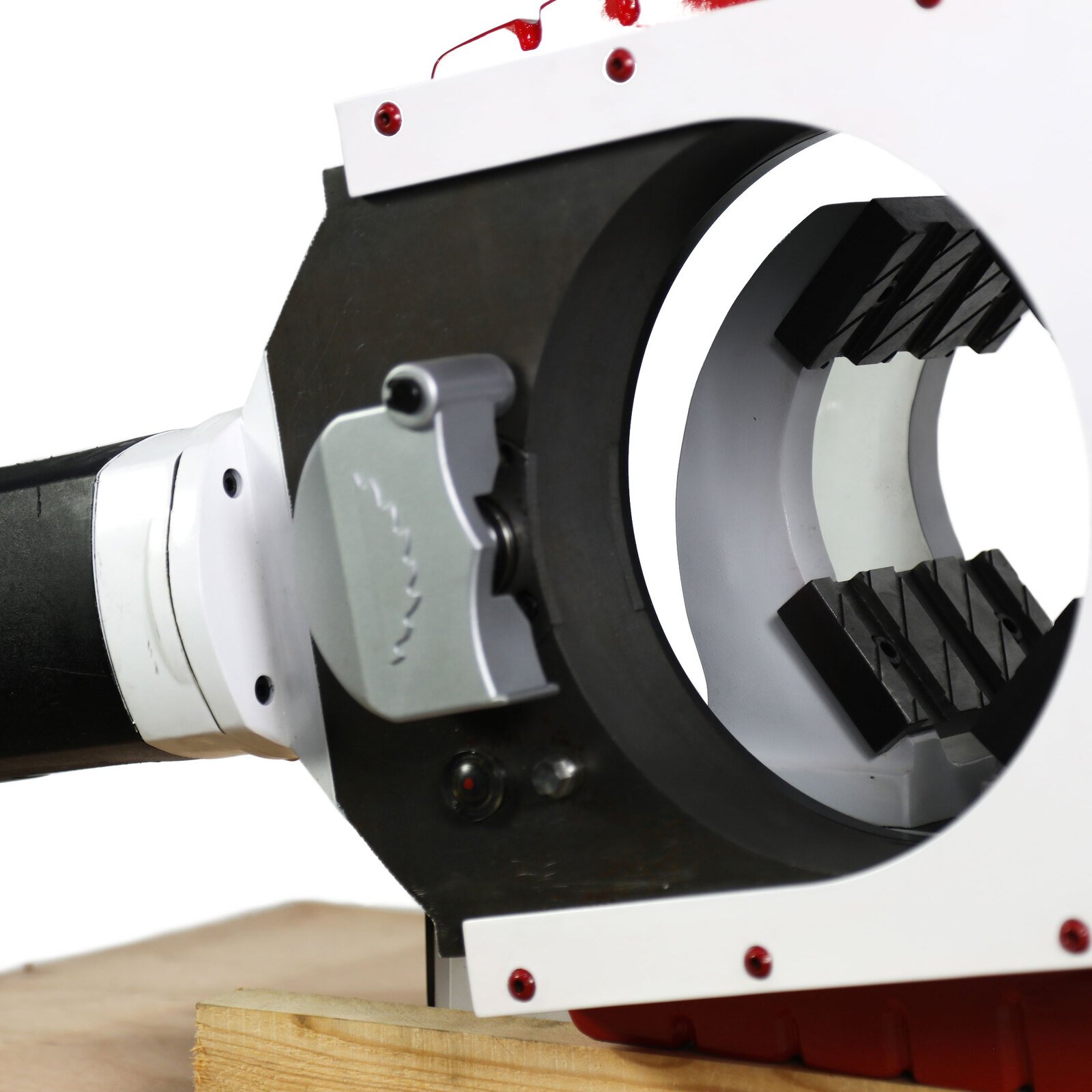

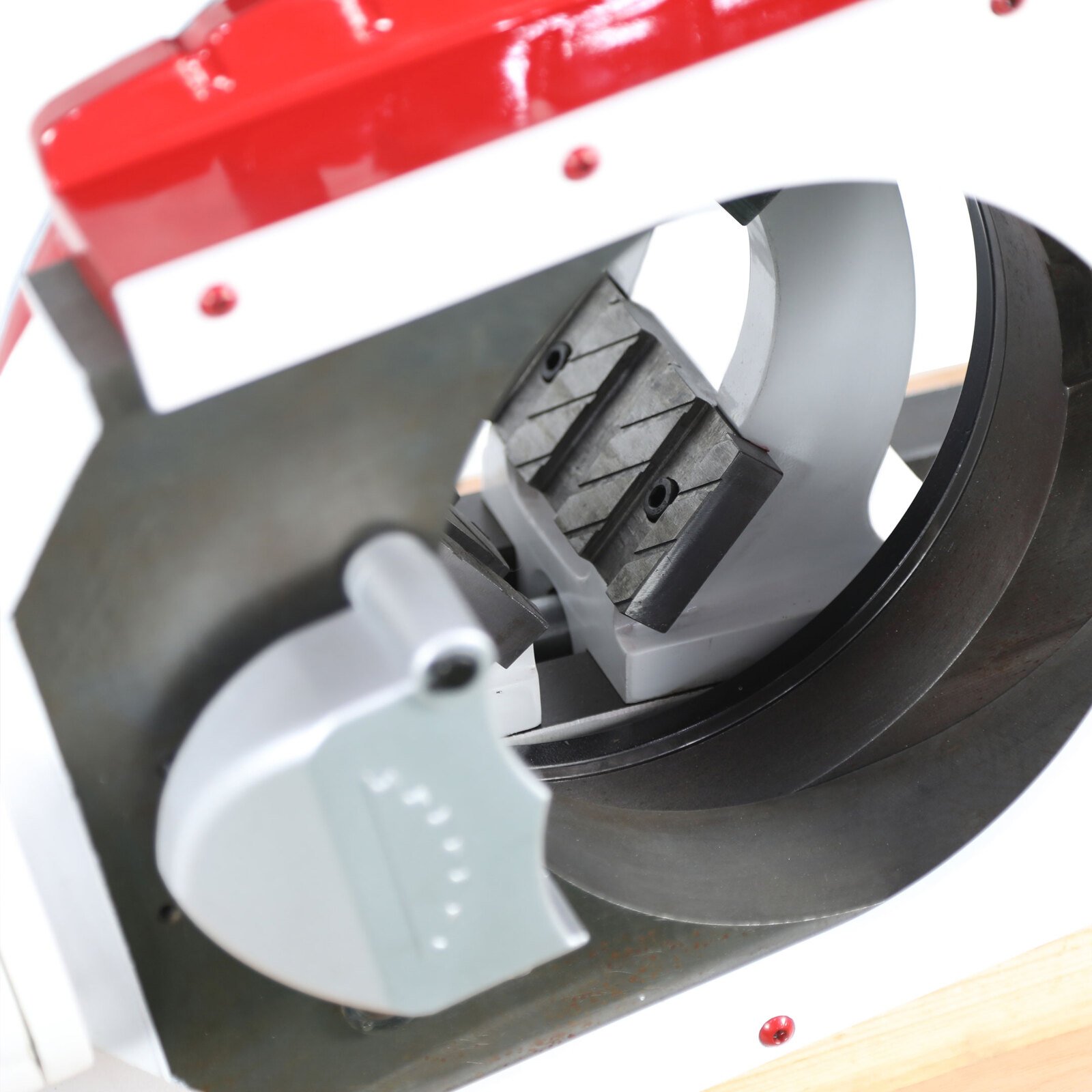

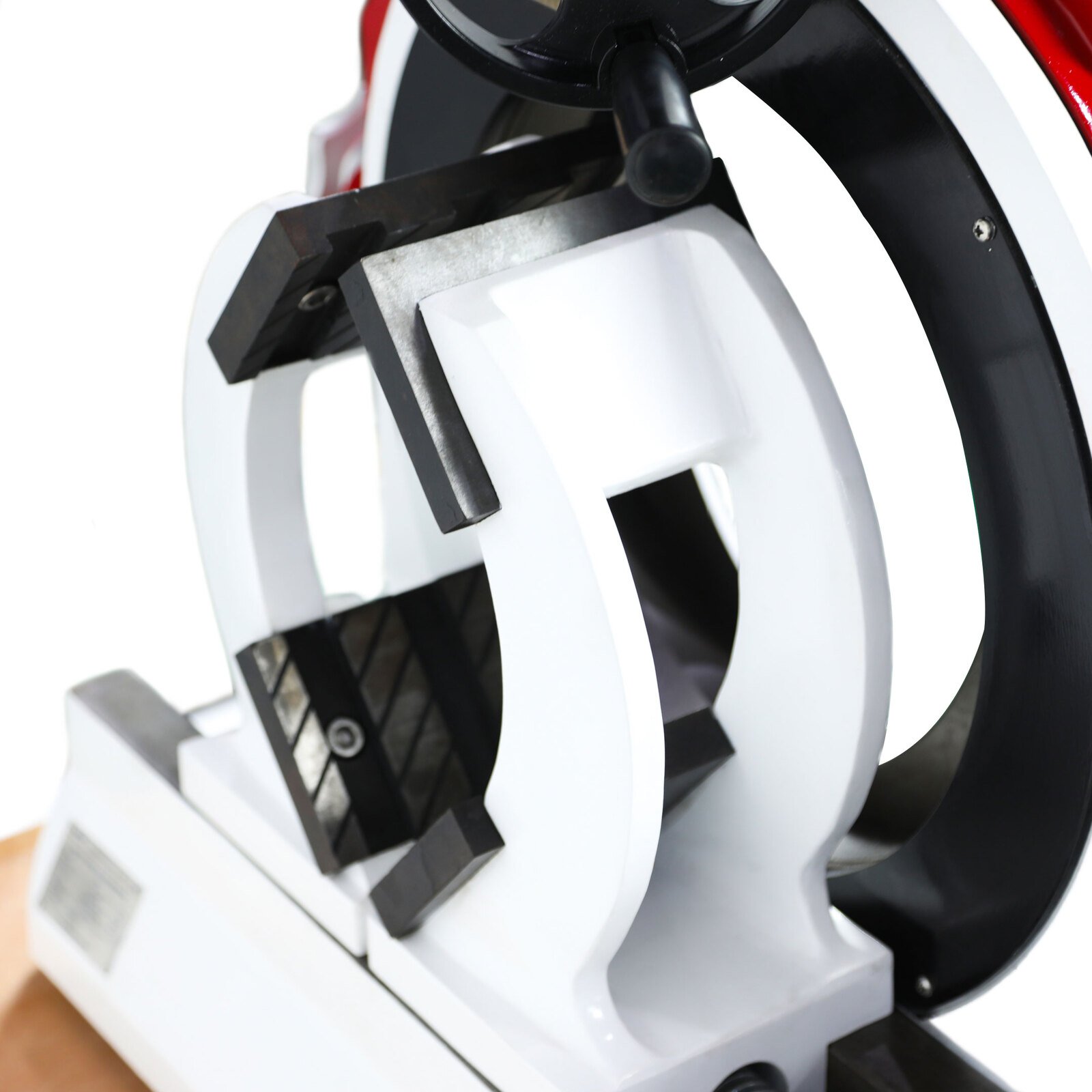

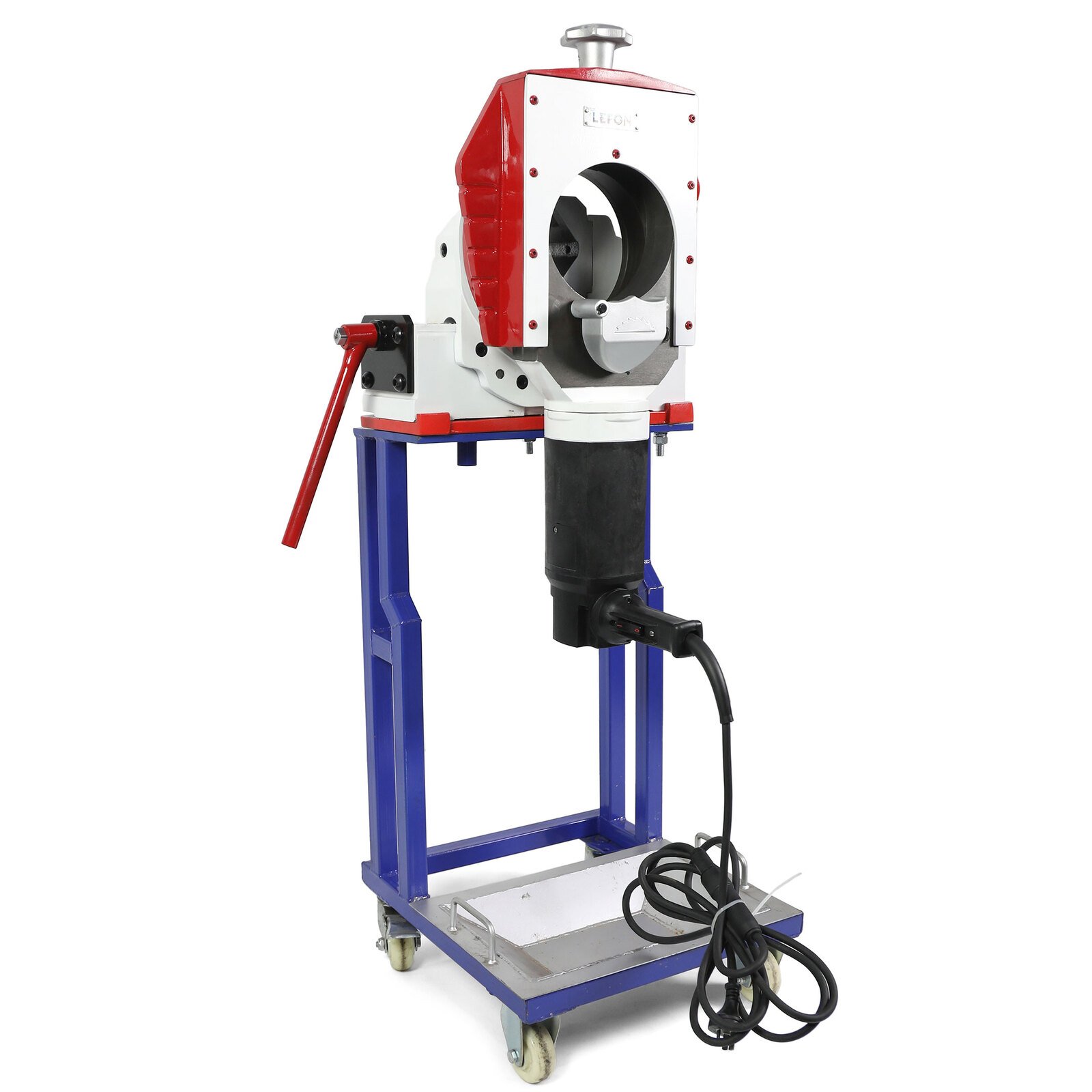

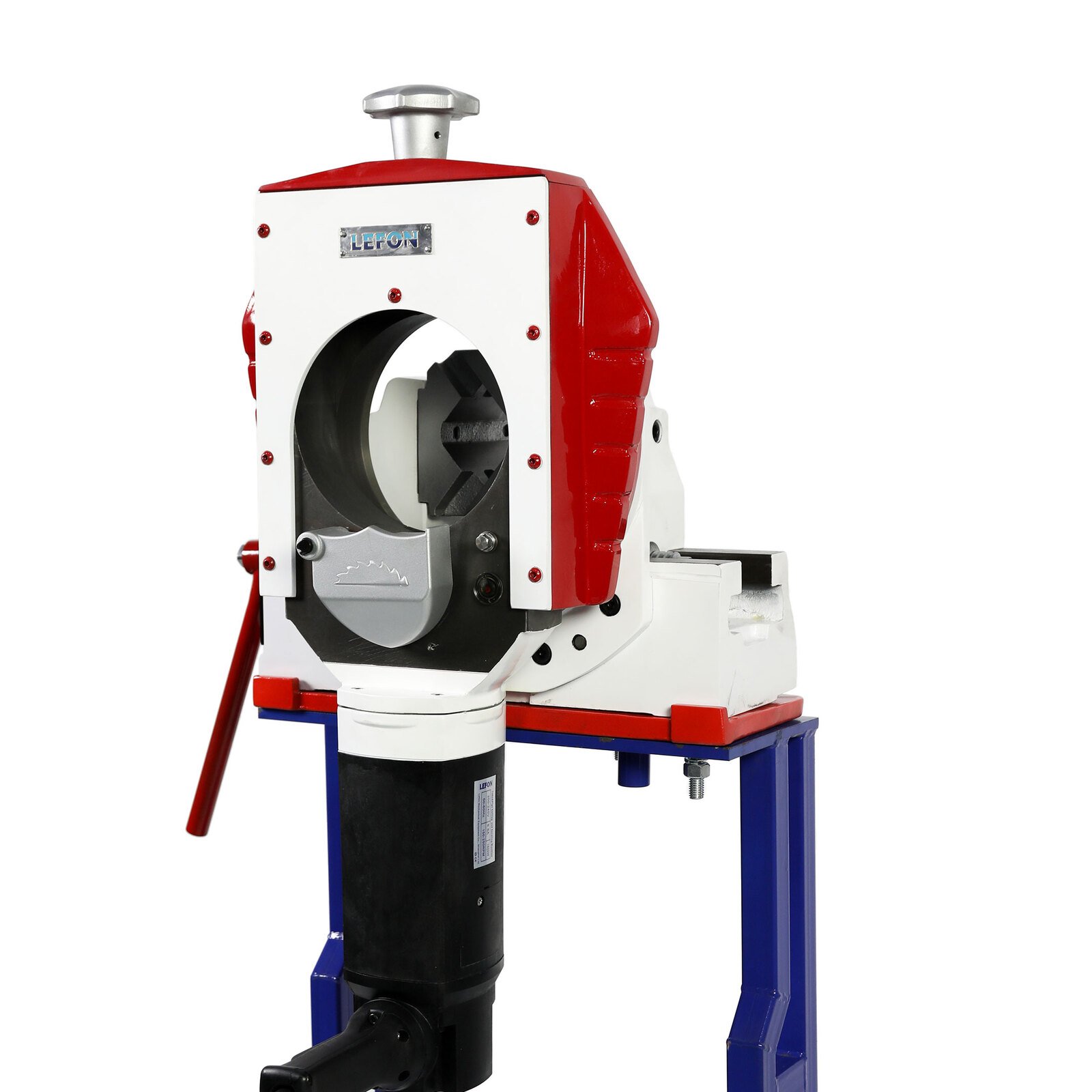

Lefon R6 Orbital Pipe Saw Cutter Bevelling Machine
$4,999.00
Product Introduction
LEFON R6 Orbital Pipe Saw is a cost-effective and reliable solution for square cutting and bevelling metal pipes. It delivers precise, clean cuts without additional preparation work, suitable for stainless steel, aluminum, copper, and plastic pipes. Features cold cutting to prevent thermal distortion and fast, deformation-free clamping.
Key Specifications
| Cutting Range | 3″-6″ (85mm-182mm) pipes, 2.0-10mm thickness |
| Power | 1600W, 100-220V/50-60Hz |
| Speed | 150-250rpm blade speed |
| Weight | 90kg |
| Standards | CE and ISO compliant |
Lefon R6 Orbital Pipe Saw/Cutter – Precision Cutting & Bevelling Machine for Metal Pipes
Effortlessly achieve square cuts and precise bevels on metal pipes with the Lefon R6 Orbital Pipe Saw. Engineered for reliability and cost-effectiveness, this machine delivers clean, distortion-free results, eliminating post-cut preparation and streamlining your welding workflow. Ideal for professionals seeking efficiency and accuracy in pipe fabrication.
Core Specifications
| Model | R6 (GF equivalent part number) |
| Cutting Range | 3″-6″ pipes (85mm-182mm), 2.0mm-10mm thickness |
| Blade Speed | 150-250rpm (adjustable for wall thickness) |
| Power Output | 1600W |
| Voltage | 100-220V / 50-60Hz |
| Weight | 90kg |
| Certifications | CE & ISO standards |
| Cooling Method | Cold cut (prevents thermal distortion) |
| Clamping System | Fast, deformation-free |
| Cutting Time | Seconds per rotation (single-pass operation) |
Key Features & Benefits
- Simultaneous Cutting & Bevelling: Mount a beveling blade to complete both tasks in one pass, saving time.
- Precision Right-Angle Cuts: Ensures clean, square edges for seamless orbital welding.
- Adjustable Speed Control: Optimize cutting performance for different pipe wall thicknesses.
- Easy Setup: Quick diameter adjustment for versatile pipe sizes.
- Durable Construction: European-engineered for long-term reliability in industrial environments.
Applications
Perfect for cutting and bevelling: Stainless steel, low/unalloyed steel, casting materials, non-ferrous metals (copper, aluminum), and plastic pipes. Ideal for oil & gas, construction, and manufacturing industries.
What’s in the Box?
1x Base plate, 1x Cutting machine, 3x Standard blades, 1x Ring spanner, 2x Hexagon socket head wrenches, 1x Lefon saw blade lubricant, 1x Operations manual, 1x Spare parts list.
Blade Performance & Lubrication
Use European-made HSS TIALN coated blades (available separately) for extended life. With proper lubrication (XDP 2000 cutting fluid, part 81210), one blade delivers up to 150 cuts on 2″ schedule 40 stainless steel pipes.
Quality Assurance
Manufactured to CE and ISO standards, ensuring compliance with global safety and performance benchmarks. Backed by Lefon’s reputation for durable, professional-grade equipment.
Why Choose Lefon R6?
Unlike conventional saws, the R6 combines speed, precision, and versatility¡ªeliminating thermal distortion and post-cut finishing. Its compact design and user-friendly setup make it a top choice for workshops prioritizing efficiency.
FAQ
- Does it include a stand? No, a stand is not included.
- Can it cut plastic pipes? Yes, it handles plastic pipes alongside metal.
- Is training required? Recommended for optimal blade life and safety; refer to the operations manual.
Ready to enhance your pipe cutting workflow? Contact us today for pricing and technical support!
Packaging & Transportation
