MAGMAWELD 6011 2.5mm Cellulous Stick Electrodes 400g
$25.00
Product Introduction
Magmaweld 6011 is a general-purpose cellulosic stick electrode ideal for mild steel welding, offering deep penetration and suitability for root/fill passes in vertical down direction. Suitable for shipbuilding, pipelines, and repair works, compliant with AWS/ASME SFA-5.1 and EN ISO 2560 standards.
Specifications
| Diameter | 2.5mm |
| Length | 350mm |
| Weight | 400g (23 sticks approx.) |
| Standards | AWS E6011, EN ISO 2560-A E35 2 C 21 |
| Approvals | CWB, CE |
MAGMAWELD 6011 – General Purpose GP Cellulous 2.5mm Stick Electrodes – 400g Pack
Unlock superior welding performance with MAGMAWELD 6011 Cellulosic Stick Electrodes. Engineered for industrial-grade applications, these 2.5mm electrodes deliver exceptional penetration and gap-bridging capabilities, making them ideal for challenging fit-up scenarios. Trusted by professionals in shipbuilding, pipeline construction, and heavy machinery repair, this 400g pack ensures reliability and precision for critical welding tasks.
Core Specifications
| Description | General-purpose cellulosic stick electrode |
| Diameter | 2.5mm |
| Length | 350mm |
| Weight | 400g (23 sticks approx.) |
| Flux Type | Cellulosic |
| Current Compatibility | AC/DC (DCEN for root passes, DCEP for fill/cap) |
| Welding Positions | PA, PB, PC, PD, PE, PF, PG |
| Standards | AWS/ASME SFA-5.1 E6011, EN ISO 2560-A E35 2 C 21 |
| Approvals | CWB, CE |
| Storage | Do not redry |
Key Features & Benefits
? Deep Penetration: Cellulose flux coating ensures superior burn-off and deep weld penetration, perfect for root passes and vertical down welding.
? Versatile Performance: Works with AC and DC power sources, adapting to diverse welding environments.
? Industrial Durability: Meets AWS/ASME and EN ISO standards, backed by CWB and CE certifications.
? Wide Application Range: Ideal for mild steel, galvanized sheets, steel castings, and machinery parts in shipbuilding, boilers, and pipeline projects.

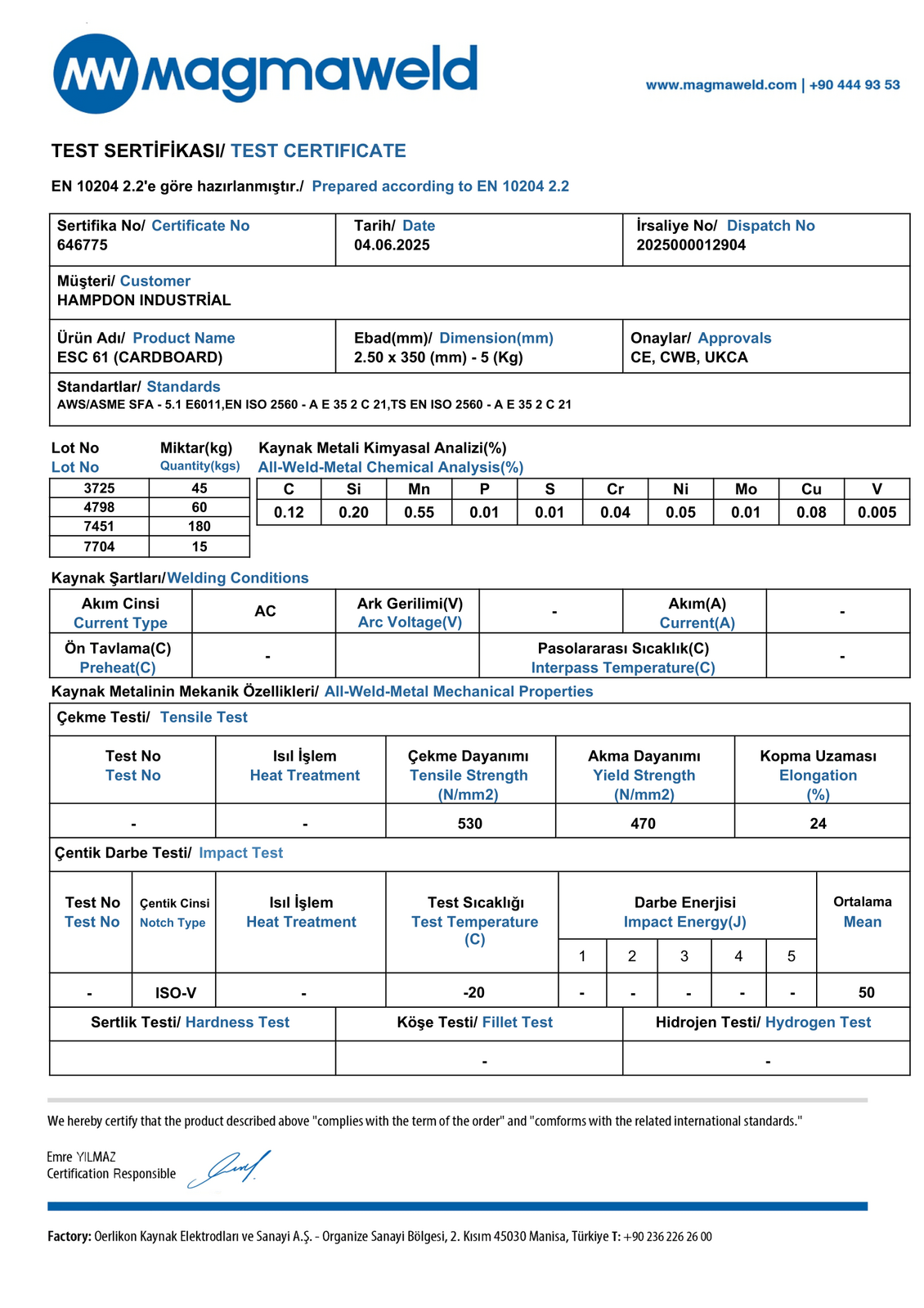

Mechanical & Chemical Properties
Tensile Strength: 530 N/mm2 | Yield Strength: 470 N/mm2 | Elongation: 24% | Charpy V-Notch: 50J at -20¡ãC. Weld metal composition ensures low impurity levels (P¡Ü0.01%, S¡Ü0.01%) for high-integrity joints.
Why Choose MAGMAWELD 6011?
? Market-Leading Brand: Trusted for industrial quality and consistent performance.
? Cost-Effective Pack: 400g pack with ~23 sticks offers value for bulk welding tasks.
? Vertical Down Capability: Designed for efficient vertical down welding, reducing project time.
FAQ
Q: What materials can this electrode weld?
A: Mild steel, steel castings, galvanized sheets, and machinery parts.
Q: Can it be used for overhead welding?
A: Yes, suitable for overhead (PD) and all standard welding positions.
Q: Is re-drying required?
A: No, storage does not require re-drying.
Ready to elevate your welding projects? Contact us today for bulk pricing, technical support, or custom order inquiries. Experience the MAGMAWELD difference in every weld.
