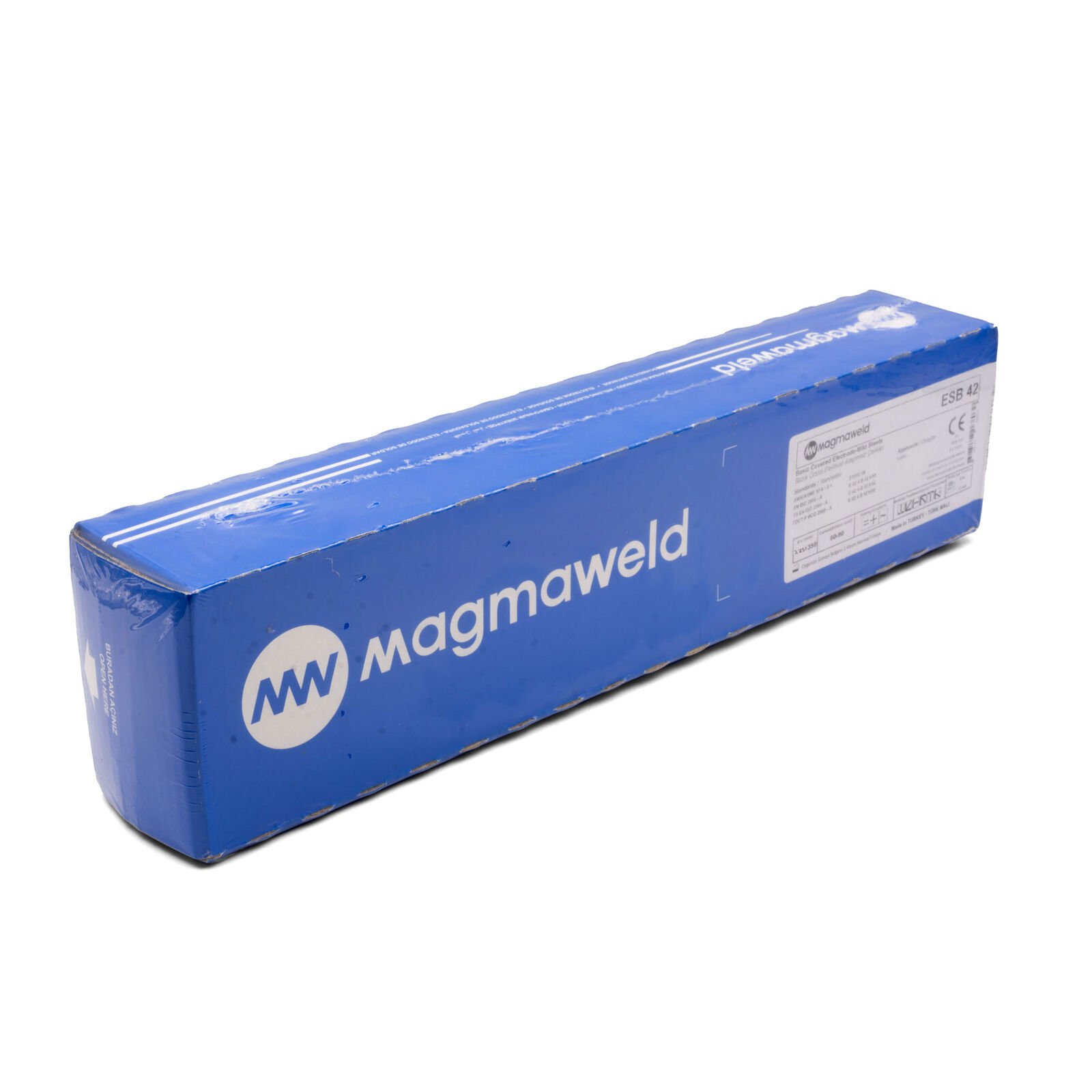

MAGMAWELD 7016 3.2mm Low Hydrogen Stick Electrodes 5KG
$79.00
Product Introduction
Magmaweld 7016 is a premium low hydrogen stick electrode ideal for pipe welding of mild steel, offering superior crack resistibility and X-ray quality welds. Suitable for dynamic steel constructions, bridges, shipbuilding, and pressure vessels with high toughness requirements.
Key Specifications
| Diameter | 3.2mm |
| Length | 350mm |
| Weight | 5kg Pack (167 Sticks Approx) |
| Standard | AWS/ASME SFA-5.1 E7016 H8 |
| Welding Positions | PA, PB, PC, PD, PE, PF (4G) |
MAGMAWELD 7016 – Low Hydrogen 3.2mm Stick Electrodes – 5KG Pack
Experience unmatched welding precision with MAGMAWELD 7016 Low Hydrogen Stick Electrodes. Engineered for industrial-grade performance, these 3.2mm electrodes deliver superior crack resistance and X-ray quality welds, making them ideal for critical applications in pipe welding, pressure vessels, and structural steel. Trust the market-leading Magmaweld brand for consistent results in demanding environments.
Core Specifications
| Thickness | 3.2mm |
| Length | 350mm |
| Weight | 5kg (167 sticks approx.) |
| Hydrogen Level | Low (H8) |
| Yield Strength | 490 N/mm2 |
| Tensile Strength | 580 N/mm2 |
| Charpy V-Notch (-20¡ãC) | 105 J |
| Welding Positions | PA, PB, PC, PD, PE, 4G |
| Standards | AWS SFA-5.1, EN ISO 2560 |
| Approvals | CE, TSE, HAKC |
Key Benefits
? Superior Crack Resistance: Low diffusible hydrogen content minimizes weld defects in high-stress applications.
? X-Ray Quality Welds: Smooth, clean deposits with excellent gap bridging and no undercuts.
? Versatile Performance: Ideal for dynamic steel structures, pipelines, boilers, and shipbuilding.
? Industrial Durability: Manufactured toÑϸñ international standards for consistent results.
Applications
Perfect for welding mild steel in demanding sectors: pipeline construction, pressure vessels, bridge fabrication, shipbuilding, and heavy machinery. Suited for root-pass welding and buffer layers on high-carbon steels.
Why Choose MAGMAWELD 7016?
Unlike standard electrodes, MAGMAWELD 7016 offers 115% weld metal recovery and exceptional toughness (-40¡ãC impact strength: 65 J). Trusted by professionals for one-sided root passes and melt-through welding, with re-drying capability up to 5 times (350¡ãC for 2 hours).
FAQ
Q: What is the shelf life after re-drying?
A: Follow storage guidelines; re-dry at 350¡ãC for 2 hours if exposed to moisture.
Q: Can these be used for overhead welding?
A: Yes, suitable for PD (overhead) and all standard positions.
Q: Are they compatible with mild steel only?
A: Primarily for mild steel; ideal for dynamically loaded structures requiring high toughness.
Ready to elevate your welding projects? Contact us today for bulk pricing and technical support!
