Pyrex Glass TIG Cup Kit 1.0mm for WP17/18/26 4-Pack
$49.99
Product Introduction
Compatible with WP/SR 17/18/26 TIG heads, this Pyrex glass cup kit offers superior welding visibility. Designed for 1.0mm tungstens, it fits standard gas lens collet bodies (45V24-29) and includes all necessary components for immediate use, suitable for both beginners and professionals.
Product Parameters
| Compatibility | WP/SR 17/18/26 TIG heads, 45V24-29 collet bodies |
| Tungsten Size | 1.0mm |
| Max Amperage | 130amps |
| Cup Bore | 13mm (4 included) |
| Kit Contents | Collet body, collets, insulator, O-rings, back caps |
Premium Borosilicate Glass TIG Welding Cup Kit – Enhanced Visibility & Compatibility
Core Features at a Glance
| Description | Core Selling Points |
|---|---|
| Hampdon Pyrex/Borosilicate glass cups | Superior welding visibility vs. standard ceramic cups |
| Standard WP/SR 17/18/26 TIG head compatibility | Direct bolt-on installation, no custom parts needed |
| 1.0mm tungsten compatibility | Precision welding for thin materials |
| Gas lens collet body compatibility (45V24-29) | Works with industry-standard welding equipment |
| 13mm bore glass cups (4x included) | Optimal gas coverage and arc stability |
| 130A maximum amperage | Suitable for most TIG welding applications |
| Complete kit with all necessary components | Ready-to-use out of the box |
| Australian design & manufacturing | High-quality craftsmanship and durability |

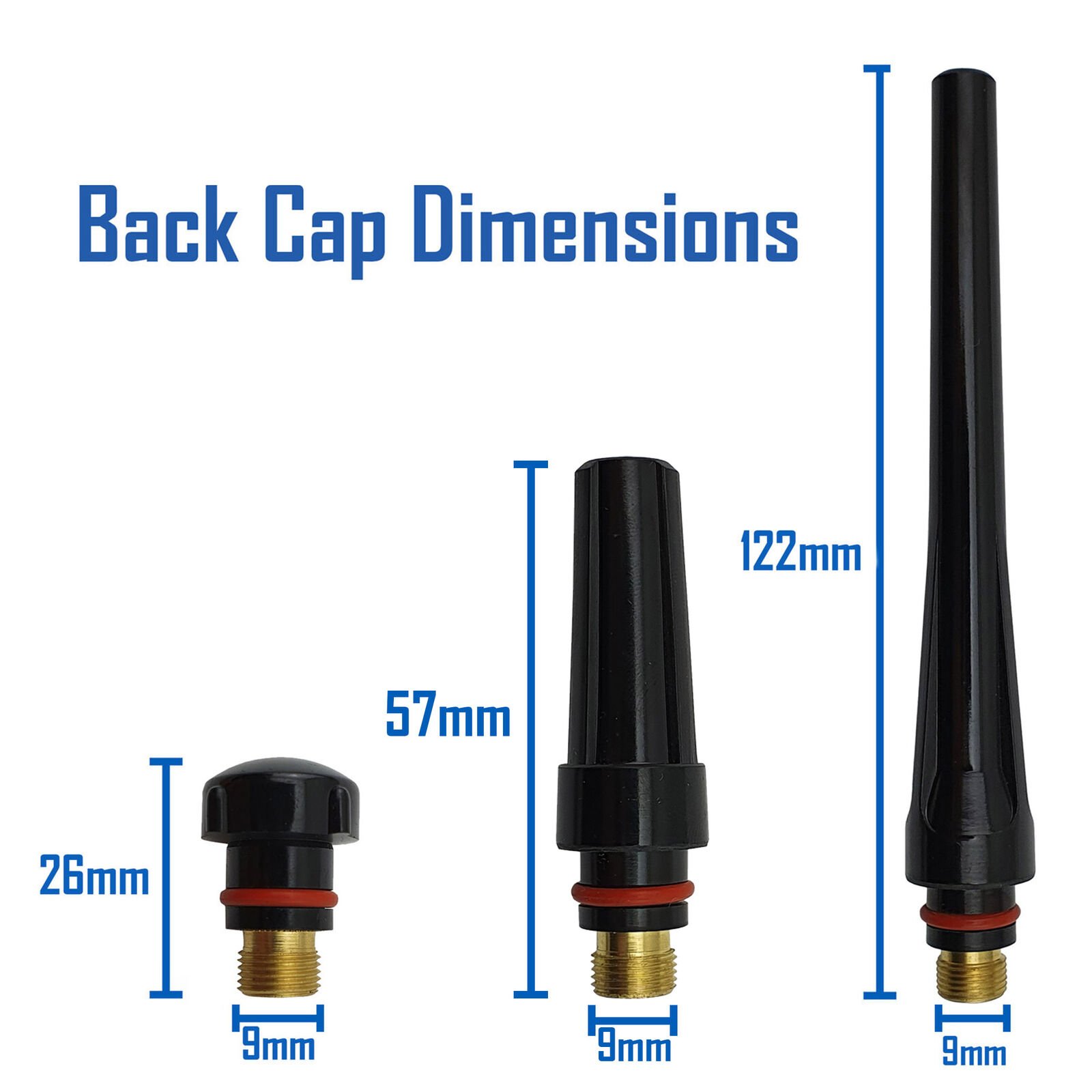

| Multiple back caps included (long/medium/short) | Versatile for different welding positions |
| Compatible with standard welding store parts | Easy maintenance and replacement |
Product Specifications
- Material: Borosilicate glass (heat-resistant)
- Compatibility: Standard WP/SR 17/18/26 TIG torches
- Tungsten Size: 1.0mm
- Max Amperage: 130A

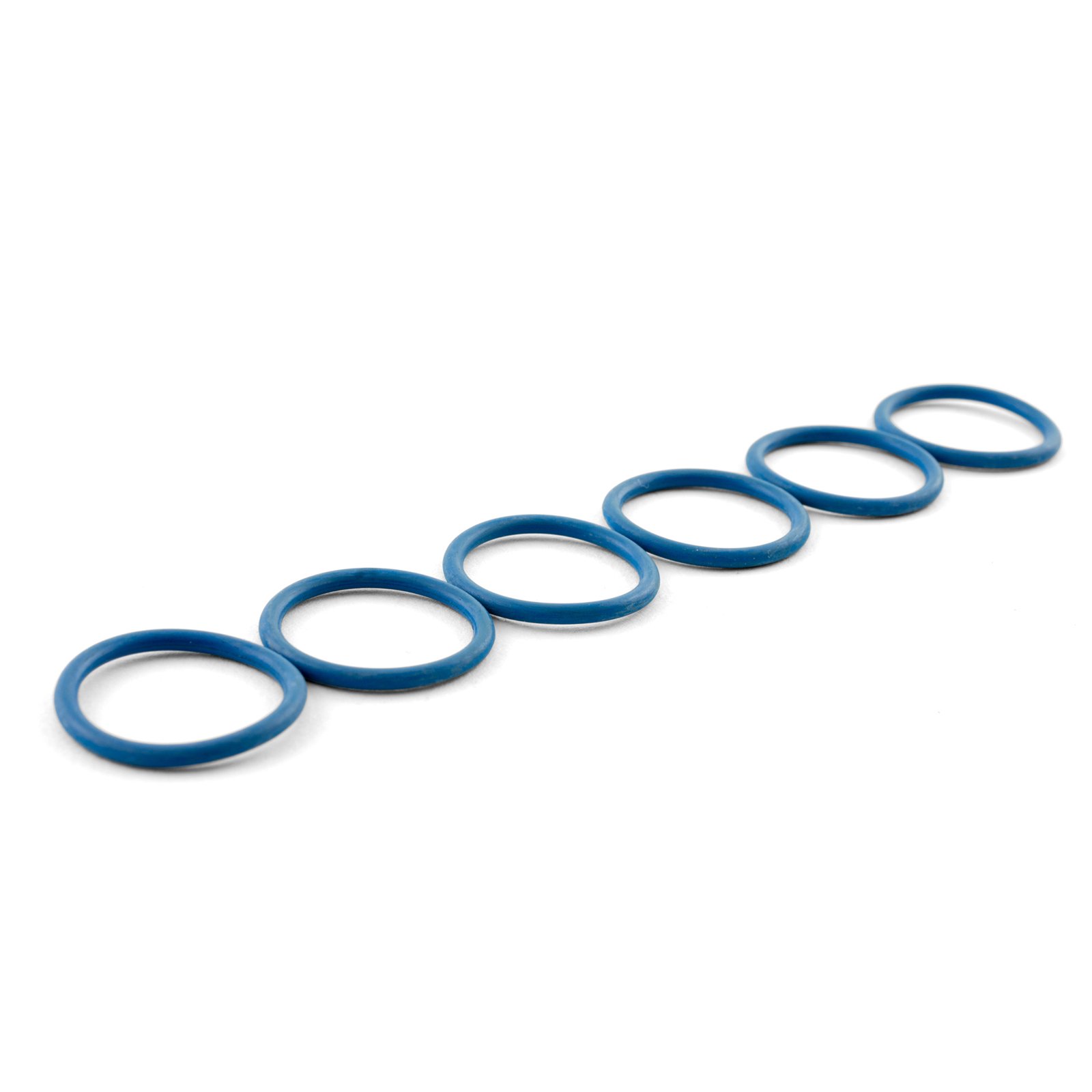

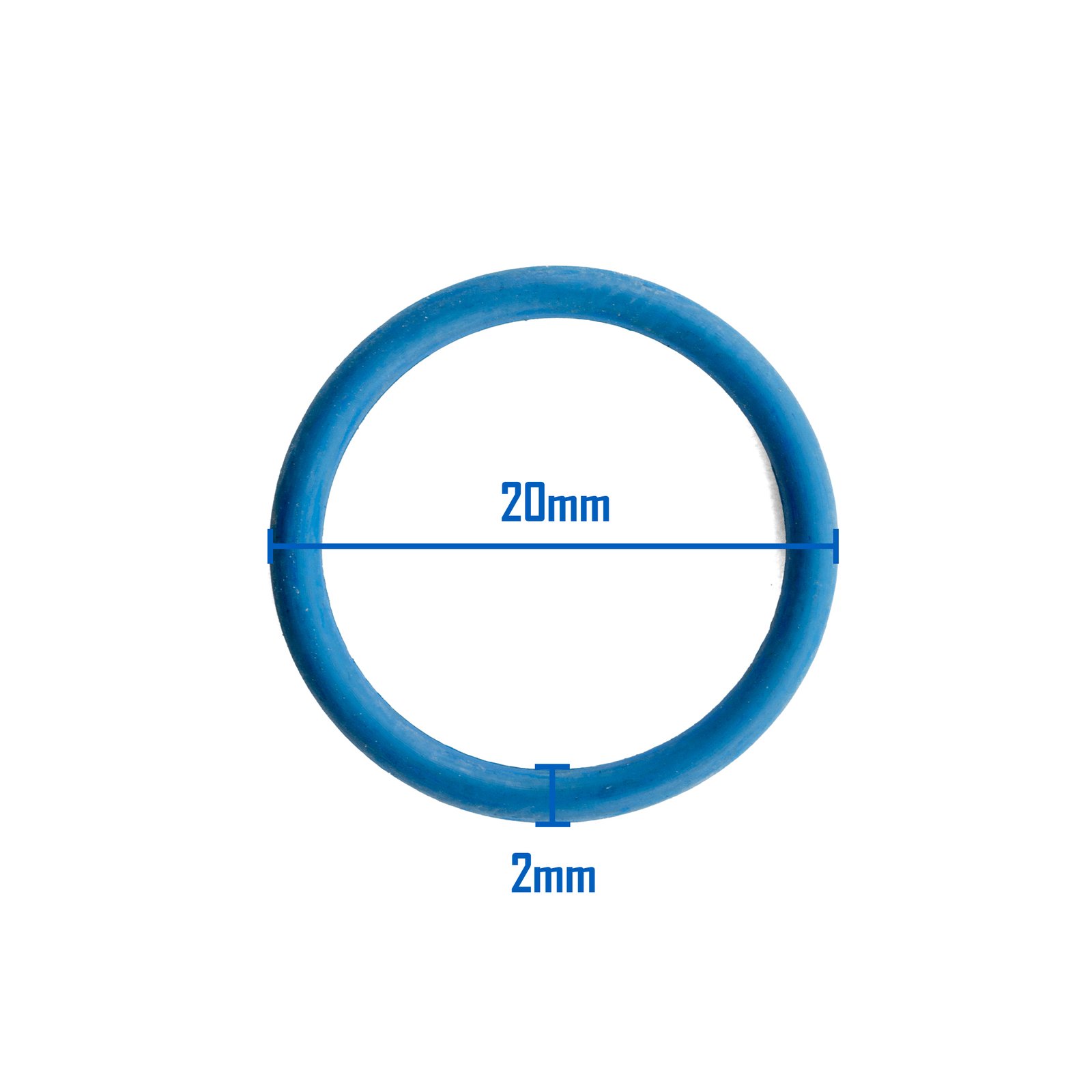

- Kit Includes: 1x collet body (45V24), 4x glass cups (Pyrex-54N14), 2x collets (10N22), 1x insulator (18CG01), 6x O-rings (7127R), 3x back caps (57Y02/04/05)
Applications & Performance
Ideal for both beginners and professionals seeking enhanced welding precision. Perfect for:
- Thin metal fabrication
- Automotive restoration
- Aerospace components
- Jewelry making
- Any application requiring superior arc visibility
The borosilicate glass construction provides exceptional heat resistance while offering crystal-clear visibility of the weld pool, reducing errors and improving weld quality.
Competitive Advantage
Unlike competitors requiring custom collet bodies, our design fits standard gas lens TIG equipment – saving you time and money. Australian manufacturing ensures strict quality control, while the complete kit eliminates the need for separate purchases.
FAQ
- Q: Will this fit my existing TIG torch?
A: Yes, compatible with most WP/SR 17/18/26 series TIG heads. - Q: Can I use these cups with higher amperages?
A: We recommend maximum 130A for optimal performance and longevity. - Q: Are replacement parts available?
A: Yes, all components are sold individually in our store.
Quality Assurance
Designed and manufactured in Australia to meet strict welding industry standards. Each kit undergoes thorough inspection before shipping.
Interested in bulk pricing or need technical support? Contact our sales team today for personalized assistance.
