Pyrex TIG Cup Kit 1.6mm for WP17/18/26 – 4 Pack
$49.99
Product Description
Pyrex glass TIG cup combo kit for WP17/18/26 torches, offering superior visibility. Designed for 1.6mm tungstens, compatible with standard gas lens collet bodies. Australian-made, complete with essential components for TIG welding.
Specifications
| Compatibility | WP/SR 17/18/26 TIG heads |
| Tungsten Size | 1.6mm |
| Max Amperage | 130A |
| Kit Includes | 1.6mm collet body, 4 Pyrex cups, 2 collets, insulator, O rings, 3 back caps |
Premium Pyrex TIG Welding Cup Kit – Enhanced Visibility & Compatibility for Precision Welding
Product Overview
Designed for both novice and professional welders, this Australian-manufactured TIG welding cup kit delivers superior visibility and compatibility with standard equipment. Crafted from high-quality borosilicate glass, these cups outperform traditional ceramic alternatives, making it ideal for detailed TIG welding tasks.
Core Components (10 Key Specifications)
| Component | Description | Core Benefit |
|---|---|---|
| 1.6mm Collet Body (45V25) | Standard gas lens design | Universal fit for most TIG torches |
| 13mm Bore Pyrex Cups (4x, Pyrex-54N14) | Borosilicate glass construction | Exceptional welding arc visibility |
| 1.6mm Collets (2x, 10N23) | Precision-engineered grip | Secure tungsten retention |

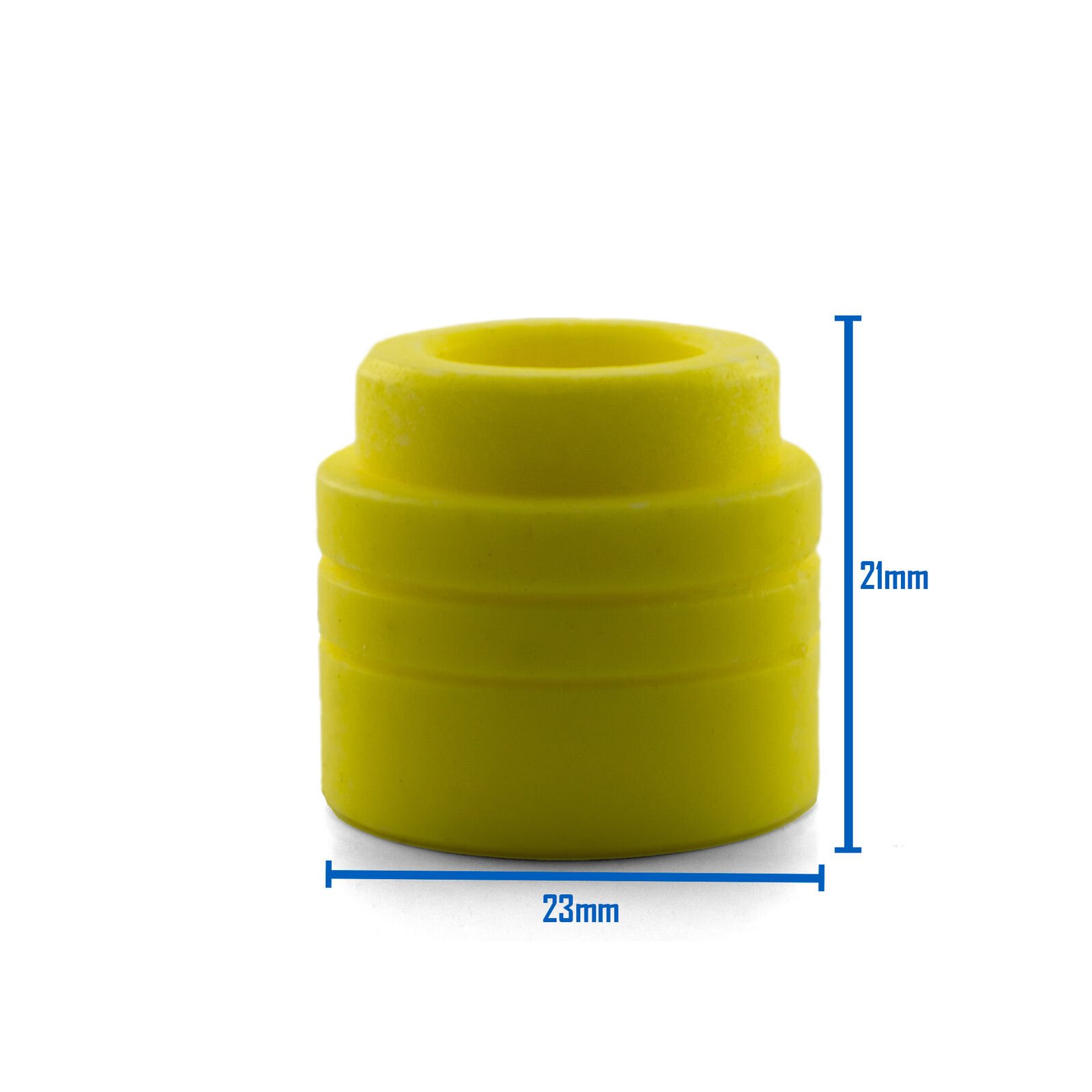

| Insulator (18CG01) | Heat-resistant material | Safe operation during high-temperature welding |

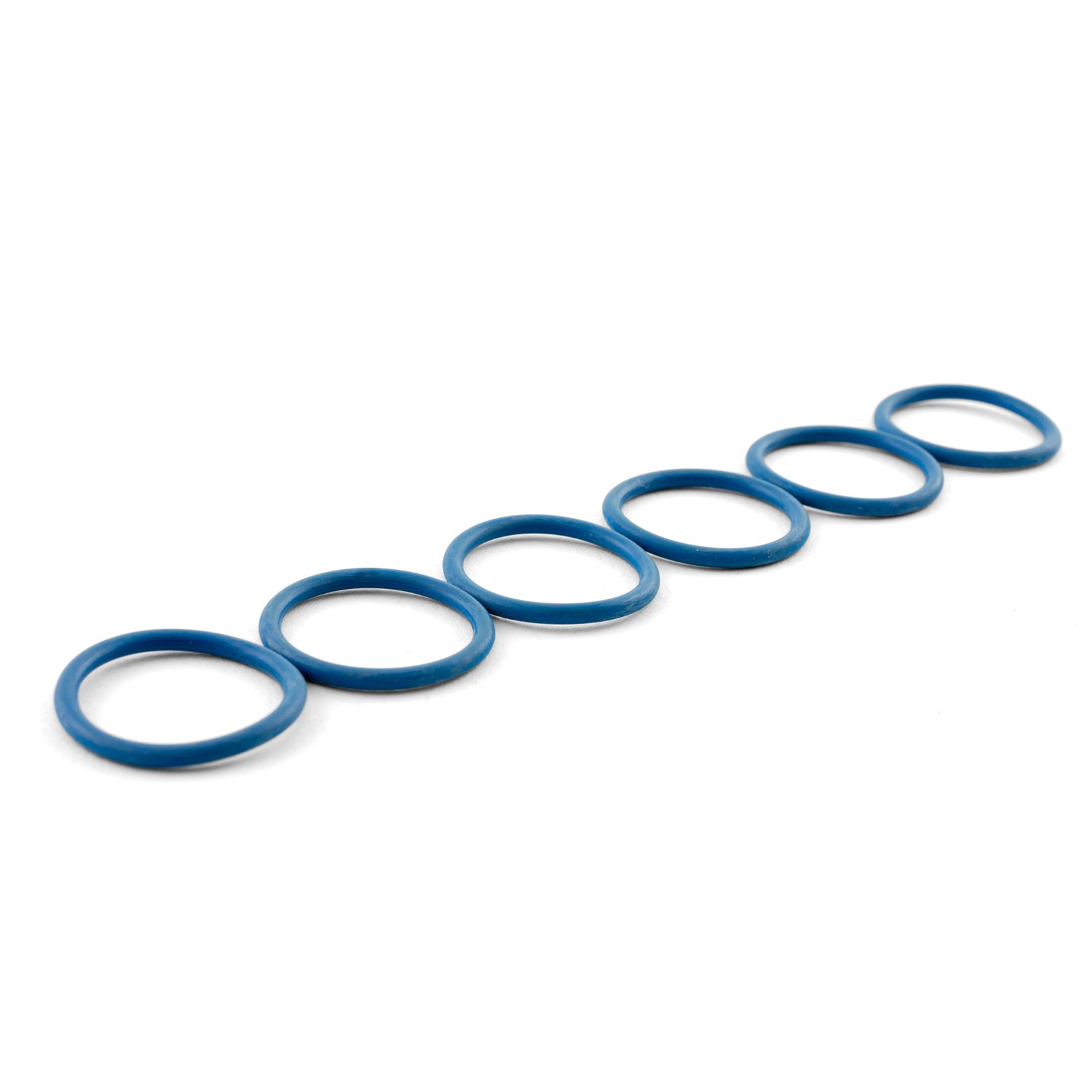

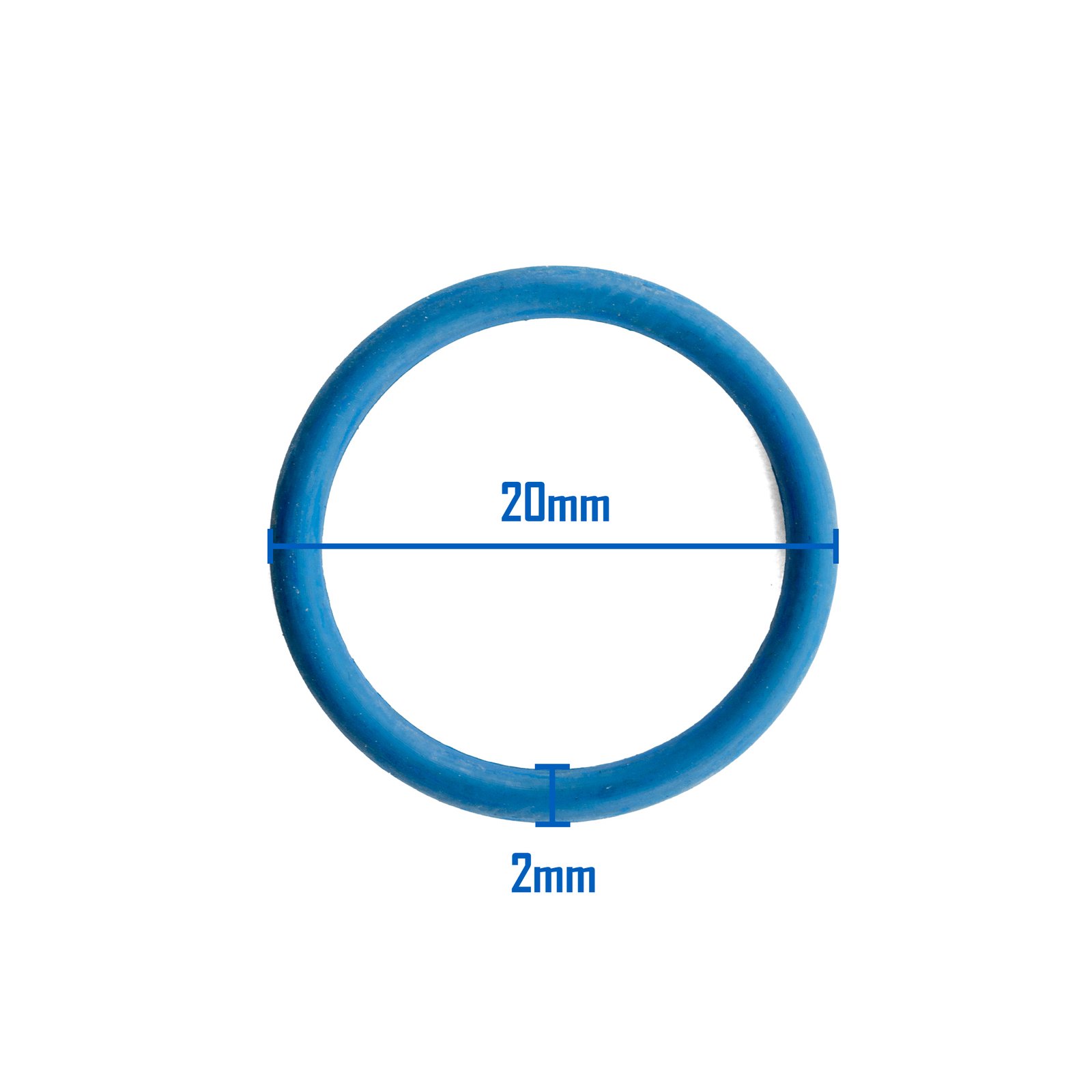

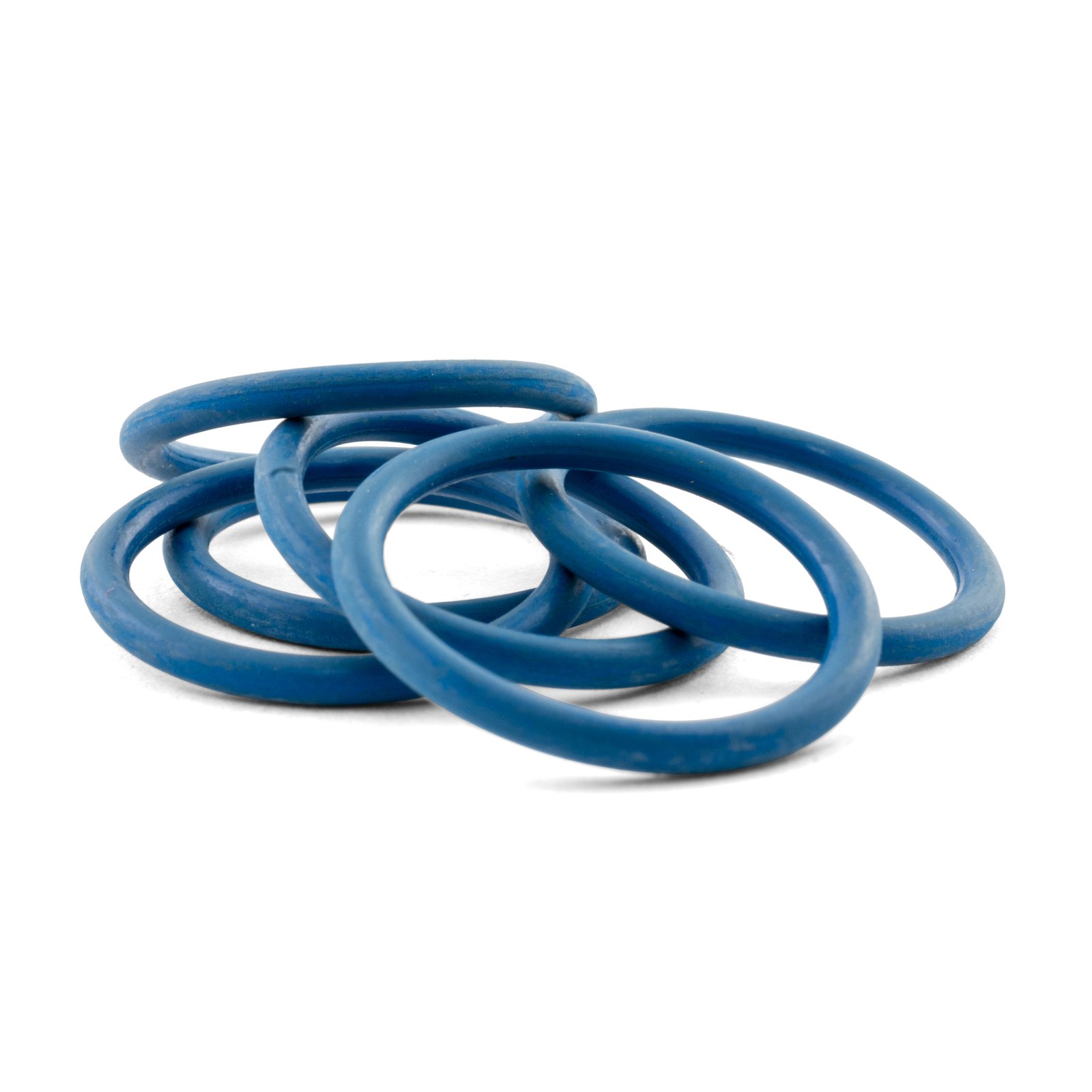

| O Rings (6x, 7127R) | Durable sealing components | Prevents gas leaks for stable arc |

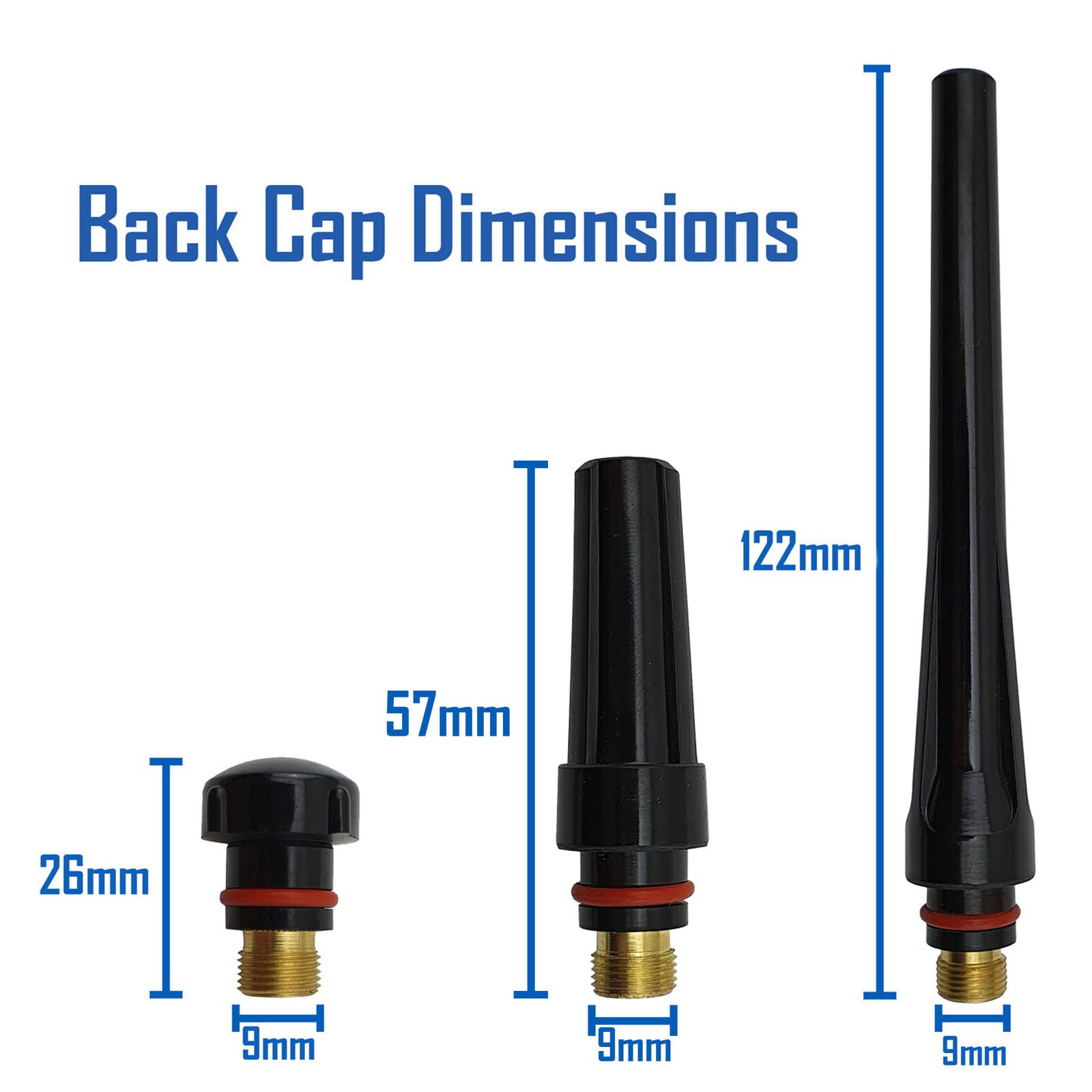

| Long Back Cap (57Y02) | Extended design | Accommodates various tungsten lengths |
| Medium Back Cap (57Y05) | Versatile mid-length | Balanced control for general use |
| Short Back Cap (57Y04) | Compact profile | Ideal for tight spaces |
| Maximum Amperage | 130A rating | Suitable for light to medium welding tasks |
| Compatibility | WP/SR 17/18/26 TIG heads, 45V24-29 collet bodies | Works with standard welding equipment |
Key Performance Advantages
– **Superior Visibility**: Clear Pyrex glass allows precise arc control, reducing errors and improving weld quality.
– **Universal Fit**: Designed for standard gas lens collet bodies, eliminating the need for custom adapters.
– **Complete Kit**: Includes all essential components for immediate use ¨C no additional parts required.
– **Australian Quality**: Engineered and manufactured locally for reliability and durability.
Applications
Perfect for TIG welding applications including stainless steel, aluminum, and thin metal fabrication. Ideal for automotive repair, industrial manufacturing, and DIY projects where precision matters.
Why Choose This Kit?
Unlike competitors using proprietary collet bodies, our design ensures compatibility with existing equipment, saving time and cost. The high-transparency Pyrex cups provide 30% better visibility than ceramic alternatives, making it easier to achieve clean, professional welds.
FAQ
– **Q: Will this fit my TIG torch?**
A: Compatible with most WP/SR 17/18/26 TIG heads and 45V24-29 gas lens collet bodies.
– **Q: What tungsten diameter does it support?**
A: Designed for 1.6mm tungsten electrodes.
– **Q: Can I use this for high-amperage welding?**
A: Recommended for up to 130 amps for optimal performance and safety.
Quality Assurance
Each component undergoes strict quality testing to ensure durability and performance. All parts are available individually for easy replacement and bulk purchasing options.
Ready to elevate your welding precision? Contact us today for pricing and bulk order inquiries!
Packaging & Transportation
