Pyrex Glass TIG Cup Kit 1.6mm for WP17/18/26 8-Pack
$69.99
Product Introduction
Compatible with standard WP/SR 17/18/26 TIG heads, this Pyrex glass cup kit offers superior welding visibility. Designed for 1.6mm tungstens, it fits standard gas lens collet bodies (45V24-29) and supports up to 130amps. Made in Australia, the kit includes 8 Pyrex cups, collet body, collets, insulator, O-rings, and back caps for immediate use.
Product Parameters
| Compatibility | WP/SR 17/18/26 TIG heads |
| Tungsten Size | 1.6mm |
| Max Amperage | 130amps |
| Kit Includes | 8 Pyrex cups, collet body, collets, insulator, O-rings, back caps |
| Origin | Australia |
Pyrex Glass TIG Cup Combo 8-Cup Value Kit for 1.6mm Tungstens – WP17/18/26 Compatibility
Core Parameters
| Compatibility | WP/SR 17/18/26 TIG torches, standard gas lens collet bodies (45V24-29) |
| Tungsten Size | 1.6mm |
| Glass Cup Material | Borosilicate (Pyrex style) |
| Max Amperage | 130A |
| Cup Bore Size | 13mm |
| Kit Inclusions | 8¡Á glass cups, 1¡Á collet body, 2¡Á collets, 1¡Á insulator, 6¡Á O-rings, 3¡Á back caps |
| Visibility | Enhanced weld pool visibility vs ceramic cups |
| Design | Fits standard TIG equipment (no custom collet bodies required) |
| Origin | Australian designed & manufactured |
| Application | Ideal for beginners & professionals seeking precision |
Why Choose This TIG Cup Kit?
Struggling with poor visibility during TIG welding? Our Pyrex glass cup kit delivers crystal-clear weld pool visibility, making it easier to master precise bead control¡ªperfect for learners and pros alike. Unlike competitors using proprietary collet bodies, our cups fit standard gas lens setups (45V24-29) found in most workshops, ensuring compatibility with your existing equipment.
Complete Ready-to-Use Kit

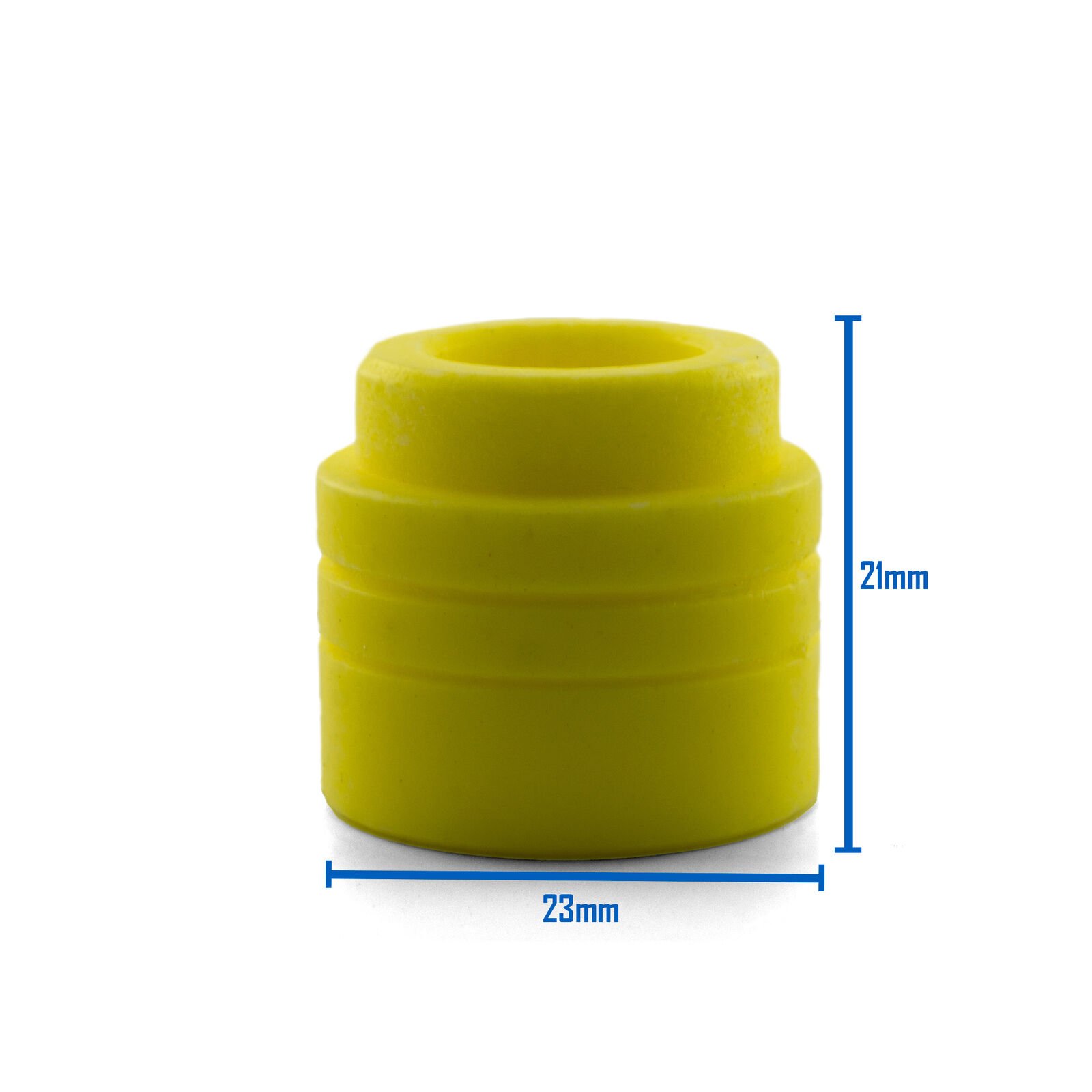

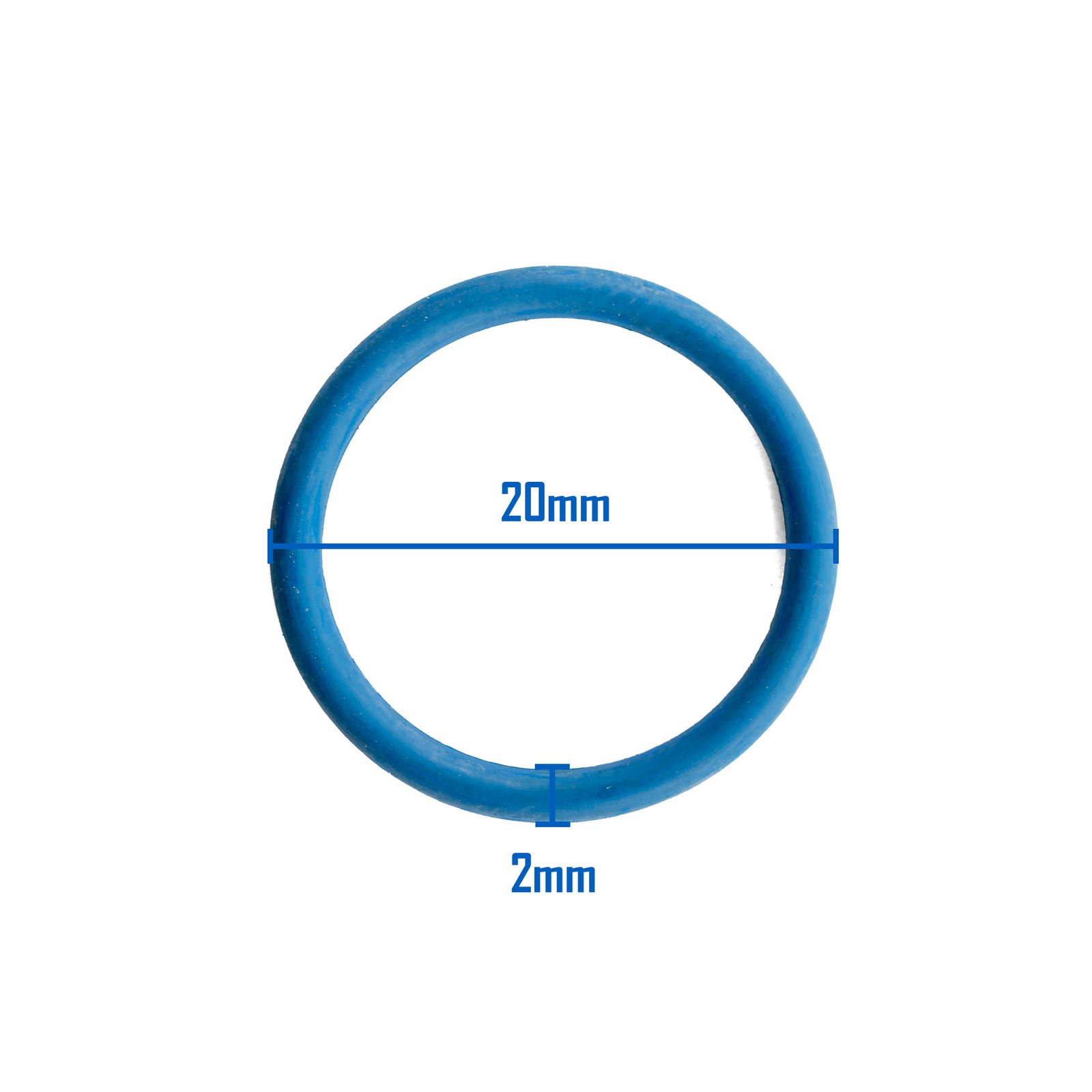

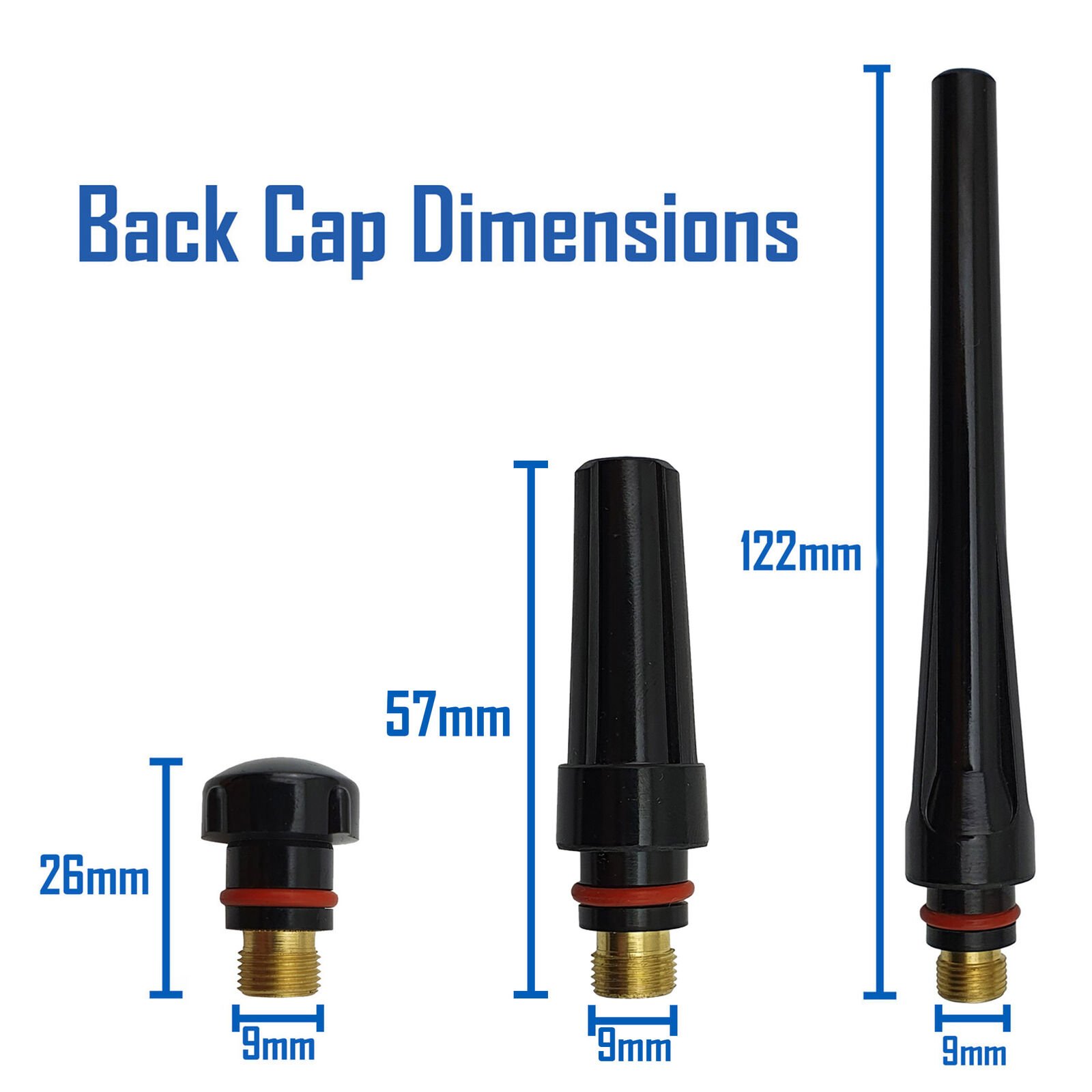

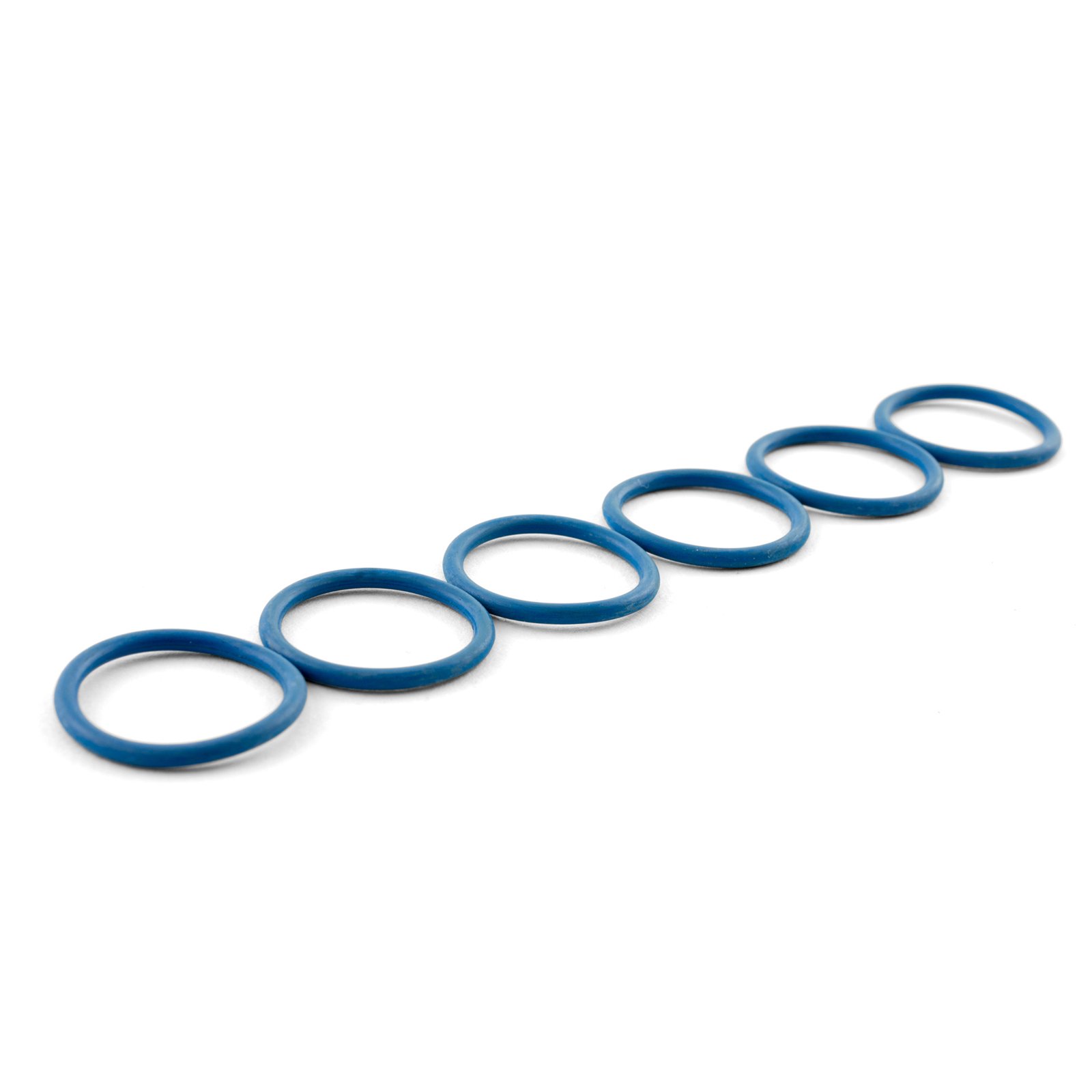

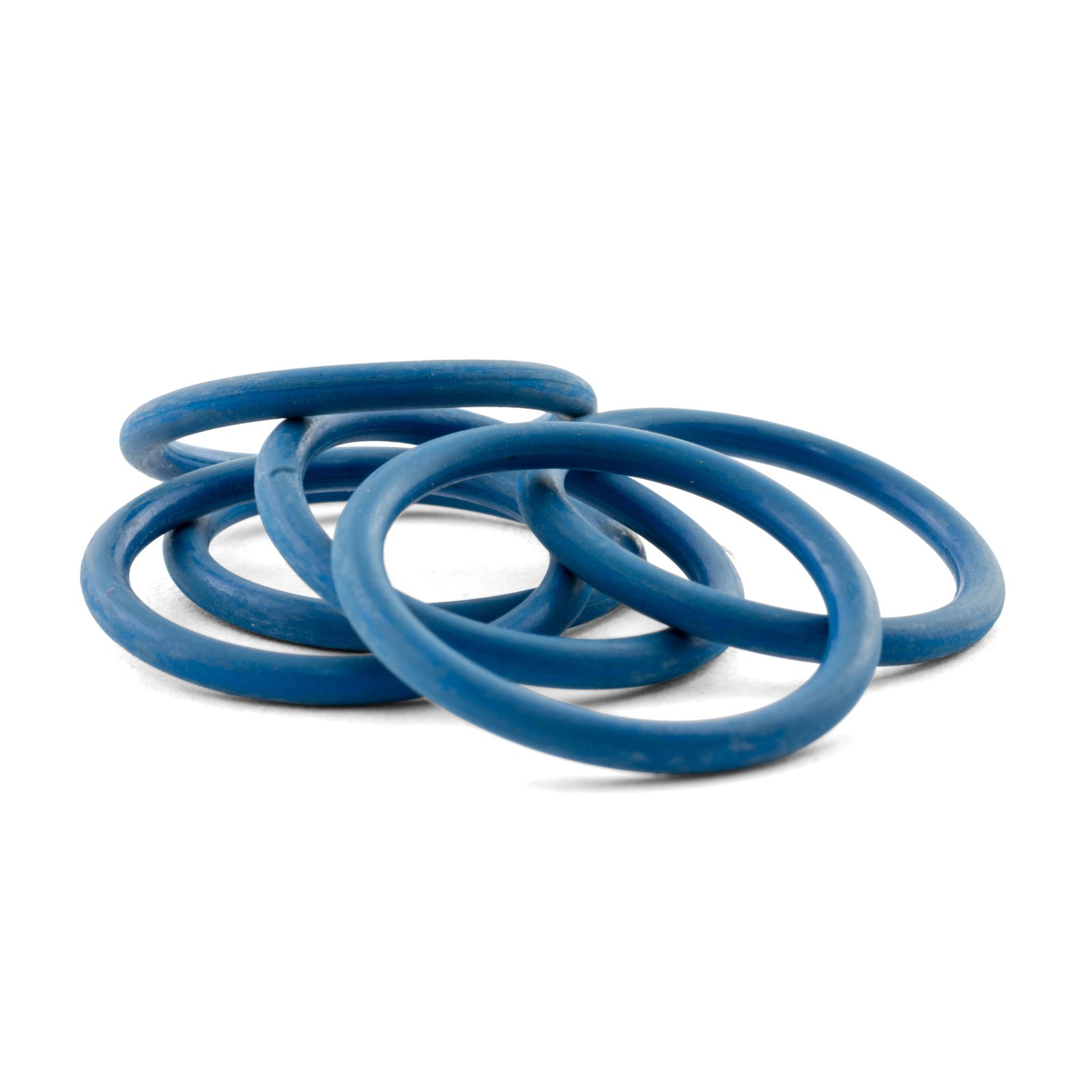

This value pack includes 8 durable 13mm Pyrex cups (Pyrex-54N14), a 1.6mm collet body (45V25), 2 collets (10N23), an insulator (18CG01), 6 O-rings (7127R), and 3 back caps (57Y02/04/05). Everything you need to upgrade your TIG torch immediately.
Performance You Can Trust
Engineered for reliability, these Borosilicate glass cups withstand up to 130 amps while maintaining optimal gas flow. The Australian-made construction ensures consistent quality, with individual parts available for bulk purchase in our store.
FAQ
Q: Will this fit my WP-18 torch?
Yes, compatible with all standard WP/SR 17, 18, and 26 TIG heads.
Q: Can I use these with non-gas lens collet bodies?
Designed specifically for gas lens systems (45V24-29) for best results.
Q: How many cups are included?
8x 13mm Pyrex cups per kit, with replacement parts available separately.
Ready to Elevate Your Welding? Contact Us Now!
Upgrade your TIG setup with superior visibility and durability. For bulk pricing, technical support, or custom requirements, send us an inquiry today.
Packaging & Transportation
weldercutting Nozzles
