SHP2 Oxy/LPG Heating Tip 36×12 with Mixer 450mm Barrel
$120.00
Product Introduction
Hampdon Industrial heavy duty Oxy/LPG Super Heating kit with SHP2 tip, mixer, and 450mm barrel. Delivers efficient, economical high intensity heat up to 2600¡ãC, ideal for industrial heating applications.
Specifications
| Tip Size | 36×12 (SHP2) |
| Max Temperature | 2600¡ãC |
| Heat Output | 420 MJ/HR |
| Barrel Length | 450mm |
| Gas Type | OXY / LPG |

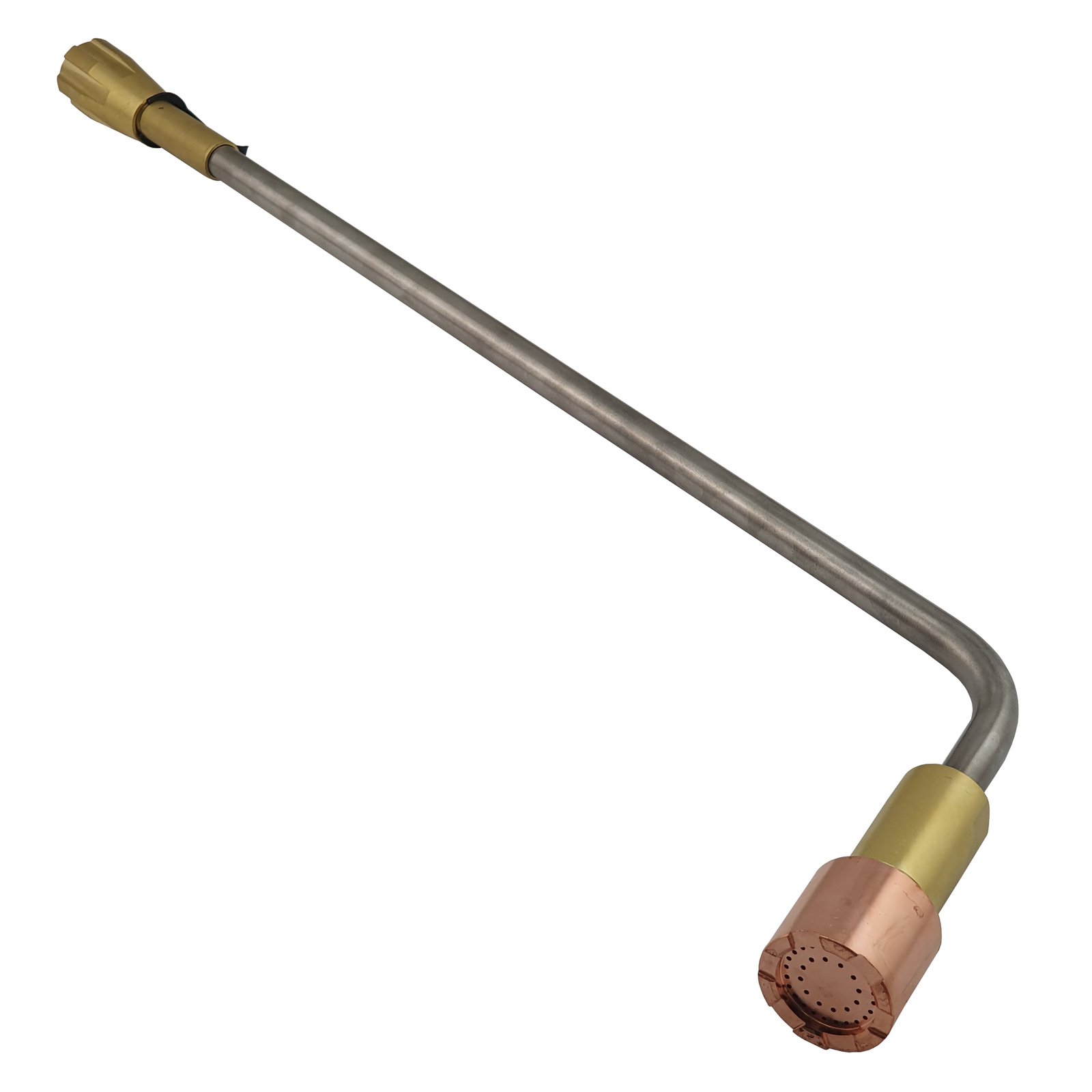

Super Heating Tip Oxy / LPG – Size 36 x 12 – SHP2 with Mixer + 450mm Barrel
Unlock industrial-grade heating performance with the Hampdon Industrial Heavy Duty LPG Super Heating Kit. Engineered for professionals seeking efficient, high-intensity heat, this kit delivers unmatched flame constancy and durability¡ªideal for heavy-duty applications where precision and power matter most.
Core Specifications
| Parameter | Details |
|---|---|
| Tip Size | 36×12 (SHP2) |
| Gas Compatibility | OXY / LPG |
| Max Temperature | 2600¡ãC |
| Oxy Pressure | 480 KPA |
| LPG Pressure | 175 KPA |
| Oxy Consumption | 300 l/min |
| LPG Consumption | 75 l/min |
| Heat Output | 420 MJ/HR |
| Barrel Length | 450mm (HB450S) |
| Handle Compatibility | Standard Comet 3 / CIG Australian torch handles (OME241) |
Kit Contents

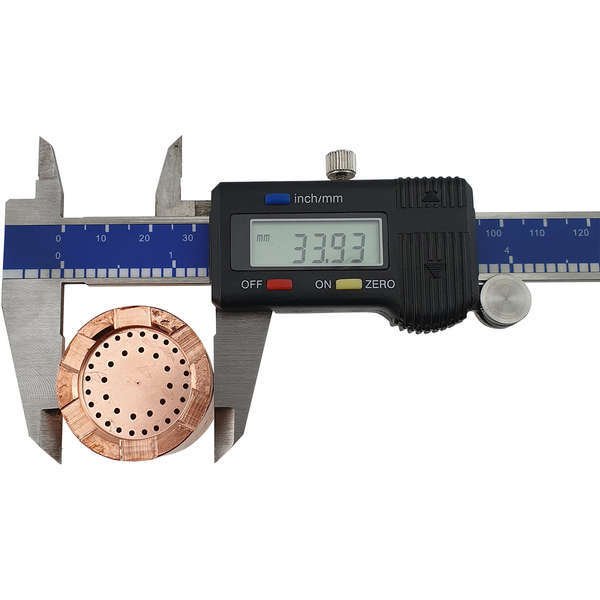

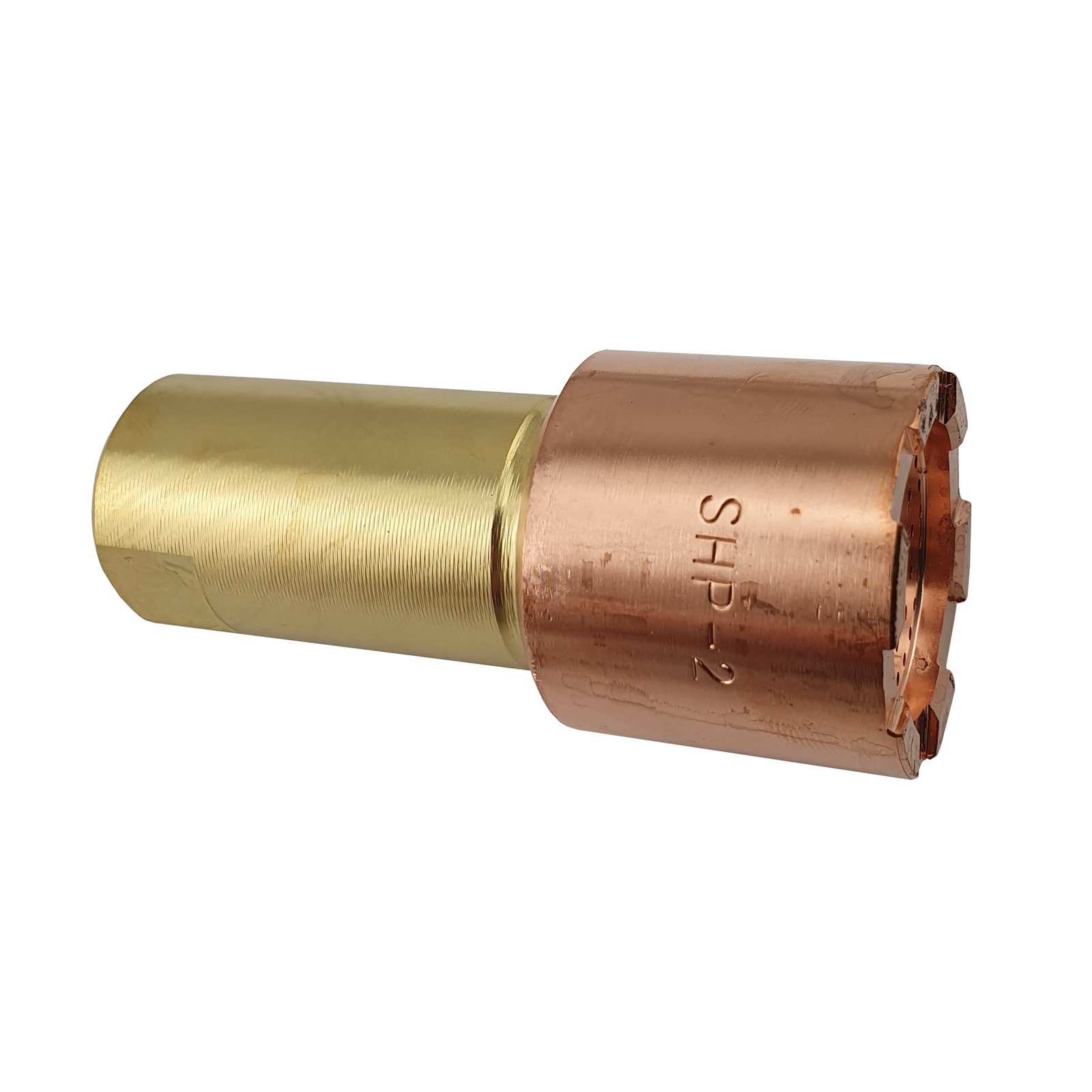

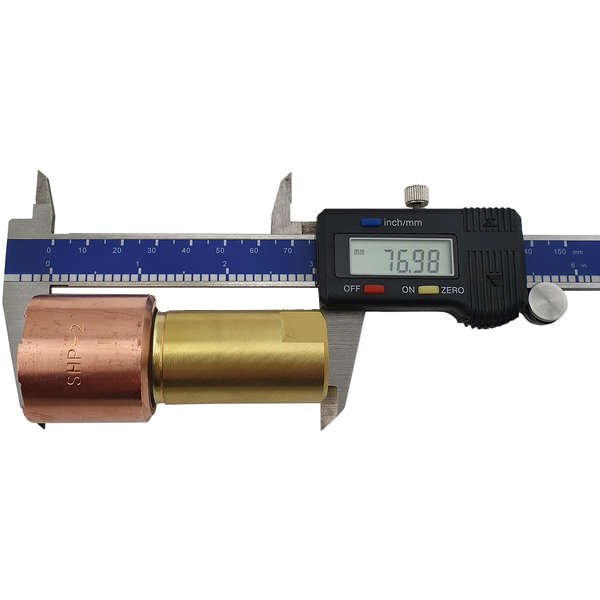

- 1 x Superheating Tip (Size 36×12, SHP2) ¨C Heavy-duty copper head for high heat resistance and wear.

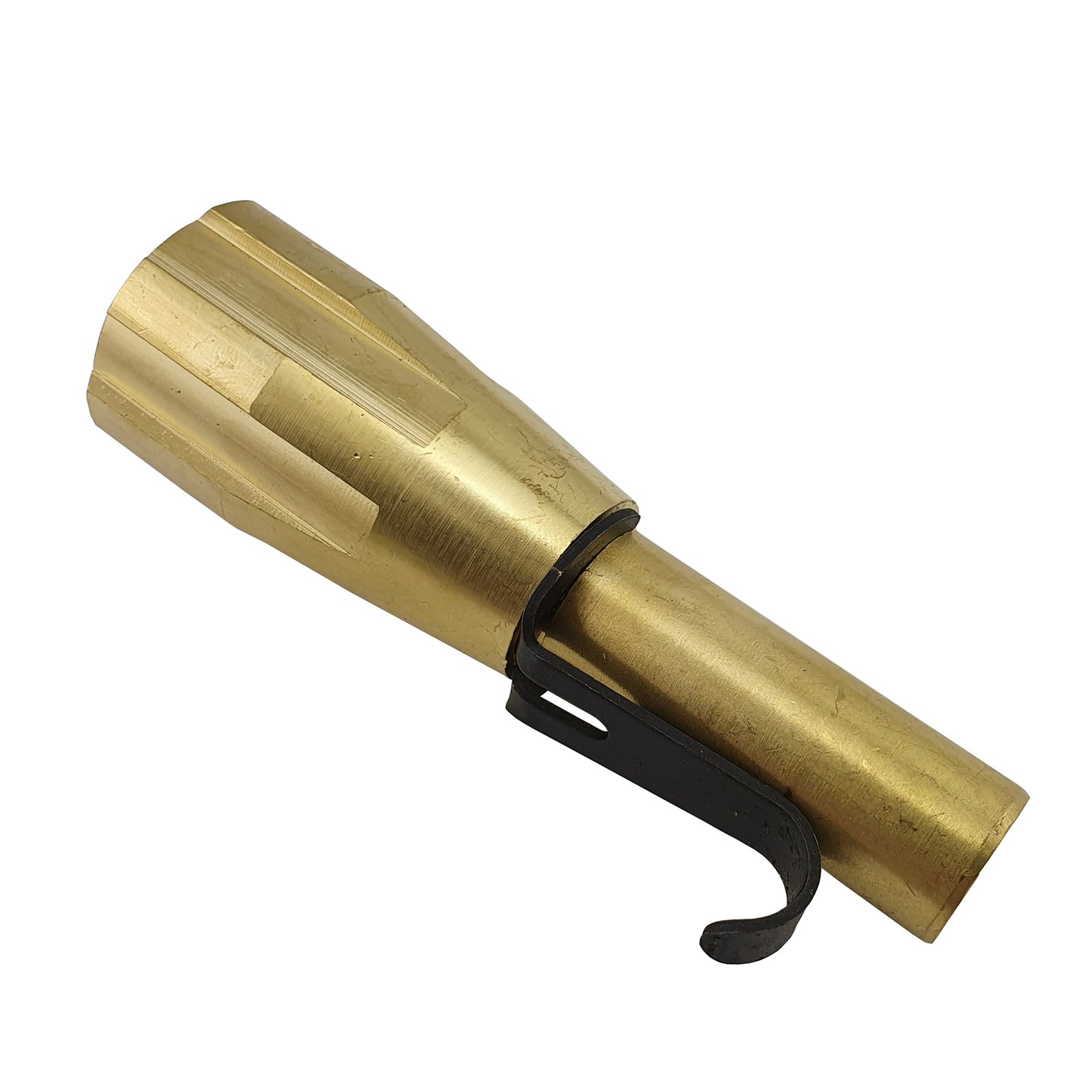

- 1 x 13mm Mixer (800244) ¨C Ensures optimal gas mixing for consistent flame performance.
- 1 x 450mm Heating Barrel (HB450S) ¨C Standard-length barrel for versatile industrial use.
Key Performance Benefits
Designed for efficiency and reliability, this kit reaches temperatures up to 2600¡ãC, making it perfect for tasks requiring intense, focused heat. The heavy-duty copper head minimizes wear, extending tool life, while the balanced gas consumption (300 l/min Oxy, 75 l/min LPG) ensures cost-effective operation without compromising power.
Applications
Ideal for industrial heating, metalworking, and heavy fabrication. Whether for preheating, soldering, or specialized industrial processes, this kit delivers the precision and heat output professionals demand.
Why Choose This Kit?
- Durability: Copper head engineered for high heat and wear resistance.
- Efficiency: 420 MJ/HR heat output with optimized gas consumption.
- Compatibility: Fits standard Comet 3 / CIG torch handles for easy integration.
- Consistency: Outstanding flame constancy for precise, reliable results.
FAQ
Q: What torch handles are compatible with this kit?
A: It fits standard Comet 3 / CIG Australian torch handles (Part OME241).
Q: What is the maximum temperature this kit can reach?
A: Up to 2600 degrees Celsius.
Q: Is the barrel length fixed?
A: Yes, this kit includes a 450mm standard barrel (HB450S).
Request a Quote
Ready to elevate your industrial heating capabilities? Contact us today for pricing, technical support, or bulk order inquiries. Our team of experts is here to help you find the perfect solution for your needs.
Packaging & Transportation
