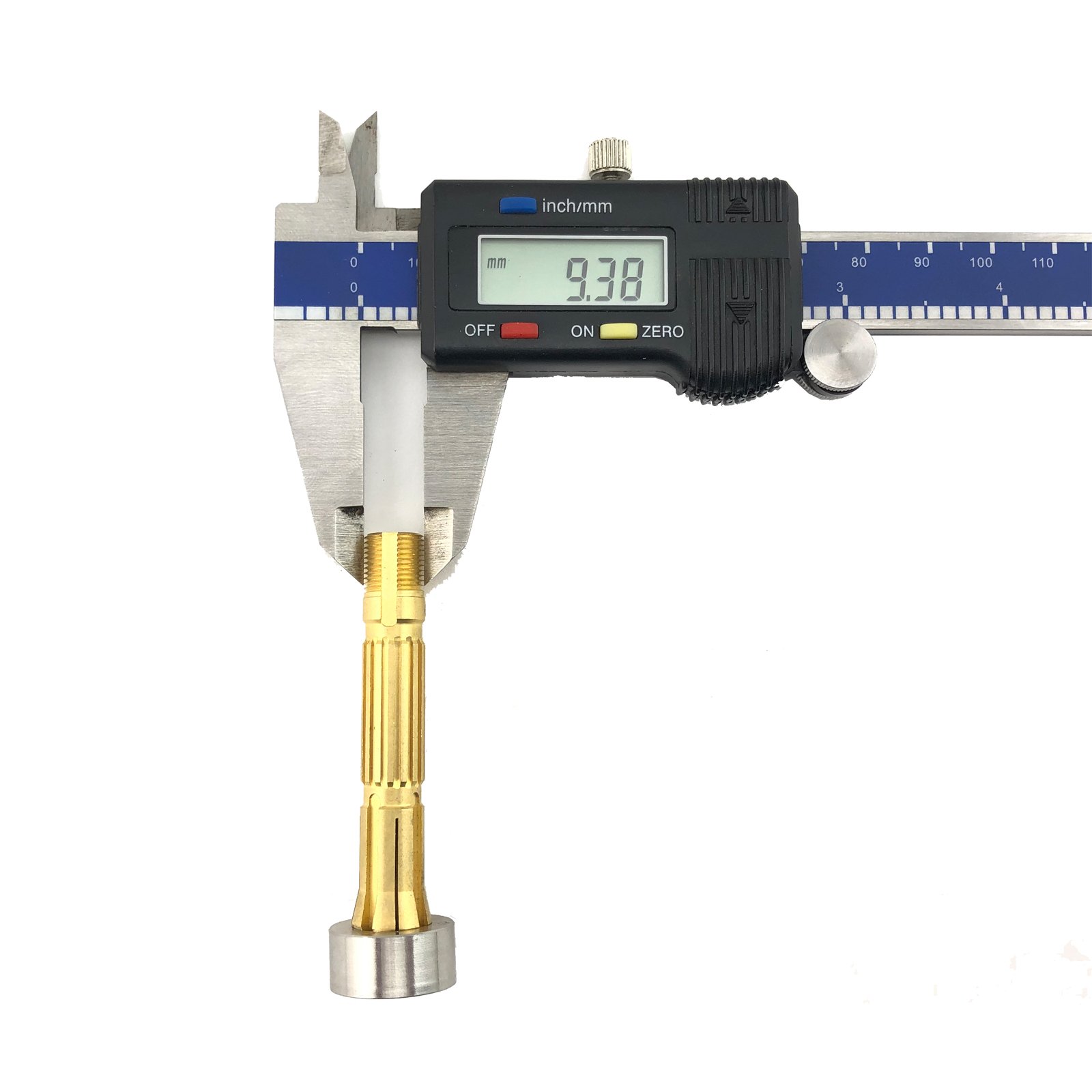

T3 Gas Lens Collet Body 3.2mm High Precision Welding Accessory
$39.99
Product Introduction

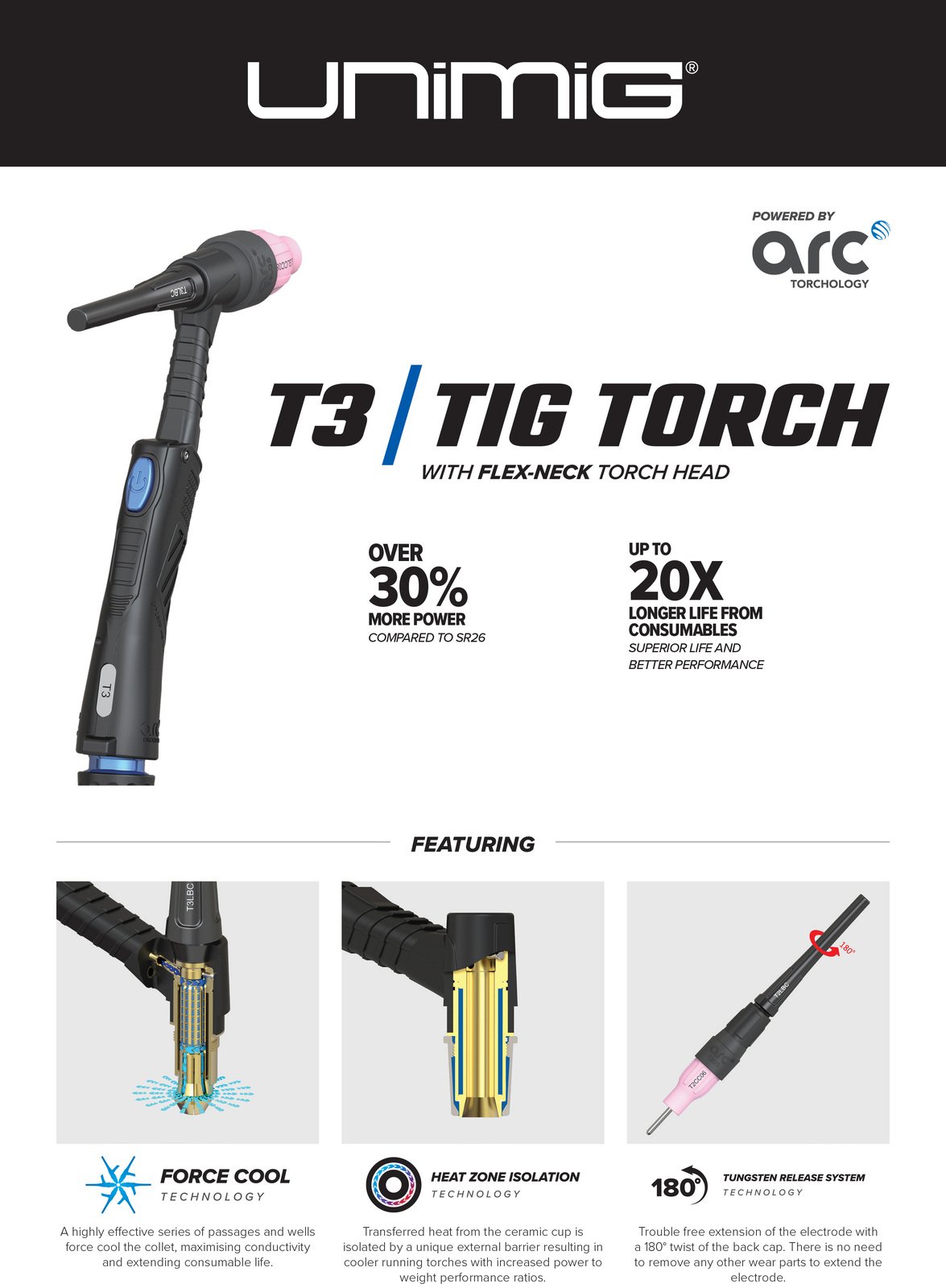

Unimig T3 TIG Gas Lens Collet Body designed for T3 torches, featuring improved laminar gas flow for optimal welding performance. Ensures stable gas coverage and precise arc control, ideal for professional welding applications. 3.2mm size, 1 each per pack. Part number: UMCT3GL32.
Product Specifications
| Model | T3 Gas Lens Collet Body |
| Size | 3.2mm |

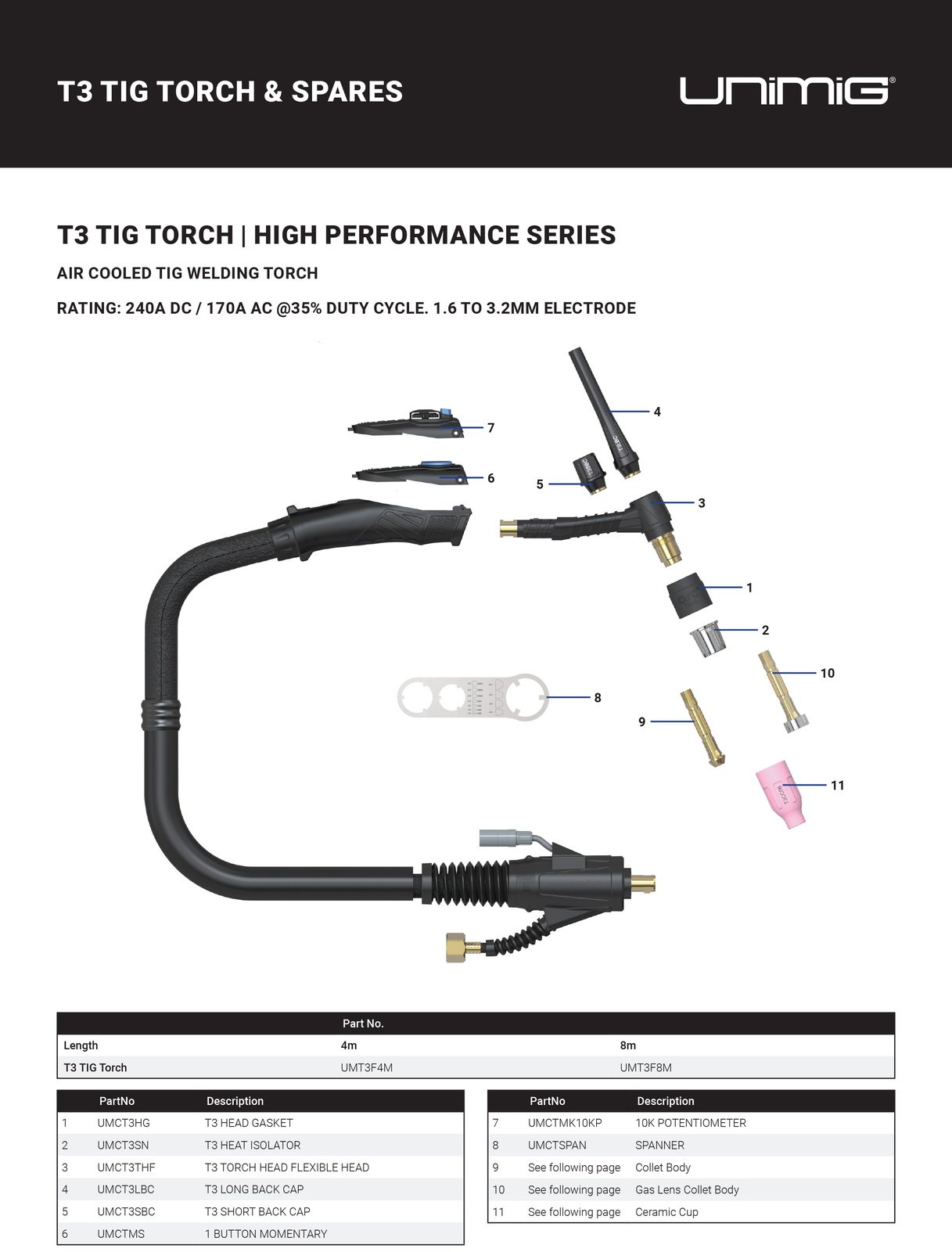

| Compatibility | T3 Torches |
| Feature | Improved Laminar Gas Flow |

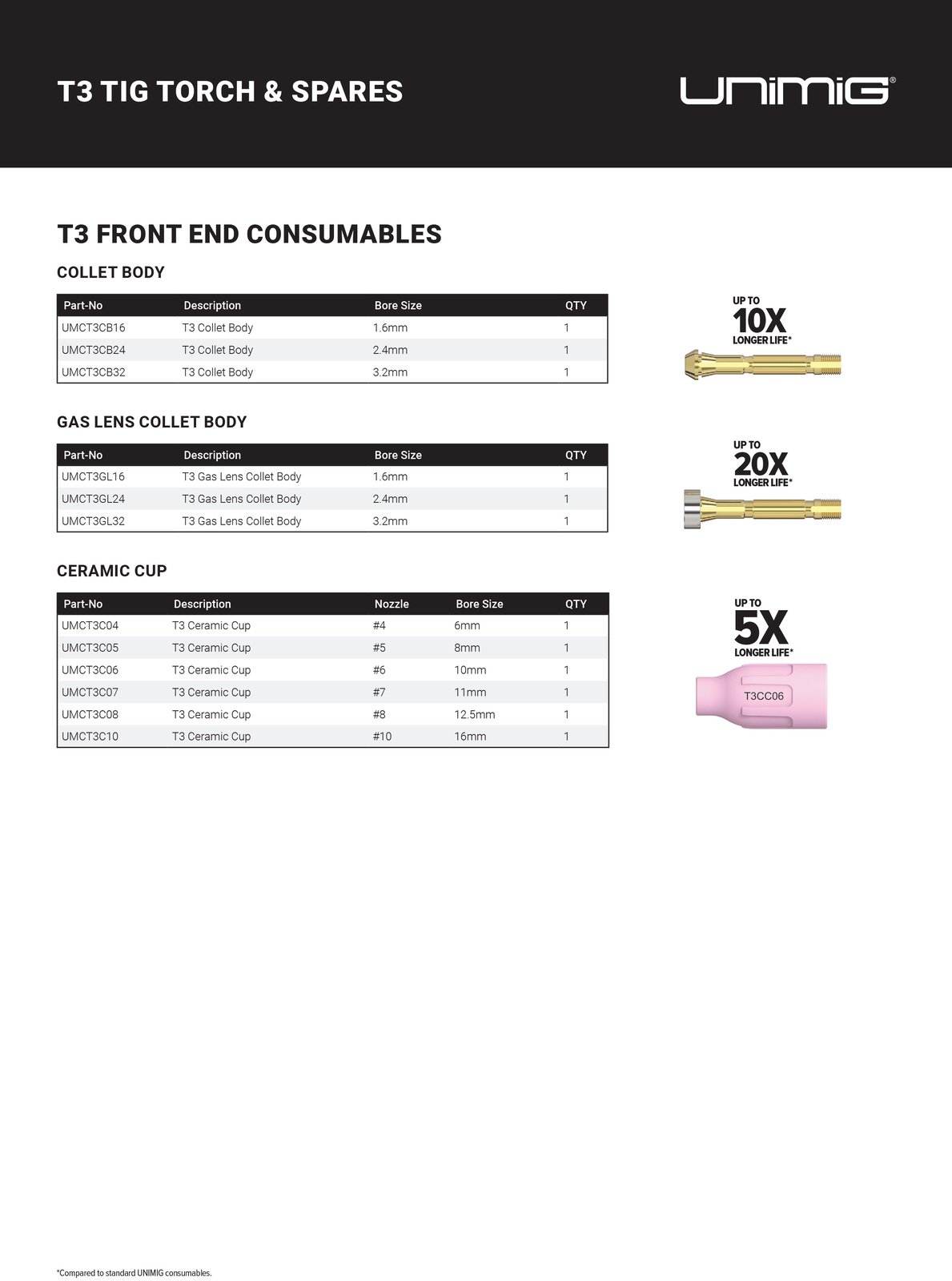

| Part Number | UMCT3GL32 |
Packaging & Transportation
weldercutting Nozzles
Related products
1.6mm 2% Thoriated TIG Tungsten Electrodes 10 Red Tip
Description
Premium 2% Thoriated TIG Tungsten Electrodes by COBRA, Australia's leading industrial grade brand. Annealed for superior grain structure, offers excellent arc starts and minimal consumption. Suitable for DC electrode negative welding on carbon, stainless steel, nickel, and titanium.
Specifications
| Size | 1.6mm x 175mm |
| Type | 2% Thoriated (Red Tip) |
| Quantity | 10 Each |
| Standards | ANSI/AWS A5.12 -98, ISO 6848 |
| Part # | PTR0004-16 / PTR0004-24 |
2.4mm 2% Lanthanated TIG Tungsten Electrodes Blue Tip 10pcs
Product Parameters
| Type | 2% Lanthanated TIG Tungsten Electrodes |
| Size | 2.4mm x 175mm |
| Quantity | 10 Each |
| Certification | ANSI/AWS 5.12 -98, ISO 6848 |
| Tip Color | Blue |
Introduction
Premium COBRA Tungstens, Australia's leading industrial grade brand. Trade quality annealed tungsten with superior grain structure. Offers excellent arc starts, low burn-off rate, and long life. Suited for carbon steel, stainless steel, nickel alloys, titanium, aluminium. Replaces thoriated electrodes, works on AC/DC. 30-day refund warranty.
2.4mm FURICK CUP Gas Lens Collet Body WP-17 18 26
Product Introduction
Genuine Made In USA Furick Gas Lens Collet Body for WP17 | 18 | 26 Series Torches. Allows 9 series gas lens cups and Furick BBW, FUPA cups to fit, designed for 2.4mm collets/tungstens.
Specifications
| Compatibility | WP17 | 18 | 26 Torches (WP or SR) |
| Collet Size | 2.4mm |
| Cup Compatibility | 9 series gas lens cups, Furick BBW, FUPA cups |
| Length | 26mm |
| Threads | 3/8 UNF Lower, 9/16 UNF Upper |
2.4mm Zirconiated TIG Tungsten Electrodes 10pk White Tip
Product Introduction
Premium COBRA Tungsten Electrodes, 2.4mm x 150mm, pack of 10. Made of high-quality annealed tungsten, meeting ANSI/AWS 5.12 -98 and ISO 6848 standards. Ideal for welding aluminum and magnesium with excellent arc starts and stability.
Specifications
| Size | 2.4mm x 150mm (1/16¡± by 7") |
| Type | 0.8% Zirconiated |
| Quantity | 10 Each |
| Standards | ANSI/AWS 5.12 -98, ISO 6848 |
| Part # | PTR0006-24 |
BBWSG-16 Replacement Glass BBWSGG High-Quality Durable Fit
Product Description
Replacement glass cup designed specifically for BBWSG-16 model brass inset cup. Includes 1 O-ring (must be used with glass). Easy installation: moisten glass inside and O-ring, gently push onto BBWSG-16 Diffuser brass housing; avoid forcing.Product Specifications
| Model | BBWSG-16 |
| Type | Replacement Glass Cup |
| Compatibility | BBWSG-16 Brass Inset Cup |
| Included | 1 O-ring |
FURICK BBWSG19 Ceramic TIG Cup Kit USA Made 1 Each
Product Introduction
The FURICK BBWSG19 Ceramic TIG Cup Kit (BBWKOKN) is a white ceramic TIG cup made in the USA, offering enhanced durability with a 2.4mm thick ceramic construction. Features include a threaded ceramic chassis, improved gas delivery, and a second mesh filter for consistent gas coverage, suitable for 17/26 and 9/20 series torches with compatible gas lenses.Product Specifications
| Material | 2.4mm Thick Ceramic |
| Bore ID | 25mm |
| Bore OD | 29.2mm |
| Length | 26.5mm |
| Origin | Made in USA |
WP-17/18/26 Stubby TIG Gas Lens Collet Body 2.4mm
Product Introduction
High-quality copper TIG gas lens collet body for 17/18/26 series torches. Features stubby style, 2.4mm collet compatibility, and additional mesh layers for improved gas flow and durability, ensuring superior weld zone coverage.
Specifications
| Compatibility | 17/18/26 series TIG torches (WP/SR) |
| Collet Size | 2.4mm |
| Style | Stubby |
| Length | 27mm |
| Part # | P45V26S |
WP-17/18/26 TIG Gas Lens Collet Body 3.2mm
Product Introduction
Hampdon Industrial TIG Gas Lens Collet Body, made of high-quality copper, suits 17/18/26 series TIG torches. Features additional mesh layers for extended durability and improved gas distribution, optimizing shield gas coverage and preventing contaminants.
Specifications
| Compatibility | 17/18/26 style torches (WP or SR) |
| Collet Size | 3.2mm |
| Length | 50mm |
| Cup Thread | 3/4" UNF |
| Head Thread | 3/8" UNEF |
