TIG Ceramic Cup Nozzle Gas Lens #4 WP-9/20 40 Each
$99.00
Product Description
High-quality Parweld TIG ceramic cups, compatible with WP-9/20 series torches. Made from toughened alumina oxide, durable, impact and spatter resistant for high-temperature welding. Offers long life and great value.
Specifications
| Quantity | 40 Each |
| Cup Size | #4 |
| Compatibility | WP-9/20 Torches (Gas Lens) |
| Material | Toughened Alumina Oxide |

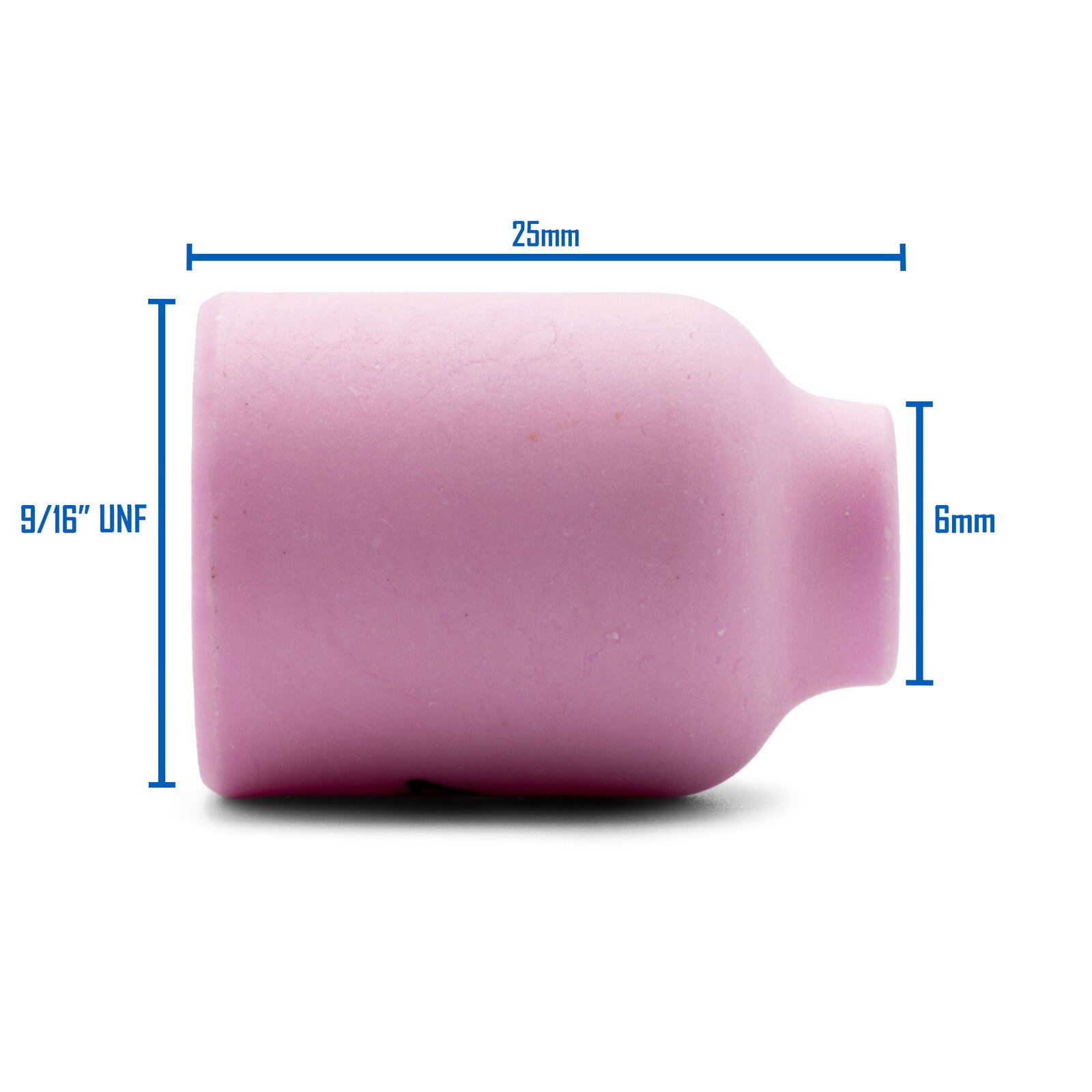

| Dimensions | 25mm Length, 14mm Base, 6mm Bore |
Hampdon Industrial Parweld TIG Alumina Cups – Premium Quality for WP-9 & 20 Series Torches
Are you tired of frequent TIG torch cup replacements? Upgrade to Parweld’s high-performance alumina cups, engineered for durability and precision in high-temperature welding. Designed for WP-9 and 20 series torches with gas lens collet bodies, these cups deliver long-lasting performance at an unbeatable price.
Core Specifications
| Quantity | 40 Each |
| Size | #4 |
| Length | 25mm |
| Base Diameter | 14mm |
| Bore Diameter | 6mm |
| Material | Toughened Alumina Oxide |
| Compatibility | WP-9 & 20 Series Torches (Gas Lens Collet Body) |
| Part Number | UNIMIG P53N58 |
| Resistance | Impact, Spatter & Thermal Shock |
| OEM Compatibility | 100% Compatible |
Key Benefits
? Enhanced Durability: Made from superior ceramic compared to OEM parts, ensuring extended service life.
? High-Temperature Performance: Thermal shock resistance ideal for intense welding applications.
? Cost-Effective: Bulk pack of 40 cups offers exceptional value for professional welders.
? Perfect Fit: Engineered for seamless compatibility with WP-9/20 torches and gas lens systems.
Applications
Ideal for industrial TIG welding operations, including stainless steel fabrication, automotive repair, aerospace components, and heavy machinery maintenance. Perfect for welders seeking consistent gas coverage and reduced downtime.
Why Choose Parweld?
Unlike standard ceramic cups, Parweld’s alumina oxide construction provides 30% longer lifespan under extreme conditions. The precision-engineered bore ensures optimal gas flow, resulting in cleaner welds and reduced spatter buildup.
FAQ
Q: Will these fit non-WP style torches?
A: Designed specifically for WP-9 and 20 series torches with gas lens collet bodies.
Q: Can they withstand continuous high-amperage welding?
A: Yes, the toughened alumina oxide material resists thermal shock during extended use.
Q: Are these reusable after spatter buildup?
A: Yes, spatter-resistant surface allows easy cleaning for multiple reuses.
Quality Assurance
Manufactured to exceed OEM standards, each cup undergoes rigorous testing for dimensional accuracy and thermal resistance. Backed by Hampdon Industrial’s reputation for premium welding accessories.
Ready to elevate your welding efficiency? Contact us today for bulk pricing and technical support. Send your inquiry now to secure your stock!
Packaging & Transportation
