TIG Gas Lens Collet Body Kit 3.2mm WP17|18|26 12Pcs
$38.99
Product Description
Parweld Premium TIG Gas Lens Collet Body Kit for 3.2mm Tungstens, compatible with WP17|18|26 torches. Enhances gas flow with layered mesh for better coverage and reduced turbulence, saving gas and improving weld quality. High-quality copper construction for durability.
Specifications
| Compatibility | WP17, WP18, WP26 TIG Torches |
| Tungsten Size | 3.2mm |
| Threads | 3/8 UNF (Lower), 9/16 UNF (Upper) |
| Kit Contents | 12 pieces (collets, insulator, gas lens body, cups) |
TIG Gas Lens Saver Collet Body 12 Piece Kit – 3.2mm for WP17|18|26 Torches
Upgrade your TIG welding precision with the Hampdon Industrial Parweld Premium Gas Lens Collet Body Kit! Engineered to deliver superior gas flow and weld quality, this 12-piece set is the ultimate solution for professionals seeking efficiency and cost savings. Why pay over $86 for individual parts when you can get everything you need in one kit? Boost your torch performance today!
Core Components & Benefits
| Component | Description | Core Benefit |
|---|---|---|
| 3.2mm Gas Lens Collet Body (45V27) | High-quality copper construction with layered mesh | Reduces gas waste with laminar flow technology |

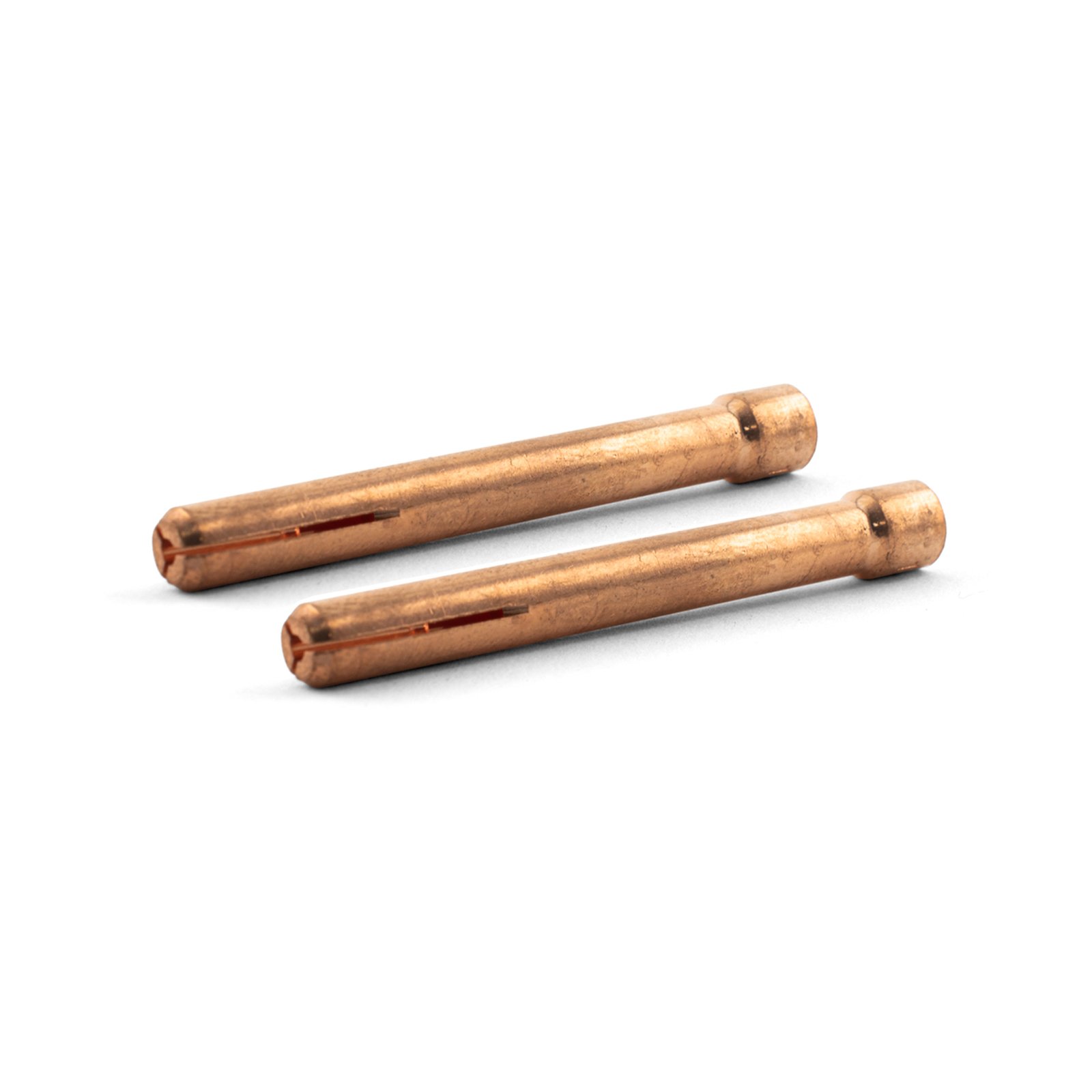

| 3.2mm Collets (10N25 x2) | Precision-fit for tungsten stability | Minimizes vibration for cleaner welds |

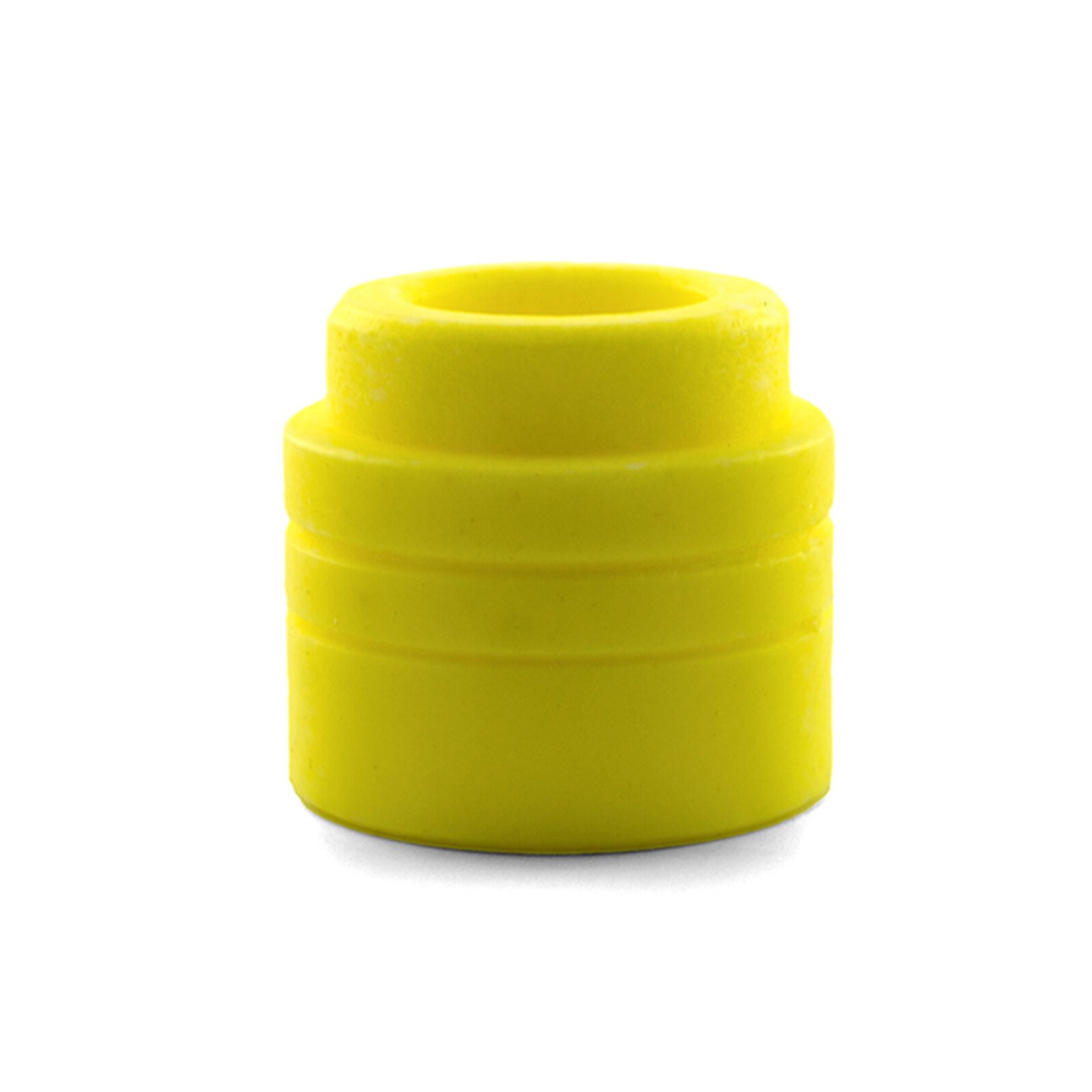

| Insulator (18CG01) | Heat-resistant design | Protects torch components during extended use |
| #4 Cups (54N18 x2) | Standard size for versatile applications | Ideal for tight spaces and detailed work |

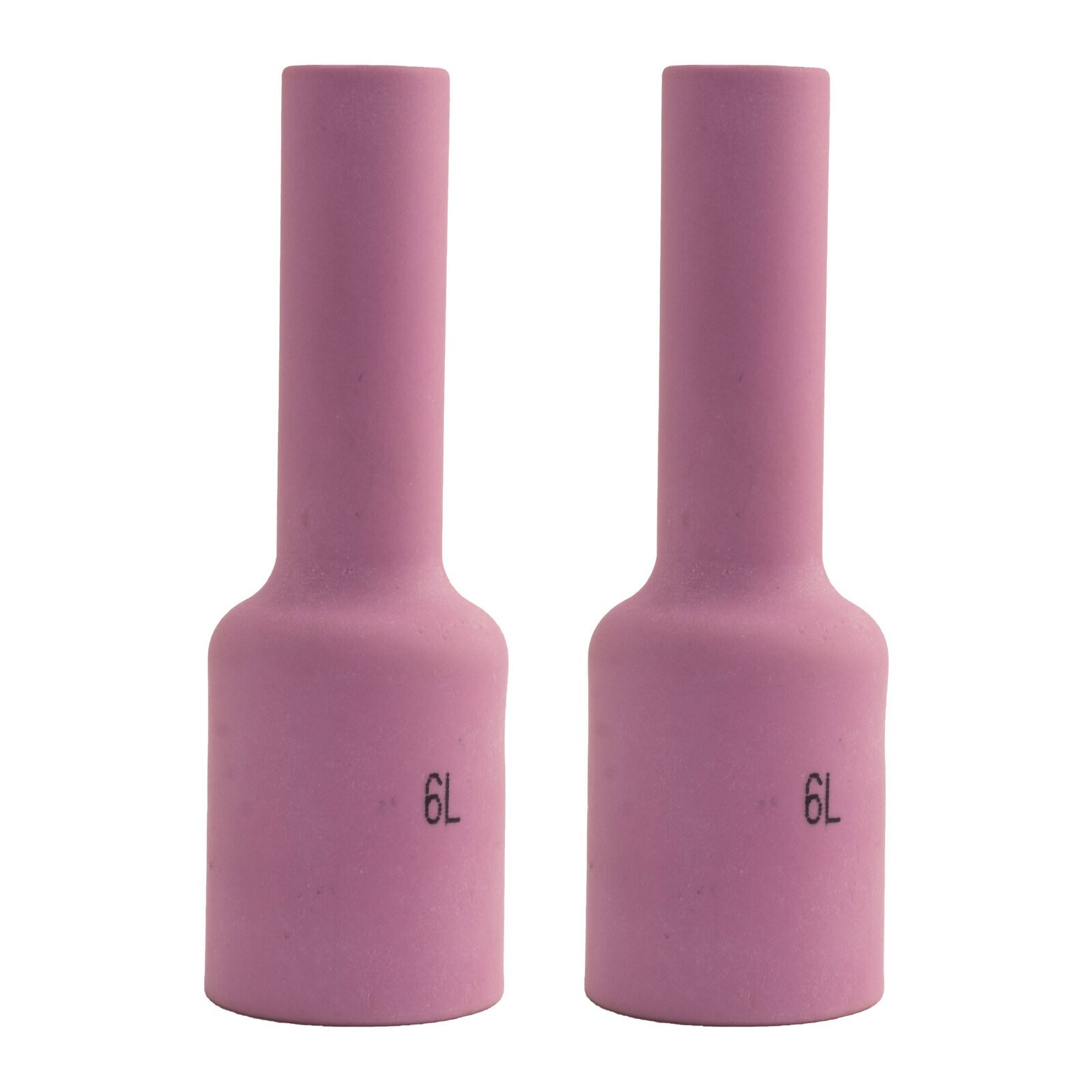

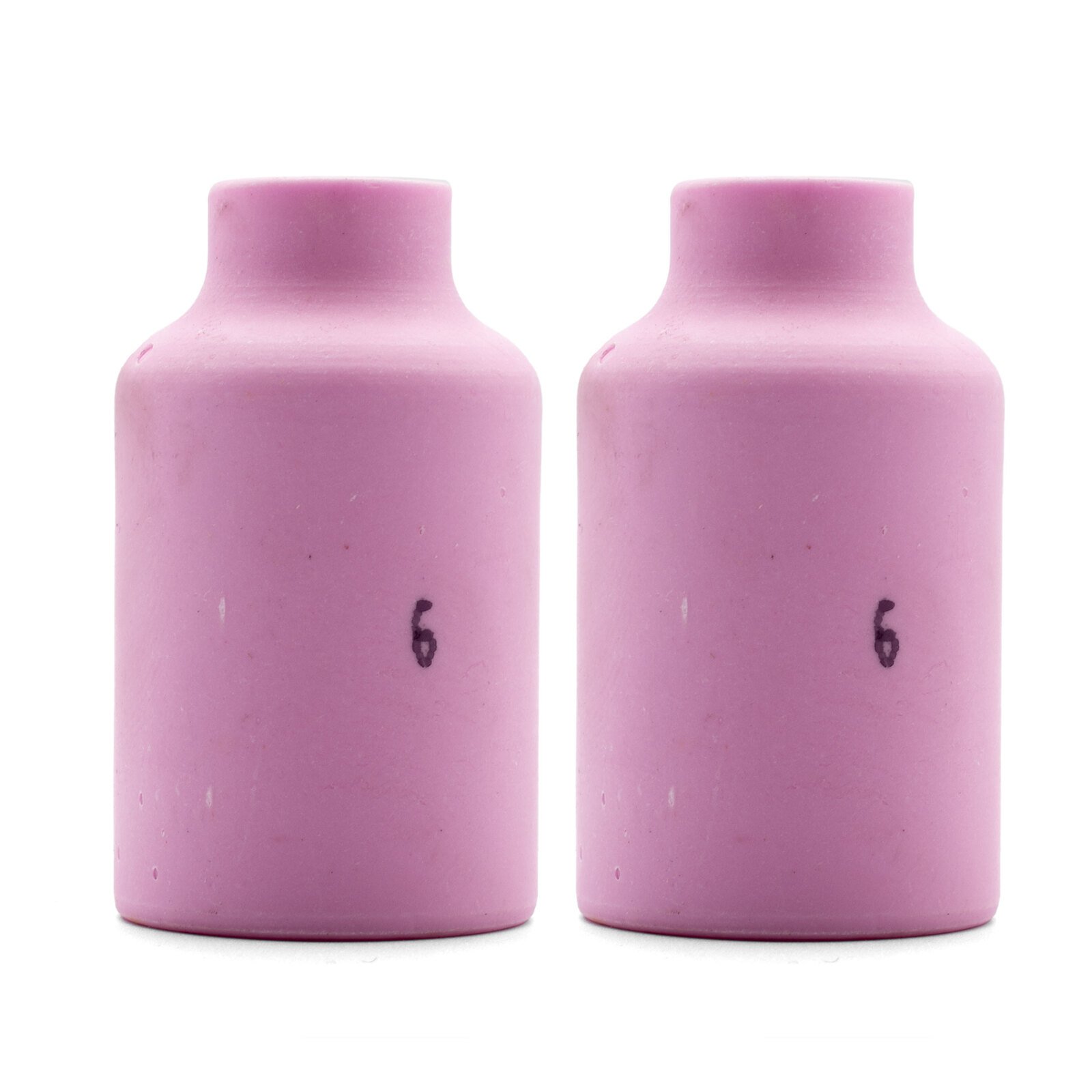

| #6 Cups (54N16 x2 + 54N16L x2) | Regular and long-length options | Extended reach for deep joint access |
| #8 Cups (54N14 x2) | Large diameter for wide coverage | Enhanced shielding for high-amperage welding |
Key Specifications
- Compatibility: WP17, WP18, WP26 TIG torches
- Tungsten Size: 3.2mm (1/8″)
- Thread Sizes: 3/8″ UNF (lower), 9/16″ UNF (upper)
- Material: Premium copper (higher quality than OEM)
- Mesh Design: Multi-layered screens for improved gas distribution
Performance Advantages
Experience 30% more gas efficiency compared to standard collet bodies! The advanced mesh design creates turbulence-free gas flow, eliminating contamination and ensuring crystal-clear weld pools. Perfect for stainless steel, aluminum, and exotic metal applications where precision matters most.
Why Choose Parweld?
- Additional mesh layers for 50% longer service life
- High-density screens prevent spatter buildup and clogging
- Drop-in replacement for seamless torch upgrade
- Backed by Hampdon Industrial’s 2-year warranty
Frequently Asked Questions
Q: Will this kit fit my SR-series torch?
A: Yes, compatible with both WP and SR 17/18/26 series torches.
Q: Can I use other tungsten sizes?
A: This kit is specifically designed for 3.2mm tungsten electrodes.
Q: How does this improve my weld quality?
A: Laminar gas flow reduces oxidation and porosity, resulting in cleaner, stronger welds.
Ready to transform your TIG welding results? Contact our technical team today for bulk pricing and compatibility guidance. Limited stock available – secure your kit now!
