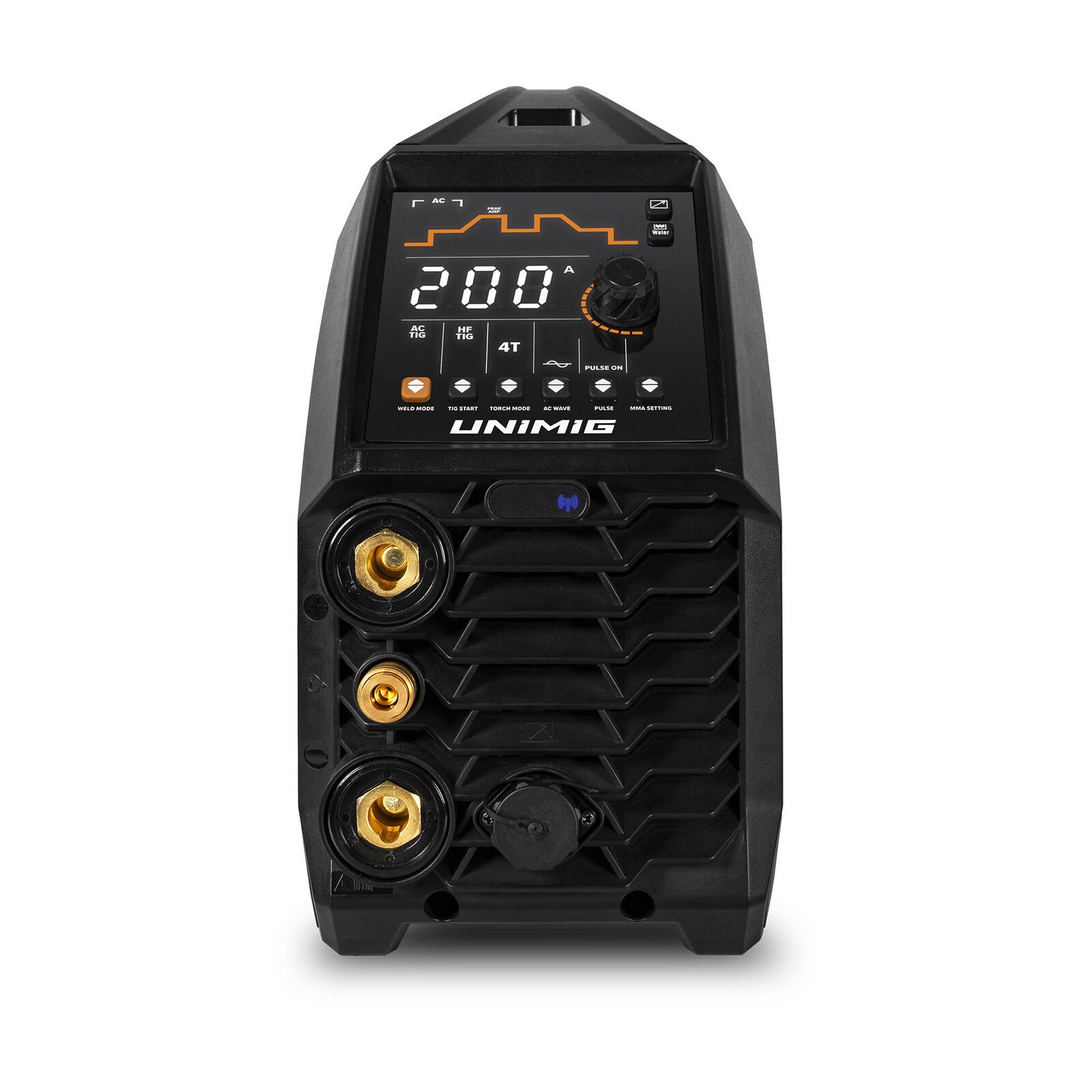

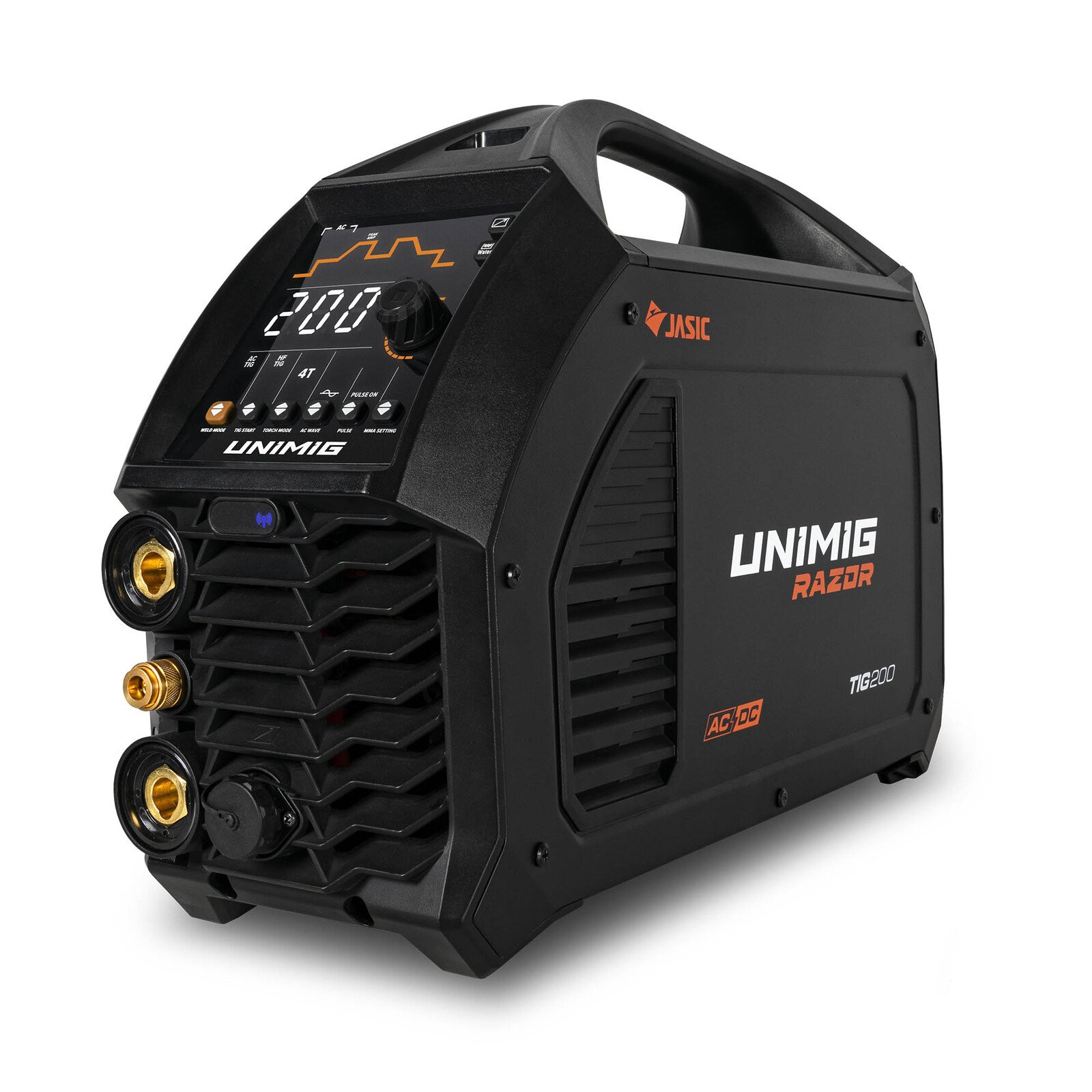

UNIMIG Razor U12002K 200A Pulse ACDC TIG Welder
$2,079.00
Product Introduction
The UNIMIG Razor Digital Pulse ACDC 200 Amp Inverter TIG Welder U12002K is a professional-grade unit offering full control over High Frequency AC/DC TIG welding. It features Pulse TIG functions, a portable 10 AMP plug, and comes with the ARC TORCHOLOGY T2 TIG Torch for enhanced performance. Ideal for various worksites, it supports external foot control and handles materials like Aluminium, Mild Steel, and Stainless Steel.
Key Specifications
| Input Voltage | 240V Single Phase |
| Rated Output | 5-200A |
| TIG Function | AC/DC HF TIG & Pulse |
| Weight | 11.7kg |
| Warranty | 5 Years |
UNIMIG Razor Digital Pulse ACDC 200 Amp Inverter TIG Welder U12002K – Professional-Grade Welding Precision
Core Specifications
| Input Voltage | 240V Single Phase (10 AMP Plug) |
| Welding Current Range | TIG: 5-200A | MMA: 20-160A |
| Technology | 43KHz Inverter + AC/DC HF TIG/Pulse |
| Duty Cycle (40¡ãC) | 20%@200A | 60%@115A | 100%@90A (TIG) |
| AC Balance Control | Adjustable + Square Wave (20-250Hz) |
| Pulse Function | 0.2-200Hz Frequency | 10-90% Width |
| Torch | ARC TORCHOLOGY T2 (30% Better Power-to-Weight Ratio) |
| Suitable Materials | Aluminium, Steel, Stainless Steel, Titanium & More |
| Dimensions | 500¡Á170¡Á340mm | Weight: 11.7kg |
| Warranty | 5-Year Nationally Recognised |
Why Choose the Razor 200 AC/DC?
Experience unmatched control with High Frequency TIG start¡ªno tungsten contamination. Pulse TIG minimizes distortion on thin materials, while adjustable parameters (Pre/Post Gas, Slope Times) ensure perfect welds. The lightweight T2 torch reduces fatigue, ideal for worksites.
Applications
Perfect for automotive, fabrication, and industrial projects. Weld 1-8mm thicknesses in TIG (Aluminium to Titanium) and 2-10mm in MMA (Steel/Cast Iron).
What’s Included

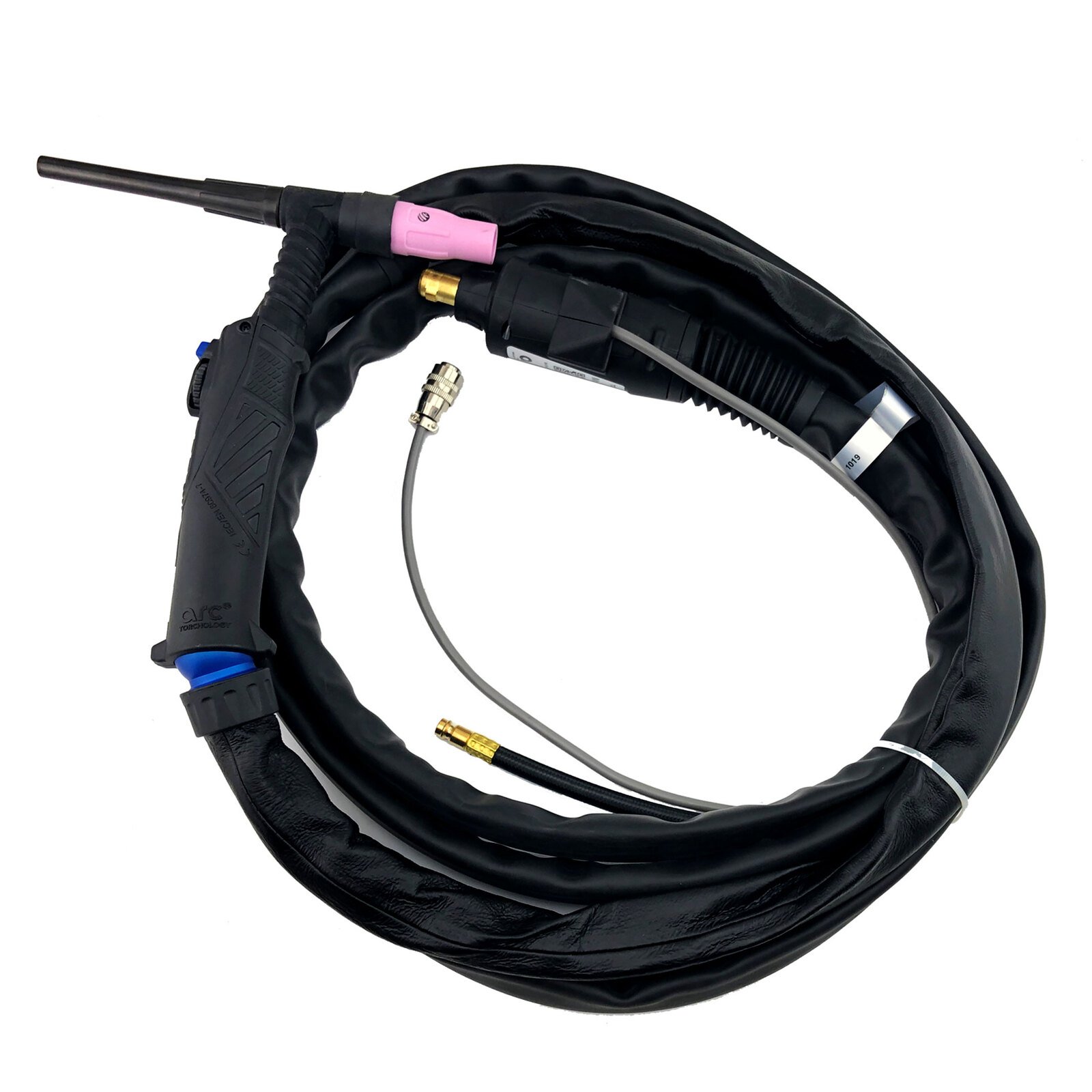

– 8m T2 TIG Torch
– 4m Electrode Holder & Earth Clamp
– Argon Flowmeter Regulator + 1.8m Gas Hose
– Operating Manual
FAQs
– Q: Does it support foot control?
A: Yes, compatible with UNIMIG remote foot control (sold separately).
– Q: Generator requirement?
A: Minimum 8.0kVA generator.
– Q: Best for thin materials?
A: Pulse TIG function excels on 1-3mm gauge metals.
Ready to Elevate Your Welding?
Contact us now for bulk pricing or technical support. Unlock professional results with UNIMIG’s trusted performance.
