UNIMIG Razor Plasma Cut 45 Filter Combo U14006K
$1,799.00
Product Introduction

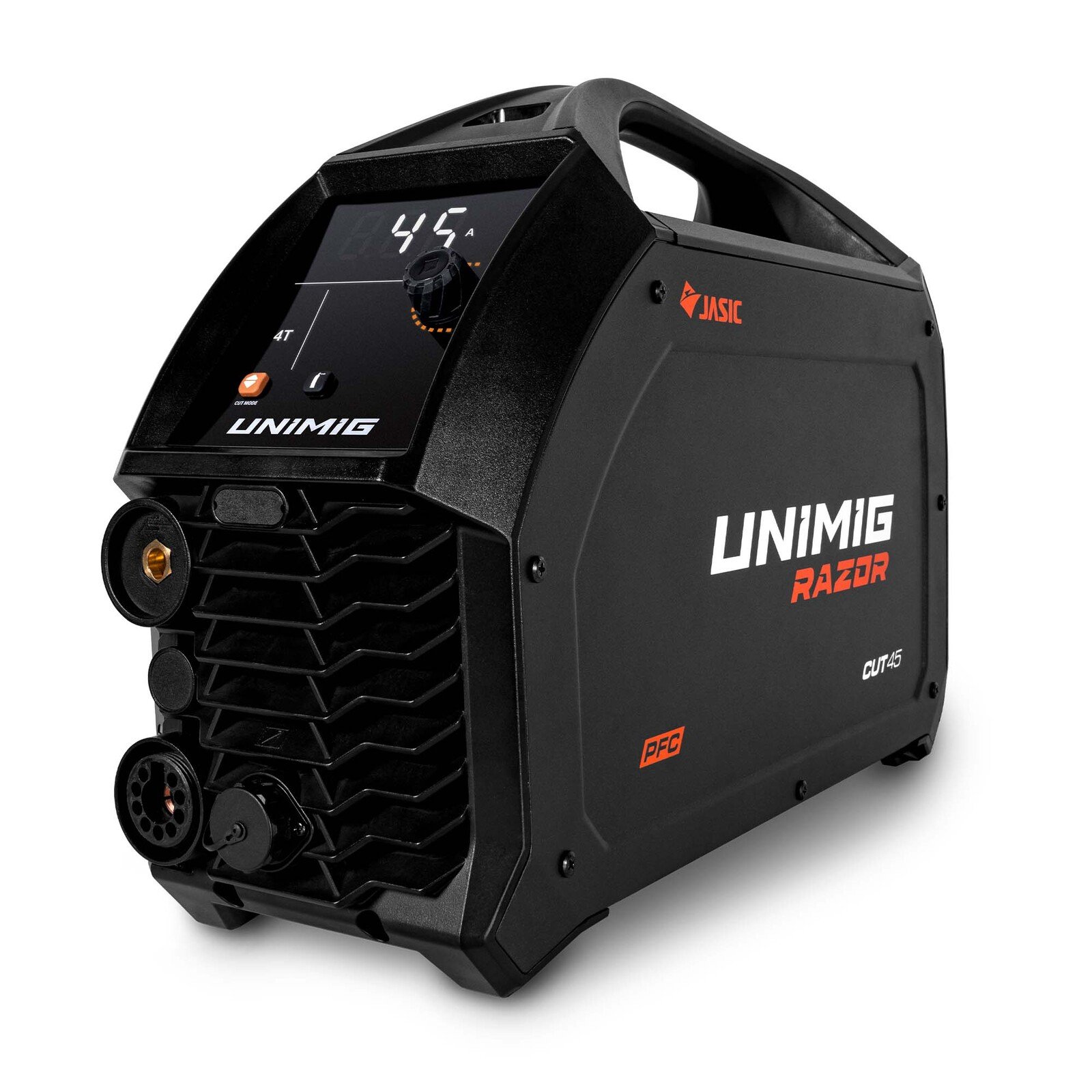

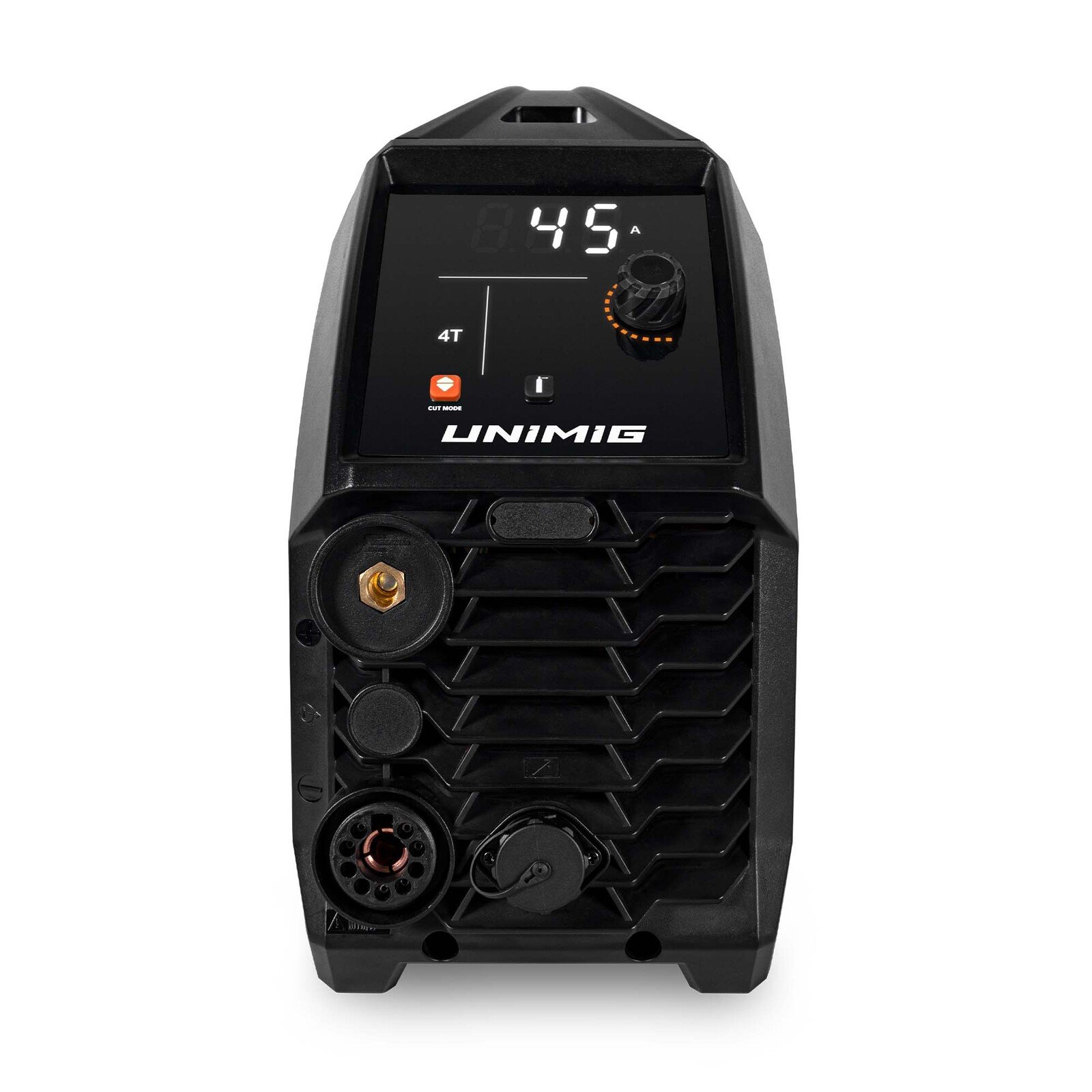

The UNIMIG Razor Inverter Plasma Cut 45 & Filter Combo (U14006K) includes a 45A inverter plasma cutter with IGBT technology and an AT1000 air filter. It cuts steel up to 16mm, stainless steel/aluminium up to 8mm, and features a high-quality SC80 torch for precise, efficient cutting in fabrication, automotive, and industrial applications.
Key Specifications
| Input Voltage | 240V Single Phase |
| Current Range | 20-45A |
| Mild Steel Cut Thickness | 16mm |
| Air Pressure | 5.17 Bar (75 psi) |
| Weight | 10kg |
UNIMIG Razor Inverter Plasma Cut 45 & Filter Combo – U14006K: Precision Cutting Power with Clean Air Assurance
Experience professional-grade plasma cutting with the UNIMIG Razor Cut 45 & AT1000 Filter Combo. This all-in-one kit combines a high-performance inverter plasma cutter with an advanced air filter, ensuring clean, dry air for flawless cuts and extended machine life. Whether you’re a metal fabricator, automotive technician, or DIY enthusiast, this combo delivers the power, portability, and reliability to tackle any project.
Core Specifications
| Feature | Specification |
|---|---|
| Cutting Capacity (Mild Steel) | 16mm (Cut), 25mm (Severance) |
| Current Range | 20-45A |
| Input Voltage | 240V Single Phase (15A Plug) |
| IGBT Inverter Technology | Latest Efficient Design |
| Air Filter Filtration | 0.01 Micron (AT1000 Filter) |
| Torch Type | SureGrip SC80 with Euro Connection |
| Duty Cycle (40¡ãC) | 25% @45A, 60% @30A, 100% @20A |
| Weight | 10kg (Compact & Portable) |
| Warranty | 5 Years (National Coverage) |
| Material Compatibility | Steel, Stainless Steel, Aluminum, Copper, Brass |
Key Features & Benefits
- Advanced IGBT Technology: Delivers stable power for fast, precise cuts on all conductive metals.
- AT1000 Air Filter: Removes 0.01-micron contaminants, preventing torch clogs and short circuits.

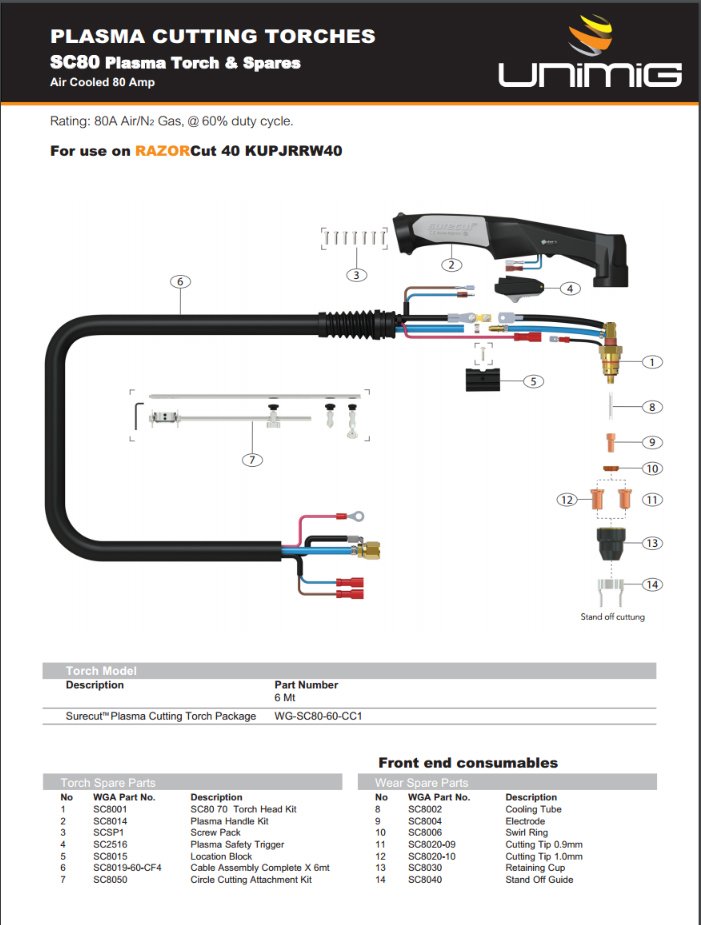

- SureGrip SC80 Torch: Euro connection ensures easy start-up and longer consumable life.
- Portable Design: Lightweight (10kg) and compact for job site mobility.
- Industrial-Grade Durability: Metal housing with IP23S protection for harsh environments.
Applications
Ideal for sheet metal fabrication, automotive repair, ducting work, site maintenance, and light industrial use. Cuts through steel, stainless steel, aluminum, and more with minimal effort.
Why Choose This Combo?
Unlike basic plasma cutters, this kit includes the AT1000 filter to protect your investment by ensuring clean air supply¡ªcritical for plasma cutting performance. Backed by UNIMIG¡¯s 5-year warranty, it¡¯s a trusted solution for professionals seeking reliability and precision.
FAQ
Q: What materials can the Razor Cut 45 cut?
A: All electrically conductive materials, including steel, stainless steel, aluminum, copper, and brass.
Q: Is the air filter easy to maintain?
A: Yes, it uses replaceable paper roll filters for simple upkeep.
Q: What generator size is required?
A: Minimum 8kVA generator for stable operation.
Ready to elevate your cutting game? Contact us today for pricing and availability. Experience the UNIMIG difference in quality and performance!
