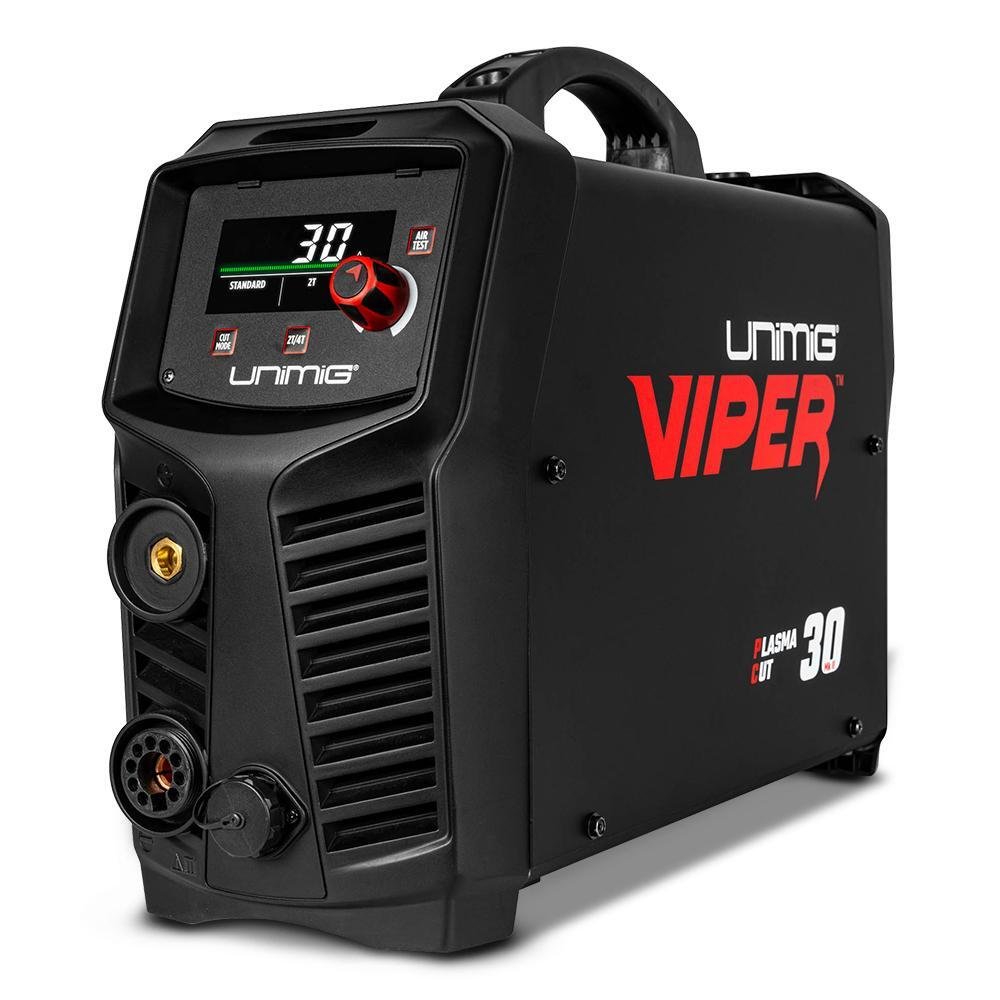

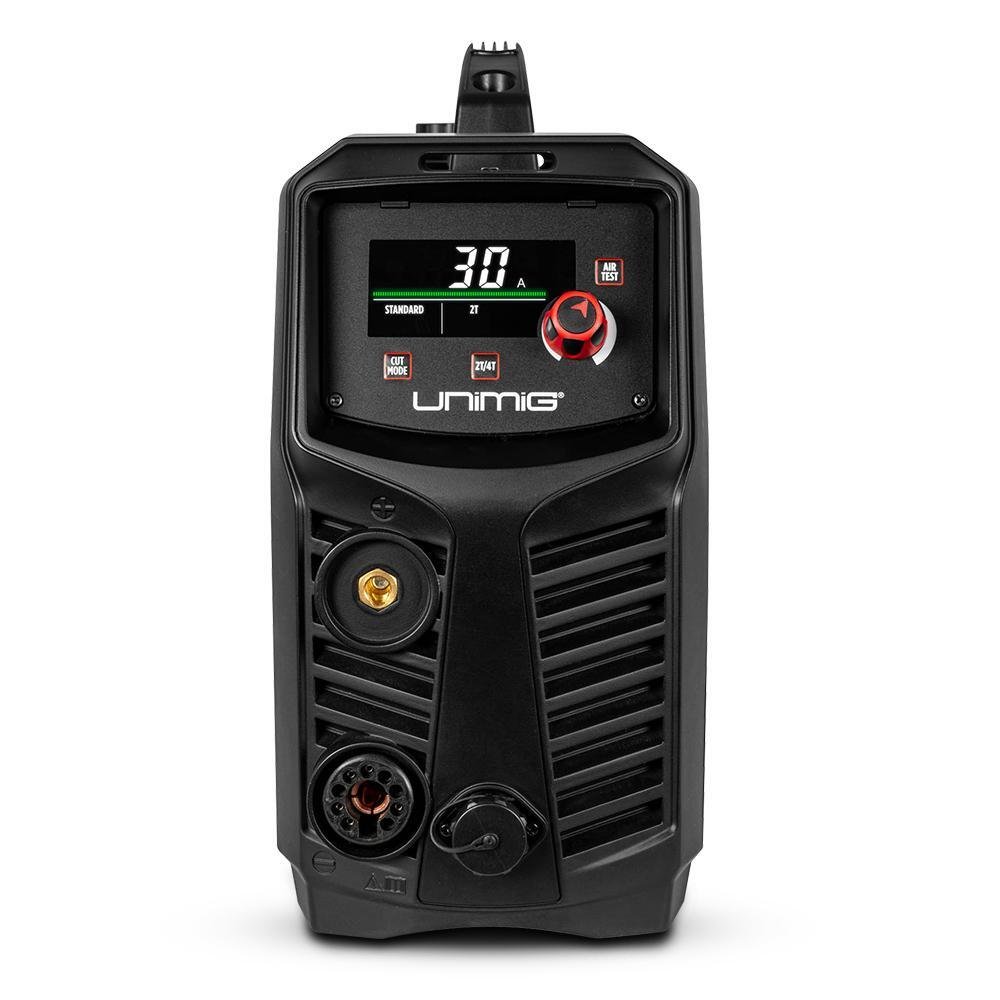

UNIMIG Viper Cut 30 MKII Plasma Cutter U14005K
$779.00
Product Introduction
Designed for DIY enthusiasts, the UNIMIG Viper Inverter Cut 30 MKII Plasma Cutter delivers clean cuts up to 12mm in Mild Steel with a 10A domestic plug. Features CNC connection capability, Pilot Arc Start, and includes a 4m torch, 3m earth clamp, air regulator, and manual. 24-month warranty included.
Key Specifications
| Input Voltage | 240V Single Phase |
| Mild Steel Cut Thickness | 12mm (14mm Severance) |
| Current Range | 20-30A |
| Air Pressure | 5-6 Bar (70-87 psi) |
| Weight | 8.5kg |
UNIMIG Viper Inverter Cut 30 MKII Plasma Cutter – U14005K: Professional-Grade Cutting for DIY Enthusiasts
Core Specifications
| Input Voltage | 240V Single Phase |
| Power Plug | 10AMP (Domestic Outlet Compatible) |
| Mild Steel Cut Thickness | 12mm Clean / 14mm Severance |
| Current Range | 20-30A |
| Duty Cycle (40¡ãC) | 15%@30A / 60%@23A / 100%@20A |
| CNC Capability | Yes (CNC Torch Compatible) |
| Arc Start | Pilot Arc (Non-Contact) |
| Air Pressure | 5-6 Bar (70-87 psi) |
| Dimensions | 534x166x343mm |
| Weight | 8.5kg |
What’s Included
- VIPER CUT 30 Mk II Plasma Cutter
- 4m SC30 Plasma Torch
- 3m 300A Earth Clamp
- Air Regulator
- Operating Manual
Key Performance Highlights
Designed for DIY enthusiasts, the Viper Cut 30 MKII eliminates the need for expensive 15A setups with its 10AMP domestic plug. Achieve precise 12mm clean cuts in mild steel and tackle aluminum/stainless steel up to 6mm. The pilot arc start ensures smooth ignition without workpiece contact, while CNC compatibility unlocks automated cutting possibilities.
Applications
Ideal for metal fabrication, automotive repair, artistic metalwork, and workshop projects. Cuts solid metal, mesh, and perforated sheets with consistent precision. Perfect for home garages and small businesses.
Quality & Warranty
Backed by a 24-month national warranty through UNIMIG dealers. Built with IP21S protection and Class F insulation for durability in tough environments.
Why Choose Viper Cut 30 MKII?
- 10AMP plug for easy domestic use
- CNC-ready for automated cutting
- Lightweight (8.5kg) for portability
- Superior duty cycle for extended use
FAQ
Q: What generator size is required?
A: Minimum 8.0kVA generator recommended.
Q: Can it cut stainless steel?
A: Yes, clean cuts up to 6mm (8mm severance).
Q: Is compressed air required?
A: Yes, 170L/min flow at 5-6 Bar pressure.
Ready to Upgrade Your Cutting Game?
Contact us today for bulk pricing, technical support, or distributor inquiries.
