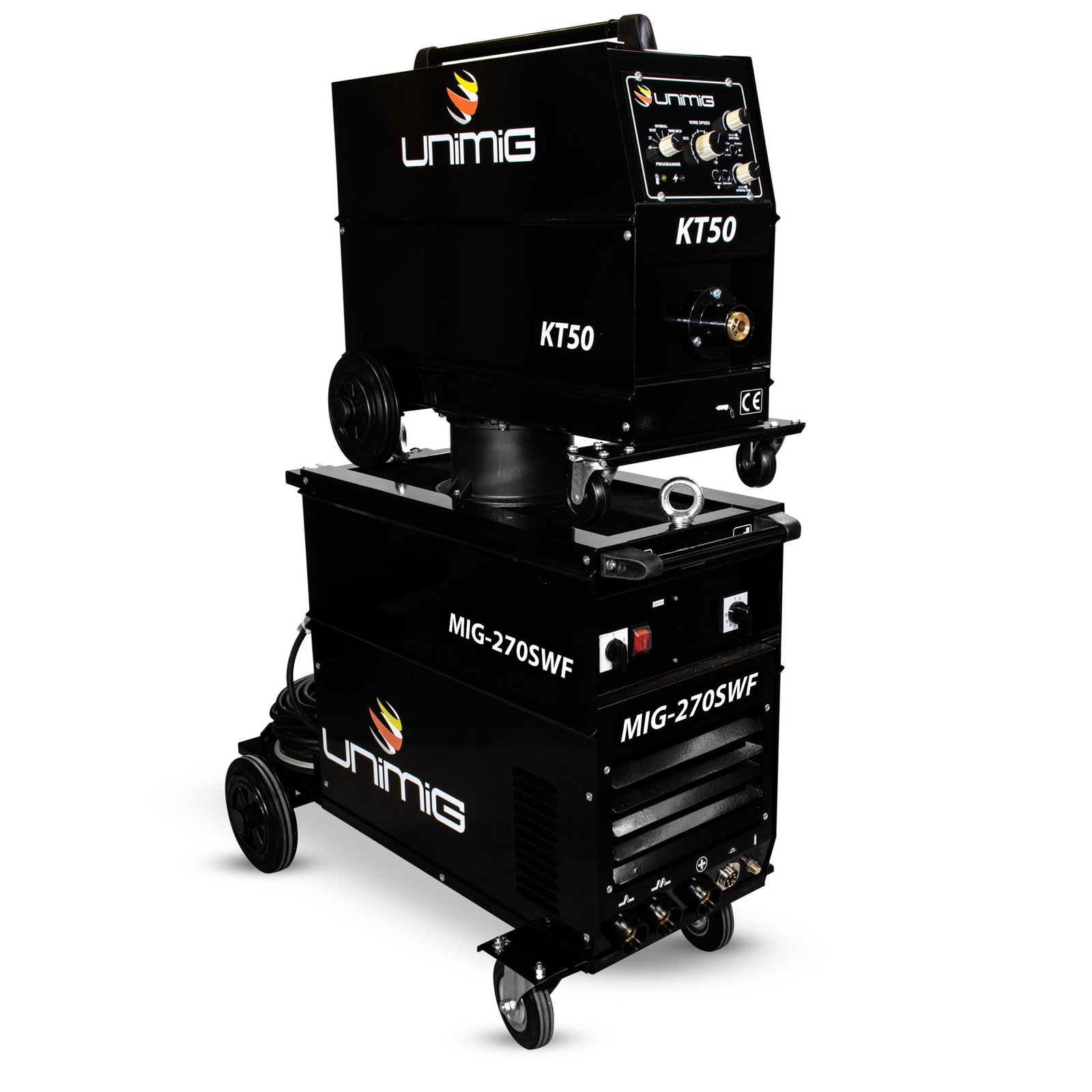

UNIMIG WORKSHOP 270 SWF MIG WELDER KUM270SWF
$5,179.00
Product Introduction
The UNIMIG WORKSHOP 270 SWF MIG WELDER – KUM270SWF combines power and smooth arc performance, ideal for medium to heavy fabrication and rural applications. It features precise 21-position settings, reliable wire feeding, and comes with a 10m separate wire feeder for enhanced maneuverability.
Key Specifications
| Input Voltage | 240V Single Phase |
| Output Current Range | 30-250A |
| MIG Duty Cycle @ 40¡ãC | 70% @ 250A |
| Wire Size Range | 0.6-1.2mm |
| Warranty | 3 Years |
UNIMIG WORKSHOP 270 SWF MIG WELDER – KUM270SWF
Core Specifications
| Part Number | KUM270SWF |
| Output Current Range | 30-250A |
| Duty Cycle (40¡ãC) | 70% @ 250A |
| Wire Size | 0.6-1.2mm |
| Input Voltage | 240V Single Phase |
| Wire Drive | Four Geared Roller System |
| SWF Cable Length | 10m |
| Weight | 139kg |
| Warranty | 3 Years |
| Suitable Materials | Mild Steel, Aluminium, Stainless Steel |
Product Features

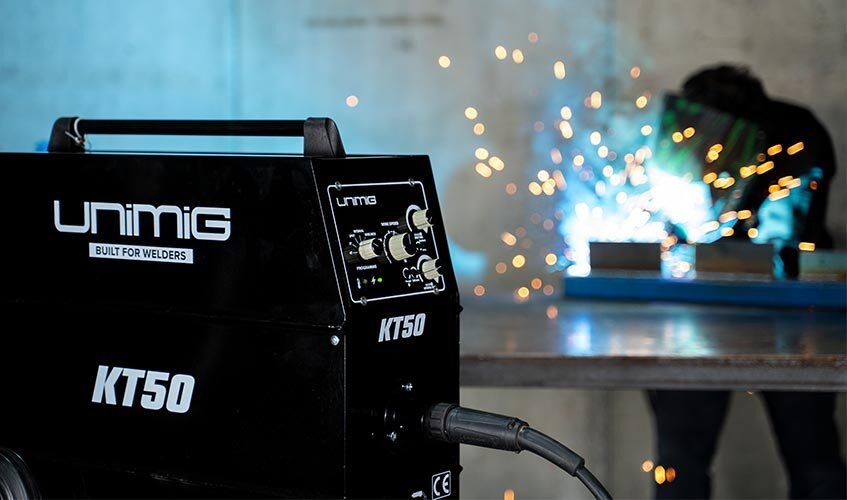

Engineered for medium to heavy fabrication, this welder delivers ultra-smooth arc performance with 21-position voltage adjustment for precise control. The copper-wound transformer and 250mm cooling fan ensure reliable operation even during extended use. Its four-geared roller drive guarantees consistent wire feeding, while the separate 10m KT50 wire feeder unit provides exceptional maneuverability in workshop environments.
Applications
Ideal for professional workshops, rural maintenance, and industrial fabrication. Capable of welding material thicknesses from 1-16mm, it handles mild steel, aluminium, and stainless steel with equal proficiency. Perfect for projects requiring frequent torch repositioning without machine relocation.
Included Accessories
- KT50 SWF Unit with 10m interconnecting cables
- 4m SB24 MIG Torch
- 300A Earth Clamp & Lead
- Twin Gauge Argon Regulator with 2m gas hose
- Operating Manual
Quality Assurance
Constructed with premium components including a smoothing choke and enclosed motor design. Backed by a 36-month nationwide warranty through UNIMIG dealers, ensuring long-term reliability and performance.
FAQ
Q: Does it require special power supply?
A: Requires 32AMP supply (plug not included)
Q: Can it use spool guns?
A: Yes, compatible with 48V drive spool guns (requires factory modification)
Q: What generator size is needed?
A: Minimum 13.0kVA generator required
Ready to elevate your welding capabilities? Contact us today for technical specifications or to request a quote tailored to your needs.
