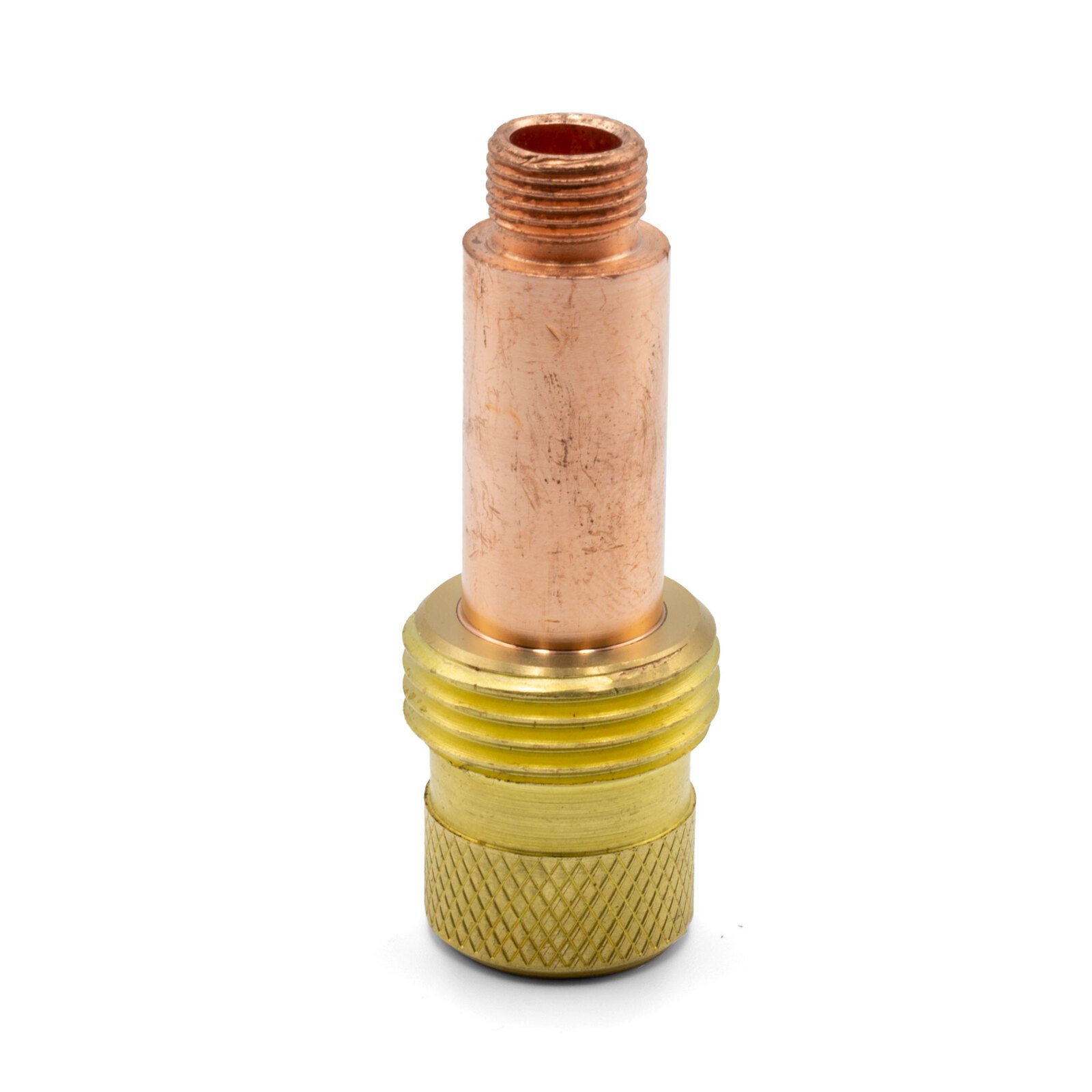

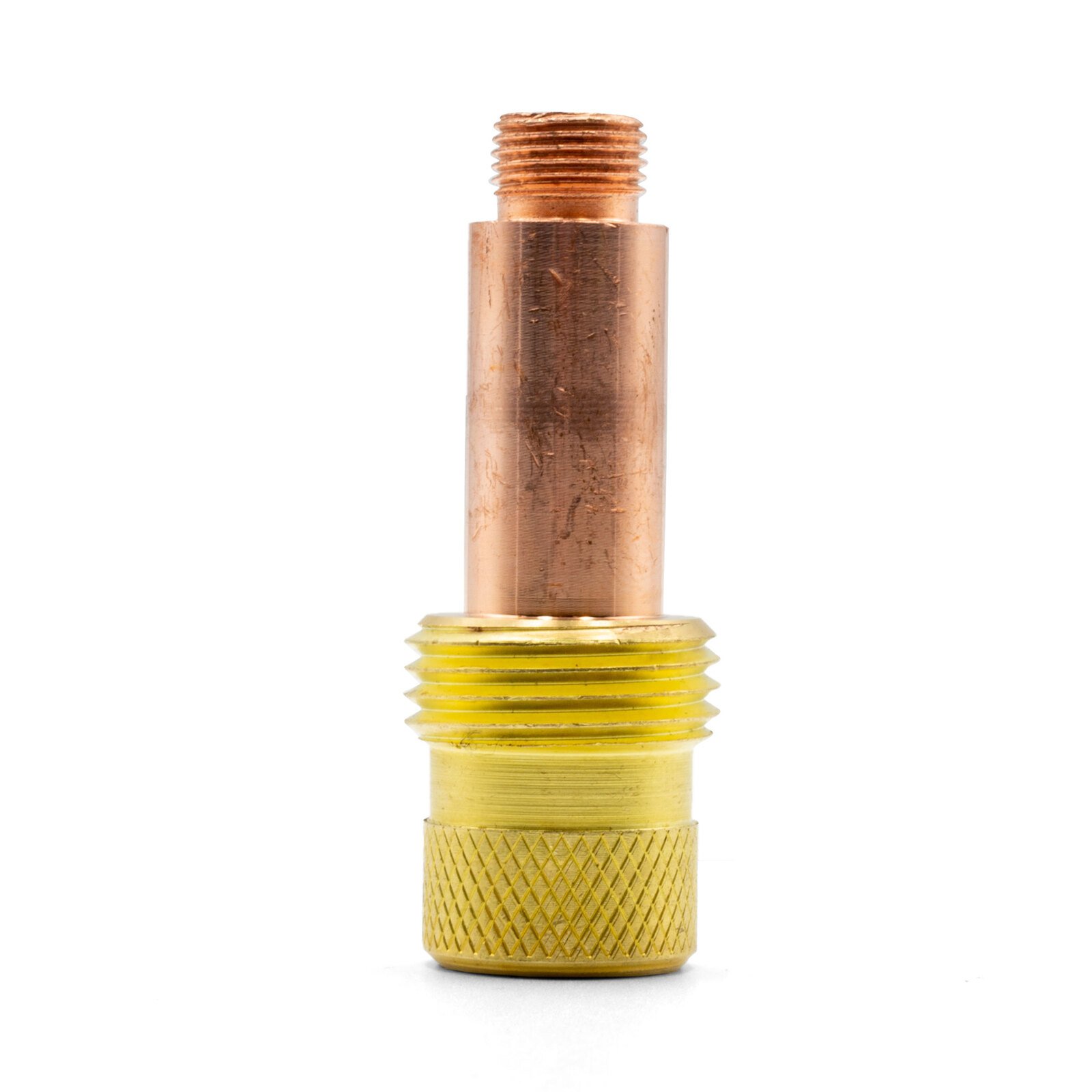

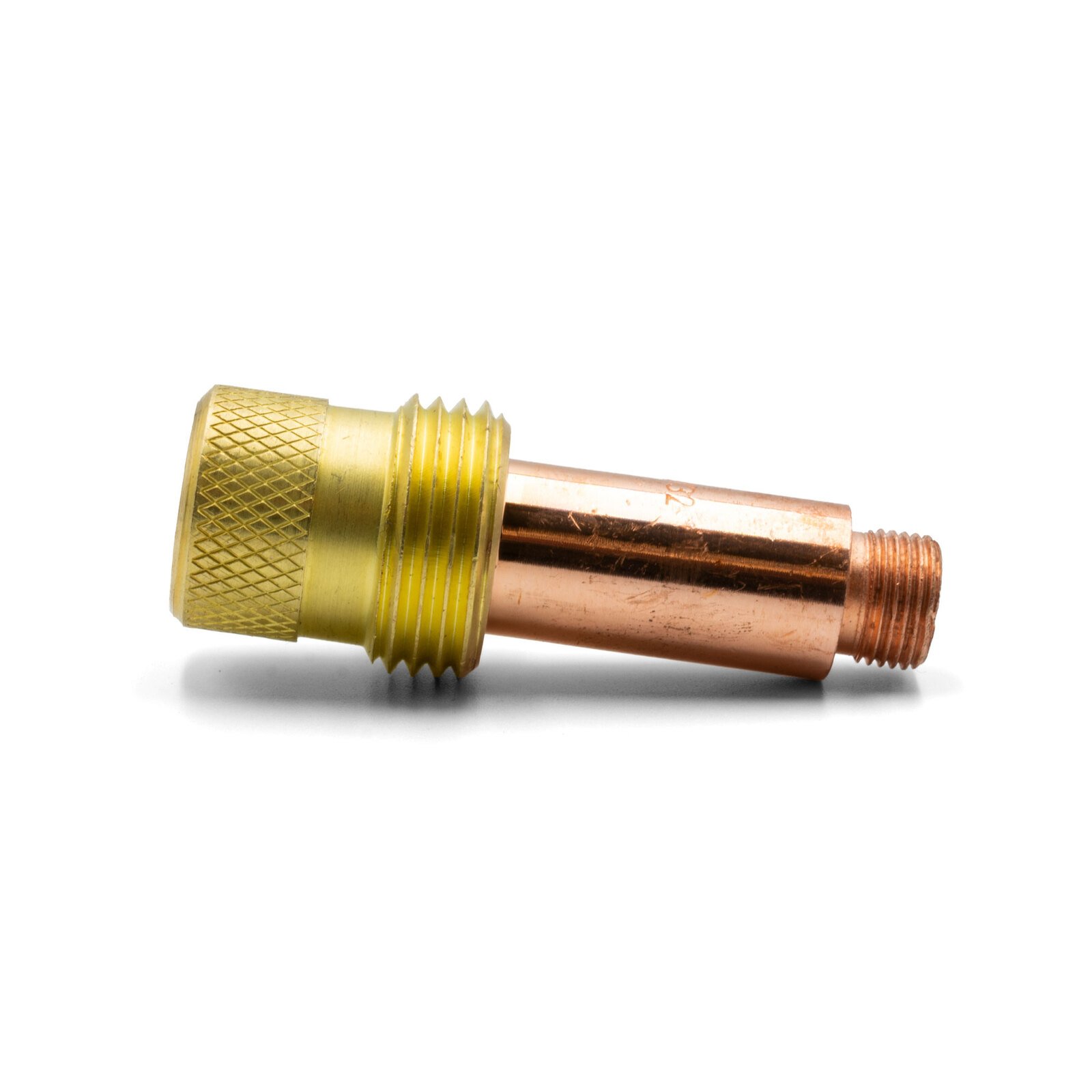

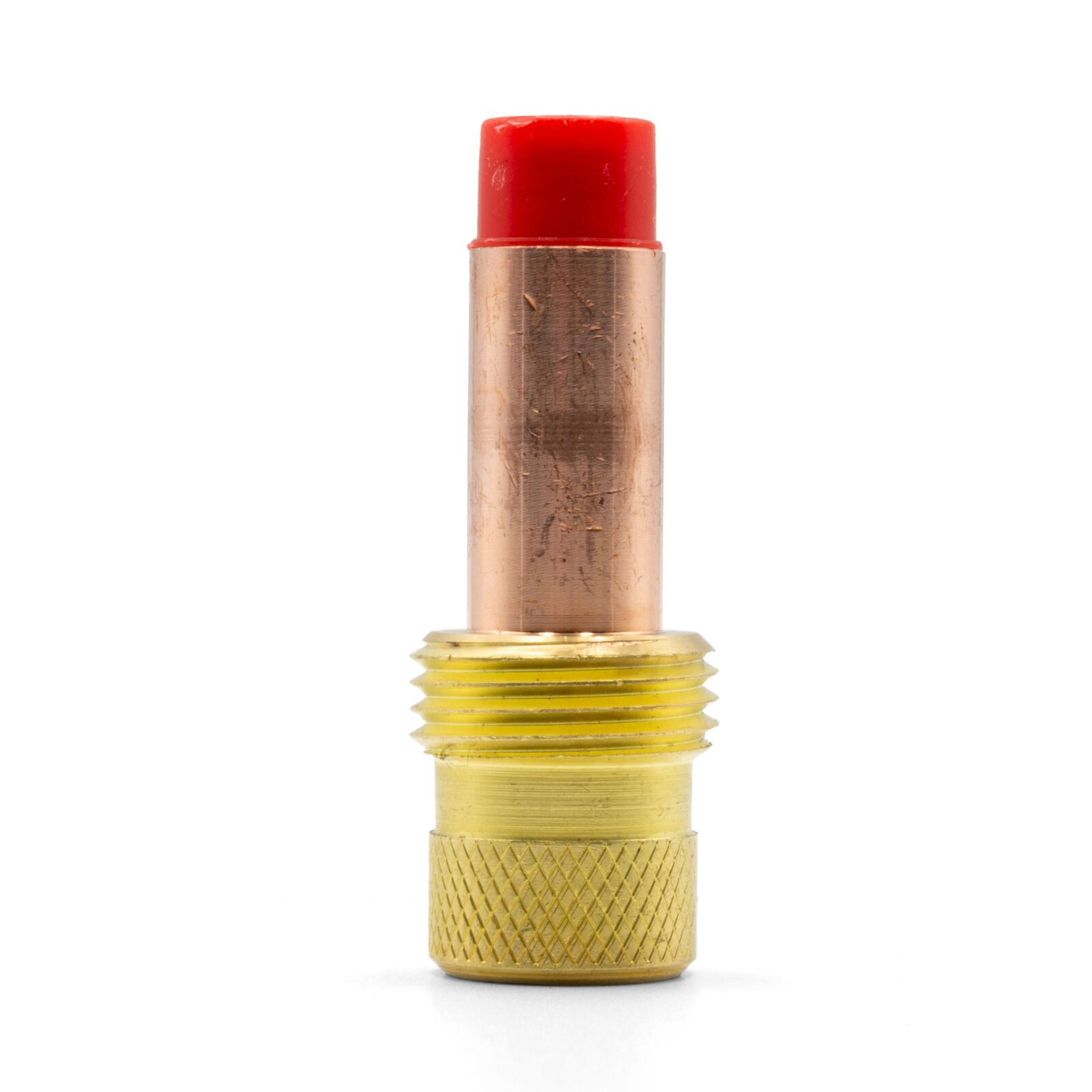

WP-17 18 26 TIG Gas Lens Collet Body 3.2mm
$19.99
Product Introduction
Hampdon Industrial TIG Gas Lens Collet Body, crafted from high-quality copper for 17/18/26 series TIG torches. Features additional mesh layers for extended durability and improved gas distribution, optimizing shield gas coverage to prevent contaminants, enhancing TIG welding performance.
Product Specifications
| Compatibility | 17 / 18 / 26 style torches (WP or SR) |
| Collet Size | 3.2mm |
| Length | 50mm |
| Cup Thread | 3/4″ UNF |
| Head Thread | 3/8″ UNEF |
WP-17/18/26 TIG Gas Lens Collet Body 3.2mm – Enhance Welding Precision & Durability
Upgrade your TIG welding setup with Hampdon Industrial’s premium Gas Lens Collet Body¡ªengineered for 17/18/26 series torches. Crafted from high-quality copper, this essential accessory delivers superior gas distribution and extended tool life, ensuring cleaner welds and reduced downtime. Perfect for professionals seeking consistent, high-performance results.
Core Specifications
| Compatibility | WP-17, WP-18, WP-26, SR Series TIG Torches |
| Collet Size | 3.2mm |
| Material | High-Quality Copper |
| Length | 50mm |
| Cup Thread | 3/4″ UNF |
| Head Thread | 3/8″ UNEF |
| Mesh Layers | Enhanced Multi-Layer Design |
| Part Number | UNIMIG P45V27 |
| Package | 1 Each |
| Price | Per Body |
Why Choose Our Gas Lens Collet Body?
- Optimized Gas Flow: Concentric mesh layers ensure even shield gas distribution, eliminating turbulence and contaminants.
- Extended Durability: Reinforced copper construction resists heat and wear, outlasting standard collet bodies.
- Clog Prevention: Fine mesh filters foreign materials, maintaining consistent performance.
- Superior Weld Quality: Reduces spatter and oxidation for cleaner, more precise welds.
Applications
Ideal for automotive, aerospace, and industrial TIG welding projects. Compatible with 3.2mm electrodes, it excels in stainless steel, aluminum, and exotic metal applications where precision is critical.
Performance You Can Trust
Our gas lens design minimizes gas waste while maximizing coverage, allowing longer welding arcs and better bead control. Professionals report reduced post-weld cleanup and improved arc stability¡ªsaving time and material costs.
Quality Assurance
Manufactured to strict industry standards, each unit undergoes rigorous testing to ensure consistent performance. Backed by Hampdon Industrial’s reputation for reliability in welding accessories.
FAQ
Q: Will this fit my WP-18 torch?
A: Yes, it¡¯s compatible with all 17/18/26 series WP and SR torches.
Q: How does it improve gas distribution?
A: Multi-layer mesh creates laminar flow, preventing air intake and ensuring uniform shielding.
Q: Can I use it with other collet sizes?
A: Designed specifically for 3.2mm collets; check our range for other sizes.
Ready to elevate your welding results? Contact us today for bulk pricing or technical support!
